6.6 Camera rigging and mounting
8 min read•august 20, 2024
Camera rigging and mounting are crucial aspects of cinematography, providing stability, mobility, and creative possibilities for capturing compelling shots. From tripods and dollies to gimbals and drones, various support systems enable cinematographers to achieve their vision while ensuring safety and efficiency on set.
Proper techniques for mounting cameras, balancing equipment, and customizing rigs are essential skills for cinematographers. Understanding these methods allows for innovative solutions to unique shooting challenges, while prioritizing safety and maintaining equipment longevity through regular maintenance and troubleshooting.
Camera support systems
- Camera support systems are essential tools in cinematography that provide stability, mobility, and versatility to capture various shots and angles
- Choosing the right support system depends on factors such as camera weight, desired movement, shooting location, and budget
- Proper use and setup of camera support systems ensure smooth, professional-looking footage and prevent accidents or equipment damage
Tripods and monopods
Top images from around the web for Tripods and monopods
File:Woking tripod.JPG - Wikipedia View original
Is this image relevant?

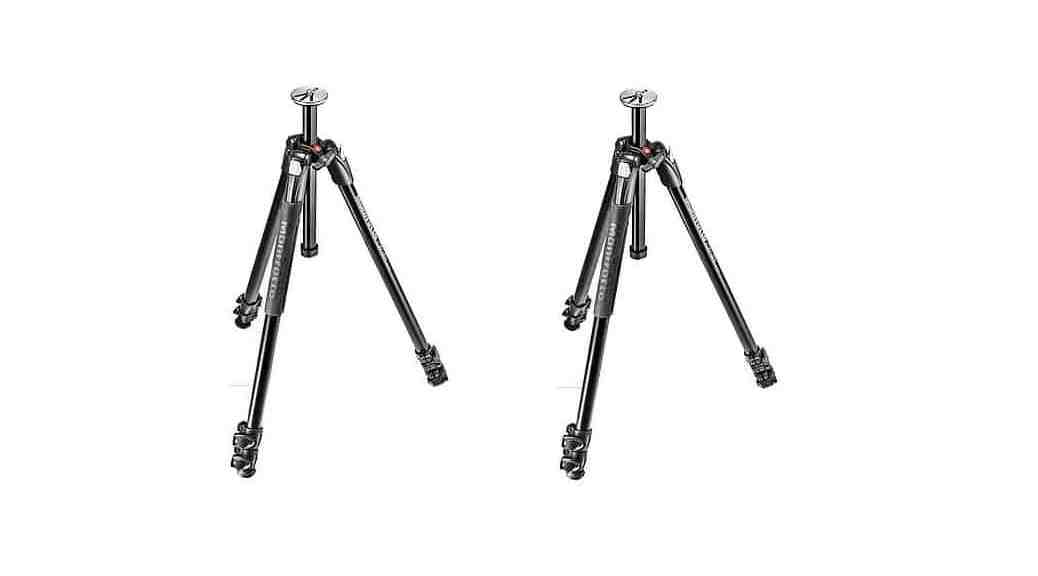

Manfrotto revela su nueva colección de trípodes, kits y monopods 290 View original
Is this image relevant?
Cinematography - Wikipedia View original
Is this image relevant?
File:Woking tripod.JPG - Wikipedia View original
Is this image relevant?
Manfrotto revela su nueva colección de trípodes, kits y monopods 290 View original
Is this image relevant?
1 of 3
Top images from around the web for Tripods and monopods
File:Woking tripod.JPG - Wikipedia View original
Is this image relevant?
Manfrotto revela su nueva colección de trípodes, kits y monopods 290 View original
Is this image relevant?
Cinematography - Wikipedia View original
Is this image relevant?
File:Woking tripod.JPG - Wikipedia View original
Is this image relevant?
Manfrotto revela su nueva colección de trípodes, kits y monopods 290 View original
Is this image relevant?
1 of 3
- Tripods provide a stable base for static shots and can be adjusted for height and leveling (ball heads, fluid heads)
- Monopods offer more mobility than tripods while still providing some stability, useful for quick setups or tight spaces
- Factors to consider when selecting tripods and monopods include , material (aluminum, carbon fiber), and available features (spreader, leg locks)
Dollies and sliders
- Dollies allow smooth, controlled camera movements on a flat surface, often used for tracking shots or revealing scenes
- provide linear camera motion, useful for adding depth or parallax to shots (table-top sliders, full-size sliders)
- and slider setups can be enhanced with for precise, repeatable movements
Cranes and jibs
- Cranes and jibs enable high, sweeping camera movements and can add production value to shots (establishing shots, revealing scenes)
- Jib arms come in various lengths and can be operated manually or with remote controls
- Larger cranes require specialized operators and may need additional rigging or support (track systems, vehicles)
Gimbals and stabilizers
- Gimbals and stabilizers help achieve smooth, handheld camera movements by isolating the camera from the operator's movements (, Steadicams)
- These tools can be used for tracking shots, walk-and-talk scenes, or dynamic action sequences
- Proper balancing and operating techniques are crucial for achieving the desired results
Drones for aerial shots
- Drones have revolutionized aerial cinematography, offering a cost-effective and accessible way to capture stunning overhead shots
- Drone cameras can be controlled remotely and offer features like GPS stabilization, obstacle avoidance, and automated flight paths
- Regulations and safety guidelines must be followed when operating drones, and proper training is essential
Camera mounting techniques
- Secure and efficient camera mounting is crucial for achieving desired shots, ensuring camera stability, and protecting equipment
- Various mounting techniques are used depending on the camera setup, shooting situation, and creative intent
- Understanding the strengths and limitations of each mounting method allows cinematographers to make informed decisions on set
Mounting plates and adapters
- provide a standard interface for attaching cameras to support systems (tripod plates, cheese plates)
- allow compatibility between different camera models and support equipment (rod clamps, magic arms)
- Quick release plates enable fast and easy camera attachment and removal
Quick release systems
- streamline camera setup and breakdown, saving time on set (Manfrotto RC2, Arca-Swiss)
- These systems consist of a base plate attached to the camera and a corresponding receiver on the support equipment
- Quick release mechanisms should be reliable, secure, and easy to operate
Vibration isolation and dampening
- and dampening techniques minimize camera shake and unwanted movement, resulting in smoother footage
- and can be used between the camera and support system (rubber dampeners, spring systems)
- Lens stabilization and in-camera stabilization can further reduce vibration
Proper balance and weight distribution
- Balancing the camera and accessories on the support system is essential for stable shots and reducing strain on the equipment
- Proper ensures smooth pan and tilt movements and prevents tipping or sagging
- and adjustment plates can be used to fine-tune
Rigging for specific shots
- Specialized rigging setups are often necessary to achieve unique camera angles, movements, or perspectives
- Rigging for specific shots requires careful planning, safety considerations, and collaboration with other departments (stunts, special effects)
- Creative rigging solutions can add production value and enhance visual storytelling
Car mounts for vehicle shots
- enable dynamic, stable camera shots of moving vehicles, both interior and exterior (hood mounts, side mounts, hostess trays)
- Rigging for car shots must be secure and able to withstand high speeds and vibrations
- Filming permits and safety protocols are essential when shooting on public roads
Body rigs for POV shots
- allow the camera to be attached to an actor's body, capturing immersive point-of-view shots (helmet cams, chest rigs)
- These rigs must be comfortable for the actor to wear and not impede their performance
- Wireless video transmission systems can be used to monitor POV shots remotely
Underwater housings and mounts
- protect cameras and allow for submerged shooting in pools, tanks, or open water
- Specialized mounts and rigging are necessary for stability and maneuverability underwater (tripods, camera booms)
- Safety measures and proper training are crucial when working with underwater setups
Mounting cameras on set elements
- Cameras can be mounted on various set elements to capture unique angles or hide the camera from view (furniture, walls, props)
- Rigging cameras on set requires collaboration with the art department and consideration of actor and crew safety
- Wireless camera control systems can be used to operate cameras mounted in hard-to-reach places
Safety considerations
- Safety is paramount when working with camera rigging and support systems, as improper use can lead to accidents, injuries, and equipment damage
- All crew members should be trained in safe rigging practices and follow established safety protocols
- Regular safety inspections and open communication among crew members help prevent accidents on set
Securing cameras and equipment
- Cameras and accessories must be securely attached to support systems and rigging to prevent falling or detaching during use
- Safety cables and redundant mounting points should be used in case of primary attachment failure
- Proper knots, ties, and rigging techniques must be used to ensure secure connections
Load capacity and weight limits
- Each support system and rigging setup has specific load capacities and weight limits that must be adhered to
- Overloading equipment can lead to failure, accidents, and damage to expensive gear
- The combined weight of the camera, lenses, accessories, and any additional rigging must be calculated and kept within limits
Crew communication and coordination
- Clear communication and coordination among crew members are essential for safe and efficient rigging setups
- The camera department should work closely with other departments (grip, electric, stunts) to plan and execute complex rigging
- A designated rigging safety supervisor can oversee the setup and ensure all safety protocols are followed
Redundancy and backup systems
- Redundant safety measures and should be in place to mitigate risks and prevent accidents
- Examples include secondary safety cables, backup power supplies, and spare equipment on hand
- Crew members should be trained in emergency procedures and have access to necessary safety gear (harnesses, helmets)
Customization and DIY solutions
- Cinematographers often need to customize or create DIY rigging solutions to achieve specific shots or work within budget constraints
- Modifying existing equipment and building custom rigs allows for greater flexibility and creativity on set
- Safety and proper testing must be prioritized when working with customized or DIY setups
Modifying existing equipment
- Existing camera support systems can be modified to suit specific needs or to work with unconventional setups
- Examples include adding extensions to tripod legs, creating custom camera plates, or adapting non-film equipment for use
- Modifications should be done carefully and tested thoroughly to ensure safety and functionality
Building custom rigs and mounts
- Custom rigs and mounts can be built from scratch using materials like aluminum extrusion, PVC pipes, and metal fabrication
- These setups can be tailored to specific shots or environments and may be more cost-effective than purchasing specialized equipment
- Proper design, construction, and testing are crucial for safe and reliable operation
3D printing for camera accessories
- technology allows for rapid prototyping and creation of custom camera accessories (lens gears, , matte boxes)
- 3D printed parts can be lightweight, cost-effective, and easily replaceable
- The strength and durability of 3D printed components must be considered, especially for load-bearing applications
Repurposing non-film equipment
- Non-film equipment can be repurposed for camera rigging, often providing cost-effective and creative solutions (automotive parts, industrial equipment)
- Examples include using car mounts for vehicle shots, adapting surveying equipment for precision camera moves, or using construction cranes for high-angle shots
- Safety considerations and proper testing are essential when repurposing non-film equipment
Maintenance and troubleshooting
- Regular maintenance and troubleshooting of camera support systems and rigging are essential for ensuring reliable performance and longevity
- Proper care and storage of equipment can prevent damage and minimize downtime on set
- Identifying and addressing issues early can save time and money in the long run
Regular cleaning and inspection
- Camera support systems and rigging should be cleaned and inspected regularly to maintain optimal performance
- Cleaning involves removing dirt, dust, and debris from surfaces, moving parts, and attachment points
- Inspection includes checking for wear, damage, loose components, and proper functionality
Identifying wear and damage
- Regularly inspect equipment for signs of wear and damage, such as frayed cables, bent or cracked parts, or loose fasteners
- Pay attention to high-stress areas and moving parts, as these are more prone to wear and failure
- Address any issues promptly to prevent further damage or accidents
Repairing and replacing components
- Some components of camera support systems and rigging may need to be repaired or replaced over time due to wear or damage
- Common replaceable parts include tripod feet, quick release plates, and friction pads
- More complex repairs may require professional servicing or returning the equipment to the manufacturer
Storage and transportation best practices
- Proper storage and transportation of camera support systems and rigging can extend their lifespan and prevent damage
- Equipment should be stored in a cool, dry place, away from direct sunlight and extreme temperatures
- Use protective cases, bags, or covers when transporting equipment to and from sets
- Secure equipment during transportation to prevent shifting or impacts
Key Terms to Review (35)
3-axis gimbals: 3-axis gimbals are mechanical stabilization devices that allow cameras to remain steady and level while capturing motion, minimizing unwanted shakes and vibrations. These devices operate on three axes: pan, tilt, and roll, enabling smooth camera movements and fluid shots, even during dynamic filming conditions. This stabilization is crucial in cinematography as it enhances the overall production quality by delivering professional-looking footage.
3D Printing: 3D printing is a manufacturing process that creates three-dimensional objects by layering materials based on digital models. This innovative technology allows for the rapid prototyping and production of complex designs, making it particularly valuable in various fields, including camera rigging and mounting, where customized components can be created to enhance filming capabilities.
Adapters: Adapters are devices that allow different components of camera equipment to connect and work together effectively. They are essential in camera rigging and mounting, as they enable filmmakers to use a variety of lenses, filters, and other accessories with their camera systems, regardless of brand or model compatibility. By bridging the gap between different equipment, adapters enhance creative flexibility and help in achieving desired shooting outcomes.
Backup systems: Backup systems refer to the processes and equipment used to ensure that critical data, power, and equipment can be restored or replaced in case of a failure or emergency. In cinematography, they are crucial for maintaining the integrity of camera rigging and mounting setups, ensuring that the production can continue smoothly without interruptions caused by equipment malfunctions.
Balance: In cinematography, balance refers to the distribution of weight, both physically and visually, to ensure stability in camera rigging and mounting. Achieving balance is crucial for maintaining steady shots and allowing smooth camera movements, while also enhancing the visual aesthetics of the composition. The right balance helps prevent unwanted vibrations and makes it easier for operators to control the camera effectively.
Body rigs: Body rigs are specialized equipment used to support and stabilize a camera during filming, often attached to the operator's body. These rigs enhance mobility and allow for smoother shots while reducing fatigue for the camera operator. By distributing the weight of the camera system evenly, body rigs enable filmmakers to achieve dynamic movements and capture creative angles without sacrificing stability.
Camera safety protocols: Camera safety protocols refer to a set of guidelines and practices designed to ensure the safe handling, operation, and storage of camera equipment. These protocols are essential to prevent accidents, damage to gear, and injuries on set, especially during camera rigging and mounting activities that involve heavy or complex setups. Following these protocols helps maintain a safe working environment for all crew members and protects valuable equipment from unnecessary wear and tear.
Car mounts: Car mounts are specialized devices designed to securely hold cameras or other equipment within a vehicle, allowing for stable and controlled shooting while the car is in motion. These mounts help eliminate unwanted vibrations and movements, ensuring high-quality footage and enabling dynamic shots that would otherwise be difficult to achieve. They can be adjusted for various angles and positions, accommodating different filming needs and creative visions.
Counterweights: Counterweights are weights used in camera rigging to balance equipment and maintain stability during filming. By offsetting the weight of cameras and accessories, counterweights help prevent equipment from tipping over, reducing strain on rigging systems and allowing for smoother camera movements. This is essential for achieving professional-looking shots, especially when using heavy gear or complex setups.
Crew communication: Crew communication refers to the process of exchanging information, instructions, and feedback among team members during a film production. Effective communication is crucial for ensuring that all crew members are aligned on the vision, timing, and technical aspects of camera rigging and mounting, which ultimately contributes to a successful shoot. Clear and consistent communication helps prevent misunderstandings and mistakes that can affect the quality and efficiency of production.
Dolly: A dolly is a wheeled cart or similar device used in filmmaking to create smooth camera movements along a track or over the ground. This tool allows for dynamic shots and precise framing, enhancing the storytelling by immersing the audience into the scene. It is essential for executing various camera movements, such as tracking shots, which can convey emotions and perspectives effectively.
Follow Focus: Follow focus is a filmmaking technique and equipment used to maintain precise focus on a subject as it moves within the frame, allowing for smooth transitions and dynamic storytelling. This technique is crucial for achieving sharp images, particularly when working with shallow depth of field, where even slight focus shifts can result in blur. It also plays an important role in camera rigging, ensuring that focus adjustments can be made efficiently without disrupting the shot.
Gimbal: A gimbal is a pivoted support that allows the rotation of an object about a single axis or multiple axes, primarily used to stabilize cameras during movement. It plays a crucial role in ensuring smooth footage by counteracting unwanted shakes and vibrations while filming. The versatility of gimbals makes them essential in various cinematographic setups, enhancing the overall quality of visual storytelling.
Load Capacity: Load capacity refers to the maximum weight or load that a camera rig or mounting system can safely support without compromising its structural integrity or functionality. Understanding load capacity is essential to ensure that equipment is not only secure but also operates optimally, which is crucial when rigging cameras for various filming scenarios.
Matte box: A matte box is a camera accessory mounted on the front of a lens to control lens flare, block unwanted light, and hold filters. It typically features adjustable flags and allows for the attachment of various types of filters to enhance image quality while protecting the lens. By managing light entering the lens, a matte box plays a crucial role in achieving desired visual effects during filming.
Monopod: A monopod is a single-legged support used to stabilize a camera during shooting, offering flexibility and ease of movement while reducing shake. It is particularly useful in situations where space is limited or when quick repositioning is required. Monopods provide a balance between stability and portability, making them a popular choice among filmmakers and photographers.
Motorized systems: Motorized systems refer to the integration of electronic motors into camera equipment to facilitate automated movements, allowing for smoother and more precise control of camera angles and movements. These systems enhance the capabilities of traditional camera rigs by enabling dynamic shots that can be programmed or controlled remotely, which is especially valuable in complex cinematographic setups.
Mounting Plates: Mounting plates are flat, rigid platforms that provide a secure attachment point for cameras and other equipment to various supports, such as tripods, rigs, and sliders. These plates are essential in stabilizing and balancing the camera setup while ensuring quick and easy adjustments during shoots, making them a crucial component in the process of camera rigging and mounting.
Overhead shot: An overhead shot is a camera angle where the camera is positioned directly above the subject, capturing the scene from a bird's-eye view. This perspective can create a sense of scale, emphasize spatial relationships, and provide a unique visual storytelling approach. It’s commonly used to enhance dramatic moments, show a character's isolation, or reveal the layout of a scene.
Quick release plate: A quick release plate is a mounting accessory used in photography and videography that allows for the fast attachment and detachment of a camera or other equipment from a tripod or rig. This device streamlines the process of switching between setups, ensuring that adjustments can be made quickly without compromising the stability of the camera. The quick release plate typically features a locking mechanism that secures the camera in place while also enabling easy removal when needed.
Quick release systems: Quick release systems are mechanisms designed to allow rapid attachment and detachment of cameras and accessories from rigging or mounting platforms. They enhance efficiency by enabling cinematographers to switch between setups quickly, reducing downtime during shoots and providing versatility in dynamic filming environments.
Redundancy: Redundancy refers to the practice of including additional components or systems that are not strictly necessary for functioning but serve as backups to ensure reliability and continuity. This concept is crucial in various fields, especially where failure can lead to significant issues. By implementing redundancy, filmmakers can safeguard their equipment setups and data storage, ensuring that even if one element fails, others can take over seamlessly.
Rigging Certification: Rigging certification is a formal acknowledgment that an individual possesses the necessary skills and knowledge to safely and effectively rig camera equipment for film and television production. This certification ensures that the rigger understands the principles of load distribution, safety protocols, and the technical aspects of rigging various camera setups, which is crucial for maintaining the safety of both crew and equipment during shooting.
Rigging Plate: A rigging plate is a flat, sturdy piece of metal or composite material used in film and video production to securely attach and distribute the weight of camera rigs and other equipment. It acts as a connection point for various rigging accessories, such as clamps, straps, and mounts, allowing for versatile configurations while ensuring stability and safety during filming. This essential component plays a significant role in optimizing camera placement and movement.
Safety Tether: A safety tether is a crucial device used to secure camera equipment, preventing it from falling or becoming dislodged during filming. This attachment is essential when rigging and mounting cameras, especially in challenging environments or high-angle shots where equipment stability is vital. By using a safety tether, filmmakers can protect their gear and avoid costly damages or potential injuries on set.
Shock Mounts: Shock mounts are specialized devices used in cinematography to isolate microphones or cameras from vibrations and mechanical shocks. By minimizing the transfer of these disturbances, shock mounts help to ensure clear audio recording and stable images, making them essential in environments where movement and noise can interfere with the quality of production.
Shoulder mount: A shoulder mount is a type of camera rig designed to provide stability and support for handheld shooting, allowing the camera operator to rest the rig against their shoulder while capturing footage. This setup enhances the operator's ability to achieve smooth motion and steady shots, making it a popular choice for dynamic scenes or when mobility is essential. The shoulder mount typically includes features like adjustable height and counterweights to ensure comfort and balance during extended use.
Sliders: Sliders are specialized camera support devices that enable smooth lateral movement of the camera along a track. They are used to create dynamic and cinematic shots by allowing for horizontal panning without the shake or instability that can occur with handheld shooting. This equipment is essential for achieving fluid motion in a variety of filming situations, enhancing the storytelling experience through movement.
Steadicam: A steadicam is a camera stabilization system that allows for smooth and fluid movement while filming, enabling the operator to capture dynamic shots without the jolts or shakes that can come from handheld shooting. This technology combines a harness worn by the camera operator and a series of gimbals to isolate the camera from the motion of the operator's body, providing versatility and creative freedom in movement. Its design is essential for achieving specific artistic visions and styles as envisioned by directors.
Tracking shot: A tracking shot is a continuous shot in which the camera moves along with the subject, often following it through a scene. This movement can create a sense of dynamism and immersion, guiding the viewer’s attention and enhancing the storytelling by revealing important visual paths within the frame.
Tripod mounting: Tripod mounting refers to the technique of securing a camera to a three-legged stand, known as a tripod, to stabilize and support the camera during shooting. This method is essential for achieving steady shots, particularly in situations requiring long exposures or precise framing. The use of tripods enhances the overall quality of footage by minimizing unwanted camera movement and allows for more creative control over angles and composition.
Underwater housings: Underwater housings are protective cases designed to encase cameras and other equipment, allowing them to be submerged in water while maintaining functionality and preventing damage. These housings are essential for capturing high-quality images and videos in aquatic environments, such as oceans, lakes, or swimming pools, where standard camera equipment would be compromised by water exposure.
Vibration isolation: Vibration isolation is a technique used to reduce the transmission of vibrations from one structure to another, which is crucial in maintaining stability and image quality in filmmaking. By employing various methods and materials, vibration isolation minimizes the effects of external disturbances, ensuring that camera movements remain smooth and controlled. This technique is vital for enhancing the overall performance of camera rigging and mounting systems.
Vibration isolators: Vibration isolators are devices or systems designed to reduce the transmission of mechanical vibrations from one object to another. They are commonly used in camera rigging and mounting to minimize unwanted movements that can affect image stability and overall shot quality. By absorbing vibrations from surfaces or equipment, these isolators help maintain a steady image and enhance the overall performance of camera setups.
Weight distribution: Weight distribution refers to how the weight of a camera rig or stabilizing system is balanced across its various components. Proper weight distribution is crucial for achieving stability and ease of operation, as it helps prevent unwanted tilting or wobbling during filming. Achieving the right balance affects not just the performance of the equipment but also the comfort and effectiveness for the operator, especially when using handheld devices or mounted systems.
