11.3 Color management and LUTs
11 min read•august 20, 2024
and LUTs are essential tools in advanced cinematography. They ensure consistent and accurate color reproduction throughout production and post-production. Understanding these concepts allows cinematographers to effectively communicate their creative vision across various display devices and formats.
From color spaces and gamuts to and grading workflows, mastering color management is crucial. LUTs play a vital role in applying creative looks and technical corrections. Implementing these tools effectively helps maintain the desired aesthetic and emotional impact of the cinematographer's work.
Color management fundamentals
- Color management is a critical aspect of advanced cinematography that ensures consistent and accurate color reproduction throughout the production and post-production process
- Understanding color management fundamentals enables cinematographers to effectively communicate their creative vision and maintain the desired look across various display devices and formats
Importance of color accuracy
Top images from around the web for Importance of color accuracy
Complementary colors - Wikipedia View original
Is this image relevant?

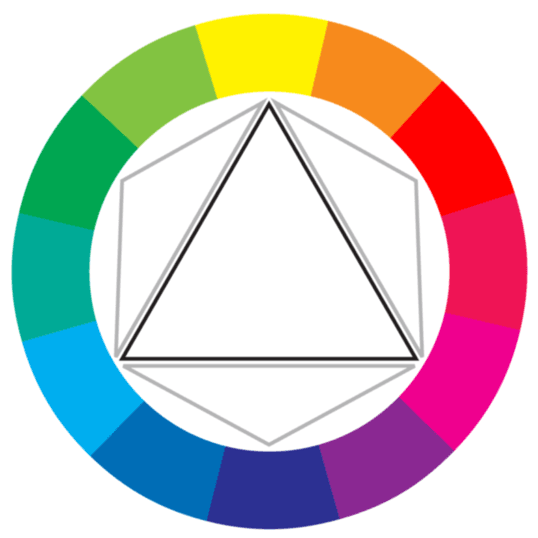

Color theory : II. Colors – Salah Bouzgma – Medium View original
Is this image relevant?
Complementary colors - Wikipedia View original
Is this image relevant?
Color theory : II. Colors – Salah Bouzgma – Medium View original
Is this image relevant?
1 of 2
Top images from around the web for Importance of color accuracy
Complementary colors - Wikipedia View original
Is this image relevant?
Color theory : II. Colors – Salah Bouzgma – Medium View original
Is this image relevant?
Complementary colors - Wikipedia View original
Is this image relevant?
Color theory : II. Colors – Salah Bouzgma – Medium View original
Is this image relevant?
1 of 2
- Accurate color reproduction is essential for conveying the intended mood, atmosphere, and visual aesthetics of a scene
- Consistent color accuracy ensures that the viewer experiences the cinematographer's creative intent as envisioned
- Color accuracy is crucial for maintaining the suspension of disbelief and immersing the audience in the story world
- Inaccurate colors can distract viewers and undermine the emotional impact of a scene
Color spaces and gamuts
- A color space is a specific organization of colors that defines the range of colors that can be represented or reproduced
- Color gamut refers to the subset of colors within a color space that a particular device (monitor, projector, or printer) can display or reproduce
- Different color spaces (sRGB, Adobe RGB, , Rec. 2020) have varying gamuts and are suited for different applications and display technologies
- Understanding color spaces and gamuts is essential for ensuring that the captured and displayed colors match the cinematographer's intended vision
Additive vs subtractive color
- Additive color mixing involves combining primary colors of light (red, green, and blue) to create a wider range of colors (used in displays and projectors)
- Subtractive color mixing involves filtering out certain wavelengths of light using primary colors (cyan, magenta, and yellow) to create a desired color (used in printing and physical media)
- Cinematographers must understand the differences between additive and subtractive color mixing to effectively control color in various stages of production and post-production
Color calibration
- Color calibration is the process of ensuring that all devices involved in the production and post-production workflow display colors accurately and consistently
- Proper color calibration is crucial for maintaining the cinematographer's creative vision and avoiding unintended color shifts
Monitor calibration
- Monitor calibration involves adjusting the display settings (brightness, contrast, and ) to match a standardized reference
- Calibrating monitors ensures that the colors seen during the editing and grading process accurately represent the captured footage
- Hardware calibration devices (colorimeters and spectrophotometers) and software tools are used to measure and adjust the monitor's color output
- Regular monitor calibration is essential, as display characteristics can drift over time
Camera calibration
- Camera calibration involves adjusting the camera's color settings to ensure accurate color reproduction and consistency between different cameras
- , tint, and color matrix adjustments are made to match the camera's output to a standardized color reference
- Proper camera calibration is crucial for achieving consistent colors across multiple cameras and facilitating the process
Projector calibration
- Projector calibration ensures that the colors displayed during screenings and presentations accurately represent the intended look
- Calibrating projectors involves adjusting the brightness, contrast, and color settings to match a standardized reference
- Regular projector calibration is necessary to compensate for changes in the projector's output over time and maintain consistent color reproduction
Color grading workflow
- The color grading workflow encompasses the steps and processes involved in manipulating and enhancing the color, contrast, and overall look of the captured footage
- An efficient and well-structured color grading workflow is essential for achieving the desired visual aesthetics and maintaining consistency throughout the project
RAW vs log footage
- RAW footage contains the unprocessed sensor data, providing the greatest flexibility for color grading and post-production adjustments
- Log footage applies a logarithmic curve to the captured data, compressing the dynamic range and providing a more neutral starting point for color grading
- Understanding the characteristics and benefits of RAW and log footage is crucial for making informed decisions during the color grading process
Grading in a neutral color space
- Grading in a neutral color space (such as or ACEScct) provides a standardized and device-independent environment for color manipulation
- Neutral color spaces ensure that the grading adjustments translate accurately across different display devices and color spaces
- Working in a neutral color space simplifies the process of creating deliverables for various output formats and color spaces
Grading for specific deliverables
- Color grading should take into account the specific requirements and limitations of the intended deliverables (theatrical release, broadcast, web, HDR)
- Each deliverable format may have different color space, gamut, and dynamic range specifications that need to be considered during the grading process
- Creating separate grades for each deliverable ensures optimal color reproduction and visual quality across different viewing platforms
Look-up tables (LUTs)
- Look-up tables (LUTs) are mathematical transformations that modify the color and tonal characteristics of an image or video
- LUTs are used to apply creative looks, color space conversions, and technical corrections during the color grading process
Types of LUTs
- 1D LUTs: Affect the brightness and contrast of an image by remapping the input values to output values using a one-dimensional table
- 3D LUTs: Modify the color and tonal characteristics of an image using a three-dimensional table, allowing for more complex color transformations
- : Apply a specific artistic look or style to the footage, emulating a particular film stock, color palette, or visual aesthetic
- : Perform color space conversions, normalize log footage, or apply monitor calibration adjustments
1D vs 3D LUTs
- 1D LUTs are simpler and more computationally efficient but limited in their ability to perform complex color transformations
- 3D LUTs offer greater control and flexibility in color manipulation but require more processing power and can introduce artifacts if not applied carefully
- The choice between 1D and 3D LUTs depends on the specific requirements of the project and the desired level of color control
Creative vs technical LUTs
- Creative LUTs are designed to apply a specific artistic look or style to the footage, often emulating a particular film stock, color palette, or visual aesthetic (Kodak Vision3, Bleach Bypass)
- Technical LUTs are used for color space conversions, log normalization, and monitor calibration, ensuring accurate color reproduction and consistency across different devices and formats
- Cinematographers and colorists often use a combination of creative and technical LUTs to achieve the desired look while maintaining technical accuracy
Applying LUTs in post-production
- LUTs can be applied at various stages of the post-production workflow, including on-set monitoring, dailies creation, and final color grading
- When applying LUTs, it's essential to consider the order of operations and ensure that the LUTs are compatible with the color space and gamma of the footage
- LUTs should be used as a starting point for color grading and fine-tuned to achieve the desired look, rather than relied upon as a final solution
Color management on set
- Effective color management on set ensures that the captured footage accurately represents the cinematographer's creative intent and provides a solid foundation for the post-production process
- Implementing color management practices during production can save time and effort in the color grading stage and help maintain consistency across different scenes and shooting days
Using color charts
- Color charts (ColorChecker, X-Rite) are reference tools that include standardized color swatches and grayscale patches
- Photographing color charts under the same lighting conditions as the scene provides a reference for color accuracy and facilitates the process
- Color charts can be used to create camera profiles, assess exposure and white balance, and ensure consistent color reproduction across different cameras and lenses
White balance and tint
- White balance refers to the process of adjusting the camera's color temperature settings to ensure that white objects appear neutral under the given lighting conditions
- Tint adjustment compensates for any green or magenta color casts in the image, ensuring accurate color reproduction
- Proper white balance and tint settings are crucial for capturing colors that accurately represent the scene and provide a neutral starting point for color grading
Exposure and dynamic range
- Exposure refers to the amount of light that reaches the camera's sensor, affecting the brightness and detail in the captured image
- Dynamic range is the ratio between the darkest and brightest parts of an image that a camera can capture while retaining detail
- Proper exposure and management of dynamic range are essential for capturing the desired mood, retaining highlight and shadow detail, and providing flexibility in post-production
- Techniques such as exposing for the highlights, using ND filters, and employing high dynamic range (HDR) capture can help optimize exposure and dynamic range on set
Color science
- Color science is the study of how colors are perceived, measured, and reproduced in various media and devices
- Understanding color science principles is essential for cinematographers to effectively control and manipulate color in their work
Color perception and psychology
- Color perception is the subjective experience of color, influenced by factors such as lighting, context, and individual differences in visual processing
- Colors can evoke emotional responses and convey symbolic meanings, making color a powerful tool for storytelling and visual communication (red for passion, blue for calmness)
- Cinematographers can use color psychology principles to create specific moods, guide the viewer's attention, and reinforce narrative themes
Metamerism and color constancy
- Metamerism occurs when two colors appear identical under one lighting condition but differ under another, due to differences in their spectral composition
- Color constancy is the human visual system's ability to perceive colors as relatively constant under varying illumination conditions
- Understanding metamerism and color constancy is important for maintaining color consistency across different scenes and lighting setups
Color theory in cinematography
- Color theory principles, such as color harmony, contrast, and , can be applied to create visually compelling and emotionally resonant images
- The use of color palettes, color schemes, and color symbolism can enhance the narrative, convey character traits, and establish visual motifs
- Cinematographers can use color theory to guide their choices in lighting, production design, and color grading, creating a cohesive and expressive visual language
Advanced color grading techniques
- Advanced color grading techniques allow cinematographers and colorists to refine and enhance the visual aesthetics of the footage, creating a unique and polished look
- These techniques offer greater control and precision in manipulating specific colors, tones, and regions within the image
Primary vs secondary corrections
- Primary corrections are global adjustments that affect the entire image, such as exposure, contrast, color temperature, and tint
- Secondary corrections are targeted adjustments that isolate and modify specific colors, tones, or regions within the image
- Balancing primary and secondary corrections is essential for creating a cohesive and refined look while maintaining the integrity of the original footage
Hue vs saturation vs luminance
- Hue refers to the dominant wavelength of a color, determining its position on the (red, green, blue)
- Saturation is the intensity or purity of a color, ranging from desaturated (grayscale) to fully saturated (vivid)
- Luminance is the perceived brightness of a color, influenced by its intensity and the surrounding context
- Adjusting hue, saturation, and luminance independently allows for precise control over the color and tonal characteristics of the image
Qualifiers and power windows
- Qualifiers are tools that isolate specific colors, tones, or ranges within the image based on hue, saturation, and luminance values
- Power windows are user-defined shapes or masks that allow for localized adjustments to specific regions of the image
- Qualifiers and power windows enable targeted color grading, allowing cinematographers to enhance or modify specific elements within the frame (skin tones, skies, product logos)
Color matching shots
- Color matching is the process of ensuring consistent color and tonal characteristics across different shots within a scene or sequence
- Techniques such as using color charts, comparing key frames, and applying shot-matching tools help maintain visual continuity
- Effective color matching is crucial for creating a seamless viewing experience and maintaining the desired look throughout the project
Maintaining color consistency
- Maintaining color consistency throughout the production and post-production process is essential for ensuring the final visuals match the cinematographer's creative intent
- Consistent color management practices, standardized workflows, and clear communication among the production team contribute to achieving color consistency
Color management across devices
- Implementing a color-managed workflow ensures that the colors and tones remain consistent across different devices and software applications
- Using standardized color spaces (ACES), calibrated monitors, and compatible file formats helps maintain color accuracy throughout the pipeline
- Regular calibration and of devices, such as cameras, monitors, and projectors, is essential for consistent color reproduction
Color space conversions
- Color space conversions are necessary when transferring footage between different devices, software applications, or delivery formats
- Proper color space conversion ensures that the colors are accurately translated and maintained throughout the workflow
- Understanding the characteristics and limitations of different color spaces (sRGB, Adobe RGB, DCI-P3) is crucial for selecting the appropriate conversion methods and settings
Archiving and future-proofing
- Archiving color-graded projects involves storing the source footage, project files, LUTs, and reference images in a standardized and accessible format
- Future-proofing color grading decisions ensures that the project can be revisited and adapted to new display technologies and color spaces in the future
- Using non-destructive workflows, preserving metadata, and documenting the grading process contribute to the longevity and adaptability of the project
Industry standards and best practices
- Adhering to industry standards and best practices ensures compatibility, consistency, and quality across different production workflows and delivery platforms
- Staying informed about the latest advancements in color management technologies and workflows is essential for maintaining professional standards
Academy Color Encoding System (ACES)
- ACES is an open-source color management system developed by the Academy of Motion Picture Arts and Sciences
- ACES provides a standardized and device-independent framework for color management, ensuring consistent color reproduction across different devices and workflows
- Implementing ACES in a production pipeline streamlines color management processes, facilitates collaboration, and future-proofs the project for evolving display technologies
DCI-P3 and Rec. 2020 color spaces
- DCI-P3 is a wide color gamut standard used in digital cinema projection and high-end consumer displays (4K TVs, high-end monitors)
- Rec. 2020 is an ultra-wide color gamut standard designed for future display technologies, offering an even broader range of colors than DCI-P3
- Understanding the characteristics and implications of working with DCI-P3 and Rec. 2020 color spaces is essential for creating content that takes advantage of the expanded color gamuts
HDR color grading considerations
- High Dynamic Range (HDR) color grading involves working with a broader range of brightness levels and color gamuts compared to traditional Standard Dynamic Range (SDR) grading
- HDR grading requires specialized monitoring equipment, color management practices, and grading techniques to ensure optimal results
- When grading for HDR deliverables, cinematographers must consider the expanded creative possibilities while ensuring compatibility with SDR displays and maintaining the artistic intent of the project
Key Terms to Review (19)
3D LUT: A 3D LUT (Look-Up Table) is a mathematical representation used in color grading to map one set of colors to another, providing a way to apply complex color corrections and transformations to video or images. By utilizing three dimensions, it can create more nuanced adjustments to color and tone compared to 1D LUTs, allowing filmmakers and colorists to achieve precise and consistent looks across various displays and formats.
Aces: ACES, or the Academy Color Encoding System, is a color management framework designed to ensure consistent color reproduction across various devices and workflows in filmmaking and visual effects. It standardizes the way color is captured, processed, and displayed, allowing filmmakers to work with high dynamic range (HDR) and wide color gamut (WCG) content while maintaining color fidelity throughout the production pipeline.
Adobe Premiere Pro: Adobe Premiere Pro is a professional video editing software that allows users to edit and assemble footage, add effects, and perform color correction and grading. This powerful tool is widely used in the film and television industry, offering advanced features that connect seamlessly with other Adobe Creative Cloud applications, enhancing the workflow for color management, grading techniques, and HDR content creation.
Calibration: Calibration refers to the process of adjusting and fine-tuning equipment or systems to ensure accurate and consistent performance. In the context of color management and workflow, calibration ensures that the color representation on various devices matches a standard, which is critical for maintaining visual integrity throughout the production pipeline. This is also essential when applying LUTs, as accurate calibration helps to preserve color accuracy from camera capture through post-production processes.
Color correction: Color correction is the process of adjusting and enhancing the colors in a video or film to achieve a desired visual aesthetic or to ensure consistency throughout a project. This process is crucial for maintaining the emotional tone and realism of a scene, allowing filmmakers to manipulate hues, saturation, and brightness to fit their creative vision.
Color grading: Color grading is the process of adjusting and enhancing the color properties of a video or film to achieve a desired visual aesthetic or mood. This technique plays a vital role in shaping the narrative and emotional impact of the visual story, influencing everything from the lighting and camera settings to the final output seen by audiences.
Color management: Color management is the process of controlling how colors are represented across different devices, ensuring consistency and accuracy in the appearance of colors in images and videos. This involves the use of color profiles and transforms to maintain color fidelity from capture to output, allowing for a smoother workflow and better visual results. It plays a crucial role in various stages of production, particularly when integrating digital assets from different sources.
Color Temperature: Color temperature refers to the hue of light emitted by a source and is measured in Kelvin (K). It helps in determining how warm or cool the light appears, impacting the overall aesthetic and emotional tone of a scene, as well as how colors are perceived in various visual contexts.
Color wheel: The color wheel is a visual representation of colors arranged according to their chromatic relationships. It serves as a tool for understanding how different colors interact, allowing creators to make informed choices in visual storytelling, emotional impact, and aesthetics, especially in the context of color psychology, correction techniques, and color management strategies.
Complementary colors: Complementary colors are pairs of colors that, when combined, cancel each other out and produce a grayscale color like white or black. This concept is key in creating visual contrast and harmony in various artistic fields, allowing for effective color psychology and symbolism, as well as enhancing color schemes and palettes.
Creative LUTs: Creative LUTs (Look-Up Tables) are tools used in color grading that transform the color and tonal values of footage to achieve a specific aesthetic or mood. They allow filmmakers and editors to apply distinct visual styles quickly, enhancing the overall storytelling by manipulating colors and contrasts in a way that can evoke emotions or set a particular tone for the narrative.
DaVinci Resolve: DaVinci Resolve is a professional video editing software developed by Blackmagic Design that integrates editing, color correction, visual effects, motion graphics, and audio post-production in a single application. It is highly regarded for its robust color grading capabilities and workflow efficiency, making it a popular choice among filmmakers and video editors.
Dci-p3: DCI-P3 is a color space defined by the Digital Cinema Initiatives for digital cinema projection. It offers a wider color gamut compared to the traditional sRGB color space, allowing for more vibrant and accurate colors in film production and display. This color space is essential for ensuring consistency and quality in color reproduction, particularly in high dynamic range (HDR) workflows, enhancing the visual experience in both color correction and grading processes.
ITU-R BT.2020: ITU-R BT.2020 is a recommendation by the International Telecommunication Union that defines the parameters for high-definition and ultra-high-definition television color spaces, specifically a wide color gamut for modern displays. It establishes the standards for color representation that provide a more extensive range of colors compared to earlier systems, enabling richer and more vibrant visuals. This standard is critical in ensuring consistency and quality across various devices and content, promoting better color management and accurate reproduction in digital media.
Look-up table: A look-up table (LUT) is a mathematical construct used in image processing that maps input values to corresponding output values. In the context of color management, LUTs are crucial for transforming colors from one color space to another, ensuring consistency and accuracy in color representation across various devices and applications. They can be used creatively to apply specific color grading effects, making them an essential tool for cinematographers and colorists.
Profiling: Profiling refers to the process of characterizing the color attributes of a specific camera, display, or image format to ensure accurate color reproduction throughout the production pipeline. This technique is vital for managing how colors are interpreted and displayed in various environments, and it directly influences workflows and the use of look-up tables (LUTs) for consistent color grading and finishing.
Rec. 709: Rec. 709 is a color space defined by the International Telecommunication Union (ITU) for high-definition television (HDTV). It establishes standards for the color gamut, transfer characteristics, and other technical parameters to ensure consistent and accurate color representation across different display devices and video production workflows.
Technical LUTs: Technical LUTs (Look-Up Tables) are mathematical formulas used in digital cinematography to transform colors and tones in an image from one format to another. These LUTs play a crucial role in color management by providing a standardized way to maintain consistency across different devices and software, ensuring that the intended visual aesthetic is preserved throughout the production pipeline.
White Balance: White balance is the process of adjusting the colors in an image to ensure that whites appear neutral and other colors are accurately represented under varying lighting conditions. This adjustment is crucial for achieving realistic color reproduction, making it essential for both primary and secondary color correction as well as effective color management in post-production. Proper white balance ensures that images maintain consistency across different devices and viewing environments, making it a key consideration in any workflow involving color grading and LUTs.
