1.4 Dynamic range
12 min read•august 20, 2024
in cinematography is all about capturing detail in both bright and dark areas of a scene. It's measured in , with modern cameras capable of 14-15 stops compared to the human eye's 20. This wide range allows for more flexibility in challenging lighting conditions.
Maximizing dynamic range involves techniques like exposing for highlights and using graduated ND filters. In post-production, compresses the captured range to fit display constraints. Balancing creative vision with technical limitations is key when working with footage.
Dynamic range fundamentals
- Dynamic range refers to the ratio between the maximum and minimum measurable light intensities in an image or scene
- In cinematography, dynamic range represents the camera's ability to capture detail in both the brightest highlights and darkest shadows simultaneously
- A wide dynamic range allows for more flexibility in post-production and helps to create visually striking images with rich detail and contrast
Defining dynamic range
Top images from around the web for Defining dynamic range
File:Aperture diagram.svg - Wikimedia Commons View original
Is this image relevant?

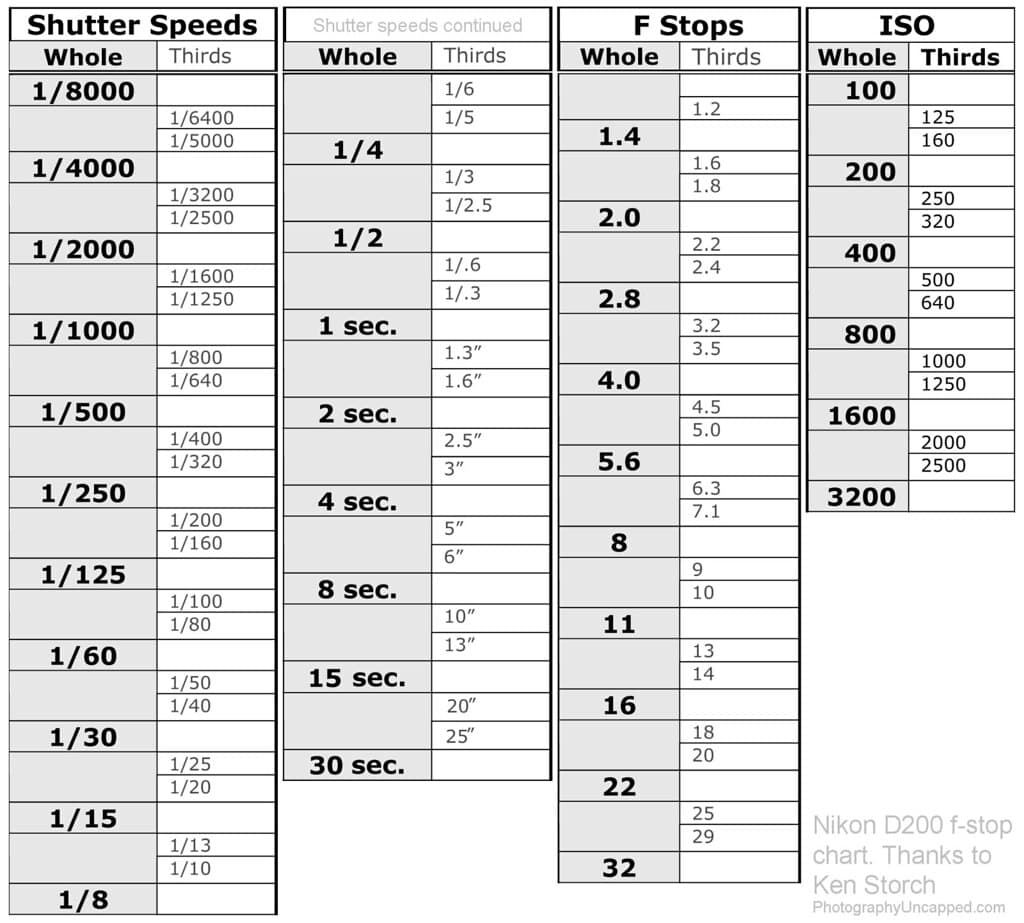

Nikon D200 f-stop chart (whole and 3rd stops only) | Flickr View original
Is this image relevant?
Digital Signal Levels dBFS, Dynamic Range and Headroom - PEDAL POINT SOUND View original
Is this image relevant?
File:Aperture diagram.svg - Wikimedia Commons View original
Is this image relevant?
Nikon D200 f-stop chart (whole and 3rd stops only) | Flickr View original
Is this image relevant?
1 of 3
Top images from around the web for Defining dynamic range
File:Aperture diagram.svg - Wikimedia Commons View original
Is this image relevant?
Nikon D200 f-stop chart (whole and 3rd stops only) | Flickr View original
Is this image relevant?
Digital Signal Levels dBFS, Dynamic Range and Headroom - PEDAL POINT SOUND View original
Is this image relevant?
File:Aperture diagram.svg - Wikimedia Commons View original
Is this image relevant?
Nikon D200 f-stop chart (whole and 3rd stops only) | Flickr View original
Is this image relevant?
1 of 3
- Dynamic range is typically measured in stops, with each stop representing a doubling or halving of light intensity
- The human eye has a dynamic range of approximately 20 stops, while modern digital cinema cameras can capture 14-15 stops or more
- Dynamic range can also be expressed as a , such as 1000:1, which indicates the ratio between the brightest and darkest elements in a scene
Importance in cinematography
- A wide dynamic range is crucial for capturing high-quality images in challenging lighting conditions, such as scenes with bright sunlight and deep shadows
- It allows cinematographers to maintain detail in both highlights and shadows, creating more natural-looking and visually engaging images
- A camera with a high dynamic range provides more flexibility in post-production, enabling greater control over the final look of the image through color grading and other adjustments
Factors affecting dynamic range
- Sensor size and technology: Larger sensors generally have a higher dynamic range due to their increased light-gathering capacity and lower noise levels
- : Higher bit depths (12-bit, 14-bit, or 16-bit) allow for more precise representation of brightness levels, resulting in a wider dynamic range
- Compression: typically offer the highest dynamic range, while like H.264 or H.265 may reduce the available dynamic range
- Lens quality and coatings: High-quality lenses with advanced coatings can help minimize flare and maintain contrast, preserving the dynamic range captured by the sensor
Camera sensors and dynamic range
- The choice of camera sensor technology can have a significant impact on the achievable dynamic range in cinematography
- Understanding the differences between CCD and , as well as the role of bit depth and file formats, is essential for maximizing dynamic range in camera systems
CCD vs CMOS sensors
- CCD (Charge-Coupled Device) sensors were once the dominant technology in digital cinematography, known for their low noise and high image quality
- CCDs use a series of coupled capacitors to transfer charge across the sensor, resulting in a clean and uniform output
- However, CCDs typically have lower dynamic range compared to modern CMOS sensors and are more power-hungry and expensive to manufacture
- CMOS (Complementary Metal-Oxide-Semiconductor) sensors have become the standard in modern digital cinema cameras, offering improved dynamic range and performance
- CMOS sensors use active pixel sensor technology, with each pixel containing its own amplifier and readout circuitry
- This allows for faster readout speeds, lower power consumption, and the ability to incorporate advanced features like on-sensor noise reduction and high dynamic range modes
Bit depth impact
- Bit depth refers to the number of bits used to represent the brightness levels of each pixel in an image
- Higher bit depths allow for more precise representation of brightness levels, resulting in a wider dynamic range and smoother tonal gradations
- 8-bit: 256 brightness levels (used in most consumer-grade cameras and displays)
- 10-bit: 1,024 brightness levels (common in professional video cameras and high-end displays)
- 12-bit: 4,096 brightness levels (used in some high-end cinema cameras)
- 14-bit and 16-bit: 16,384 and 65,536 brightness levels, respectively (used in top-tier cinema cameras and RAW formats)
- Capturing and working with higher bit depths throughout the production pipeline helps to preserve the full dynamic range of the camera and provides more flexibility in post-production
RAW vs compressed formats
- RAW formats store the unprocessed sensor data, preserving the maximum dynamic range and color information captured by the camera
- RAW files require more storage space and processing power but offer the greatest flexibility for color grading and other post-production adjustments
- Examples of RAW formats include ARRI RAW, RED RAW, and Blackmagic RAW
- Compressed formats, such as ProRes, DNxHD, or H.264/H.265, apply compression algorithms to reduce file sizes and make the footage more manageable
- Compression can result in some loss of dynamic range and color information, but high-quality codecs like ProRes and DNxHD still offer excellent performance for most production needs
- The choice between RAW and compressed formats often depends on the specific requirements of the project, available storage and processing resources, and the intended post-production workflow
Techniques for maximizing dynamic range
- Cinematographers employ various techniques to maximize the dynamic range captured in-camera and to manage high-contrast scenes effectively
- These techniques include strategic exposure settings, the use of , and the application of high dynamic range (HDR) imaging methods
Exposing for highlights
- In high-contrast scenes, prioritizing the exposure for highlight retention can help preserve the maximum dynamic range in the image
- By exposing for the brightest elements in the scene, cinematographers ensure that highlight details are not clipped or overexposed, which would result in a loss of information and dynamic range
- The darker portions of the image can then be lifted or enhanced in post-production, as long as the camera's dynamic range is sufficient to capture the shadow detail without excessive noise
- Exposing for highlights is particularly important when shooting in log or RAW formats, which allocate more data to the upper end of the brightness range
Graduated neutral density filters
- Graduated neutral density (GND) filters are optical filters that have a gradual transition from a clear or lightly tinted portion to a darker, neutral density portion
- These filters are used to balance the exposure between bright and dark areas of a scene, such as a landscape with a bright sky and darker foreground
- By placing the darker portion of the GND filter over the brighter area of the scene (e.g., the sky), the overall contrast is reduced, allowing for a more balanced exposure and preserving dynamic range
- GND filters come in various densities and transition types (soft, medium, or hard) to suit different scene requirements
- When using GND filters, it's essential to choose the appropriate density and transition type for the scene and to position the filter accurately to achieve the desired effect
High dynamic range (HDR) imaging
- High dynamic range (HDR) imaging techniques involve capturing multiple exposures of the same scene and combining them to create a final image with a wider dynamic range than a single exposure could achieve
- There are several approaches to in cinematography:
- or multi-ISO: Some cameras offer the ability to capture two or more exposures with different ISO settings simultaneously, which can then be combined to extend the dynamic range
- Exposure bracketing: Capturing multiple exposures with varying shutter speeds or apertures and blending them in post-production to create an HDR image
- HDR sensors: Specialized camera sensors that use advanced pixel designs or multiple exposure readouts to capture a wider dynamic range in a single shot
- When using HDR imaging techniques, it's important to consider the potential for motion artifacts, changes in noise levels between exposures, and the additional post-production time required to blend the exposures seamlessly
Lighting and dynamic range
- Effective lighting techniques can help manage dynamic range on set and create visually striking images with the desired contrast and mood
- Understanding key concepts such as contrast ratios, the qualities of hard and soft light, and strategies for lighting high dynamic range scenes is essential for cinematographers
Contrast ratios
- Contrast ratio refers to the difference in brightness between the key light (main light source) and the fill light (secondary light source used to soften shadows) in a scene
- Higher contrast ratios create more dramatic, high-contrast images with deeper shadows, while lower contrast ratios result in a softer, more evenly lit appearance
- High contrast (e.g., 8:1 or higher): Strong, defined shadows and a more dramatic look, often used in film noir, thriller, or horror genres
- Medium contrast (e.g., 4:1 to 8:1): A balanced, natural look suitable for many narrative and documentary styles
- Low contrast (e.g., 2:1 or lower): A soft, flattering look often used in romantic comedies, beauty commercials, or interviews
- Cinematographers can control contrast ratios by adjusting the intensity, position, and quality of the key and fill lights, as well as through the use of modifiers such as diffusion, flags, or bounce surfaces
Hard vs soft light
- The quality of light, whether hard or soft, plays a significant role in the perceived contrast and dynamic range of a scene
- Hard light creates strong, well-defined shadows and can emphasize texture and shape
- Sources of hard light include direct sunlight, small or distant light fixtures, and undiffused artificial lights
- Hard light can be useful for creating dramatic, high-contrast looks or emphasizing specific elements in a scene
- Soft light produces more gradual, diffused shadows and can help to minimize texture and soften facial features
- Sources of soft light include overcast skies, large diffused light sources, and bounced or reflected light
- Soft light is often used for creating a flattering, even illumination in interviews, close-ups, or scenes requiring a more subtle, natural look
- Cinematographers can control the quality of light by using modifiers such as diffusion panels, softboxes, or bounce cards, as well as by adjusting the size and distance of the light sources relative to the subject
Lighting for extended dynamic range
- When lighting scenes with a wide dynamic range, cinematographers must balance the illumination of both the brightest and darkest elements to ensure that all desired detail is captured
- Techniques for lighting high dynamic range scenes include:
- Backlighting: Placing the main light source behind the subject can help to separate them from the background and create a sense of depth, while also controlling the contrast between the subject and the environment
- Fill light: Using reflectors, bounce cards, or additional light sources to fill in shadows and reduce the overall contrast ratio, making it easier to capture the full dynamic range
- Negative fill: Strategically placing black materials, such as duvetyne or flags, to absorb light and deepen shadows in specific areas of the frame, helping to control the dynamic range and create a more dramatic look
- Lighting in layers: Building the lighting setup in layers, starting with the key light and gradually adding fill, backlight, and accent lights, allows for more precise control over the contrast and dynamic range of the scene
Post-production and dynamic range
- Post-production techniques play a crucial role in managing and enhancing the dynamic range of footage captured on set
- Tone mapping, HDR grading workflows, and considerations for delivering HDR content are essential aspects of the post-production process when working with high dynamic range material
Tone mapping techniques
- Tone mapping is the process of compressing the high dynamic range information captured in-camera to fit within the constraints of the target display or delivery format
- There are several approaches to tone mapping:
- Global tone mapping: Applies a uniform compression curve to the entire image, which can be effective for scenes with a relatively even distribution of brightness levels
- Local tone mapping: Analyzes and adjusts different regions of the image independently, allowing for more precise control over the final contrast and dynamic range
- Adaptive tone mapping: Uses algorithms that dynamically adjust the tone mapping parameters based on the content of the image, aiming to preserve the most important visual information
- Tone mapping can be performed using dedicated HDR processing software or within color grading applications such as DaVinci Resolve, Adobe Premiere Pro, or Baselight
HDR grading workflows
- HDR grading involves working with high dynamic range footage and display technologies to create visually striking images with enhanced contrast, brightness, and color gamut
- Key steps in an HDR grading workflow include:
- Monitor calibration: Ensuring that the grading monitor is properly calibrated to display the full range of brightness and color values in the HDR footage
- Color space management: Working in a wide-gamut color space, such as Rec. 2020 or ACES, to preserve the maximum color information and dynamic range throughout the grading process
- Grading in HDR: Adjusting the contrast, color, and overall look of the footage while monitoring on an HDR display to ensure that the creative intent is maintained across a wide range of brightness levels
- Trim pass for SDR: Creating a separate grade for standard dynamic range (SDR) deliverables, using the HDR grade as a reference to ensure consistency and compatibility with SDR displays
- HDR grading requires specialized hardware and software, as well as an understanding of the unique challenges and opportunities presented by working with high dynamic range content
Delivering HDR content
- When delivering HDR content, it's important to consider the target platforms, display technologies, and distribution channels to ensure compatibility and optimal viewing experiences
- Common HDR formats and standards include:
- HDR10: An open standard that uses static metadata to define the peak brightness and color gamut of the content, supported by a wide range of consumer displays and devices
- Dolby Vision: A proprietary HDR format that uses dynamic metadata to optimize the image on a scene-by-scene or frame-by-frame basis, providing more precise control over the final look but requiring compatible displays and devices
- Hybrid Log-Gamma (HLG): A broadcast-focused HDR standard developed by the BBC and NHK, designed to be compatible with both HDR and SDR displays without the need for metadata
- When mastering HDR content, it's crucial to follow the specifications and best practices for each target format, including peak brightness levels, color gamut, and metadata requirements, to ensure a consistent and high-quality viewing experience across different displays and platforms
Challenges of high dynamic range
- While high dynamic range imaging offers numerous benefits for cinematography, it also presents several challenges that must be considered and addressed throughout the production process
- These challenges include maintaining a natural appearance, ensuring compatibility with SDR displays, and balancing creative and technical considerations
Maintaining natural appearance
- One of the primary challenges of working with HDR is maintaining a natural, believable appearance in the final image
- With the increased contrast and brightness range available in HDR, it can be tempting to create images that appear overly stylized or exaggerated
- Overemphasizing contrast or pushing colors too far can result in an unnatural, "hyper-real" look that may distract from the story or intended mood
- It's important to use the expanded dynamic range tastefully and in service of the narrative, rather than as a gimmick or purely for visual impact
- Cinematographers and colorists must strike a balance between showcasing the benefits of HDR and maintaining a sense of realism and visual coherence throughout the project
Compatibility with SDR displays
- Despite the growing adoption of HDR displays, the majority of viewers still watch content on standard dynamic range (SDR) screens
- Ensuring that HDR content is compatible with and looks good on SDR displays is a significant challenge
- HDR images may appear too dark, too bright, or lacking in contrast when viewed on SDR displays without proper adjustment
- Colors that appear vibrant and saturated in HDR may look muted or oversaturated on SDR screens
- To address this challenge, cinematographers and colorists often create separate SDR grades or deliverables, using the HDR grade as a reference to ensure consistency and optimal viewing experiences across both HDR and SDR displays
- This process, known as "trim pass" or "SDR pass," involves adjusting the contrast, brightness, and color of the HDR grade to create a visually pleasing SDR version
- Automated tone mapping and color space conversion tools can assist in this process, but manual fine-tuning is often necessary to achieve the best results
Creative vs technical considerations
- Balancing creative and technical considerations is an ongoing challenge when working with high dynamic range
- Cinematographers must make creative decisions about lighting, composition, and camera settings while also taking into account the technical limitations and requirements of HDR capture and delivery
- For example, a cinematographer may want to create a high-contrast, low-key look for a particular scene, but must ensure that there is still enough detail in the shadows and highlights to take advantage of the HDR format
- Similarly, colorists must balance their artistic vision with the technical constraints of the HDR format, such as peak brightness levels and color gamut boundaries
- Effective communication and collaboration between the creative and technical teams are essential for successfully navigating these challenges and achieving the desired visual results in HDR
- Regular discussions and reviews throughout the production process can help ensure that everyone is working towards a common goal and that any potential issues are identified and addressed early on
- Test shoots, camera tests, and color pipeline tests can also be valuable tools for understanding the capabilities and limitations of the chosen HDR workflow and making informed creative and technical decisions
Key Terms to Review (24)
Bit Depth: Bit depth refers to the number of bits used to represent the color of a single pixel in an image or video. This directly affects the amount of color information and detail captured in the visual media. Higher bit depths allow for more colors and smoother gradients, which enhances the overall quality and dynamic range of the image, impacting everything from resolution to creative color grading techniques and HDR workflows.
CCD Sensors: CCD sensors, or Charge-Coupled Device sensors, are electronic devices used in cameras and imaging systems to convert light into electronic signals. They are known for their ability to capture high-quality images with low noise and excellent dynamic range, making them popular in both photography and videography applications.
CMOS Sensors: CMOS sensors, or Complementary Metal-Oxide-Semiconductor sensors, are a type of image sensor used in digital cameras and imaging devices to convert light into electronic signals. They are known for their low power consumption, smaller size, and ability to integrate additional processing circuitry, which can enhance performance in capturing images under varying light conditions. The effectiveness of CMOS sensors is significantly linked to their dynamic range, which refers to the range of light intensities they can capture from the darkest shadows to the brightest highlights.
Color Depth: Color depth refers to the number of bits used to represent the color of a single pixel in an image or video, which directly impacts the range and accuracy of colors that can be displayed. A higher color depth allows for a greater variety of colors, enhancing the visual quality of images and videos. This concept is closely linked to resolution, dynamic range, and color spaces, as all these elements work together to determine how images are rendered and perceived.
Compressed formats: Compressed formats refer to file types that have been reduced in size through various algorithms that eliminate unnecessary or redundant data. This process allows for more efficient storage and faster transmission of files, making it crucial in digital media management, particularly in video and audio applications where large amounts of data are involved. Compressed formats can impact the quality and fidelity of the original content, especially in the context of dynamic range.
Contrast Ratio: Contrast ratio is the measurement of the difference in brightness between the darkest and brightest parts of an image or scene. This ratio plays a crucial role in visual storytelling, as it affects how detail is perceived in both highlights and shadows, ultimately influencing the emotional tone and visual interest of the captured image. Understanding contrast ratio is essential for achieving desired aesthetics in dynamic range, lighting setups, and high dynamic range (HDR) workflows.
Dual-ISO: Dual-ISO refers to a technology used in some digital cameras that allows for two separate ISO settings to be activated within the same image sensor. This feature enhances the camera's ability to capture a wider dynamic range, providing improved performance in both high and low light situations. By utilizing two different gain structures, dual-ISO minimizes noise and maximizes detail, making it a valuable tool for filmmakers and photographers who require flexibility in varying lighting conditions.
Dynamic Range: Dynamic range refers to the range of brightness levels that a camera sensor can capture, from the darkest shadows to the brightest highlights. It is crucial in determining how well a camera can reproduce detail in both extreme light and dark areas, impacting everything from exposure settings to post-production processes.
Dynamic Range Compression: Dynamic range compression is a process used in audio and video production to reduce the volume difference between the loudest and quietest parts of a sound or image. This technique helps in managing peaks in sound levels, making it easier for viewers to hear dialogue in films or enhancing visual clarity in scenes with high contrast. By compressing the dynamic range, content creators ensure that important details are not lost in overly bright or dark areas.
Emmanuel Lubezki: Emmanuel Lubezki is a renowned Mexican cinematographer known for his innovative techniques and distinctive visual style in film. He is celebrated for his ability to manipulate light and shadow, creating immersive atmospheres that enhance storytelling, making him a significant figure in modern cinematography.
Exposure Latitude: Exposure latitude refers to the range of exposure values (underexposure to overexposure) that a film or digital sensor can effectively capture while still retaining usable image quality. This concept is closely tied to how much detail can be recorded in both the highlights and shadows of an image, playing a crucial role in dynamic range, which measures the difference between the darkest and brightest parts of an image that can be captured without loss of detail.
Graduated Neutral Density Filters: Graduated neutral density filters are photographic filters that reduce the intensity of light entering the lens, but only in a specific portion of the image. They are designed with a gradient that transitions from opaque to clear, allowing for better exposure control between bright and dark areas in a scene. This is particularly useful for managing high dynamic range scenes where the difference between the lightest and darkest parts can overwhelm a camera's sensor.
HDR Imaging: HDR imaging, or High Dynamic Range imaging, is a technique used in photography and cinematography that captures a greater range of brightness levels than standard imaging methods. This approach allows for more detail in both the highlights and shadows of an image, making scenes appear more realistic and visually engaging. HDR imaging is closely tied to the concept of dynamic range, as it seeks to enhance the ability to represent the vast differences in light intensities found in the real world.
HDR Monitors: HDR monitors are displays specifically designed to support High Dynamic Range (HDR) content, allowing for a broader range of luminance and color than traditional monitors. These displays enhance the viewing experience by showcasing more detail in both bright and dark areas, which is crucial for accurately representing HDR video and images. The ability of HDR monitors to deliver deeper blacks and brighter highlights directly relates to concepts like dynamic range, while also playing a pivotal role in HDR color grading and mastering processes.
High dynamic range: High dynamic range (HDR) refers to a technology and technique that enables the capture, processing, and display of images with a greater range of luminosity than standard dynamic range (SDR) images. HDR allows for more detail to be preserved in both the darkest and brightest parts of an image, making scenes appear more lifelike and visually stunning. This increased range enhances color depth and realism in visual media, thus connecting to key aspects like dynamic range, benefits and challenges of HDR, and future advancements in this field.
Highlight recovery: Highlight recovery refers to the process of restoring details in the bright areas of an image that may have been overexposed or clipped during capture. This technique is essential for maximizing the usable dynamic range of an image, allowing filmmakers and photographers to retrieve information that would otherwise be lost. Highlight recovery is closely tied to the principles of dynamic range and plays a crucial role in HDR capture and workflow, where preserving detail in both shadows and highlights is vital for creating images with a rich visual depth.
Linear dynamic range: Linear dynamic range refers to the extent to which a camera or imaging system can capture and reproduce the range of brightness levels from the darkest shadows to the brightest highlights in a scene without losing detail. This concept is crucial for understanding how well an imaging system can handle different lighting conditions while maintaining accurate color and tonal representation. It ties into important features such as signal-to-noise ratio and the limits of sensor performance, ensuring that images retain their quality even under challenging exposure situations.
Log cameras: Log cameras refer to a type of camera setting that captures video in a logarithmic color space, which preserves more details in the highlights and shadows compared to standard color profiles. This is particularly important for achieving a wider dynamic range, as it allows filmmakers to retain subtle gradations in tones and achieve more nuanced color grading in post-production. Using log profiles enables cinematographers to maximize the quality of their footage, especially in challenging lighting conditions.
Logarithmic dynamic range: Logarithmic dynamic range refers to the range of luminance levels that a camera sensor can effectively capture, represented in a logarithmic scale. This concept is crucial because it reflects how well a camera can handle varying light conditions, from the darkest shadows to the brightest highlights, without losing detail in either extreme. Understanding logarithmic dynamic range helps filmmakers make informed choices about exposure and lighting to achieve the desired visual quality in their work.
Low dynamic range: Low dynamic range refers to the limited range of brightness levels that a visual system can capture or reproduce. This means that the difference between the darkest and brightest areas of an image is relatively small, often resulting in loss of detail in highlights and shadows. Low dynamic range can impact the overall quality of visual content, leading to flat images that lack depth and contrast.
Raw formats: Raw formats refer to unprocessed, minimally compressed data files that retain all the information captured by a camera sensor during image acquisition. This format allows for maximum flexibility in post-production, as it preserves the full dynamic range and color depth of the original scene, enabling more precise adjustments in exposure, color grading, and overall image quality.
Roger Deakins: Roger Deakins is a renowned cinematographer known for his exceptional work in film, combining technical expertise with a unique artistic vision. His mastery of lighting and composition has greatly influenced modern cinematography, making him a key figure in discussions about dynamic range, contrast, and visual storytelling.
Stops: Stops are a measurement used in photography and cinematography to quantify the amount of light that reaches the sensor or film. They play a crucial role in determining exposure levels, as each stop represents a doubling or halving of light intensity, affecting both brightness and depth of field. Understanding stops is essential for managing dynamic range and achieving the desired visual effects in a shot.
Tone mapping: Tone mapping is a technique used to convert high dynamic range (HDR) images into a format suitable for display on standard dynamic range (SDR) devices while preserving the visual details and contrast of the original scene. This process is crucial for displaying images that contain a wide range of brightness levels, ensuring that highlights and shadows are rendered accurately. It connects directly to the understanding of dynamic range, how HDR display technologies function, the methods involved in HDR color grading and mastering, as well as the benefits and challenges posed by HDR and wide color gamut (WCG). Additionally, tone mapping is essential for anticipating future developments in HDR and WCG technologies.
