7.1 Chroma keying and compositing
10 min read•august 20, 2024
and compositing are essential techniques in modern filmmaking. They allow filmmakers to blend real footage with digital elements seamlessly. By using green or blue screens and specialized software, creators can transport actors to fantastical worlds or add impossible visual effects.
These techniques have revolutionized the film industry, enabling directors to bring their wildest visions to life. From blockbuster movies to TV shows and commercials, chroma keying and compositing have become indispensable tools for creating stunning visuals and immersive storytelling.
Chroma keying fundamentals
- Chroma keying is a post-production technique used in video and film to replace a solid background color with a different image or footage
- Enables the combination of multiple visual elements from separate sources into a single composite image or video
- Commonly used in movies, television, and video production to create visual effects, virtual sets, and seamless integration of actors into computer-generated environments
Chroma key vs luma key
Top images from around the web for Chroma key vs luma key
gualdacolorao: CUANDO UTILIZAR FONDO AZUL O VERDE PARA HACER CHROMA KEY View original
Is this image relevant?
Kdenlive tutorial - video effects | Opensource.com View original
Is this image relevant?
Green screen | Canon XL2 against a green screen for chroma k… | Flickr View original
Is this image relevant?
gualdacolorao: CUANDO UTILIZAR FONDO AZUL O VERDE PARA HACER CHROMA KEY View original
Is this image relevant?
Kdenlive tutorial - video effects | Opensource.com View original
Is this image relevant?
1 of 3
Top images from around the web for Chroma key vs luma key
gualdacolorao: CUANDO UTILIZAR FONDO AZUL O VERDE PARA HACER CHROMA KEY View original
Is this image relevant?
Kdenlive tutorial - video effects | Opensource.com View original
Is this image relevant?
Green screen | Canon XL2 against a green screen for chroma k… | Flickr View original
Is this image relevant?
gualdacolorao: CUANDO UTILIZAR FONDO AZUL O VERDE PARA HACER CHROMA KEY View original
Is this image relevant?
Kdenlive tutorial - video effects | Opensource.com View original
Is this image relevant?
1 of 3
- Chroma keying relies on the color information of a specific range of hues ( or ) to create a matte for compositing
- Luma keying uses the brightness or luminance values of an image to generate a matte, regardless of the color
- Chroma keying is more commonly used due to its flexibility and ability to preserve fine details and edges in the foreground subject
Green screen vs blue screen
- Green screens are more frequently used in modern video production due to their higher luminance and less common occurrence in costumes and props
- Blue screens were traditionally used in film production because of their complementary nature to human skin tones and their lower noise in film stocks
- The choice between green and blue screens depends on factors such as the color of the foreground subject, lighting conditions, and personal preference
Lighting for chroma keying
- Even and consistent lighting is crucial for successful chroma keying to avoid shadows, hotspots, and uneven color distribution on the background
- Separate lighting setups for the background and the foreground subject help maintain the desired exposure and color temperature for each element
- Diffused lighting sources, such as softboxes or light banks, are preferred to minimize harsh shadows and reflections on the background screen
Camera settings for keying
- Proper camera settings optimize the quality of the chroma key footage and simplify the in post-production
- Higher resolution and color depth (4:2:2 or 4:4:4) capture more detail and provide better edge definition for cleaner keying results
- Adjusting the camera's white balance, exposure, and color settings to match the lighting conditions ensures accurate color representation and reduces the need for extensive

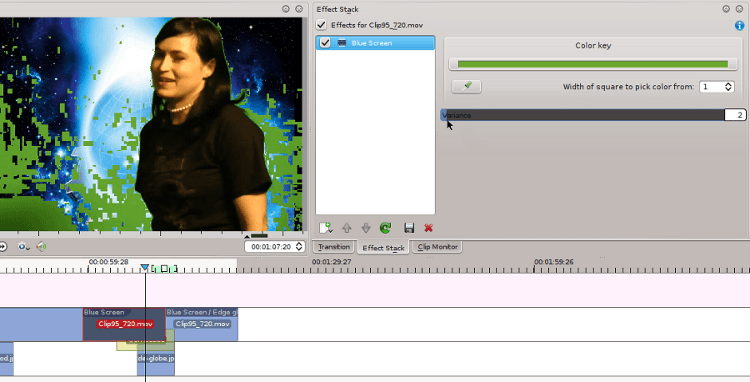

Chroma key software and tools
- Various software options are available for chroma keying, ranging from dedicated keying applications to plugins and built-in features within video editing and compositing programs
- Choosing the right tool depends on the specific requirements of the project, the user's familiarity with the software, and the available budget
Dedicated keying software
- Standalone applications like Keylight (included in The Foundry's ) and Primatte (developed by Photron) specialize in chroma keying and offer advanced controls and algorithms for high-quality results
- These programs provide a focused environment for keying and often include additional tools for refining mattes, suppressing spill, and adjusting edge detail
Keying plugins for NLEs
- Non-linear editing (NLE) software such as Adobe Premiere Pro, Final Cut Pro, and DaVinci Resolve include built-in chroma keying tools or support third-party keying plugins
- Plugins like Red Giant's Keying Suite and Boris FX's Primatte Studio integrate seamlessly with NLEs, allowing editors to perform keying tasks within their familiar editing environment
Keying features in compositing software
- Comprehensive compositing packages like , Blackmagic Fusion, and Nuke offer robust chroma keying capabilities alongside a wide range of compositing and visual effects tools
- These programs provide a more versatile and powerful environment for complex keying tasks and enable the integration of keyed footage with other visual elements and effects
Chroma key best practices
- Adhering to best practices throughout the chroma keying process ensures optimal results and minimizes the need for extensive post-production work
- Careful planning, proper setup, and attention to detail during shooting and compositing stages contribute to a seamless and convincing final image
Achieving clean edges
- Obtaining clean and well-defined edges around the foreground subject is essential for a believable composite
- Techniques like edge blending, edge sharpening, and matte choking help refine the matte and eliminate fringing or jagged edges
- Applying a small amount of motion blur or feathering to the edges can help blend the foreground and background elements more naturally
Dealing with color spill
- Color spill occurs when the chroma key color reflects onto the foreground subject, creating an unwanted tint or halo effect
- tools in keying software analyze the color contamination and neutralize it by desaturating or color-correcting affected areas
- Physical solutions like using a backlight or placing the subject further away from the background can minimize color spill during shooting
Retaining fine details and transparency
- Preserving fine details like hair, smoke, or translucent objects requires careful keying and compositing techniques
- Utilizing multiple keying passes with different settings and combining them using alpha channels or blending modes helps retain intricate details
- Rotoscoping or hand-drawn mattes can be used to refine problematic areas and ensure the integrity of fine elements
Matching lighting and perspective
- Matching the lighting direction, intensity, and color temperature of the foreground and background elements is crucial for a seamless integration
- Paying attention to the perspective and camera angle of the keyed footage and aligning it with the background plate creates a more convincing depth and spatial relationship
- Adding interactive lighting effects like shadows, reflections, and bounce light further enhances the realism of the composite
Compositing basics
- Compositing involves and combining multiple visual elements to create a cohesive final image or sequence
- Understanding the fundamental principles and techniques of compositing is essential for effectively integrating chroma keyed footage with other elements
Layering and stacking order
- Arranging the various elements in the correct stacking order ensures proper occlusion and interaction between layers
- The general rule is to place background elements at the bottom, followed by midground and foreground elements, with the topmost layer being the closest to the camera
- Adjusting the opacity, blending modes, and masks of individual layers allows for fine-tuning the composite and creating the desired visual hierarchy
Blending modes for compositing
- Blending modes determine how the pixels of one layer interact with the pixels of the layers beneath it
- Common blending modes used in compositing include Normal, Screen, Multiply, Overlay, and Soft Light, each offering unique ways to combine colors and luminance values
- Experimenting with different blending modes can help achieve specific looks, enhance contrast, or create special effects within the composite
Masking techniques
- allows selective revealing or concealing of parts of a layer, enabling precise control over the visibility and interaction of elements within the composite
- Binary masks (black and white) create hard-edged selections, while grayscale masks offer more gradual transitions and soft edges
- Animated masks can be used to track and isolate moving objects or to create dynamic transitions between layers
Rotoscoping for complex composites
- Rotoscoping is the process of manually drawing or refining mattes around specific elements in a frame-by-frame manner
- This technique is used when automatic keying or masking methods fail to produce satisfactory results, particularly with complex shapes, motion, or edge detail
- Rotoscoping requires patience and skill but allows for precise control over the matte and can help salvage difficult keying scenarios
Integrating keyed footage
- Successfully integrating chroma keyed footage into a new background involves a combination of technical and artistic techniques to create a seamless and believable composite
- Attention to detail in matching various properties of the foreground and background elements is crucial for maintaining visual consistency and realism
Matching color and luminance
- Ensuring that the color balance, saturation, and brightness of the keyed footage match the background plate is essential for a cohesive look
- Color correction tools like curves, levels, and hue/saturation adjustments can be used to fine-tune the foreground element to blend with the background
- Applying color grading techniques to both the foreground and background can help create a unified aesthetic and establish the desired mood or atmosphere
Adding realistic shadows and reflections
- Incorporating shadows cast by the keyed subject onto the background enhances the sense of depth and interaction between the elements
- Simulating reflections of the foreground subject on reflective surfaces in the background, such as water or glass, adds another layer of realism to the composite
- Using a combination of manual and automated techniques, such as painting shadows or utilizing 3D tracking data, ensures accurate placement and movement of shadows and reflections
Simulating camera motion and depth of field
- Matching the camera motion and perspective of the keyed footage with the background plate creates a more convincing integration
- Applying camera shake, handheld movement, or parallax effects to both the foreground and background elements maintains spatial consistency and sells the illusion of a single cohesive shot
- Simulating depth of field by blurring the background or foreground elements based on their distance from the virtual camera adds a sense of depth and mimics the characteristics of a real lens
Maintaining consistent grain and noise
- Ensuring that the grain structure and noise levels of the keyed footage and the background plate are consistent helps create a seamless blend between the elements
- Adding grain or noise to the composite can help conceal minor imperfections and unify the various elements into a cohesive whole
- Matching the type and intensity of grain or noise between the foreground and background is particularly important when combining footage from different sources or shot on different cameras
Advanced compositing techniques
- As the complexity of the compositing task increases, more advanced techniques and tools become necessary to achieve high-quality results
- These techniques often involve the integration of 3D elements, the use of multi-pass rendering, and the creation of complex visual effects
Multi-pass compositing
- Multi-pass compositing involves rendering various aspects of a 3D scene (e.g., diffuse color, specular highlights, shadows, reflections) as separate layers or passes
- These passes can then be combined and adjusted individually in the compositing stage, allowing for greater control and flexibility over the final look of the composite
- Multi-pass compositing enables the fine-tuning of specific elements without the need to re-render the entire 3D scene, saving time and computational resources
3D compositing and camera tracking
- Integrating 3D elements into a live-action background often requires accurate camera tracking to match the perspective and motion of the real-world footage
- Camera tracking software analyzes the movement of the live-action camera and reconstructs its path in 3D space, allowing virtual elements to be placed and animated in a way that mimics the real camera's motion
- techniques, such as Z-depth compositing and deep compositing, help create more realistic occlusion and interaction between 3D elements and the live-action plate
Combining practical and CG elements
- Seamlessly integrating practical (real-world) elements with computer-generated (CG) elements is a common challenge in advanced compositing
- Techniques like photogrammetry and 3D scanning can be used to create digital replicas of practical elements, allowing for better integration and interaction with CG elements
- Careful attention to lighting, shading, and texturing of CG elements is necessary to match the look and feel of the practical elements and create a convincing composite
Compositing for stereoscopic 3D
- Stereoscopic 3D compositing involves creating separate left and right eye views to produce a sense of depth and immersion for the viewer
- Ensuring that the parallax and convergence of the left and right eye views are consistent and comfortable for the audience requires precise alignment and adjustment of the composited elements
- Specialized tools and workflows, such as depth map generation and stereo camera rig setup, are used to manage the complexities of stereoscopic 3D compositing
Troubleshooting common issues
- Even with careful planning and execution, various issues can arise during the chroma keying and compositing process
- Identifying and addressing these common problems is essential for achieving high-quality results and maintaining an efficient workflow
Fixing uneven or noisy keying
- Uneven or noisy keying can result from inconsistent lighting, wrinkles in the background screen, or compression artifacts in the footage
- Applying advanced keying algorithms, such as chroma noise reduction or spill suppression, can help clean up the matte and remove unwanted artifacts
- Utilizing multiple keying passes with different settings and combining them using alpha channels or blending modes can help isolate and address problem areas
Removing artifacts and fringing
- Artifacts and fringing often appear along the edges of the keyed subject, particularly in areas with fine detail or motion blur
- Matte choking, edge blending, and feathering techniques can help minimize these artifacts and create a cleaner, more natural-looking edge
- Applying a small amount of blur or noise reduction to the matte can also help smooth out irregularities and reduce the appearance of fringing
Addressing matte lines and edge aliasing
- Matte lines and jagged edges (aliasing) can occur when the matte is not sufficiently anti-aliased or when there is a stark contrast between the foreground and background
- Increasing the resolution of the matte, applying anti-aliasing filters, or using sub-pixel keying techniques can help smooth out edges and eliminate matte lines
- Feathering the edges of the matte or applying a slight blur can also help create a more gradual transition between the foreground and background
Optimizing render times and output quality
- As composites become more complex, render times can increase significantly, slowing down the overall workflow
- Optimizing the project by reducing unnecessary layers, precomposing elements, and using proxy files can help speed up preview and render times
- Adjusting the output settings, such as resolution, bit depth, and compression codec, can help balance quality and file size for the final delivery
- Utilizing hardware acceleration, network rendering, or cloud-based rendering services can further improve performance and reduce render times for complex projects
Key Terms to Review (19)
2D compositing: 2D compositing is the process of combining multiple visual elements from separate sources into a single image or video layer in a two-dimensional space. This technique is widely used in visual effects and motion graphics to create scenes that blend live-action footage with computer-generated imagery, graphics, or other video elements, allowing for seamless integration and storytelling.
3D Compositing: 3D compositing is a technique used in visual effects to combine multiple layers of images or video footage into a single, cohesive scene in a three-dimensional space. This process allows artists to integrate live-action elements with computer-generated graphics, creating a more immersive and realistic visual experience. By manipulating depth, perspective, and lighting, 3D compositing enhances the storytelling potential of film and video projects.
Adobe After Effects: Adobe After Effects is a powerful software application used for creating motion graphics and visual effects in video post-production. It allows users to animate, alter, and composite digital media, making it essential for professional video editing and special effects. The software's capabilities enable seamless integration of various elements, such as 3D graphics, video footage, and animations, which enhances storytelling in film and media.
Backlighting: Backlighting is a lighting technique where the light source is positioned behind the subject, creating a silhouette effect and enhancing depth by illuminating the edges of the subject. This technique can significantly affect the lighting ratios and contrast in a scene, establish mood, and is particularly crucial for chroma keying and green screen setups to avoid shadows and ensure clean edges.
Blue screen: A blue screen is a visual effects technique used in film and video production to remove a background by replacing it with another image or footage. This process, known as chroma keying, involves filming subjects in front of a solid blue backdrop so that the blue color can be easily removed and replaced with different visuals during post-production. The blue screen technique is particularly useful for creating special effects, enhancing storytelling, and allowing for greater creative freedom in visual compositions.
Chroma key matte: A chroma key matte is a technique used in video production to replace a specific color, often a bright green or blue, with another image or video. This method allows for seamless compositing of subjects in front of digital backgrounds, enabling filmmakers to create visually rich scenes without the need for physical sets. By isolating the colored area, the chroma key matte helps in layering elements effectively in post-production.
Chroma keying: Chroma keying is a visual effects technique used to replace a solid-colored background, typically green or blue, with a different image or video during post-production. This technique allows filmmakers to create the illusion of subjects being in various environments without the need for physical sets. Proper lighting and color selection are crucial for achieving a clean key, as variations in color and brightness can lead to issues in the final composite.
Color consistency: Color consistency refers to the uniformity of colors in visual content, ensuring that colors appear the same across different devices and mediums. This is particularly important in creating seamless visual effects, where elements from various sources need to match perfectly to achieve a convincing final product. Color consistency helps maintain the intended mood and aesthetic of a project, especially when working with chroma keying and compositing techniques.
Color correction: Color correction is the process of adjusting and enhancing the colors in a video or film to achieve a desired visual aesthetic or to ensure consistency throughout a project. This process is crucial for maintaining the emotional tone and realism of a scene, allowing filmmakers to manipulate hues, saturation, and brightness to fit their creative vision.
Color Sampling: Color sampling refers to the process of measuring and recording colors from an image or video to facilitate accurate reproduction and manipulation in digital editing. It plays a crucial role in ensuring that colors are consistent across various media, which is essential for techniques like chroma keying and compositing, where precise color information is needed to blend multiple layers seamlessly without unwanted artifacts.
Edge Feathering: Edge feathering is a technique used in visual effects and compositing to create a smooth transition between a subject and its background by softening the edges of the subject. This method is essential in blending elements together seamlessly, especially when working with chroma keying, where the background color is replaced. By softening the edges, edge feathering helps reduce hard lines and creates a more realistic and visually appealing composition.
Even Lighting: Even lighting refers to a consistent and uniform distribution of light across a subject, minimizing shadows and creating a balanced illumination. This type of lighting is essential in visual production, particularly for techniques like green screen and chroma keying, as it ensures that the background remains consistent and allows for seamless integration with other visual elements.
Green screen: A green screen is a special effects technique used in video production that allows for the replacement of a solid color background with a different image or video. This method, known as chroma keying, enables filmmakers and content creators to transport subjects into various environments, creating a seamless integration of foreground and background elements. It is widely utilized in movies, television, and online content to enhance storytelling and visual appeal.
Keying Process: The keying process refers to the technique used in visual effects to isolate and remove a specific color or range of colors from a video frame, allowing for the replacement of that background with another image or video. This process is essential in chroma keying and compositing, where it enables filmmakers to create seamless blends of various elements, enhancing storytelling and visual creativity.
Layering: Layering is a technique used in visual storytelling that involves stacking multiple elements, such as images, colors, or effects, to create depth and complexity in a scene. This method enhances visual interest and guides the viewer's eye through the composition. Layering can also aid in conveying narratives or emotions by integrating various components harmoniously.
Masking: Masking is a technique used in visual effects and video production to selectively hide or reveal certain parts of an image or video layer. It allows for the creation of composite images by controlling which areas are visible, thus enabling the seamless integration of different elements, such as backgrounds and foregrounds, in a cohesive manner.
Nuke: In visual effects, a 'nuke' refers to a powerful compositing and visual effects software used in the film and television industry, primarily for creating complex compositions and integrating visual elements. It allows artists to combine various layers of imagery, perform color correction, and apply effects, making it essential for achieving high-quality final shots in projects that involve extensive visual manipulation.
Proper Distance: Proper distance refers to the optimal space between the subject and the background in a compositing setup, especially when using chroma key techniques. This distance is crucial because it helps prevent shadows and color spill from the subject onto the background, ensuring a clean and seamless composite. Maintaining proper distance is essential for achieving a realistic visual effect in post-production.
Spill Suppression: Spill suppression refers to techniques used to minimize the unwanted reflection of light (spill) onto the subject or scene being filmed against a green or blue background. This is crucial in creating a clean and professional look when integrating live-action footage with visual effects, ensuring that the edges of the keyed image are sharp and well-defined. Proper spill suppression not only enhances the quality of chroma keying but also plays a vital role in achieving seamless compositing and realistic visual effects.
