1.1 Digital cinema cameras
13 min read•august 20, 2024
Digital cinema cameras are advanced tools for capturing high-quality motion pictures. They offer superior features compared to traditional film or consumer video cameras. Understanding their key specs and technologies is crucial for cinematographers to make informed choices and achieve desired visual aesthetics.
This section covers critical aspects of digital cinema cameras, including , resolution, , , , and options. These elements impact image quality, creative control, and workflow efficiency in professional cinematography.
Digital cinema camera overview
- Digital cinema cameras are specialized tools designed for capturing high-quality motion pictures in a digital format, offering advanced features and capabilities compared to traditional film cameras or consumer-grade video cameras
- Understanding the key specifications and technologies used in digital cinema cameras is essential for cinematographers to make informed decisions when selecting the right camera for a particular project and achieving the desired visual aesthetics
- The following sections will delve into the critical aspects of digital cinema cameras, including sensor size and resolution, dynamic range, color science, codecs, and recording media options
Sensor size and resolution
Top images from around the web for Sensor size and resolution
El tamaño del sensor de una cámara: ¿Full-Frame, APS-C, 4/3? View original
Is this image relevant?
Micro Four Thirds system - Wikipedia View original
Is this image relevant?
Sensor Size M43 Super 35mm APS-C Full frame at 16x9 ratio | Flickr View original
Is this image relevant?
El tamaño del sensor de una cámara: ¿Full-Frame, APS-C, 4/3? View original
Is this image relevant?
Micro Four Thirds system - Wikipedia View original
Is this image relevant?
1 of 3
Top images from around the web for Sensor size and resolution
El tamaño del sensor de una cámara: ¿Full-Frame, APS-C, 4/3? View original
Is this image relevant?
Micro Four Thirds system - Wikipedia View original
Is this image relevant?
Sensor Size M43 Super 35mm APS-C Full frame at 16x9 ratio | Flickr View original
Is this image relevant?
El tamaño del sensor de una cámara: ¿Full-Frame, APS-C, 4/3? View original
Is this image relevant?
Micro Four Thirds system - Wikipedia View original
Is this image relevant?
1 of 3

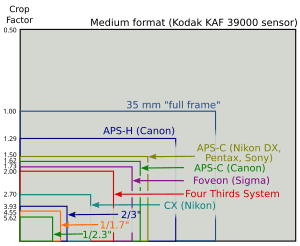

- Sensor size refers to the physical dimensions of the camera's image sensor, which directly impacts the field of view, , and low-light performance
- Common sensor sizes in digital cinema cameras include (similar to traditional 35mm film), (larger than Super 35, offering shallower depth of field and better low-light performance), and smaller formats like (MFT)
- Resolution describes the number of pixels on the sensor, with higher resolutions (e.g., 4K, 6K, or 8K) providing more detail and allowing for greater flexibility in post-production cropping and stabilization
- Higher resolutions also enable better visual effects work and future-proofing for emerging display technologies
Dynamic range and latitude
- Dynamic range refers to the camera's ability to capture a wide range of brightness levels within a scene, from the darkest shadows to the brightest highlights, measured in stops (e.g., 14+ stops in high-end cinema cameras)
- Latitude is the camera's ability to retain detail in the highlights and shadows when the exposure is adjusted in post-production, allowing for greater flexibility in and exposure correction
- Cameras with higher dynamic range and latitude offer more creative control and help maintain detail in challenging lighting conditions
Color science and processing
- Color science encompasses how a camera interprets and reproduces colors, including the accuracy and pleasing nature of skin tones, as well as the overall color palette
- Each camera manufacturer has its own proprietary color science, which contributes to the distinct look and feel associated with their cameras (e.g., ARRI's natural skin tones, RED's vibrant colors)
- In-camera color processing options, such as log gamma curves (e.g., ARRI Log C, RED IPP2) and color spaces (e.g., Rec. 709, DCI-P3), allow cinematographers to capture a wide range of color information for greater flexibility in post-production grading
Codecs and compression
- Codecs are software algorithms that compress and decompress digital video data to reduce file sizes and enable efficient storage and transmission
- Digital cinema cameras use a variety of codecs, including proprietary formats (e.g., REDCODE RAW, ARRI RAW) and industry-standard options (e.g., Apple , Avid DNxHR)
- Compression can be lossy (discarding some data to achieve smaller file sizes) or lossless (retaining all original data), with different levels of compression offering trade-offs between image quality and file size
- Higher-end codecs like ProRes 4444 XQ or REDCODE RAW offer better image quality and flexibility in post-production, while more compressed options like ProRes 422 or H.264 are suitable for smaller file sizes and faster workflows
Recording media options
- Digital cinema cameras use various types of recording media to store captured footage, including internal memory, removable SSDs, CFast 2.0 cards, or proprietary media like RED MINI-MAGs
- Factors to consider when choosing recording media include capacity (how much footage can be stored), read/write speeds (for supporting high-resolution and high-frame-rate recording), and reliability (resistance to shock, vibration, and temperature extremes)
- Some cameras offer the ability to record to external devices via or outputs, allowing for longer recording times and redundancy for critical shots
Camera body design
- The physical design and layout of a digital cinema camera play a crucial role in its usability, versatility, and suitability for different shooting scenarios
- Factors such as ergonomics, modularity, lens mount compatibility, accessory attachment points, and durability should be considered when evaluating a camera's body design
- The following sections will explore these aspects in more detail, highlighting their importance in the context of professional cinematography
Ergonomics and controls
- Ergonomics refers to how comfortably and efficiently a camera can be handled and operated, considering factors such as the placement of buttons, dials, and screens, as well as the overall weight and balance of the camera
- Well-designed ergonomics allow for intuitive operation and minimize fatigue during long shooting days, especially when the camera is handheld or used in challenging positions
- Customizable buttons and dials enable cinematographers to quickly access frequently used settings and functions without navigating through menus, streamlining the shooting process
Modular vs all-in-one
- Modular camera designs (e.g., RED DSMC2, Mini LF) consist of a compact brain unit that can be configured with various accessories like monitors, power solutions, and recording devices to suit specific shooting requirements
- All-in-one designs (e.g., Sony FX9, Canon C300 Mark III) integrate essential components into a single body, providing a more compact and self-contained solution that can be easier to set up and use in run-and-gun situations
- The choice between modular and all-in-one designs depends on factors such as the level of customization required, the need for a compact setup, and personal preferences
Lens mount compatibility
- Digital cinema cameras come with various lens mounts, which determine the range of lenses that can be used with the camera
- Common lens mounts include PL (popular in high-end cinema production), EF (widely used in photography and video), and E-mount (native to Sony cameras)
- Some cameras offer interchangeable lens mounts, allowing users to switch between different mounts to accommodate a wider range of lenses
- Adapters can also be used to attach lenses with different mounts to a camera, providing greater flexibility in lens choice
Accessory attachment points
- Digital cinema cameras often feature various attachment points for accessories such as external monitors, recorders, power solutions, and wireless transmission devices
- Common attachment points include 1/4"-20 and 3/8"-16 threaded holes, NATO rails, and cold shoes
- Robust and well-placed attachment points allow for secure and versatile accessory configurations, enabling cinematographers to customize their setup according to the demands of the shoot
Durability and weather sealing
- Professional digital cinema cameras are designed to withstand the rigors of demanding production environments, with rugged build quality and weather sealing to protect against dust, moisture, and extreme temperatures
- Cameras with strong durability ratings (e.g., IP54 or higher) offer peace of mind when shooting in challenging conditions, minimizing the risk of equipment failure or damage
- Weather-sealed cameras also reduce the need for protective covers or housing, allowing for faster setup times and more efficient shooting in inclement weather
Exposure tools
- Digital cinema cameras offer a range of exposure tools to help cinematographers accurately assess and control the exposure of their shots, ensuring optimal image quality and creative intent
- These tools provide visual feedback on the brightness levels, contrast, and focus of the image, allowing for precise adjustments to camera settings and lighting
- The following sections will explore the key exposure tools found in digital cinema cameras and their applications in professional cinematography
Built-in ND filters
- Neutral density (ND) filters reduce the amount of light entering the camera's sensor without affecting the color balance, allowing cinematographers to maintain desired and settings in bright conditions
- eliminate the need for external filters, saving time and reducing the risk of light leaks or reflections that can occur with stacked filters
- Cameras with built-in ND filters often offer a range of densities (e.g., 2, 4, or 6 stops) that can be quickly switched to adapt to changing light conditions
Dual native ISO
- is a sensor technology that allows a camera to operate at two different base settings without significantly increasing noise levels, effectively expanding the camera's dynamic range
- This feature enables cinematographers to shoot in low-light conditions with cleaner images and less noise compared to cameras with a single native ISO
- Examples of cameras with dual native ISO include the Panasonic Varicam 35 (native 800 and 5000 ISO) and the Sony Venice (500 and 2500 ISO)
False color and zebras
- and are exposure tools that provide visual feedback on the brightness levels of different areas in the frame
- False color assigns specific colors to different brightness ranges, allowing cinematographers to quickly identify areas that are underexposed, overexposed, or within a specific target range (e.g., skin tones)
- Zebras display diagonal lines over areas of the image that exceed a specified brightness level, typically used to avoid overexposure in highlights
Histogram and waveform
- A is a graphical representation of the tonal distribution in an image, displaying the number of pixels at each brightness level from shadows to highlights
- monitors show the brightness levels of the image across the frame, with the horizontal axis representing the image from left to right and the vertical axis representing the brightness from black to white
- Both tools help cinematographers evaluate the overall exposure and contrast of the image, ensuring that important details are preserved and the desired look is achieved
Peaking and focus assist
- is a tool that highlights the edges of in-focus areas in the frame, typically with colored lines or highlights, making it easier to confirm critical focus
- Focus assist tools, such as focus magnification and split focus, allow cinematographers to enlarge a portion of the frame or display a side-by-side comparison of two focus points to ensure precise
- These tools are particularly useful when shooting with shallow depth of field or when using manual focus lenses
Monitoring and outputs
- Digital cinema cameras offer various monitoring and output options to facilitate on-set review, remote control, and integration with external recording and monitoring devices
- These features allow cinematographers and crew members to assess the image quality, framing, and exposure in real-time, as well as provide flexibility in recording and post-production workflows
- The following sections will discuss the key monitoring and output features found in digital cinema cameras and their significance in professional production environments
EVF resolution and refresh rate
- An electronic viewfinder (EVF) is a small, high-resolution display that allows the operator to view the camera's live feed and monitor exposure, focus, and framing
- and are important factors in determining the clarity and responsiveness of the viewfinder image
- Higher resolution EVFs (e.g., 1920x1080 or 2048x1536) provide more detailed images, while faster refresh rates (e.g., 60fps or 120fps) reduce lag and improve the overall viewing experience
SDI vs HDMI
- SDI (Serial Digital Interface) and HDMI (High-Definition Multimedia Interface) are two common video output standards used in digital cinema cameras
- SDI is a professional-grade, locking connector that supports longer cable runs (up to 100 meters) and is more durable than HDMI, making it suitable for use in larger production environments
- HDMI is a consumer-oriented standard that is more widely available and can be used with a variety of monitors and recording devices, but has limitations in terms of cable length and durability
External recorder support
- Many digital cinema cameras support external recording via SDI or HDMI outputs, allowing for higher-quality recording formats, longer recording times, and redundancy
- External recorders can capture footage in higher bit rates, color depths, and resolutions compared to the camera's internal recording options, providing greater flexibility in post-production
- Popular external recorders include the Atomos Ninja V, Blackmagic Video Assist, and Convergent Design Odyssey, which offer features like high-brightness displays, LUT support, and multiple recording codecs
Timecode and genlock
- is a frame-accurate time reference that allows for precise synchronization of multiple cameras, audio devices, and other equipment in a production environment
- (generator lock) is a feature that synchronizes the camera's video output to an external reference signal, ensuring that all connected devices are operating on the same timing
- Cameras with timecode and genlock support facilitate multi-camera shoots, live broadcasting, and integration with professional audio and video systems
Camera control protocols
- Digital cinema cameras often support various that allow for remote operation and adjustment of camera settings from a computer, tablet, or dedicated control panel
- Common camera control protocols include Sony's VISCA, RED's REDLINK, and ARRI's CAP (Camera Access Protocol)
- These protocols enable integration with third-party control systems, such as those used in live broadcasting or virtual production environments, and allow for centralized control of multiple cameras from a single interface
Slow motion capabilities
- Slow motion is a creative technique that captures footage at a higher than the playback rate, resulting in a smooth, slowed-down appearance when played back at normal speed
- Digital cinema cameras offer various slow motion capabilities, with some models capable of capturing extremely high frame rates for stunning slow motion effects
- The following sections will explore the key factors related to slow motion in digital cinema cameras, including , , shutter types, and workflow considerations
Maximum frame rates
- The maximum frame rate a camera can achieve determines the extent to which footage can be slowed down while maintaining smooth motion
- High-end digital cinema cameras can capture at frame rates of 120fps, 240fps, or even higher, allowing for extreme slow motion when played back at standard 24fps or 30fps
- Examples of cameras with capabilities include the Sony Venice (up to 120fps at 6K), RED Monstro (up to 300fps at 2K), and Phantom Flex4K (up to 1000fps at 4K)
Crop factors at high speed
- Some cameras may apply a sensor crop when shooting at higher frame rates due to limitations in processing power or data throughput
- A crop factor reduces the effective sensor size, resulting in a narrower field of view and increased apparent focal length of the lens
- Cinematographers must consider the impact of crop factors on framing and lens selection when planning for slow motion shots
Rolling shutter vs global shutter
- and are two different types of sensor readout methods that can affect the appearance of motion in slow motion footage
- Rolling shutter sensors capture the image line by line, which can result in skewed vertical lines or "jello" effects when subjects move quickly or the camera is panned rapidly
- Global shutter sensors capture the entire frame simultaneously, eliminating rolling shutter artifacts and providing a more natural representation of motion, particularly in slow motion shots
- Some digital cinema cameras, such as the Sony Venice and ARRI Alexa Mini LF, offer switchable global and rolling shutter modes to suit different shooting requirements
Slow motion workflow considerations
- Shooting and editing slow motion footage requires additional considerations in terms of data management, storage, and post-production workflows
- Higher frame rates generate larger file sizes, necessitating faster storage media and greater storage capacity for both on-set recording and post-production
- Editing slow motion footage may require specialized software or plugins to handle high frame rate media and ensure smooth playback and trimming
- Cinematographers and post-production teams should plan their workflow and infrastructure accordingly to accommodate the demands of slow motion production
Low light performance
- A camera's low light performance refers to its ability to capture clean, noise-free images in dimly lit environments or when using high ISO settings
- Digital cinema cameras employ various technologies and techniques to optimize low light performance, enabling cinematographers to shoot in challenging lighting conditions without compromising image quality
- The following sections will discuss key aspects of low light performance in digital cinema cameras, including , , and the concept of ISO invariance
Dual gain architecture
- Dual gain architecture is a sensor design that utilizes two separate gain circuits for each pixel, one optimized for low light and the other for bright conditions
- This technology allows the camera to switch between the two gain circuits depending on the amount of light available, effectively increasing the dynamic range and reducing noise in low light situations
- Examples of cameras with dual gain architecture include the Panasonic Varicam 35 and the Sony Venice
Noise reduction processing
- Noise reduction processing algorithms are used to minimize the appearance of noise in low light footage, particularly when shooting at high ISO settings
- These algorithms analyze the image data and apply spatial and temporal filtering to reduce noise while preserving detail and sharpness
- Advanced noise reduction techniques, such as motion-adaptive temporal filtering and multi-frame noise reduction, can significantly improve low light performance without introducing artifacts or compromising image quality
ISO invariance concept
- ISO invariance refers to a camera's ability to produce similar image quality when underexposing and brightening the footage in post-production, compared to shooting at a higher ISO setting
- Cameras with high ISO invariance allow cinematographers to shoot at a lower ISO and maintain a wider dynamic range, while still being able to recover shadow detail in post-production without introducing excessive noise
- ISO invariance is particularly useful in low light situations where maintaining highlight detail is crucial, as it allows for greater flexibility in exposure and grading decisions
RAW recording
- RAW recording is a high-quality, uncompressed or lightly compressed format that captures the raw sensor data from a digital cinema camera, providing maximum flexibility and control in post-production
- Unlike compressed formats like ProRes or DNxHR, RAW files retain all of the original sensor data, including individual pixel values and color information, allowing for extensive manipulation of exposure, white balance, and color grading
- The following sections will explore the key aspects of RAW recording in digital cinema cameras, including compression options, the Bayer pattern and debayering process, and the benefits of working with RAW files in post-production
Uncompressed vs compressed RAW
Key Terms to Review (52)
4K Resolution: 4K resolution refers to a display or image resolution of approximately 4,000 pixels across the horizontal axis, specifically 3840 x 2160 pixels for consumer displays and 4096 x 2160 pixels for cinema. This high level of detail provides clearer images with greater depth and texture, enhancing the overall visual experience. In the realm of digital cinema cameras, 4K resolution represents a significant advancement over previous HD resolutions, allowing filmmakers to capture and project sharper, more vibrant images that can handle extensive post-production processes without compromising quality.
Aperture: Aperture refers to the opening in a camera lens that allows light to enter, significantly affecting exposure and depth of field. It plays a vital role in controlling the amount of light hitting the sensor, which in turn impacts how images are captured, the sharpness of subjects, and the overall aesthetic quality of the shot.
Arri Alexa: The Arri Alexa is a digital motion picture camera that is renowned in the film industry for its exceptional image quality and dynamic range. It combines advanced digital sensor technology with a user-friendly design, making it a preferred choice for cinematographers and filmmakers. The Alexa series has been widely used in various film productions, commercials, and television series, showcasing its versatility and reliability in capturing high-quality footage.
Built-in ND filters: Built-in ND (Neutral Density) filters are integrated optical devices within digital cinema cameras that reduce the amount of light entering the lens without affecting the color of the scene. These filters allow filmmakers to maintain proper exposure while achieving desired effects such as a shallow depth of field or motion blur, even in bright lighting conditions. By utilizing built-in ND filters, cinematographers can simplify their setup and enhance creative control without the need for external filter attachments.
Camcorder: A camcorder is a portable electronic device that combines a video camera and a recording device, allowing users to capture and store video footage. These devices are designed for convenience and ease of use, making them popular for both amateur and professional videographers. Camcorders typically offer features such as zoom lenses, built-in stabilization, and various recording formats, enhancing the quality and versatility of video production.
Camera Control Protocols: Camera control protocols are standardized communication methods that allow external devices to control various functions of a digital cinema camera. These protocols enable filmmakers to adjust settings such as focus, zoom, iris, and recording parameters remotely, which is crucial for achieving precise results in cinematography. They facilitate seamless integration between cameras and other equipment, enhancing workflow efficiency during production.
Codecs: Codecs are software or hardware tools that encode and decode digital data, particularly in the context of audio and video files. They play a crucial role in digital cinema cameras by compressing large amounts of data into manageable sizes for storage and transmission while maintaining quality. Understanding codecs is essential for filmmakers, as they affect everything from recording formats to post-production workflows and distribution.
Color grading: Color grading is the process of adjusting and enhancing the color properties of a video or film to achieve a desired visual aesthetic or mood. This technique plays a vital role in shaping the narrative and emotional impact of the visual story, influencing everything from the lighting and camera settings to the final output seen by audiences.
Color Science: Color science is the study of how colors are created, perceived, and manipulated in various mediums, especially in digital imaging. This includes understanding the physics of light, color theory, and how human vision works. In the realm of digital cinema cameras, color science is crucial for ensuring accurate color reproduction and consistency throughout the filmmaking process.
Crop Factors: Crop factors refer to the ratio of a camera's sensor size compared to a reference 35mm film frame, impacting the effective focal length and field of view of a lens used on that camera. Understanding crop factors is essential in digital cinema, as it influences composition, depth of field, and the overall aesthetic quality of the footage captured. Different cameras with varying sensor sizes can lead to significantly different visual outcomes, even when using the same lens.
Depth of Field: Depth of field refers to the range of distance within a shot that appears acceptably sharp. It plays a crucial role in storytelling and visual composition, influencing how viewers perceive focus, attention, and emotion in a scene.
Dnxhd: DNxHD, or Digital Nonlinear Extensible High Definition, is a video codec developed by Avid Technology that is designed for high-definition video editing and production. It allows for the efficient compression of high-quality video without significant loss of quality, making it ideal for use in digital cinema cameras and professional editing environments where high fidelity is crucial.
DSLR: A DSLR, or Digital Single-Lens Reflex camera, is a type of digital camera that uses a mirror mechanism to reflect light from the lens into an optical viewfinder, allowing photographers to see exactly what they will capture. This technology combines the benefits of digital imaging with the classic reflex design, providing high-quality images and flexibility in shooting settings and lenses. DSLRs are popular among both amateur and professional photographers due to their interchangeable lenses and superior image quality.
Dual gain architecture: Dual gain architecture is a technology used in digital cinema cameras that allows for improved dynamic range and low-light performance by utilizing two separate amplification circuits for the sensor's output. This design enhances the camera's ability to capture high-quality images across a wide range of lighting conditions, making it particularly effective in both bright and dim environments. By leveraging this architecture, filmmakers can achieve greater detail in shadows and highlights without sacrificing image quality.
Dual native iso: Dual native ISO is a technology found in some digital cinema cameras that allows the camera sensor to operate at two distinct sensitivity settings without introducing noise. This feature enhances the camera's performance in various lighting conditions, enabling filmmakers to capture high-quality images whether in bright light or low-light environments. By optimizing sensitivity at both ISOs, filmmakers can achieve greater dynamic range and flexibility in post-production.
Dynamic Range: Dynamic range refers to the range of brightness levels that a camera sensor can capture, from the darkest shadows to the brightest highlights. It is crucial in determining how well a camera can reproduce detail in both extreme light and dark areas, impacting everything from exposure settings to post-production processes.
Editing Suite: An editing suite is a dedicated space equipped with the necessary tools and technology for post-production film editing. This environment typically includes powerful computers, specialized software, and hardware like video monitors and sound equipment, allowing editors to assemble and refine raw footage into a cohesive final product. The suite facilitates collaboration among creative professionals, including directors, sound designers, and visual effects artists, making it an essential part of the filmmaking process.
Evf resolution: EVF resolution refers to the pixel count and clarity of an electronic viewfinder in digital cinema cameras. A higher EVF resolution provides filmmakers with a more detailed and accurate representation of the image being captured, which is essential for achieving precise focus and composition. The quality of an EVF can significantly influence a cinematographer's ability to make informed creative decisions while shooting.
External recorder support: External recorder support refers to the capability of digital cinema cameras to connect with external recording devices, allowing filmmakers to capture high-quality video and audio signals separately from the camera's internal storage. This functionality enhances flexibility in production, as it can facilitate the use of better codecs, higher bit rates, and additional recording formats that might not be available on the camera itself. By utilizing external recorders, filmmakers can achieve superior image quality and have more control over their workflow during filming.
False Color: False color is a technique used in digital imaging that assigns colors to specific brightness levels, allowing filmmakers to visualize exposure and dynamic range more effectively. This technique is especially important in digital cinema cameras, where it aids in evaluating the image data captured by the sensor, ensuring proper exposure and highlighting areas that may be overexposed or underexposed. By translating luminance values into color representations, false color helps cinematographers make informed decisions about lighting and camera settings during production.
Focus Assist: Focus assist is a feature found in digital cinema cameras that helps cinematographers achieve precise focus by providing visual aids on the camera display. This functionality can enhance the filming process by highlighting areas of sharp focus, ensuring that critical details are captured as intended. It often includes tools like peaking, which outlines the edges of in-focus subjects, and magnification to allow for close inspection of focus areas.
Focus Pulling: Focus pulling is the art and technique of adjusting the focus of a camera lens during a shot, ensuring that the desired subject remains sharp and clear while other elements blur. This skill is vital for creating dynamic visuals, emphasizing storytelling, and controlling depth perception in a scene. It requires a strong understanding of camera settings, the characteristics of digital cinema cameras, and how depth of field can affect the overall composition.
Frame rate: Frame rate refers to the frequency at which consecutive images or frames are displayed in a video or film, typically measured in frames per second (fps). It is a crucial aspect of cinematography, as it affects motion representation, overall visual quality, and can influence the audience's perception of time and movement. Different frame rates are used for various applications, influencing how motion is captured and perceived across digital cinema cameras, codecs, HDR workflows, and camera tracking techniques.
Full-frame: Full-frame refers to a specific sensor size in digital cinema cameras that is equivalent to the dimensions of a 35mm film frame, measuring approximately 36mm x 24mm. This sensor size captures more light and detail, allowing for better low-light performance and a wider dynamic range, which can significantly enhance the quality of an image. Full-frame sensors are often associated with higher-end cameras used in professional filmmaking, contributing to a cinematic look that many filmmakers strive for.
Genlock: Genlock is a synchronization technique used in video production to ensure that multiple cameras and video devices operate in perfect timing with each other. This is crucial when combining footage from different sources or when using stereoscopic setups, as it prevents image tearing and ensures consistent frame rates across all devices involved in the production process.
Global Shutter: A global shutter is a type of image capture technology in digital cameras where all pixels on the sensor are exposed to light simultaneously, rather than sequentially. This allows for the elimination of motion artifacts, such as rolling shutter effects, resulting in clearer images of fast-moving subjects. This technology is particularly important for digital cinema cameras and plays a significant role in capturing high-quality footage across various sensor sizes and formats.
HDMI: HDMI, or High-Definition Multimedia Interface, is a digital interface used for transmitting high-quality audio and video signals between devices. It supports uncompressed video formats and multi-channel audio, making it ideal for digital cinema cameras and post-production workflows, as it ensures accurate transmission of visual data without loss in quality.
High frame rate: High frame rate (HFR) refers to the technique of capturing and displaying video at rates significantly higher than the standard 24 frames per second (fps), often achieving 48 fps, 60 fps, or even higher. This method enhances motion clarity, reduces motion blur, and allows for a smoother visual experience, which can be particularly beneficial in action scenes or fast-paced sequences. As technology advances, HFR is increasingly integrated into digital cinema cameras and is also being explored in future developments involving high dynamic range (HDR) and wide color gamut (WCG) formats.
Histogram: A histogram is a graphical representation of the distribution of pixel values in an image, commonly used in digital cinema cameras to analyze exposure levels and tonal ranges. It helps filmmakers visualize the brightness and contrast of their footage by displaying the number of pixels at each intensity level, which aids in making informed decisions during shooting and post-production. By understanding the histogram, cinematographers can ensure their images are well-exposed and can avoid issues like clipping or loss of detail in highlights and shadows.
Image stabilization: Image stabilization is a technology used in cameras and lenses to reduce the blurriness caused by camera movement during handheld shooting. It allows filmmakers to capture smoother and clearer footage, which is especially important when using telephoto lenses or shooting in low light conditions. This technology can be implemented through various methods, including optical stabilization within lenses and electronic stabilization within digital cinema cameras.
ISO: ISO, or International Standards Organization, refers to a camera setting that measures the sensitivity of the camera's sensor to light. In digital cinema cameras, adjusting the ISO affects the exposure and graininess of the image. A higher ISO allows for better performance in low light conditions but can introduce noise, while a lower ISO is typically used in brighter environments for clearer images.
Iso Invariance Concept: The iso invariance concept refers to the ability of a digital cinema camera's sensor to maintain image quality across different ISO settings. This means that a camera can produce similar noise levels and dynamic range whether shot at low or high ISO values, allowing filmmakers more flexibility in exposure without sacrificing image integrity. This characteristic is crucial for achieving optimal results in various lighting conditions without compromising the final visual output.
Log color profile: A log color profile is a gamma curve used in digital cinema that compresses the dynamic range of the image, allowing for greater flexibility in post-production color grading. By capturing a wider range of brightness levels, it preserves details in both the highlights and shadows, making it easier to manipulate colors without degrading image quality. Log profiles are essential for filmmakers aiming for a cinematic look, as they help achieve a more natural representation of scenes and improve the overall aesthetic during editing.
Maximum frame rates: Maximum frame rates refer to the highest number of frames that a digital cinema camera can capture per second. This metric is crucial as it influences the smoothness of motion in captured footage and enables effects such as slow motion or high-speed action shots. In digital cinema cameras, maximum frame rates can vary significantly based on resolution settings and other technical specifications, impacting the overall quality and versatility of the camera system.
Micro Four Thirds: Micro Four Thirds is a mirrorless camera system that utilizes a specific sensor size of 17.3mm x 13mm, which is half the size of a full-frame sensor. This format is designed to provide a balance between high image quality, portability, and interchangeable lenses, making it popular among both amateur and professional photographers and filmmakers. The system also features a standardized lens mount, allowing for compatibility across different brands, enhancing versatility in the choice of equipment.
Mirrorless: Mirrorless refers to a type of digital camera that does not use a mirror reflex mechanism to capture images, which allows for a more compact and lightweight design. By eliminating the mirror and optical viewfinder system found in traditional DSLRs, mirrorless cameras enable faster shooting speeds, quieter operation, and generally offer enhanced video capabilities, making them popular among filmmakers and content creators.
Noise Reduction Processing: Noise reduction processing is a technique used in digital cinema to minimize unwanted audio and visual noise, enhancing the overall quality of the footage captured by cameras. This process can significantly improve image clarity by reducing grain or pixelation that can occur during low-light shooting or due to sensor limitations. It plays a vital role in achieving a polished and professional look in digital cinema productions.
Peaking: Peaking refers to a visual aid feature found in digital cinema cameras that helps users determine focus accuracy by highlighting the areas of an image that are in sharp focus. This feature enhances the cinematographer's ability to achieve precise focus during shooting, particularly in scenes with shallow depth of field or when using wide apertures. By providing a clear visual representation of focus, peaking allows for more effective and efficient adjustments, ultimately contributing to the overall quality of the captured image.
ProRes: ProRes is a high-quality video codec developed by Apple that is widely used for professional video editing. It strikes a balance between file size and image quality, making it a popular choice in the film and video production industry. ProRes supports various resolutions and bit depths, allowing filmmakers to maintain high visual fidelity while managing file sizes effectively.
Raw format: Raw format refers to a type of digital image or video file that captures all the data from the sensor of a camera without any processing or compression. This means that raw files retain more detail and dynamic range than other formats, allowing for greater flexibility during editing. The lack of compression also means that raw files are significantly larger, making storage and handling an important consideration in digital cinema production.
Recording Media: Recording media refers to the various materials and formats used to capture, store, and playback audiovisual content in digital cinema. This can include solid-state drives (SSDs), hard disk drives (HDDs), memory cards, and optical discs, which are essential for the workflow in modern filmmaking. The choice of recording media affects factors like image quality, storage capacity, durability, and speed of data transfer, all crucial for successful digital cinema production.
Red Komodo: The Red Komodo is a compact digital cinema camera manufactured by Red Digital Cinema, designed to offer high-resolution filming capabilities in a lightweight and portable form. With features like 6K resolution, global shutter technology, and modular design, it caters to a wide range of filmmakers and video creators looking for professional quality without the bulk of larger systems.
Refresh Rate: Refresh rate refers to the number of times per second that a digital display updates its image. In the context of digital cinema cameras, refresh rate is crucial because it affects how motion is captured and displayed, influencing the overall quality and smoothness of video playback. A higher refresh rate can reduce motion blur and enhance the clarity of fast-moving scenes, making it a significant factor in cinematography.
Rolling Shutter: Rolling shutter is a method used in digital cameras where the image sensor captures the image line by line, rather than all at once. This technique is commonly found in many digital cinema cameras, and it can lead to artifacts like motion blur or skew when capturing fast-moving subjects or during quick camera movements. Understanding rolling shutter helps filmmakers anticipate how to achieve smoother shots and avoid unwanted distortions in their visuals.
SDI: SDI, or Serial Digital Interface, is a standard for transmitting digital video signals over coaxial cables, primarily used in professional video environments. This technology allows for the transmission of high-quality uncompressed video and audio signals, which is essential in modern digital cinema cameras and workflows. It ensures that content maintains integrity throughout the production and post-production phases, making it a vital component in the digital filmmaking process.
Sensor Size: Sensor size refers to the physical dimensions of the image sensor within a digital cinema camera, which captures light and converts it into an electronic signal to create an image. The size of the sensor plays a critical role in determining the camera's field of view, depth of field, and overall image quality. Larger sensors typically offer better low-light performance and greater dynamic range, influencing creative decisions in filmmaking.
Shutter Speed: Shutter speed refers to the length of time a camera's shutter remains open to allow light to hit the sensor. It plays a critical role in determining the exposure of an image, influencing how motion is captured, and contributing to the overall aesthetic of the shot. A faster shutter speed can freeze motion, while a slower speed can create motion blur, both of which are essential in storytelling and visual effects in cinema.
Slow motion workflow considerations: Slow motion workflow considerations refer to the specific techniques and practices used in cinematography to achieve slow motion effects effectively while maintaining high image quality. This involves careful planning around frame rates, shutter speeds, and camera settings, as well as considerations for post-production processes like frame interpolation and editing. By understanding these aspects, filmmakers can ensure that slow motion sequences enhance the storytelling without compromising the overall visual integrity of the project.
Super 35: Super 35 is a film format that uses a larger area of the 35mm film frame to capture more image detail, providing a wider aspect ratio and greater depth of field. This format has become increasingly popular in digital cinema cameras as it allows filmmakers to achieve a cinematic look with enhanced image quality and versatility in composition. Super 35 also facilitates the use of standard 35mm film lenses, making it easier for cinematographers to transition between film and digital workflows.
Timecode: Timecode is a sequence of numeric codes generated at regular intervals by a timing system, which helps synchronize video and audio recordings. It provides a way to precisely identify any frame of video in hours, minutes, seconds, and frames, making it crucial for editing and post-production workflows in digital cinema. Accurate timecode is essential for multi-camera setups and aligning different media elements in the editing process.
Waveform: A waveform is a graphical representation of varying signal strengths over time, commonly used in visual and audio applications to analyze the amplitude and frequency of a signal. In digital cinema, waveforms are essential for evaluating exposure levels, ensuring that the captured image maintains detail in both highlights and shadows. They serve as a critical tool for cinematographers to achieve optimal image quality by visualizing the data captured by digital cameras.
Zebras: Zebras are visual indicators used in digital cinema cameras that highlight overexposed areas in a scene. These patterns help cinematographers and camera operators identify parts of the image that may lose detail due to excessive brightness, ensuring they can make adjustments to exposure settings for optimal image quality. Understanding how to read and use zebras is crucial for achieving the desired look in a shot without risking blown-out highlights.
