and stabilizers are essential tools for achieving smooth camera movements in cinematography. While both aim to eliminate shake, they differ in design, operation, and functionality. Understanding these differences is crucial for choosing the right tool for a project.
Key components, techniques, and operating skills vary between Steadicam and gimbals. Steadicam offers wider range of motion but requires more setup time, while gimbals are user-friendly but have limitations. Choosing between them depends on project needs, budget, and operator skill level.
Steadicam vs gimbal stabilizers
Steadicam and gimbal stabilizers are two popular tools used in cinematography to achieve smooth, stable
While both systems aim to eliminate camera shake and create fluid shots, they differ in their design, operation, and overall functionality
Understanding the key differences between Steadicam and gimbal stabilizers is crucial for cinematographers to make informed decisions when choosing the right tool for a specific project
Key components of Steadicam systems
Arm and sled mechanisms
Top images from around the web for Arm and sled mechanisms
Frontiers | SIMBA: Tendon-Driven Modular Continuum Arm with Soft Reconfigurable Gripper View original
Is this image relevant?

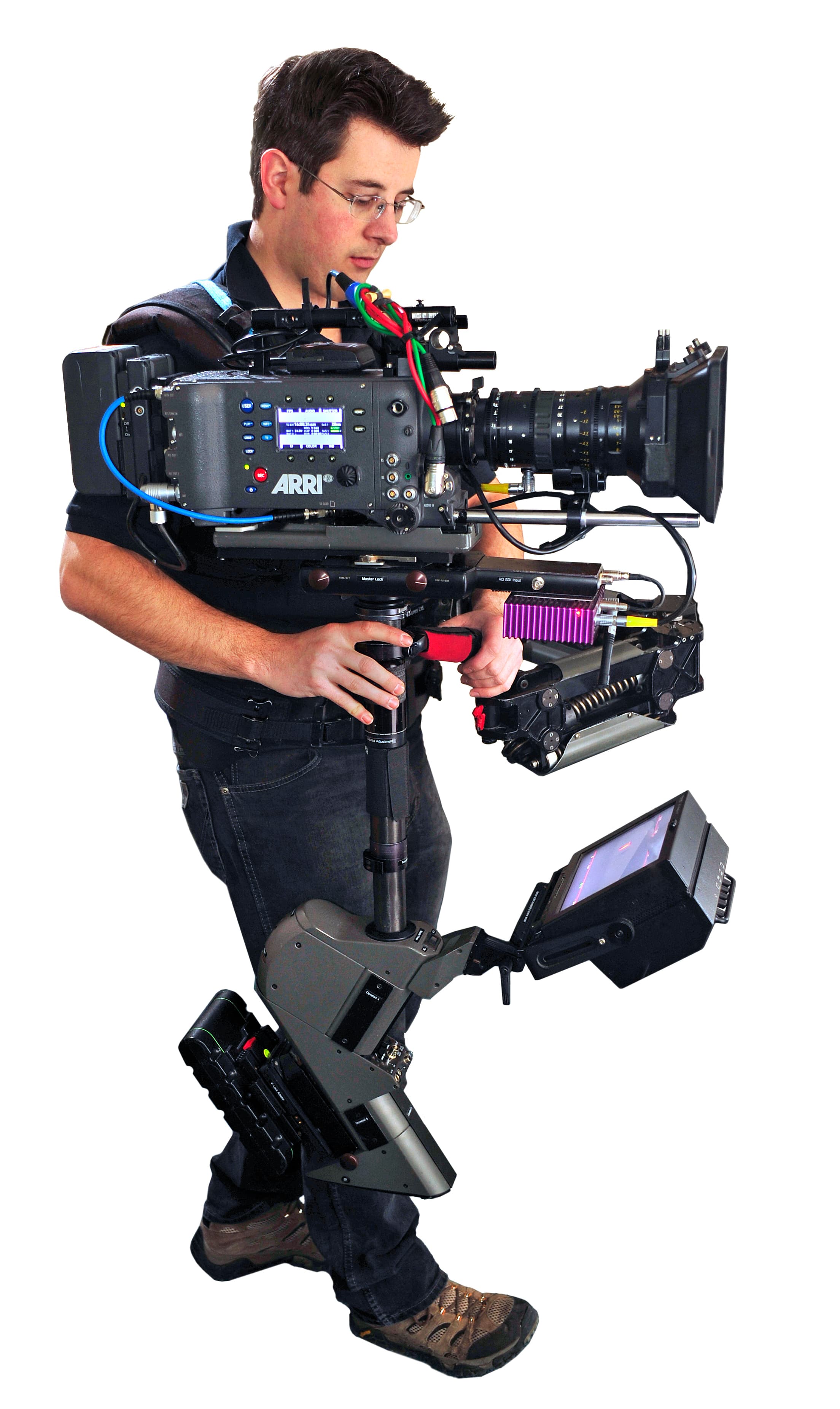

File:Steadicam Operator John Fry with Master Steadicam & Arri Alexa camera.jpg - Wikimedia Commons View original
Is this image relevant?
Merlin Setup1 | Here is the steadicam all set up. It has one… | Flickr View original
Is this image relevant?
Frontiers | SIMBA: Tendon-Driven Modular Continuum Arm with Soft Reconfigurable Gripper View original
Is this image relevant?
File:Steadicam Operator John Fry with Master Steadicam & Arri Alexa camera.jpg - Wikimedia Commons View original
Is this image relevant?
1 of 3
Top images from around the web for Arm and sled mechanisms
Frontiers | SIMBA: Tendon-Driven Modular Continuum Arm with Soft Reconfigurable Gripper View original
Is this image relevant?
File:Steadicam Operator John Fry with Master Steadicam & Arri Alexa camera.jpg - Wikimedia Commons View original
Is this image relevant?
Merlin Setup1 | Here is the steadicam all set up. It has one… | Flickr View original
Is this image relevant?
Frontiers | SIMBA: Tendon-Driven Modular Continuum Arm with Soft Reconfigurable Gripper View original
Is this image relevant?
File:Steadicam Operator John Fry with Master Steadicam & Arri Alexa camera.jpg - Wikimedia Commons View original
Is this image relevant?
1 of 3
The arm mechanism consists of a series of articulated joints and springs that isolate the camera from the operator's body movements
The sled is a modular unit that houses the camera, monitor, batteries, and counterweights, allowing for precise balancing and
The arm and sled work together to create a smooth, floating camera effect, absorbing shocks and vibrations
Vest designs for operator comfort
Steadicam vests are designed to distribute the weight of the system evenly across the operator's body, minimizing fatigue during long shoots
Modern vests feature adjustable straps, padding, and support structures to ensure a comfortable and secure fit for operators of different sizes and body types
Some vests incorporate a "gimbal" design that allows the arm to pivot freely, further enhancing the system's stability and range of motion
Monitor and battery placement
The monitor is typically mounted on the sled, allowing the operator to frame shots and maintain proper composition while moving
Batteries are strategically placed on the sled to maintain balance and provide power to the camera, monitor, and other accessories
The placement of the monitor and batteries can be adjusted to optimize the system's balance and ergonomics for different camera configurations and shooting scenarios
Balancing techniques for Steadicam
Dynamic balance vs static balance
Static balance refers to the equilibrium of the sled when it is stationary, ensuring that the camera remains level and stable when not in motion
Dynamic balance is achieved when the sled maintains its orientation and stability while the operator is moving, allowing for smooth, fluid camera movements
Proper dynamic balance is crucial for achieving the signature "floating camera" look associated with Steadicam shots
Adjusting the sled for proper balance
Balancing a Steadicam sled involves carefully adjusting the position of the camera, monitor, batteries, and counterweights to achieve an even distribution of weight
The sled should be balanced so that it remains level and stable when the operator removes their hands, indicating a neutral balance point
Fine-tuning the sled's balance may involve making small adjustments to the camera's position, adding or removing weights, or repositioning accessories
Importance of drop time
Drop time refers to the duration it takes for the sled to settle back to its neutral position after being tilted or displaced
A properly balanced Steadicam should have a drop time of around 2-3 seconds, allowing for smooth, controlled movements and minimizing unwanted pendulum effects
Achieving the optimal drop time requires precise adjustments to the sled's balance and may vary depending on the camera configuration and the operator's preferences
Operating a Steadicam
Proper posture and stance
Steadicam operators must maintain a stable, balanced posture to minimize unwanted body movements and ensure smooth camera operation
A wide stance with feet shoulder-width apart and knees slightly bent helps to absorb shocks and maintain stability while moving
Keeping the arms relaxed and elbows close to the body allows the operator to make precise, controlled movements with the sled
Executing smooth moves and transitions
Smooth Steadicam moves require a combination of precise footwork, body control, and manual dexterity
Operators must master techniques such as the "line dance" (moving laterally while keeping the camera stable) and the "figure 8" (creating smooth, circular movements)
Transitions between different types of moves (e.g., from a low angle to a high angle) should be executed seamlessly, maintaining the floating camera effect throughout
Mastering the floating camera look
The signature "floating camera" look is achieved by minimizing camera shake and creating a sense of weightlessness in the shot
Operators must develop a keen sense of balance and spatial awareness to maintain the camera's stability while navigating through complex environments
Mastering the floating camera look requires extensive practice, muscle memory, and the ability to anticipate and compensate for potential disruptions to the camera's stability
Types of gimbal stabilizers
Motorized vs non-motorized gimbals
Motorized gimbals use brushless motors to stabilize the camera along three axes (pan, tilt, and roll), actively compensating for unwanted movements and vibrations
Non-motorized gimbals, also known as mechanical gimbals, rely on the operator's manual input and the system's balance to achieve stability, without the use of electronic motors
Motorized gimbals offer more advanced features and automated stabilization, while non-motorized gimbals are typically simpler, lighter, and more affordable
Handheld and body-mounted designs
Handheld gimbals are compact, portable devices that are held and operated directly by the camera operator (DJI Ronin-S, Zhiyun Crane)
Body-mounted gimbals are larger, more robust systems that are worn by the operator using a harness or vest, allowing for more complex movements and extended shooting periods (Freefly Movi, DJI Ronin 2)
The choice between handheld and body-mounted gimbals depends on factors such as camera size, shot complexity, and the operator's physical capabilities
Single-handed vs dual-operator setups
Single-handed gimbal operation involves a single person controlling both the camera's movement and the gimbal's stabilization, allowing for more intuitive and responsive shots
Dual-operator setups split the responsibilities between a camera operator, who controls the gimbal's movement, and a separate focus puller or second operator, who manages the camera's settings and focus
Dual-operator setups are often used for more complex shots, larger camera packages, or when precise manual focus control is required
Balancing a gimbal stabilizer
Achieving a neutral balance
Like Steadicam systems, gimbals must be properly balanced to ensure optimal stabilization and performance
A neutral balance is achieved when the camera remains level and stable without any motorized assistance, allowing the gimbal motors to work more efficiently
Balancing a gimbal involves adjusting the camera's position along the three axes (pan, tilt, and roll) using the gimbal's sliding plates and counterweights
Configuring the gimbal software
Modern motorized gimbals come with proprietary software that allows users to customize the system's performance and settings
Gimbal software typically includes options for adjusting motor strength, responsiveness, and stabilization modes (e.g., follow mode, lock mode, or custom profiles)
Proper software configuration ensures that the gimbal responds accurately to the operator's movements and maintains the desired level of stabilization
Tuning motor strength and responsiveness
Motor strength and responsiveness settings determine how quickly and forcefully the gimbal motors react to external disturbances and operator input
Higher motor strength settings are suitable for heavier camera payloads or more demanding shooting conditions, while lower settings may be preferred for lighter cameras or more subtle movements
Responsiveness settings affect how smoothly the gimbal follows the operator's movements, with higher responsiveness resulting in more immediate, agile reactions
Techniques for operating gimbals
Controlling pan, tilt, and roll
Gimbal operators must master the control of the camera's pan (horizontal rotation), tilt (vertical rotation), and roll (rotation along the lens axis) to achieve the desired framing and movement
Most gimbals offer various control methods, including joystick controls, remote controllers, or smartphone apps, allowing operators to adjust the camera's orientation in real-time
Smooth, precise control of pan, tilt, and roll is essential for executing complex camera moves and maintaining the desired composition throughout the shot
Following subjects and executing moves
Gimbals excel at creating smooth, stable tracking shots that follow subjects in motion, such as actors walking or vehicles in pursuit
Operators must anticipate the subject's movement and adjust the gimbal's orientation accordingly, maintaining proper framing and composition
Executing complex moves, such as orbits, reveals, or transitions between different angles, requires a combination of precise gimbal control and coordinated operator movement
Maintaining horizon and minimizing drift
One of the challenges of operating gimbals is maintaining a level horizon and minimizing unwanted camera drift, particularly during fast or erratic movements
Proper balancing and calibration of the gimbal can help mitigate horizon tilt and drift issues, ensuring that the camera remains stable and aligned throughout the shot
Advanced techniques, such as using the gimbal's "roll" axis lock or employing a separate "roll" operator in dual-operator setups, can further enhance horizon stability and control
Steadicam vs gimbal considerations
Comparing setup time and complexity
Steadicam systems generally require more time to set up and balance compared to gimbals, due to their more complex arm and vest mechanisms and the need for precise sled balancing
Gimbals, particularly handheld models, are often quicker to set up and balance, making them more suitable for run-and-gun shooting scenarios or situations where time is limited
However, the setup time for both Steadicam and gimbal systems can vary depending on the specific equipment, camera configuration, and the operator's experience level
Range of motion and shot versatility
Steadicam systems offer a wider range of motion and greater shot versatility compared to gimbals, thanks to their articulated arm design and the operator's ability to move freely in three-dimensional space
Steadicam operators can execute complex, fluid movements, such as walking up stairs, navigating through narrow spaces, or following subjects from high to low angles, without being limited by the gimbal's motor capabilities
Gimbals, while offering smooth stabilization, are more limited in their range of motion and may struggle with certain types of shots, such as extreme low angles or rapid, erratic movements
Strengths and limitations of each system
Steadicam systems excel at creating the iconic "floating camera" look, offering unparalleled stability and fluidity in camera movement, making them ideal for long, uninterrupted takes and complex blocking
However, Steadicam systems are generally more expensive, require specialized operator skills, and may be more physically demanding to operate for extended periods
Gimbals provide excellent stabilization in a more compact, affordable, and user-friendly package, making them popular for a wide range of shooting scenarios, from independent productions to professional film sets
Nonetheless, gimbals may not match the level of stability and shot complexity achievable with a well-operated Steadicam, and their motorized nature may introduce unwanted vibrations or noise in certain situations
Choosing the right stabilizer
Evaluating the needs of the project
When deciding between a Steadicam and a gimbal, it's essential to consider the specific requirements of the project, including the desired shot types, camera movements, and overall visual style
Factors such as the shooting environment, the need for operator mobility, and the complexity of the blocking should also be taken into account
For projects that demand the highest level of stability and shot complexity, a Steadicam may be the preferred choice, while gimbals may be more suitable for fast-paced, run-and-gun shooting or projects with tighter budgets
Budget and equipment availability
The cost of purchasing or renting Steadicam and gimbal systems can vary significantly, with Steadicam systems generally being more expensive due to their specialized components and the need for skilled operators
Gimbal systems, particularly handheld models, are often more affordable and readily available, making them a popular choice for independent filmmakers and smaller-scale productions
When choosing a stabilizer, it's important to consider the available budget and the cost-effectiveness of each option in relation to the project's requirements and the expected return on investment
Operator skill and experience level
Operating a Steadicam requires a high level of skill, physical stamina, and specialized training, with experienced operators commanding higher rates and often being in high demand
Gimbal operation, while still requiring practice and finesse, has a lower barrier to entry, with many filmmakers and videographers able to achieve satisfactory results with minimal training
The availability of skilled Steadicam operators or experienced gimbal users in a particular location or production may also influence the choice of stabilizer
Ultimately, the decision between a Steadicam and a gimbal should be based on a careful evaluation of the project's creative goals, technical requirements, budget constraints, and the available talent pool to ensure the best possible results on screen
Key Terms to Review (18)
Action sequences: Action sequences are dynamic, visually engaging segments in film or video where intense physical activity occurs, often featuring stunts, chase scenes, and combat. These sequences are designed to create excitement and tension, utilizing techniques like camera movement, editing, and sound to immerse the audience in the action. Effective use of stabilization equipment such as Steadicams and gimbals allows filmmakers to capture these fast-paced moments smoothly and with precision, enhancing the overall viewing experience.
Balancing: Balancing refers to the process of achieving stability and equilibrium in camera stabilization systems like Steadicams and gimbals. This involves adjusting the weight distribution of the camera and its accessories to minimize unwanted movements, ensuring smooth and fluid shots. Proper balancing is crucial for maintaining the desired framing and preventing shaky footage during dynamic camera movements.
Camera movement: Camera movement refers to the various techniques and actions used to move the camera during a shot, affecting the perspective and visual storytelling of a scene. This can include panning, tilting, tracking, and more, each serving to enhance the narrative by directing viewer attention and creating emotional engagement. It is crucial in planning scenes and can influence how a story is perceived and understood.
Center of Gravity: The center of gravity refers to the point in a body or system where the total weight is considered to be concentrated. It plays a vital role in balancing and stabilizing equipment, especially when dealing with moving images, as it affects how weight distribution impacts the performance of stabilization devices like steadicams and gimbals.
Crane shot: A crane shot is a cinematic technique that involves lifting the camera on a crane or jib arm, allowing for sweeping, high-angle shots that create dynamic movement and perspective in a scene. This technique enhances storytelling by providing a broader view of the environment, establishing context, and conveying emotion through movement. Crane shots can be integrated with other camera movements, enriching the visual language of film.
Documentary filming: Documentary filming is a method of creating non-fiction films that aim to document reality, presenting factual content to inform or educate viewers about real-life events, people, or situations. This style often emphasizes storytelling through interviews, observational techniques, and a strong narrative structure while seeking to present an authentic representation of its subject matter.
Dolly shot: A dolly shot is a camera movement technique where the camera is placed on a wheeled platform and moved smoothly towards or away from a subject. This technique can create a dynamic sense of depth and engagement, enhancing the visual storytelling by drawing the audience's attention to specific details or actions within the frame.
Electronic gimbals: Electronic gimbals are stabilization devices that use motors and sensors to keep a camera steady, eliminating unwanted movements while filming. They help achieve smooth and professional-looking shots, especially during dynamic movement, by counteracting any shakes or vibrations from the operator or the environment.
Emmanuel Lubezki: Emmanuel Lubezki is a renowned Mexican cinematographer known for his innovative techniques and distinctive visual style in film. He is celebrated for his ability to manipulate light and shadow, creating immersive atmospheres that enhance storytelling, making him a significant figure in modern cinematography.
Garrett Brown: Garrett Brown is an influential American cinematographer and inventor known primarily for creating the Steadicam, a revolutionary camera stabilization system. This invention has transformed the way films are shot, allowing for smooth and fluid motion that enhances the visual storytelling experience. Brown's innovations have had a lasting impact on the film industry, especially in how dynamic shots are executed without the shake typically associated with handheld cameras.
Gimbal: A gimbal is a pivoted support that allows the rotation of an object about a single axis or multiple axes, primarily used to stabilize cameras during movement. It plays a crucial role in ensuring smooth footage by counteracting unwanted shakes and vibrations while filming. The versatility of gimbals makes them essential in various cinematographic setups, enhancing the overall quality of visual storytelling.
Image stabilization: Image stabilization is a technology used in cameras and lenses to reduce the blurriness caused by camera movement during handheld shooting. It allows filmmakers to capture smoother and clearer footage, which is especially important when using telephoto lenses or shooting in low light conditions. This technology can be implemented through various methods, including optical stabilization within lenses and electronic stabilization within digital cinema cameras.
Mechanical Stabilizers: Mechanical stabilizers are devices designed to reduce unwanted camera movement, allowing for smoother and more controlled shots. They function by balancing the camera on a gimbal or through a counterweight system, enabling filmmakers to capture steady footage even while in motion. This technology plays a crucial role in achieving professional-looking cinematography, enhancing the visual storytelling experience.
Motion blur reduction: Motion blur reduction refers to techniques used to minimize the blurring effect that occurs when a camera captures fast-moving subjects. This phenomenon happens due to the relative movement between the camera and the subject during exposure, leading to streaks or trails in the image. By stabilizing the camera's motion and controlling exposure settings, motion blur reduction enhances image clarity, allowing for more detailed and crisp visuals in dynamic scenes.
Smooth tracking: Smooth tracking refers to the technique of capturing fluid and stable movement in cinematography, ensuring that the camera follows a subject seamlessly without jarring interruptions. This method enhances the visual storytelling by allowing viewers to feel as if they are part of the action, creating an immersive experience. Achieving smooth tracking is often reliant on advanced stabilization tools and techniques, which help to minimize the natural shake that can occur during handheld shooting.
Steadicam: A steadicam is a camera stabilization system that allows for smooth and fluid movement while filming, enabling the operator to capture dynamic shots without the jolts or shakes that can come from handheld shooting. This technology combines a harness worn by the camera operator and a series of gimbals to isolate the camera from the motion of the operator's body, providing versatility and creative freedom in movement. Its design is essential for achieving specific artistic visions and styles as envisioned by directors.
Tracking shot: A tracking shot is a continuous shot in which the camera moves along with the subject, often following it through a scene. This movement can create a sense of dynamism and immersion, guiding the viewer’s attention and enhancing the storytelling by revealing important visual paths within the frame.
Weight distribution: Weight distribution refers to how the weight of a camera rig or stabilizing system is balanced across its various components. Proper weight distribution is crucial for achieving stability and ease of operation, as it helps prevent unwanted tilting or wobbling during filming. Achieving the right balance affects not just the performance of the equipment but also the comfort and effectiveness for the operator, especially when using handheld devices or mounted systems.
