Trees are fundamental structures in mathematics and computer science, representing hierarchical relationships. They consist of nodes connected by edges, with a node at the top and branches extending downwards. Trees enable efficient data organization, searching, and problem-solving in various domains.
Different types of trees, such as binary trees and N-ary trees, serve specific purposes. Tree algorithms like depth-first and allow systematic exploration of tree structures. Advanced concepts like balanced trees and tree-based data structures further enhance the power and versatility of tree structures in computational problem-solving.
Definition and terminology
Trees represent hierarchical structures in computer science and mathematics enabling efficient organization and retrieval of data
Thinking like a mathematician involves understanding tree structures to solve complex problems and design efficient algorithms
Basic tree structure
Top images from around the web for Basic tree structure
Phylogenetic Trees | Biology for Majors I View original
Is this image relevant?
The Cabbages of Doom: How to read a phylogenetic tree View original
Is this image relevant?

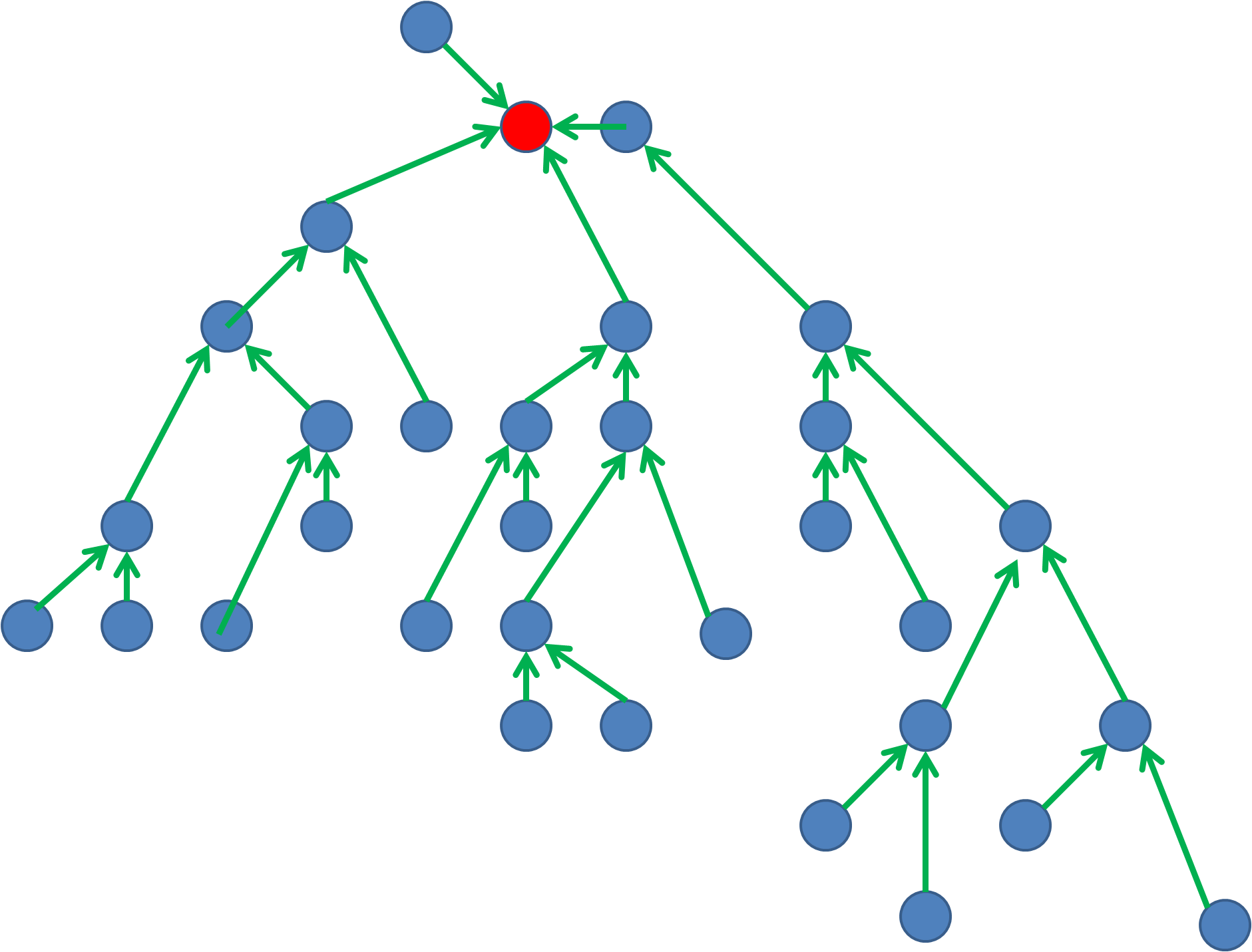

Undirected graph conversion to tree - Stack Overflow View original
Is this image relevant?
Phylogenetic Trees | Biology for Majors I View original
Is this image relevant?
The Cabbages of Doom: How to read a phylogenetic tree View original
Is this image relevant?
1 of 3
Top images from around the web for Basic tree structure
Phylogenetic Trees | Biology for Majors I View original
Is this image relevant?
The Cabbages of Doom: How to read a phylogenetic tree View original
Is this image relevant?
Undirected graph conversion to tree - Stack Overflow View original
Is this image relevant?
Phylogenetic Trees | Biology for Majors I View original
Is this image relevant?
The Cabbages of Doom: How to read a phylogenetic tree View original
Is this image relevant?
1 of 3
Consists of nodes connected by edges forming a hierarchical structure
Acyclic graph with no loops or cycles between nodes
Each node can have zero or more child nodes
Visualized as an inverted tree with the root at the top and branches extending downwards
Root, nodes, and leaves
Root serves as the topmost node in the tree initiating the hierarchical structure
Nodes represent individual elements or data points in the tree structure
Internal nodes have at least one child node
Leaf nodes (also called external nodes) have no children marking the end of a branch
Path describes the sequence of nodes from the root to any specific node
Parent-child relationships
Parent node directly connects to one or more child nodes below it
Child nodes have exactly one parent node above them
Sibling nodes share the same parent node
Ancestor nodes include all nodes on the path from the root to a specific node
Descendant nodes include all nodes in the rooted at a specific node
Subtrees and branches
Subtree represents a portion of the tree structure including a node and all its descendants
Branches depict the paths from the root to the leaf nodes
Depth of a node measures the number of edges from the root to that node
of a tree calculates the longest path from the root to any
Degree of a node counts the number of its direct children
Types of trees
Various tree structures exist to accommodate different data organization and processing needs
Understanding different tree types helps in selecting the most appropriate structure for specific problem-solving scenarios
Binary trees
Consist of nodes with at most two children referred to as left and right child
nodes contain data and references to left and right subtrees
has all levels completely filled
Types include full binary trees (every node has 0 or 2 children) and complete binary trees (all levels filled except possibly the last)
Applications include expression trees and Huffman coding
N-ary trees
Generalization of binary trees where each node can have up to N children
Also known as k-ary trees or m-ary trees
Used in representing hierarchical data structures ()
Traversal algorithms adapt to handle multiple children per node
Examples include ternary trees (3 children per node) and quad trees (4 children per node)
Balanced vs unbalanced trees
Balanced trees maintain approximately equal height for all subtrees
Unbalanced trees have significant height differences between subtrees
Balanced trees offer more efficient operations (searching, , deletion)
(AVL, Red-Black) automatically maintain balance during modifications
Height-balanced property ensures logarithmic time complexity for basic operations
Complete vs full trees
Complete trees fill levels from left to right without gaps
Full trees (also called proper or plane) have all nodes with either 0 or N children
Complete binary trees used in heap implementations
Full binary trees have a relationship between number of nodes and leaves: leaves=internal nodes+1
Both types optimize space utilization and operation efficiency in different scenarios
Tree traversal algorithms
Tree traversal algorithms systematically visit all nodes in a tree structure
Understanding traversal methods is crucial for processing tree-based data efficiently
Depth-first search
Explores as far as possible along each branch before backtracking
Implemented using recursion or an explicit stack
Three main variants: pre-order, in-order, and post-order traversal
Time complexity: O(n) where n is the number of nodes
Space complexity: O(h) where h is the height of the tree (worst case)
Breadth-first search
Visits all nodes at the present depth before moving to nodes at the next depth level
Implemented using a queue data structure
Useful for finding the shortest path in unweighted graphs
Time complexity: O(n) where n is the number of nodes
Space complexity: O(w) where w is the maximum width of the tree
Pre-order vs in-order vs post-order
Pre-order traversal: visits root, then left subtree, then right subtree
Applications include creating a copy of the tree and prefix expression evaluation
In-order traversal: visits left subtree, then root, then right subtree
Yields nodes in non-decreasing order for binary search trees
Used in expression tree evaluation
Post-order traversal: visits left subtree, then right subtree, then root
Applications include deletion of the tree and postfix expression evaluation
Each traversal method produces a different node visitation sequence
Binary search trees
Binary search trees (BSTs) organize data for efficient searching, insertion, and deletion
BSTs play a crucial role in algorithm design and data structure implementation
Properties and characteristics
For each node, all elements in the left subtree are smaller than the node
All elements in the right subtree are greater than the node
No duplicate values allowed in standard BSTs
Inorder traversal of a BST produces a sorted list of elements
Height of a balanced BST is approximately log2(n) where n is the number of nodes
Insertion and deletion operations
Insertion maintains BST property by comparing new value with nodes starting from root
New nodes always inserted as leaf nodes
Deletion considers three cases: leaf node, node with one child, node with two children
For two-child case, replace with inorder successor or predecessor
Balancing may be required after insertion or deletion in self-balancing BSTs
Time complexity analysis
Average case time complexity for search, insertion, and deletion: O(logn)
Worst case time complexity (unbalanced tree): O(n)
Space complexity: O(n) for storing n nodes
Performance degrades to that of a linked list in worst case (skewed tree)
Leaf nodes represent final classifications or predicted values
Algorithms like ID3, C4.5, and CART used for constructing decision trees
Provides interpretable models for decision-making processes
Tree-based data structures
Specialized tree structures designed for specific data management and algorithmic needs
Understanding these structures enhances problem-solving capabilities in various domains
Heaps and priority queues
are specialized tree-based data structures satisfying the heap property
Max-heap: parent node always greater than or equal to its children
Min-heap: parent node always less than or equal to its children
Implemented efficiently using arrays, allowing O(1) access to parent and child nodes
Priority queues often implemented using heaps for efficient insertion and extraction
Applications include Dijkstra's algorithm and heap sort
Trie for string operations
Tree-like data structure for storing and searching strings efficiently
Each node represents a character in the string
Paths from root to nodes spell out stored strings
Enables prefix-based searching and auto-completion features
Space-efficient for storing large dictionaries with common prefixes
Used in spell checkers, IP routing tables, and text prediction systems
Suffix trees in string matching
Compressed containing all suffixes of a given string
Enables efficient string matching and substring search operations
Constructed in O(n) time and space complexity where n is the string length
Supports finding all occurrences of a pattern in O(m+k) time
m: length of the pattern
k: number of occurrences
Applications include bioinformatics (DNA sequence analysis) and text processing
Tree algorithms and problems
Tree-based algorithms solve various computational problems efficiently
Understanding these algorithms enhances problem-solving skills in computer science
Lowest common ancestor
Finds the deepest node that is an ancestor of both given nodes in a tree
Applications in phylogenetic trees and network routing
Naive approach: trace paths from root to nodes and find last common node
Efficient algorithms use techniques like sparse table or binary lifting
Time complexity can be reduced to O(1) with O(nlogn) preprocessing
Diameter of a tree
Longest path between any two nodes in the tree
Calculated by finding the farthest node from an arbitrary node, then finding the farthest node from that
Can be computed in O(n) time using
Applications in network analysis and
Provides insight into the "spread" or "width" of a tree structure
Tree isomorphism
Determines if two trees have identical structure (ignoring node labels)
Two trees are isomorphic if they can be made identical by rearranging subtrees
Solved using techniques like canonical form representation or recursive comparison
Applications in chemical structure analysis and graph database querying
Polynomial-time algorithms exist for solving
Advanced tree concepts
Advanced tree structures and algorithms for specialized problem-solving
Understanding these concepts enables tackling complex computational challenges
Segment trees
Data structure for storing information about intervals or segments
Allows efficient querying of cumulative data for a range (sum, minimum, maximum)
Supports both range queries and updates in O(logn) time
Used in computational geometry and range-based problems
Can be extended to handle 2D or higher-dimensional data
Fenwick trees
Also known as Binary Indexed Trees (BIT)
Provides efficient methods for calculating prefix sums in an array
Supports point updates and range queries in O(logn) time
More space-efficient than for certain types of problems
Applications in counting inversions and range sum queries
Splay trees
Self-adjusting binary search tree with amortized logarithmic time operations
Brings recently accessed elements closer to the root for faster future access
Performs splaying operation after each access, insert, or delete
Advantageous for applications with non-uniform access patterns
Provides theoretical basis for self-adjusting data structures
Trees in graph theory
Trees play a crucial role in graph theory and network analysis
Understanding tree concepts in graphs enhances problem-solving in network optimization
Spanning trees
Subgraph that is a tree and connects all vertices of the original graph
Contains exactly ∣V∣−1 edges where ∣V∣ is the number of vertices
Used in network design and clustering algorithms
Can be found using depth-first search or breadth-first search
Number of in a complete graph: nn−2 ()
Minimum spanning trees
Spanning tree with the minimum total edge weight
Algorithms for finding MST include Kruskal's and Prim's algorithms
Kruskal's algorithm uses a disjoint-set data structure
Prim's algorithm uses a
Applications in network design, clustering, and image segmentation
Steiner trees
Generalizes the minimum spanning tree problem
Finds the shortest network connecting a given set of points
NP-hard problem with applications in VLSI design and network optimization
Approximation algorithms exist for finding near-optimal solutions
Variants include metric Steiner tree and rectilinear Steiner tree problems
Key Terms to Review (44)
AVL Tree: An AVL tree is a self-balancing binary search tree where the difference in heights between the left and right subtrees of any node is at most one. This balancing ensures that the tree remains approximately balanced, leading to efficient operations like insertion, deletion, and lookup, which all have a time complexity of O(log n). The AVL tree was named after its inventors, Georgy Adelson-Velsky and Evgenii Landis.
B-tree: A b-tree is a self-balancing tree data structure that maintains sorted data and allows for efficient insertion, deletion, and search operations. B-trees are particularly useful in databases and file systems where large amounts of data need to be stored and accessed quickly, as they minimize disk I/O operations by maximizing the number of keys stored in each node.
B+ Tree: A B+ Tree is a self-balancing tree data structure that maintains sorted data and allows for efficient insertion, deletion, and search operations. It is an extension of the B-Tree structure, where all values are stored at the leaf nodes, making it particularly suitable for database and file systems that require quick access to large amounts of data. The B+ Tree ensures that all leaf nodes are at the same level, promoting balance and improving performance during data retrieval.
Balanced tree: A balanced tree is a type of data structure that maintains a specific balance in its height, ensuring that the tree remains efficient for operations such as insertion, deletion, and search. By keeping the heights of subtrees within a certain range of each other, balanced trees help to prevent scenarios where the tree becomes unbalanced and skewed, leading to inefficient operations that can degrade to linear time complexity.
Binary tree: A binary tree is a data structure that consists of nodes, where each node has at most two children, referred to as the left child and the right child. This structure enables efficient data organization and retrieval, allowing operations such as insertion, deletion, and traversal to be performed efficiently. Binary trees are fundamental in computer science and are used in various applications, including search algorithms and hierarchical data representation.
Breadth-first search: Breadth-first search (BFS) is an algorithm for traversing or searching tree or graph data structures, starting at a specified node and exploring all its neighbor nodes at the present depth prior to moving on to nodes at the next depth level. This approach ensures that the algorithm examines all nodes at one level before progressing deeper, making it particularly useful for finding the shortest path in unweighted graphs and for exploring all possible options systematically.
Cayley's Formula: Cayley's Formula is a significant result in combinatorial mathematics that states the number of distinct labeled trees that can be formed with 'n' labeled vertices is given by the formula $$n^{n-2}$$. This formula connects the concept of labeled trees to combinatorial counting, providing a powerful tool to understand tree structures in graph theory.
Complete binary tree: A complete binary tree is a type of binary tree where every level, except possibly the last, is fully filled, and all nodes are as far left as possible. This structure ensures that all leaves are at the same depth or nearly so, which provides efficient use of space and enhances performance in certain operations like searching and inserting elements. The complete binary tree's arrangement also allows for efficient representation in array format, where parent-child relationships can be easily computed.
Complete tree: A complete tree is a type of binary tree in which every level, except possibly the last, is fully filled, and all nodes are as far left as possible. This structure ensures that the tree is balanced, which aids in maintaining efficient operations like insertion, deletion, and search. Complete trees are often used in the implementation of binary heaps and provide a framework for understanding more complex data structures.
Data structure: A data structure is a specialized format for organizing, processing, and storing data efficiently. It allows for the effective management and manipulation of data, enabling operations like retrieval, addition, and deletion. Data structures are essential in computer science as they optimize algorithms and improve performance in various applications, particularly in the context of trees, which are hierarchical structures used to represent relationships and facilitate quick access to data.
Decision tree: A decision tree is a graphical representation of possible solutions to a decision based on certain conditions or criteria. It helps in making decisions by illustrating the consequences of various choices and can be used for both classification and regression tasks. Each branch of the tree represents a possible decision, outcome, or reaction, making it easier to visualize complex decision-making processes.
Decision Trees in AI: Decision trees in AI are a type of supervised learning model used for classification and regression tasks that visualize decisions and their possible consequences. They consist of nodes representing decisions based on feature values, branches showing the outcomes, and leaves indicating the final predictions. This structure helps to easily interpret complex decision-making processes and allows for straightforward representation of rules.
Depth-first search: Depth-first search (DFS) is an algorithm used to explore the nodes and edges of a graph or tree structure by starting at a selected node and exploring as far down a branch as possible before backtracking. This method is efficient for exploring deep paths and can be implemented using a stack or through recursion, making it a foundational concept in both graph and tree traversal techniques.
Diameter of a tree: The diameter of a tree is defined as the longest path between any two vertices in the tree. This metric captures the maximum distance that can be measured across the structure, which is essential for understanding its overall shape and size. The diameter is important because it can impact various properties, such as the efficiency of algorithms that operate on trees, and provides insights into the connectivity and spread of nodes within the tree.
Fenwick Trees: Fenwick Trees, also known as Binary Indexed Trees (BIT), are data structures that efficiently support cumulative frequency tables. They allow for fast updates and queries of prefix sums, making them a powerful tool for solving problems involving dynamic arrays where frequent updates and queries are needed. Fenwick Trees provide a way to balance the operations of adding values and retrieving cumulative sums, which makes them particularly useful in competitive programming and algorithm design.
File systems: File systems are methods and structures that an operating system uses to manage and organize data stored on storage devices. They provide a way to create, store, retrieve, and manage files and directories, allowing users to efficiently access data and perform operations on it. File systems utilize various types of data structures, such as trees, to facilitate quick access and management of files.
Full binary tree: A full binary tree is a type of binary tree in which every node other than the leaves has exactly two children. This structure ensures that all levels of the tree are fully populated, except possibly for the last level, which is filled from left to right. Full binary trees are significant in understanding various properties of trees, such as height and node count, and they play a critical role in data structures and algorithms.
Graph Theory: Graph theory is a branch of mathematics that studies the properties and relationships of graphs, which are structures made up of vertices (or nodes) connected by edges. It provides a framework for analyzing various systems and networks, making it essential for understanding complex structures like trees, which are specific types of graphs characterized by having no cycles and a hierarchical structure.
Heaps: Heaps are a specialized tree-based data structure that satisfies the heap property, where the value of each node is either greater than or equal to (in a max heap) or less than or equal to (in a min heap) the values of its children. This structure allows heaps to efficiently support priority queue operations, making them crucial for algorithms that require quick access to the highest or lowest value in a collection of elements.
Height: Height in the context of trees refers to the longest path from the root node to the furthest leaf node within a tree structure. This concept is crucial because it helps determine the efficiency of tree operations, like searching and inserting, as a taller tree may lead to longer paths and slower performance. Understanding height also allows us to analyze the balance and overall structure of trees.
Hierarchical data representation: Hierarchical data representation is a method of organizing data in a tree-like structure, where each element is connected to one or more elements in a parent-child relationship. This structure allows for the representation of relationships among data points, with the ability to represent nested information and facilitate efficient data retrieval. Hierarchical representations are often used to model systems where data can be categorized into levels or groups, making it easier to navigate and understand complex relationships.
Insertion: Insertion refers to the process of adding a new element into a data structure, such as a tree, while maintaining its properties and structure. This operation is fundamental in the management of tree structures, as it allows for dynamic growth and modification, ensuring that the relationships between parent and child nodes are preserved. Proper insertion techniques help maintain order and efficiency in tree operations.
Leaf node: A leaf node is a terminal node in a tree data structure that has no children, meaning it does not branch out further. Leaf nodes are significant in various operations such as searching, traversal, and sorting, as they represent the end points of paths within the structure. Understanding leaf nodes is crucial for comprehending how trees are utilized in algorithms and data organization.
Lowest Common Ancestor: The lowest common ancestor (LCA) of two nodes in a tree is defined as the deepest node that is an ancestor of both nodes. This concept is crucial in tree data structures, as it helps identify the relationship and hierarchy between nodes, allowing for efficient traversal and problem-solving related to the structure.
Minimum spanning trees: A minimum spanning tree (MST) is a subset of edges in a weighted, undirected graph that connects all vertices together without any cycles and with the minimum possible total edge weight. MSTs are crucial for network design and optimization, ensuring that all nodes are connected with the least cost, which is especially useful in applications like telecommunications, computer networks, and transportation.
N-ary tree: An n-ary tree is a tree data structure where each node can have at most 'n' children. This structure generalizes binary trees by allowing nodes to have more than two children, which can be useful in various applications such as file systems, representing hierarchical data, and parsing expressions. The flexibility of having multiple children per node allows for efficient organization and retrieval of data.
Parent-child relationship: A parent-child relationship in the context of trees refers to the hierarchical connection between nodes, where one node, known as the parent, is directly connected to another node called the child. This relationship defines the structure of a tree, establishing a clear pathway from the parent to its child nodes, and plays a crucial role in traversing and manipulating tree data structures.
Perfect binary tree: A perfect binary tree is a type of binary tree in which all interior nodes have exactly two children and all leaves are at the same level. This structure allows for efficient operations and ensures that every level of the tree is fully populated, making it useful in various applications such as computer science and data organization. The balance of a perfect binary tree contributes to optimal performance for search and retrieval operations.
Priority queue: A priority queue is an abstract data structure that operates similarly to a regular queue but with an added feature: each element has a priority assigned to it. In a priority queue, elements with higher priority are dequeued before elements with lower priority, regardless of their order in the queue. This unique behavior makes priority queues particularly useful for scheduling tasks and managing resources where certain tasks must be prioritized over others.
Quad Tree: A quad tree is a tree data structure used to partition a two-dimensional space by recursively subdividing it into four quadrants or regions. This structure is particularly useful for managing spatial information and optimizing search operations, making it relevant in applications like computer graphics, geographical information systems, and image processing.
Red-black tree: A red-black tree is a type of self-balancing binary search tree where each node contains an extra bit for denoting the color of the node, either red or black. This coloring helps maintain balance during insertions and deletions, ensuring that the tree remains approximately balanced, which guarantees O(log n) time complexity for basic dynamic set operations like insertion, deletion, and search.
Root: In graph theory and data structures, a root is the topmost node in a tree or the starting point of a graph traversal. It serves as the origin from which all other nodes or elements can be reached, establishing a hierarchy and organization within the structure. The concept of a root is crucial for understanding tree-like structures, as it defines the overall structure and relationships between nodes, facilitating efficient navigation and manipulation.
Segment Trees: Segment trees are a type of data structure used for storing information about intervals or segments. They allow for efficient querying and updating of information within an array, making them particularly useful for range queries like sum, minimum, or maximum over a segment of the array. By breaking the array into segments and storing aggregated information in a tree-like structure, segment trees can perform operations in logarithmic time, significantly speeding up tasks compared to a naive approach.
Self-balancing trees: Self-balancing trees are a type of binary search tree that automatically maintains its height to ensure that operations such as insertion, deletion, and lookup remain efficient. By keeping the tree balanced, these structures minimize the time complexity for these operations, ensuring they remain close to O(log n) even in the worst-case scenarios. This balance is typically achieved through specific algorithms that rotate and restructure the tree as elements are added or removed.
Spanning Trees: A spanning tree of a graph is a subgraph that includes all the vertices of the graph and is connected without any cycles, meaning it forms a tree structure. Each spanning tree preserves the original graph's connectivity while minimizing the number of edges, making it crucial for understanding network design, optimization, and efficient routing.
Splay Trees: Splay trees are a type of self-adjusting binary search tree that automatically moves frequently accessed elements closer to the root, improving access times for repeated queries. This structure allows for efficient average-case performance, especially for sequences of operations, making it useful for scenarios where certain elements are accessed more frequently than others.
Steiner Trees: A Steiner tree is a type of tree structure in graph theory that connects a given set of points, known as terminals, using the shortest possible total edge length while potentially adding extra points, called Steiner points, to minimize this length. This concept is critical for optimizing network design and various applications where efficient connectivity is essential, such as telecommunications and computer networks.
Subtree: A subtree is a portion of a tree data structure that consists of a node and all its descendants. Subtrees are significant because they maintain the same properties as the original tree, allowing for various operations to be performed on them independently while still being part of the larger structure. Understanding subtrees is crucial for analyzing and manipulating trees efficiently, as they can be used to simplify problems and algorithms related to tree structures.
Suffix trees: Suffix trees are a type of data structure that represent all the suffixes of a given string in a compressed form. They allow for efficient string searching and pattern matching, making it easier to find substrings or perform operations like longest common substring searches. This tree-based structure is particularly useful for applications in bioinformatics, text processing, and data compression.
Ternary tree: A ternary tree is a type of tree data structure where each node can have up to three children. This structure is useful for organizing data in a hierarchical manner, allowing for efficient storage and retrieval. In contrast to binary trees, where each node has at most two children, ternary trees can provide a more balanced approach when dealing with certain types of data, leading to improved performance in specific applications.
Traversal: Traversal refers to the process of visiting each node in a tree data structure systematically. This concept is crucial in understanding how data is organized and accessed within trees, as it defines the various methods used to navigate through nodes, such as in-order, pre-order, and post-order traversals. Different traversal methods yield different sequences of node visits, which can be useful for tasks like sorting or evaluating expressions.
Tree decomposition: Tree decomposition is a way of breaking down a graph into simpler, tree-like structures that make it easier to analyze certain properties and solve problems. This technique involves representing a graph as a tree where each node in the tree corresponds to a subset of the graph's vertices, capturing the relationships between them. The concept is crucial in areas such as graph theory and algorithm design, as it simplifies complex structures for efficient processing.
Tree isomorphism: Tree isomorphism refers to the relationship between two trees that can be transformed into each other by renaming their vertices without changing the structure of the tree. This concept is essential for understanding when two trees can be considered identical in terms of their connectivity and branching patterns, regardless of how they are labeled. Identifying tree isomorphism helps in classifying trees and understanding their properties better.
Trie: A trie, also known as a prefix tree, is a specialized tree data structure that is used to store a dynamic set of strings, where the keys are usually strings. Each node in a trie represents a character of a string, and the path from the root to a node represents the characters of a prefix shared by some strings in the set. This structure allows for efficient retrieval, insertion, and search operations based on string prefixes.
