11.1 Point defects

Point defects are atomic-scale imperfections in crystal structures where individual lattice sites are disrupted. Despite their tiny size, they have an outsized influence on a material's electrical, mechanical, thermal, and optical behavior. Controlling point defects is at the heart of technologies like semiconductor doping, alloy strengthening, and solid-state ionic conduction.

Types of point defects

Point defects are irregularities that occur at or near specific lattice sites within a crystal. They involve either missing atoms, extra atoms, or foreign atoms compared to the ideal crystal lattice. Even a small concentration of these defects can dramatically change how a material behaves.

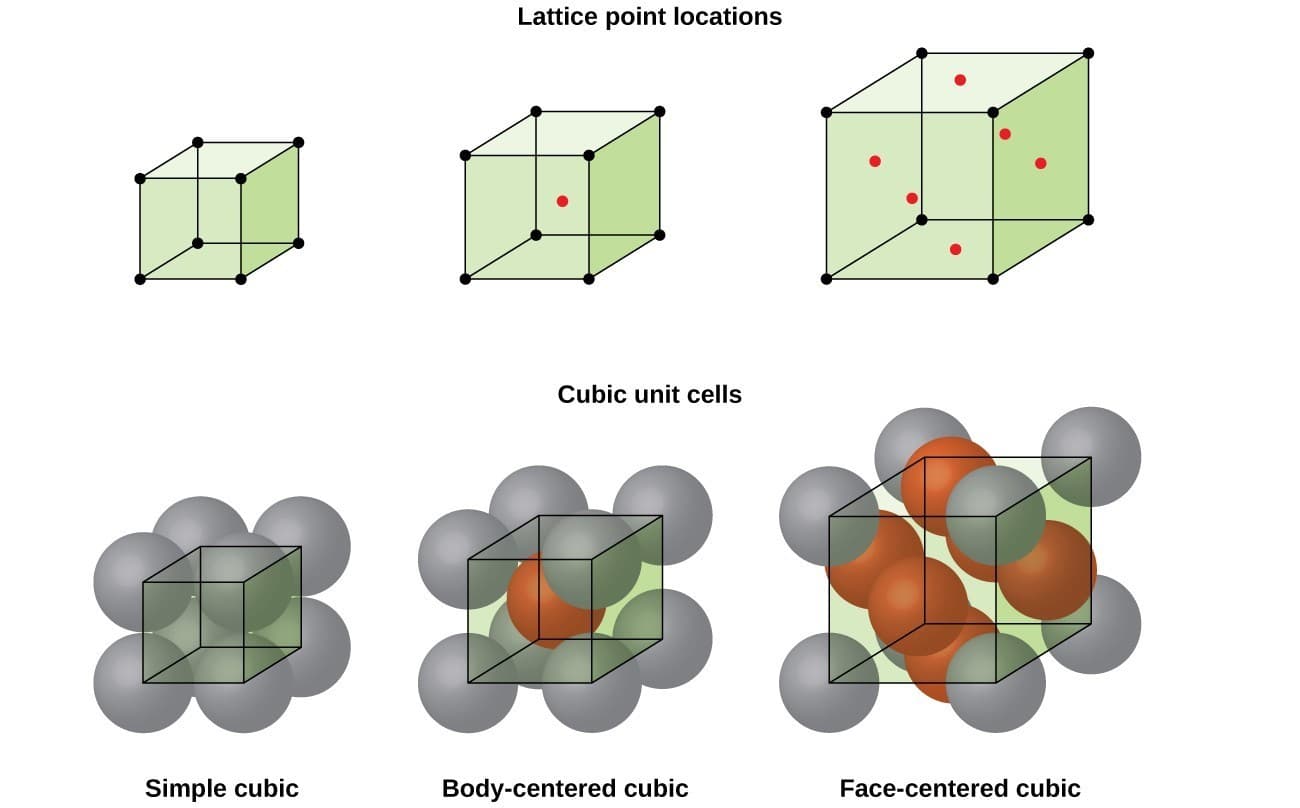

Vacancies in crystal lattices

A vacancy is simply a missing atom at a site that should be occupied in the perfect lattice. Vacancies form through thermal vibrations (atoms occasionally gain enough energy to leave their sites), mechanical deformation, or during crystal growth.

The surrounding atoms relax inward slightly toward the empty site, creating a local distortion in the lattice. This distortion matters because it affects:

• Diffusion rates — atoms migrate through a crystal largely by hopping into neighboring vacancies, so more vacancies means faster diffusion
• Electrical conductivity — in ionic crystals, vacancies enable ion transport
• Ionic compounds like NaCl and metals like aluminum commonly exhibit significant vacancy concentrations, especially at elevated temperatures

Interstitial atoms

An interstitial defect occurs when an extra atom sits in a space between the regular lattice sites. Two varieties exist:

• Self-interstitials — an atom of the same species as the host lattice squeezed into an interstitial position. These are energetically costly because the host atoms are typically large relative to the available interstitial space.
• Impurity interstitials — a foreign atom (usually smaller) occupying an interstitial site. Carbon atoms dissolved in the iron lattice of steel are the classic example. The small carbon atoms fit into octahedral or tetrahedral holes in the BCC iron structure, and their presence is what makes steel harder than pure iron.

Interstitials create local compressive strain in the surrounding lattice. Another important case is hydrogen in metals, where dissolved hydrogen can cause hydrogen embrittlement, a serious degradation of ductility and toughness.

Substitutional impurities

A substitutional impurity is a foreign atom that sits on a regular lattice site, replacing the host atom. For substitutional solid solutions to form readily, the Hume-Rothery rules provide useful guidelines: the atoms should have similar atomic radii (within ~15%), similar electronegativities, the same crystal structure, and similar valence.

Substitutional impurities can be:

• Intentional (doping) — boron in silicon creates p-type conductivity; phosphorus in silicon creates n-type conductivity
• Unintentional (contamination) — trace impurities introduced during processing

Beyond semiconductors, substitutional defects are responsible for the properties of many alloys (copper + zinc = brass, copper + tin = bronze) and the colors of gemstones (chromium substituting for aluminum in $\text{Al}_2\text{O}_3$ produces the red color of ruby).

Frenkel vs Schottky defects

In ionic crystals, point defects must preserve overall charge neutrality. Two characteristic defect types accomplish this:

• Frenkel defect — an ion leaves its lattice site and moves to a nearby interstitial position, creating a vacancy-interstitial pair. The total number of ions in the crystal stays the same. Frenkel defects are favored when there's a large size difference between the cation and anion, since the smaller ion can more easily fit into an interstitial site. Common in silver halides (AgCl, AgBr) and zirconia ($\text{ZrO}_2$).
• Schottky defect — a pair of vacancies forms (one cation vacancy and one anion vacancy), maintaining the stoichiometric ratio. Ions are effectively removed to the surface. Schottky defects are more common when cations and anions are similar in size. Typical examples include alkali halides (NaCl, KCl) and alkaline earth oxides (MgO).

Formation of point defects

Point defects form during crystal growth, processing, or exposure to external stimuli like temperature, pressure, or radiation. Their equilibrium concentrations are governed by thermodynamics, and understanding the factors that drive defect formation is essential for controlling material properties.

Thermodynamics of defect formation

Creating a point defect costs energy because it distorts the lattice. So why do defects exist at all in equilibrium? Because they also increase the configurational entropy of the crystal. There are many ways to distribute a small number of vacancies across a large number of lattice sites, and this multiplicity lowers the Gibbs free energy.

The system reaches equilibrium when the Gibbs free energy $G = H - TS$ is minimized. At low defect concentrations, the entropy gain from adding one more defect outweighs the energy cost. At some concentration, the two contributions balance, and that defines the equilibrium defect population.

Equilibrium concentration of defects

The equilibrium concentration follows from the Boltzmann distribution:

$n_d = N \exp\!\left(-\frac{E_f}{k_B T}\right)$

where:

• $n_d$ = number of defects
• $N$ = total number of lattice sites
• $E_f$ = defect formation energy
• $k_B$ = Boltzmann constant ($1.38 \times 10^{-23}$ J/K)
• $T$ = absolute temperature (K)

This equation tells you two things directly: defect concentration rises exponentially with temperature, and materials with lower formation energies will have more defects at any given temperature.

Temperature dependence

The Arrhenius-type relationship $n_d \propto \exp(-E_f / k_B T)$ means that even modest temperature increases can produce large changes in defect concentration. For example, a typical vacancy formation energy in copper is about 1.0 eV. Near room temperature (300 K), the vacancy fraction is extremely small ($10^{-17}$), but near the melting point (~1350 K), it rises to roughly $10^{-4}$, meaning about 1 in 10,000 sites is vacant.

Experimentally, plotting $\ln(n_d/N)$ versus $1/T$ yields a straight line whose slope gives $-E_f/k_B$. This is a standard method for extracting formation energies from measurements of defect-sensitive properties (resistivity, lattice parameter changes, etc.).

Defect formation energy

The formation energy $E_f$ is the central quantity that determines how many defects a material will contain. It depends on:

• Defect type — vacancies, interstitials, and substitutional defects each have different formation energies. Self-interstitials in close-packed metals typically have higher formation energies than vacancies because squeezing an extra atom into the lattice is very costly.
• Crystal structure — open structures (like BCC) may accommodate interstitials more easily than close-packed structures (FCC, HCP).
• Chemical environment — the presence of other defects or impurities can raise or lower the formation energy through elastic or electronic interactions.

Formation energies can be calculated using density functional theory (DFT) or measured experimentally with techniques like positron annihilation spectroscopy. Typical vacancy formation energies in metals range from ~0.5 eV (lead) to ~3 eV (tungsten).

Effects on material properties

Even dilute concentrations of point defects alter the local atomic arrangement, electronic structure, and bonding in a material. These local changes propagate into macroscopic property changes that are often the whole reason we care about defects in the first place.

Influence on mechanical properties

Point defects strengthen materials by impeding dislocation motion. Dislocations are line defects responsible for plastic deformation, and anything that pins or slows them increases the yield strength.

• Solid solution strengthening — substitutional or interstitial impurities create local strain fields that interact with the stress fields of moving dislocations, requiring more applied stress to keep them moving. This is why alloying almost always makes a metal harder than the pure element.
• Precipitation hardening — if the defect concentration exceeds the solubility limit, impurities can cluster and form nanoscale precipitates. These precipitates act as strong obstacles to dislocation glide (as in age-hardened aluminum alloys).
• Point defects can also reduce ductility if they promote brittle fracture pathways (e.g., hydrogen embrittlement).

Changes in electrical conductivity

The effect of point defects on electrical conductivity depends strongly on the material class:

• Semiconductors — substitutional dopants are the primary tool for controlling conductivity. Phosphorus in silicon donates an extra electron to the conduction band (n-type), while boron accepts an electron from the valence band, creating a hole (p-type). The dopant concentration directly sets the carrier concentration and thus the conductivity.
• Metals — point defects scatter conduction electrons, increasing resistivity. This is why pure copper conducts better than brass.
• Ionic conductors — vacancies and interstitials provide the pathways for ion migration. More vacancies generally means higher ionic conductivity, which is critical for solid-state battery electrolytes and oxygen sensors.

Defects can also introduce localized electronic states within the band gap that act as traps or recombination centers, affecting carrier lifetime and mobility.

Impact on thermal conductivity

Thermal energy in crystalline solids is carried primarily by phonons (quantized lattice vibrations). Point defects scatter phonons because they represent mass and force-constant irregularities in the otherwise periodic lattice.

• Each vacancy, interstitial, or impurity atom acts as a scattering center, reducing the phonon mean free path and lowering thermal conductivity.
• This effect is exploited in thermoelectric materials, where low thermal conductivity is desirable. Alloying and defect engineering are standard strategies to reduce the lattice contribution to thermal conductivity while preserving electrical conductivity (e.g., $\text{Bi}_2\text{Te}_3$ alloys, SiGe).
• Conversely, in applications requiring high thermal conductivity (heat sinks, substrates), high-purity single crystals with minimal defects are preferred.

Modifications to optical properties

Point defects interact with light by introducing electronic energy levels within the band gap:

• Color centers (F-centers) — anion vacancies that trap electrons create absorption bands in the visible spectrum. This is why irradiated NaCl turns yellow-brown, and why smoky quartz and amethyst have their characteristic colors.
• Dopant luminescence — substitutional rare-earth or transition-metal ions produce sharp emission lines at characteristic wavelengths. $\text{Cr}^{3+}$ in $\text{Al}_2\text{O}_3$ gives ruby its red fluorescence; $\text{Nd}^{3+}$ in YAG is the basis of the Nd:YAG laser.
• Refractive index changes — defects modify the local polarizability, subtly altering the refractive index and optical dispersion. This matters for waveguide fabrication and optical fiber design.

Characterization techniques

Detecting and quantifying point defects requires specialized experimental methods, since individual point defects are far too small to see with conventional microscopy. Different techniques probe different aspects of defects: their concentration, spatial distribution, electronic structure, or local atomic environment.

X-ray diffraction analysis

X-ray diffraction (XRD) probes the average crystal structure and is sensitive to the lattice distortions that point defects produce.

• Point defects shift the average lattice parameter (peak positions change), reduce diffraction peak intensities (due to static disorder), and broaden peaks (due to local strain).
• Quantitative analysis of peak broadening can separate contributions from defects and finite grain size.
• Advanced techniques like reciprocal space mapping and grazing incidence XRD provide more detailed information about strain fields and defect distributions, particularly in thin films and epitaxial layers.

XRD gives statistical, volume-averaged information rather than images of individual defects.

Electron microscopy imaging

Electron microscopy can image defects at or near the atomic scale:

• High-resolution TEM (HRTEM) resolves individual atomic columns, making it possible to directly observe vacancies, interstitials, and impurity atoms in favorable cases.
• Scanning transmission electron microscopy (STEM) combined with energy-dispersive X-ray spectroscopy (EDX) or electron energy loss spectroscopy (EELS) can identify the chemical identity of individual impurity atoms.
• Electron tomography reconstructs 3D defect distributions from a series of tilted images.

The main limitation is that TEM requires very thin specimens (~100 nm or less) and samples only a small volume of material.

Spectroscopic methods

Spectroscopy probes the electronic and vibrational signatures of defects:

• Electron paramagnetic resonance (EPR) — detects unpaired electrons associated with paramagnetic defects. Provides information about the defect's symmetry, spin state, and local bonding environment.
• Photoluminescence (PL) — measures light emission from radiative transitions involving defect energy levels. Useful for identifying specific defect types and their concentrations in semiconductors and insulators.
• X-ray absorption spectroscopy (XAS) — techniques like XANES and EXAFS probe the oxidation state and local coordination of specific atomic species, including defect sites.
• Raman spectroscopy — detects changes in the phonon spectrum caused by defects. Local vibrational modes associated with impurities appear as additional peaks.

Positron annihilation spectroscopy

Positron annihilation spectroscopy (PAS) is uniquely sensitive to vacancy-type defects. Positrons (antielectrons) injected into a material are attracted to regions of reduced electron density, particularly open-volume defects like vacancies and vacancy clusters.

• The positron lifetime increases with the size of the open volume, so measuring the lifetime distribution reveals the type and relative concentration of vacancy defects.
• Doppler broadening spectroscopy (DBS) measures the momentum distribution of annihilation gamma rays, which reflects the electron momentum distribution at the annihilation site. This distinguishes between different vacancy environments.
• PAS is non-destructive and sensitive to vacancy concentrations as low as ~$10^{-7}$ per atom, making it one of the most sensitive probes of open-volume defects available.

Defect engineering applications

Defect engineering is the deliberate introduction and control of point defects to achieve specific material properties. Rather than treating defects as unwanted flaws, this approach uses them as design tools.

Semiconductor doping

Doping is the most commercially important application of defect engineering. By introducing controlled concentrations of substitutional impurities into a semiconductor, the electrical properties are precisely tuned:

1. n-type doping — Group V elements (phosphorus, arsenic) substitute for silicon atoms. Each dopant has one extra valence electron that is loosely bound and easily donated to the conduction band.
2. p-type doping — Group III elements (boron, gallium) substitute for silicon. Each dopant has one fewer valence electron, creating a hole in the valence band.
3. The dopant concentration (typically $10^{15}$ to $10^{20}$ atoms/cm$^3$) directly controls the carrier concentration and conductivity.

Techniques for introducing dopants include ion implantation (accelerating dopant ions into the surface) and in-situ doping during epitaxial growth. These methods allow precise spatial control over doping profiles, enabling the fabrication of p-n junctions, transistors, and integrated circuits.

Strengthening mechanisms in metals

Several defect-based strategies are used to improve the mechanical performance of metals and alloys:

• Solid solution strengthening — dissolving impurity atoms (substitutional or interstitial) creates strain fields that resist dislocation motion. Carbon in iron is the most familiar example.
• Precipitation hardening (age hardening) — supersaturating a solid solution and then aging it at an intermediate temperature causes fine precipitates to nucleate. These precipitates block dislocations very effectively. Aluminum alloys used in aerospace (e.g., Al-Cu 2024) rely on this mechanism.
• Work hardening — plastic deformation increases the dislocation density, and the mutual interactions between dislocations (which are themselves defects) raise the flow stress.
• Grain boundary engineering — controlling the character and distribution of grain boundaries (which can be thought of as arrays of defects) improves strength, ductility, and corrosion resistance simultaneously.

Ionic conductivity enhancement

For solid-state batteries, fuel cells, and gas sensors, high ionic conductivity is essential. Defect engineering provides several routes:

• Aliovalent doping — substituting an ion of different valence forces the creation of charge-compensating defects. For example, doping $\text{ZrO}_2$ with $\text{Y}_2\text{O}_3$ (yttria-stabilized zirconia, YSZ) creates oxygen vacancies that enable fast oxygen-ion conduction. YSZ is the standard electrolyte in solid oxide fuel cells.
• Nanostructuring — grain boundaries and interfaces in nanocrystalline materials provide fast diffusion pathways with high local defect densities.
• Optimizing the defect concentration involves a tradeoff: too few vacancies limits conductivity, but too many can lead to defect ordering or clustering that actually blocks ion transport.

Luminescence centers in phosphors

Phosphors convert one wavelength of light to another, and their performance depends on carefully engineered point defects:

• Activator ions (typically rare-earth elements like $\text{Eu}^{2+}$, $\text{Ce}^{3+}$, or transition metals like $\text{Mn}^{2+}$) are substituted into a host lattice. Their partially filled electron shells produce characteristic emission wavelengths determined by the local crystal field.
• Sensitizer ions can be co-doped to absorb excitation energy efficiently and transfer it to the activator, boosting overall luminescence intensity.
• Charge compensation — when the activator ion has a different charge than the host ion it replaces, additional defects (vacancies or co-dopants) are needed to maintain charge neutrality. These compensating defects influence the local symmetry and thus the emission spectrum.

White LEDs, for instance, typically use a blue LED chip combined with a $\text{Ce}^{3+}$-doped YAG ($\text{Y}_3\text{Al}_5\text{O}_{12}$) phosphor that converts some blue light to yellow, producing white light overall.

Theoretical modeling approaches

Computational modeling complements experiments by providing atomic-scale insight into defect formation, migration, and interactions that are difficult to observe directly.

Atomistic simulations of defects

Molecular dynamics (MD) and Monte Carlo (MC) simulations model defects at the atomic level:

• MD solves Newton's equations of motion for all atoms in the simulation cell, capturing the real-time dynamics of defect creation, migration, and interaction. It's well suited for studying defect behavior at finite temperature.
• MC methods sample different atomic configurations statistically, providing equilibrium thermodynamic properties like defect concentrations and free energies.
• Both approaches depend critically on the quality of the interatomic potential (or force field) used to describe atomic interactions. Embedded atom method (EAM) potentials work well for metals; more complex potentials are needed for covalent or ionic materials.
• These simulations can predict formation energies, migration barriers, and binding energies of defect complexes.

Density functional theory calculations

DFT is a quantum-mechanical method that calculates the electronic structure and total energy of a system from first principles (no empirical fitting parameters for the electronic part):

• DFT can predict defect formation energies, stable charge states, and the positions of defect energy levels within the band gap.
• Comparing energies of different defect configurations identifies which defects are thermodynamically favored under given conditions.
• Standard DFT (using local or semi-local functionals like PBE) tends to underestimate band gaps, which can lead to errors in defect level positions. Hybrid functionals (like HSE06) and GW calculations correct this and are preferred for accurate defect physics in wide-bandgap semiconductors and insulators.
• Supercell calculations with periodic boundary conditions are the standard approach, but care must be taken to correct for finite-size effects (spurious defect-defect interactions between periodic images).

Continuum elasticity models

When you need to describe the long-range strain field around a defect rather than its atomic-scale structure, continuum elasticity theory is the appropriate tool:

• The defect is represented as an elastic dipole (a point source of stress) embedded in a continuous elastic medium.
• The resulting strain field falls off as $1/r^3$ from the defect, and the interaction energy between two point defects can be calculated analytically.
• These models are especially useful for understanding how point defects interact with dislocations, grain boundaries, and free surfaces, since the elastic fields of all these features can be superimposed.
• Continuum models bridge the gap between atomistic simulations (which handle small volumes) and macroscopic mechanical behavior.

Kinetic Monte Carlo methods

Kinetic Monte Carlo (KMC) extends the Monte Carlo approach to simulate the time evolution of defect populations:

• Rather than sampling equilibrium configurations, KMC uses transition rates (derived from atomistic calculations or experiment) to model the sequence of defect jumps, reactions, and transformations over time.
• Each event (e.g., a vacancy hop, a defect-defect recombination) is selected with a probability proportional to its rate, and the simulation clock advances accordingly.
• KMC can access time scales from nanoseconds to hours and length scales from nanometers to micrometers, far beyond what MD can reach.
• Applications include modeling radiation damage evolution in nuclear materials, dopant diffusion during semiconductor processing, and precipitate nucleation and growth during alloy aging.
