9.3 Hertz and the Discovery of Radio Waves

Heinrich Hertz's experiments in the late 1880s proved that electromagnetic waves actually exist, confirming what James Clerk Maxwell had predicted on paper two decades earlier. This was a pivotal moment in the history of science: it turned a mathematical theory into observable physical reality and opened the door to every wireless technology that followed.

Hertz's Experiments for Electromagnetic Waves

Apparatus and Generation of Electromagnetic Waves

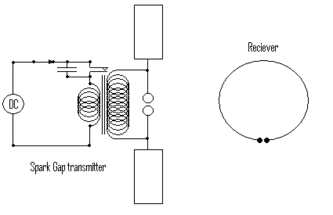

Hertz needed to both create and detect electromagnetic waves, so he built two separate devices. His transmitter worked through a straightforward chain of events:

1. An induction coil charged a pair of metal spheres (acting as a capacitor) separated by a small air gap.
2. When the voltage built up enough, a spark jumped across the gap.
3. That spark produced a rapid, oscillating electric current between the spheres.
4. The oscillating current generated electromagnetic waves that radiated outward from the apparatus.

The key insight is that any accelerating electric charge produces electromagnetic radiation. Hertz's spark gap created charges oscillating at very high frequencies, which is exactly what's needed to radiate detectable waves.

Detection and Measurement of Electromagnetic Waves

For his receiver, Hertz used a simple loop of wire with its own tiny gap, called a resonator. He placed it some distance away from the transmitter. When electromagnetic waves reached the resonator, they induced a small oscillating current in the wire loop, and a tiny spark would appear across the gap.

This was the critical proof: energy was traveling from the transmitter to the receiver with no physical connection between them.

Hertz then went further. By reflecting the waves off metal sheets and creating standing wave patterns, he was able to measure their wavelength. He already knew the oscillation frequency of his transmitter. Using the relationship $v = f\lambda$, he multiplied wavelength by frequency and got a speed that matched the speed of light. That result directly confirmed Maxwell's prediction that electromagnetic waves and light are the same phenomenon, just at different frequencies.

Confirmation of Maxwell's Electromagnetic Theory

Maxwell's equations, published in 1865, had unified electricity and magnetism into a single framework and predicted that oscillating electric and magnetic fields would propagate through space as waves traveling at the speed of light. For over twenty years, though, this remained a purely mathematical prediction with no experimental proof.

Hertz's experiments changed that. By generating, detecting, and measuring electromagnetic waves, he showed that Maxwell's theory wasn't just elegant math but a description of something physically real. This confirmation elevated Maxwell's equations to the status they hold today as one of the foundational pillars of physics.

Properties of Radio Waves

Characteristics of Radio Waves

Radio waves are electromagnetic radiation with wavelengths longer than infrared light, ranging from about a millimeter to thousands of kilometers. Their frequencies span roughly 3 kHz to 300 GHz, with lower frequencies corresponding to longer wavelengths.

Like all electromagnetic waves, radio waves travel at the speed of light in a vacuum (approximately $3 \times 10^8$ meters per second). They also exhibit the standard wave behaviors:

• Reflection: bouncing off conductive surfaces like metal
• Refraction: bending when passing between media of different densities
• Diffraction: bending around obstacles, especially when the obstacle is comparable in size to the wavelength
• Interference: combining constructively or destructively when multiple waves overlap

Propagation and Penetration of Radio Waves

Radio waves can pass through many non-metallic materials like walls, wood, and plastic, which is why they're useful for wireless communication. Several factors affect how they travel:

• Atmospheric conditions: The ionosphere can reflect certain frequencies back toward Earth, allowing long-distance transmission beyond the horizon.
• Terrain: Mountains, valleys, and bodies of water can block, reflect, or scatter radio signals.
• Obstacles: Buildings and metal structures create reflections and shadow zones.

A general rule: lower-frequency (longer-wavelength) radio waves travel farther and penetrate obstacles more effectively, while higher-frequency waves carry more data but attenuate more quickly.

Impact of Hertz's Discovery on Wireless Communication

Development of Wireless Telegraphy

Hertz himself didn't pursue practical applications of his discovery. He reportedly saw no useful purpose for the waves he had produced. Others quickly disagreed. In the mid-1890s, Guglielmo Marconi built on Hertz's work to develop the first practical wireless telegraph system. Marconi used radio waves to transmit Morse code signals, and by 1901 he claimed to have sent a wireless signal across the Atlantic Ocean from Poldhu, Cornwall, to St. John's, Newfoundland. This demonstrated the potential to eliminate reliance on undersea cables for long-distance messaging and transformed global communication.

Invention of Radio and Audio Broadcasting

Early wireless telegraphy could only send coded pulses. The next step was transmitting actual sound. By the early 20th century, engineers developed techniques to encode audio signals onto radio waves:

• Amplitude modulation (AM) varies the wave's amplitude to carry sound information. AM was the first widely used broadcast method, but it's susceptible to electrical interference and static.
• Frequency modulation (FM), developed by Edwin Armstrong in the 1930s, varies the wave's frequency instead. FM produces clearer audio with less static because most noise affects amplitude rather than frequency.

Radio broadcasting became one of the first true mass media, delivering news, music, and entertainment to millions of listeners simultaneously.

Advancements in Wireless Communication Technologies

The principles Hertz demonstrated scaled into an enormous range of technologies: television broadcasting, cellular phone networks, Wi-Fi, Bluetooth, satellite communication, and GPS all rely on transmitting and receiving electromagnetic waves at various frequencies.

Radio waves also proved essential outside of communication. Radio telescopes, first developed in the 1930s by Karl Jansky and later Grote Reber, detect radio emissions from stars, galaxies, and other cosmic sources, revealing aspects of the universe invisible to optical telescopes.

Historical Significance of Hertz's Work in Electromagnetic Theory

Experimental Confirmation of Maxwell's Equations

Maxwell's equations unified electricity, magnetism, and optics into a single theoretical framework. But for two decades after their publication, many physicists remained skeptical that electromagnetic waves were physically real rather than mathematical artifacts. Hertz's experiments settled the question definitively. The ability to generate, transmit, and detect these waves on a laboratory bench turned Maxwell's theory from a bold conjecture into established science.

Bridging Theory and Practice

Hertz's work sits at a fascinating junction in the history of science. He was motivated by pure physics, not by any desire to build a communication device. Yet his demonstration that electromagnetic waves could be produced and received across a room was the essential proof of concept that inventors like Marconi needed to pursue practical wireless technologies. It's one of the clearest examples of basic research enabling transformative applications.

Worth noting: Nikola Tesla also made significant early contributions to radio technology, and the question of who deserves credit for "inventing radio" remains historically contested. But the underlying physics all traces back to Hertz's confirmation of Maxwell's predictions.

Contributions to the Development of Modern Physics

The confirmation of electromagnetic waves had consequences well beyond communication. By showing that light is an electromagnetic wave, Hertz's work cemented the unification of optics with electromagnetism.

Ironically, Hertz also observed something during his experiments that would eventually challenge the classical wave picture: he noticed that ultraviolet light falling on his receiver made sparks easier to produce. This was an early observation of the photoelectric effect. In 1905, Albert Einstein explained the photoelectric effect by proposing that light comes in discrete packets of energy called photons, a foundational idea in quantum mechanics. So Hertz's experiments both confirmed the wave nature of electromagnetic radiation and inadvertently provided early evidence for its particle nature, foreshadowing the wave-particle duality that would reshape 20th-century physics.
