3.2 Kepler's Laws of Planetary Motion

Kepler's Laws of Planetary Motion revolutionized our understanding of the cosmos. Building on Copernicus's heliocentric model, Kepler showed that planets move in elliptical orbits, not circular ones, with the Sun at one focus. His three laws explained planetary motion mathematically, paving the way for Newton's law of universal gravitation and marking a crucial step in the Scientific Revolution.

Kepler's Laws of Planetary Motion

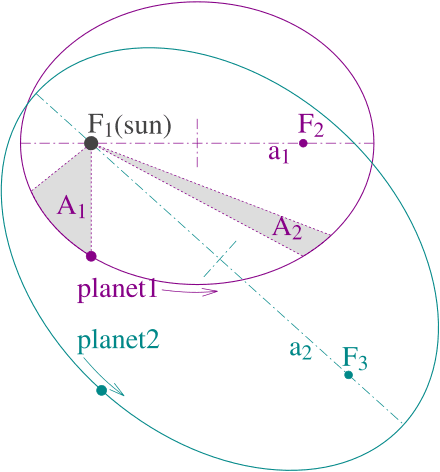

The Three Laws

Kepler's First Law (The Law of Ellipses) states that planets orbit the Sun in ellipses, not perfect circles, with the Sun sitting at one focus of the ellipse. Every ellipse has two focal points, and the Sun occupies one of them. How stretched out the ellipse looks depends on its eccentricity: an eccentricity near zero means the orbit is almost circular, while a higher eccentricity means a more elongated path. Earth's orbit has an eccentricity of only about 0.017, so it's very close to circular. Mars, the planet Kepler studied most closely, has an eccentricity of about 0.093, which was just enough for Kepler to detect the deviation from a circle using Tycho Brahe's data.

Kepler's Second Law (The Law of Equal Areas) states that a line drawn from the Sun to a planet sweeps out equal areas in equal intervals of time. The practical consequence: a planet moves faster when it's closer to the Sun (at perihelion) and slower when it's farther away (at aphelion). Before Kepler, no one had a clear explanation for why planets seemed to speed up and slow down during their journeys around the Sun. Kepler himself didn't know the underlying physical reason, but Newton later showed it follows from the conservation of angular momentum under a central gravitational force.

Kepler's Third Law (The Law of Periods) states that the square of a planet's orbital period is directly proportional to the cube of the semi-major axis of its orbit. In equation form:

$T^2 = k \cdot a^3$

where $T$ is the orbital period, $a$ is the semi-major axis (the longer radius of the ellipse, roughly the average distance from the Sun), and $k$ is a constant that depends on the mass of the central body. This law establishes a precise mathematical link between how far a planet is from the Sun and how long it takes to complete one orbit. Planets farther from the Sun don't just take longer because they have more distance to cover; they also move more slowly, so the relationship is cubic rather than linear.

Implications of Kepler's Laws

Kepler's laws aren't limited to planets orbiting the Sun. They apply to any body orbiting under gravity: moons around planets, comets, asteroids, artificial satellites, and even binary star systems where two stars orbit a common center of mass.

Most significantly for the Scientific Revolution, Kepler's laws laid the groundwork for Newton's law of universal gravitation. Newton used Kepler's third law to derive the inverse-square law of gravitation, which provided the physical why behind the elliptical orbits and varying speeds that Kepler had described mathematically.

In modern astronomy, Kepler's laws remain central to the discovery of exoplanets. The transit method detects planets by measuring the dip in a star's brightness as a planet passes in front of it, and Kepler's third law helps determine that planet's orbital size and period from the timing of transits. Radial velocity measurements, which detect the gravitational wobble a planet induces in its host star, also rely on Kepler's laws to constrain the planet's mass and orbit.

Kepler's Laws vs. Copernicus

Improvements on the Copernican Model

Copernicus made the bold move of placing the Sun at the center, but he kept circular orbits. That created problems. Circular orbits couldn't fully match the observed positions of planets, so Copernicus still needed epicycles (small circles on top of larger circles) to make his predictions work. His model also couldn't explain why planets appeared to speed up and slow down at different points in their paths.

Kepler's first law solved the shape problem: orbits are ellipses, not circles. This single change made epicycles unnecessary. Kepler's second law solved the speed problem by showing that planets naturally move faster near the Sun and slower far from it. And Kepler's third law added something Copernicus never provided: a precise mathematical relationship between a planet's distance from the Sun and its orbital period, allowing far more accurate predictions of planetary positions.

Transition from Copernicus to Kepler

The bridge between Copernicus and Kepler was Tycho Brahe. Tycho spent decades compiling the most accurate naked-eye astronomical observations ever made, particularly of Mars. When Kepler became Tycho's assistant in Prague in 1600 and then inherited the data after Tycho's death in 1601, he had observations precise enough to reveal that Mars's orbit couldn't be a perfect circle. After years of painstaking calculation, Kepler found that an ellipse fit the data.

This transition illustrates a key theme of the Scientific Revolution: Copernicus provided the right general framework (heliocentrism), Tycho provided the precise observational data, and Kepler supplied the mathematical laws that made the model actually work. The need for epicycles vanished, and astronomy moved from geometric approximation toward true physical description.

Applying Kepler's Laws

Calculating Orbital Properties

Using the third law ($T^2 = k \cdot a^3$), you can calculate a planet's orbital period if you know its semi-major axis, or vice versa.

1. Finding the orbital period from distance: If you know the semi-major axis $a$, compute $a^3$, multiply by $k$, and take the square root to get $T$.
2. Finding the distance from the orbital period: If you know the orbital period $T$, rearrange to $a^3 = \frac{T^2}{k}$, then take the cube root to find $a$.

For objects orbiting the Sun, if you measure $a$ in astronomical units (AU) and $T$ in Earth years, the constant $k = 1$, which simplifies things considerably. Earth sits at 1 AU and takes 1 year to orbit; Mars at about 1.52 AU takes about 1.88 years. You can check: $1.52^3 \approx 3.51$ and $1.88^2 \approx 3.53$, which match closely.

The first law tells you the orbit's shape. The eccentricity determines how much the distance from the Sun varies over the course of an orbit, which in turn affects how much the planet's speed changes. A highly eccentric orbit means big differences between perihelion and aphelion speeds.

The second law lets you compare a planet's speed at different orbital positions. Since equal areas are swept in equal times, a planet at perihelion (closer to the Sun) must be moving faster to sweep the same area as it does at aphelion (farther away), where it moves more slowly.

Practical Applications

Kepler's laws are essential for satellite navigation and space mission planning. GPS satellites follow orbits around Earth, and mission planners use Kepler's laws to predict satellite positions and velocities. Interplanetary missions rely on these laws to calculate transfer orbits between planets.

In exoplanet research, both the transit method and radial velocity technique depend on Kepler's laws. The shape and duration of a transit reveal information about the planet's orbital size and period through the first and third laws. NASA's Kepler Space Telescope, named in his honor, used these principles to discover thousands of exoplanets.

Beyond planet-hunting, Kepler's laws apply to studying the motion of stars within galaxies and the dynamics of binary star systems.

Kepler's Work in Astronomy

Contributions to the Scientific Revolution

Kepler's laws replaced the circular orbits and epicycles of both the Ptolemaic and Copernican models with a simpler, more accurate framework. Where previous models patched over discrepancies with added geometric complexity, Kepler's ellipses matched observations directly.

The mathematical relationships he established proved essential for Newton. When Newton derived his inverse-square law of gravitation, he showed that Kepler's three laws were natural consequences of a single gravitational force. Kepler had described how planets move; Newton explained why.

Kepler's approach to science was itself influential. He insisted on fitting theory to precise observational data rather than forcing data into preconceived geometric ideals. When his calculations for Mars didn't match a circular orbit by just 8 arcminutes (a tiny fraction of a degree that most astronomers would have dismissed), he refused to ignore it and spent years finding the correct elliptical solution. That commitment to empirical accuracy over elegant assumption helped define the methodology of modern science.

Legacy and Impact

Kepler's laws enabled far more precise predictions of planetary positions, which improved navigation and allowed astronomers to plan observations and discover new celestial bodies with greater confidence.

His work founded the field of celestial mechanics, the study of how gravitational forces govern the motion of objects in space. This discipline remains central to understanding the dynamics of our Solar System, the formation of planetary systems, and the operation of artificial satellites.

Through exoplanet research, Kepler's laws continue to reshape our picture of the universe. The application of his 17th-century mathematics to 21st-century observations has revealed thousands of worlds orbiting other stars. Few scientific contributions have remained so directly useful for so long.
