11.2 General Relativity and Gravitation

Principles of General Relativity

Fundamentals of General Relativity

Before Einstein, gravity was understood through Newton's framework: a force pulling objects toward each other across empty space. General relativity replaced that picture entirely. Gravity isn't a force at all. It's the result of mass and energy warping the fabric of spacetime, and objects simply follow the curves that warping creates.

A few core ideas hold the theory together:

• The equivalence principle states that the effects of gravity are indistinguishable from the effects of acceleration. If you were in a sealed elevator accelerating upward through empty space, you'd feel exactly the same as if you were standing still in a gravitational field. This also means all objects in free fall follow the same trajectories regardless of their mass or composition.
• Spacetime is a four-dimensional continuum combining three spatial dimensions with one dimension of time. Mass and energy curve this continuum, and that curvature is what we experience as gravity.
• Einstein's field equations are the mathematical core of the theory. They relate the curvature of spacetime to the distribution of mass and energy throughout the universe. These equations are notoriously difficult to solve, but specific solutions describe important physical scenarios like black holes and the expanding universe.

Equations and Metrics in General Relativity

The math of general relativity describes how objects move through curved spacetime and how that curvature is structured.

• The geodesic equation determines how objects move through curved spacetime. A geodesic is the equivalent of a "straight line" in curved geometry. Planets orbiting the Sun, for instance, are following geodesics through the spacetime the Sun's mass has curved.
• The metric tensor specifies distances between points in spacetime and determines the geometry that freely falling objects follow. Different physical situations call for different metrics.
• The Minkowski metric describes flat spacetime with no gravity present. It's the baseline geometry of special relativity.
• The Schwarzschild metric describes spacetime around a spherically symmetric, non-rotating mass. Karl Schwarzschild derived this solution in 1916, just months after Einstein published his field equations. It's used to model gravity around objects like non-rotating stars or simple black holes.
• The Kerr-Newman metric generalizes further, describing spacetime around objects with mass, electric charge, and angular momentum (spin). It's the most complete description of a black hole's exterior geometry.

For a History of Science course, you don't need to solve these equations. What matters is understanding that each metric represents a specific solution to Einstein's field equations for a particular physical setup, and that these solutions generate testable predictions.

Predictions of General Relativity

Gravitational Effects on Light

General relativity predicts that light doesn't travel in perfectly straight lines when passing through a gravitational field. Instead, the curvature of spacetime bends the path of light. This effect, called gravitational lensing, has been observed in many astrophysical contexts. Light from distant galaxies and quasars gets bent as it passes near massive foreground objects, sometimes producing multiple images or arcs of the same source.

The theory also predicts gravitational time dilation: time passes more slowly in stronger gravitational fields. A clock on the surface of Earth ticks slightly slower than one in orbit. This isn't just theoretical. GPS satellites carry atomic clocks that must be corrected for both gravitational time dilation and the time dilation from special relativity, or positioning data would drift by roughly 10 kilometers per day.

Extreme Gravitational Phenomena

• Black holes are regions where spacetime is curved so extremely that nothing, not even light, can escape from within the boundary known as the event horizon. Their existence follows directly from solutions to Einstein's field equations, particularly the Schwarzschild metric.
• Gravitational waves are ripples in spacetime produced by the acceleration of massive objects. Events like binary black hole mergers and neutron star collisions generate waves that propagate outward at the speed of light. Their direct detection in 2015 confirmed a prediction Einstein made a century earlier.
• Wormholes are hypothetical tunnels connecting distant regions of spacetime. They emerge as valid mathematical solutions to Einstein's equations, but no observational evidence for their existence has been found, and most physicists consider them unlikely to exist in a stable, traversable form.

Spacetime and Gravity

Unification of Space and Time

Spacetime is the mathematical model that combines space and time into a single four-dimensional framework. This unification is what allows general relativity to describe gravity geometrically rather than as a separate force. Objects don't get "pulled" by gravity. They move along the curves that mass and energy create in the spacetime around them.

This was a radical departure from Newtonian physics, where space and time were separate, absolute backdrops against which events unfolded. In general relativity, spacetime itself is dynamic. It bends, stretches, and ripples in response to the matter and energy within it.

Visualizing Spacetime Curvature

Four-dimensional curvature is hard to picture, so physicists use several visualization tools:

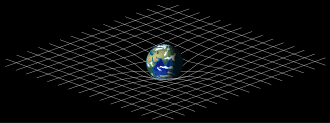

• Embedding diagrams, like the well-known rubber sheet analogy, represent a massive object as creating a "dip" in a stretched surface. Nearby objects roll toward the dip, mimicking how planets orbit stars or how light bends near massive bodies. The analogy is imperfect (it relies on an external "downward" gravity to work, and it only shows two spatial dimensions), but it captures the core idea that mass deforms the geometry around it.
• Kruskal-Szekeres diagrams and Penrose diagrams are more technical tools that map out the causal structure of spacetime, showing which events can influence which other events. These are especially useful for understanding black holes and the boundaries of observable regions.

Evidence for General Relativity

Classical Tests of General Relativity

The theory's earliest confirmations came from phenomena that Newtonian gravity couldn't fully explain.

• Precession of Mercury's orbit (1915): Mercury's elliptical orbit rotates slowly over time, a phenomenon called orbital precession. Newtonian gravity accounts for most of this precession through the gravitational pull of other planets, but it falls short by about 43 arcseconds per century. General relativity predicts exactly this discrepancy. Einstein calculated this result while developing the theory, and it was one of the first pieces of evidence he cited in its favor.
• Deflection of starlight (1919): During a total solar eclipse, Arthur Eddington led expeditions to measure the positions of stars appearing near the Sun. Their light was deflected by the Sun's gravity, and the measured deflection matched Einstein's prediction of about 1.75 arcseconds. Newton's theory predicted only half that amount. This result made international headlines and turned Einstein into a public figure.
• Pound-Rebka experiment (1959): This experiment measured the gravitational redshift of light. Photons traveling upward through Earth's gravitational field lose energy and shift to lower frequencies (longer wavelengths). Robert Pound and Glen Rebka measured this shift at Harvard using gamma rays over a height of just 22.5 meters, and their results matched general relativity's predictions to within about 10%.
• Hafele-Keating experiment (1971): Atomic clocks were flown around the world on commercial aircraft and then compared to clocks that stayed on the ground. The differences in elapsed time matched the combined predictions of special relativity (time dilation due to the planes' speed) and general relativity (time dilation due to differences in gravitational potential).

Modern Confirmations of General Relativity

More recent observations have tested the theory under increasingly extreme conditions.

• Gravitational waves detected by LIGO (2015): The Laser Interferometer Gravitational-Wave Observatory directly detected gravitational waves from two merging black holes about 1.3 billion light-years away. This confirmed a prediction Einstein made in 1916 and opened an entirely new way of observing the universe. The discovery earned Rainer Weiss, Kip Thorne, and Barry Barish the 2017 Nobel Prize in Physics.
• Black hole shadow imaged by the Event Horizon Telescope (2019): The EHT collaboration produced the first direct image of the shadow of a supermassive black hole at the center of galaxy M87. The size and shape of the shadow matched general relativity's predictions.
• Binary pulsar orbital decay: The Hulse-Taylor binary pulsar system, discovered in 1974, has been monitored for decades. Its orbit is decaying at precisely the rate predicted by general relativity for a system losing energy through gravitational wave emission. This provided strong indirect evidence for gravitational waves years before LIGO's direct detection, and earned Russell Hulse and Joseph Taylor the 1993 Nobel Prize.
• Gravitational lensing on cosmological scales: Observations of galaxy clusters bending light from more distant objects, such as the Bullet Cluster, have confirmed general relativity's predictions at the largest scales. These observations also provide evidence for dark matter, since the lensing reveals mass that can't be accounted for by visible matter alone.
