11.1 Interactions of Skeletal Muscles, Their Fascicle Arrangement, and Their Lever Systems

Skeletal Muscle Interactions and Fascicle Arrangements

Agonist vs. Antagonist Muscles

Every movement you make involves muscles working in coordinated groups, not in isolation. Understanding these roles is essential for explaining how the body produces smooth, controlled motion.

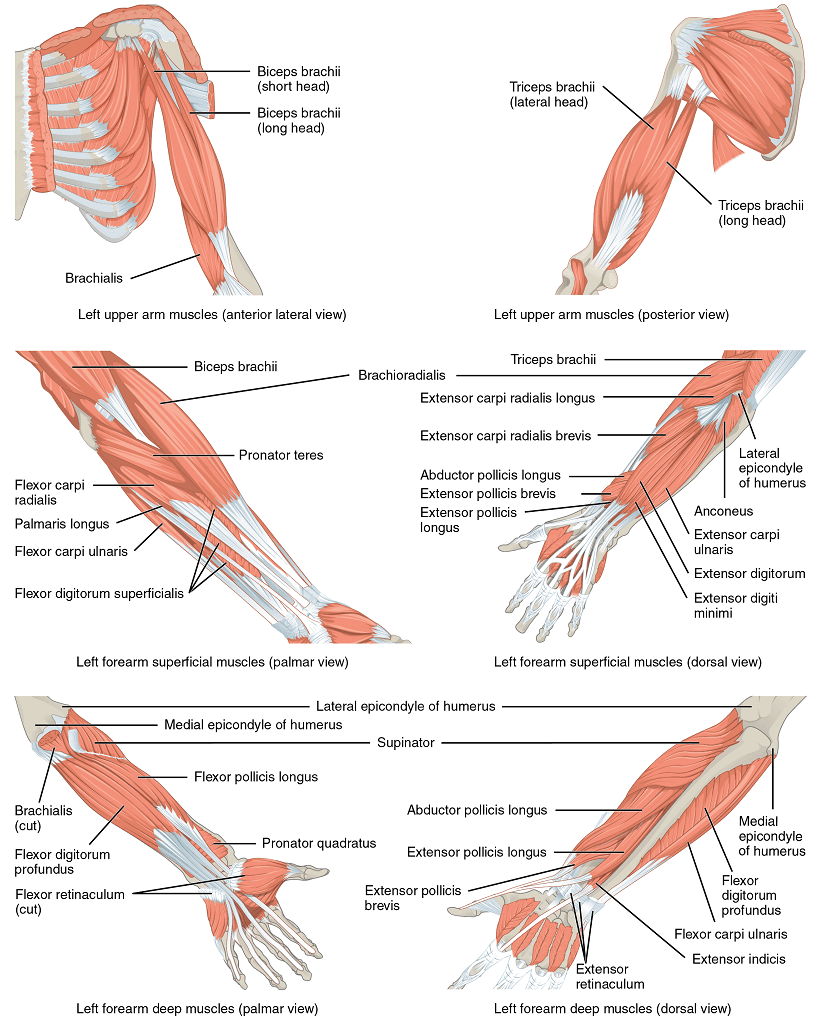

• Agonist (prime mover): The muscle that directly produces a desired movement by contracting. During elbow flexion, the biceps brachii is the agonist because it contracts to bend the arm.
• Antagonist: The muscle that opposes the agonist. During that same elbow flexion, the triceps brachii is the antagonist. It relaxes to allow the movement but can also contract eccentrically to slow or control the motion, preventing you from bending too fast or too far.
• Synergist: A muscle that assists the agonist, often by stabilizing a nearby joint or eliminating unwanted movements. For example, the brachioradialis assists the biceps during elbow flexion.
• Fixator: A muscle that stabilizes the origin of the prime mover so force is directed efficiently toward the insertion. The muscles of the scapula often act as fixators during arm movements, anchoring the shoulder blade in place.

These roles aren't permanent. A muscle that acts as an agonist in one movement can be the antagonist in the reverse movement. The triceps is the agonist during elbow extension and the antagonist during elbow flexion.

Fascicle Arrangements in Muscles

The way muscle fibers (fascicles) are organized within a muscle determines whether that muscle is built for range of motion, speed, or force. There's a general trade-off: arrangements that maximize force tend to sacrifice range of motion, and vice versa.

• Parallel: Fascicles run parallel to the muscle's long axis. This arrangement favors range of motion and speed of contraction. Examples: sartorius, rectus abdominis.
• Fusiform: A subtype of parallel arrangement where the muscle belly is wider in the middle and tapers at the tendons, creating a spindle shape. Fusiform muscles produce moderate force with good range of motion. Examples: biceps brachii.
• Pennate: Fascicles attach at an angle to a central tendon. Because more fibers can be packed into a given space, pennate muscles generate greater force, but with less range of motion.
  • Unipennate: Fibers attach on one side of the tendon (extensor digitorum longus)
  • Bipennate: Fibers attach on both sides of the tendon (rectus femoris)
  • Multipennate: Fibers attach from multiple directions to a branching central tendon (deltoid)
• Circular (sphincter): Fascicles are arranged in concentric rings around an opening. Contraction closes the opening; relaxation opens it. Examples: orbicularis oris (around the mouth), orbicularis oculi (around the eye).

Skeletal Muscle Contraction and Force Generation

Steps of Muscle Contraction

Muscle contraction is a multi-step process that links a nerve signal to the physical shortening of sarcomeres. Each step depends on the one before it.

1. Neuromuscular junction signaling: A motor neuron releases acetylcholine (ACh) into the synaptic cleft. ACh binds to receptors on the motor end plate of the muscle fiber, triggering an action potential on the sarcolemma.
2. Excitation-contraction coupling: The action potential travels along the sarcolemma and dives into the T-tubules, which signal the sarcoplasmic reticulum (SR) to release $Ca^{2+}$ into the sarcoplasm. $Ca^{2+}$ binds to troponin on the thin filaments, causing tropomyosin to shift and expose the myosin-binding sites on actin.
3. Cross-bridge cycling: Myosin heads (already energized from ATP hydrolysis) bind to the exposed sites on actin, forming cross-bridges. The myosin head then pivots, pulling the thin filament toward the center of the sarcomere. This is the power stroke. A new ATP molecule binds to the myosin head, causing it to detach. ATP is hydrolyzed, re-energizing the head for another cycle.
4. Sliding filament mechanism: Repeated rounds of cross-bridge cycling cause the thin filaments to slide inward past the thick filaments. The sarcomere shortens, the muscle fiber shortens, and force is generated. The filaments themselves don't change length; they slide past each other.
5. Relaxation: When nerve stimulation stops, $Ca^{2+}$ is actively pumped back into the SR by $Ca^{2+}$-ATPase pumps. Without $Ca^{2+}$ on troponin, tropomyosin slides back over the binding sites, cross-bridges can no longer form, and muscle tension drops.

Types of Muscle Contractions

• Isotonic contraction: The muscle changes length while maintaining relatively constant tension, producing visible movement.
  • Concentric: The muscle shortens as it contracts (lifting a dumbbell during a bicep curl).
  • Eccentric: The muscle lengthens while still generating tension (slowly lowering that dumbbell back down).
• Isometric contraction: The muscle generates tension but does not change length. No joint movement occurs. Holding a plank or pushing against a wall are classic examples.

Muscle Attachments and Lever Systems

Muscles produce movement by pulling on bones across joints. How this force translates into motion depends on the attachment points and the lever system involved.

• Origin: The attachment point that remains relatively stationary during contraction (typically the proximal attachment).
• Insertion: The attachment point that moves (typically the distal attachment). Muscles pull the insertion toward the origin.
• Both attachments connect to bone via tendons.

Every lever system has three components: a fulcrum (the joint), an effort (the force applied by the muscle), and a load (the resistance being moved, such as the weight of a limb or an object being lifted).

There are three classes of levers, classified by the relative positions of these components:

• First-class lever: Fulcrum is between the effort and the load. Example: nodding your head at the atlanto-occipital joint. These can favor either force or speed depending on the distances involved.
• Second-class lever: Load is between the fulcrum and the effort. Example: standing on your toes, where the ball of the foot is the fulcrum, body weight is the load, and the calf muscles provide the effort. These favor force (mechanical advantage).
• Third-class lever: Effort is between the fulcrum and the load. Example: flexing the elbow, where the joint is the fulcrum, the biceps insertion is the effort, and the weight in your hand is the load. These favor speed and range of motion but require more muscular effort. Most levers in the body are third-class.
