Energy, work, and power are the core concepts that connect forces to motion in engineering physics. They give you the tools to figure out how much effort a system needs, how much energy it stores or transfers, and how quickly it can get things done. Engineers rely on these calculations constantly, whether they're sizing a motor, designing a braking system, or evaluating a power plant's output.

Work, Energy, and Power

Defining Work, Energy, and Power

Work is what happens when a force moves an object over a distance. The formula is:

$W = F \cdot d \cdot \cos(\theta)$

F = force in newtons (N)
d = displacement in meters (m)
θ = the angle between the force vector and the direction of displacement

That cosine term matters. If you push a box straight forward (θ = 0°), all your force does work. If you push at an angle, only the component of force along the direction of motion counts. And if the force is perpendicular to the motion (θ = 90°), the work done is zero.

Energy is the capacity to do work. The two main forms in mechanics are:

Kinetic energy (energy of motion): $KE = \frac{1}{2}mv^2$
Gravitational potential energy (energy of position): $PE = mgh$ , where m is mass, g is gravitational acceleration ( $9.8 \, m/s^2$ ), and h is height above a reference point

Power measures how fast work gets done or energy gets transferred:

$P = \frac{W}{t}$ or equivalently $P = F \cdot v$

The second form is useful when you know the force on an object and its velocity, rather than the total work and time.

The work-energy theorem ties these together: the net work done on an object equals its change in kinetic energy.

$W_{net} = \Delta KE$

SI units to remember: work and energy are measured in joules (J), and power is measured in watts (W), where 1 watt = 1 joule per second.

One more concept worth knowing here: mechanical advantage in simple machines (levers, pulleys, inclined planes) lets you trade force for distance. A longer lever arm means less force required, but you move it through a greater distance. The total work stays the same.

Applications in Engineering Systems

These principles show up everywhere in engineering:

Roller coasters convert gravitational potential energy at the top of a hill into kinetic energy at the bottom. The height of the first hill sets the energy budget for the entire ride.
Hydroelectric dams harness the potential energy of water stored at elevation. As water flows downhill through turbines, that potential energy converts to electrical energy.
Wind turbines capture the kinetic energy of moving air and convert it to electrical energy. The available power depends on wind speed cubed, which is why even small increases in wind speed matter a lot.

Engineers also use these principles to calculate force requirements for cranes and elevators, optimize engine power output, and design energy storage systems like flywheels and compressed air tanks.

Conservation of Energy in Engineering

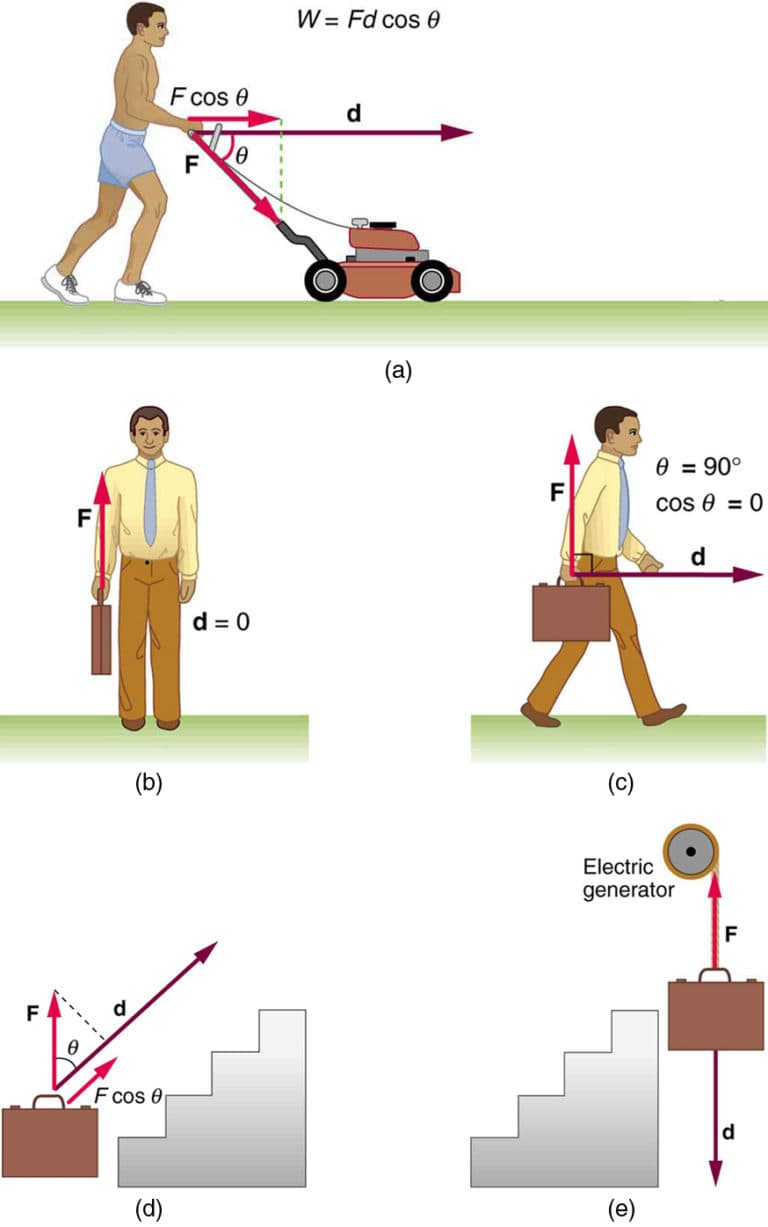

Defining Work, Energy, and Power, Kinetic Energy and the Work-Energy Theorem · Physics

Fundamental Principles

The law of conservation of energy states that energy cannot be created or destroyed, only transferred between objects or converted between forms. In a closed system (one with no energy entering or leaving), the total energy stays constant:

$E_{initial} = E_{final}$

In practice, energy constantly shifts between forms:

Mechanical to thermal: Friction in bearings converts motion into heat
Chemical to electrical: A battery's chemical reactions produce electric current
Nuclear to thermal: Nuclear reactors release energy stored in atomic nuclei as heat, which then drives turbines

Non-conservative forces like friction are the reason mechanical energy doesn't stay mechanical forever. When friction acts on a system, some kinetic or potential energy becomes thermal energy (heat). That energy isn't lost; it's just no longer available to do useful mechanical work.

Energy diagrams and free-body diagrams are helpful tools here. Energy diagrams let you visualize how energy shifts between forms at different points in a process, while free-body diagrams help you identify all the forces acting on an object so you can account for energy changes correctly.

Engineering Applications

Conservation of energy is the foundation for analyzing real systems:

Power plants (coal, nuclear, solar) are evaluated by tracking energy from source to electrical output, identifying where losses occur at each stage
Building design uses energy conservation principles to minimize heat transfer through walls, windows, and roofs
Vehicle fuel economy improves when engineers reduce aerodynamic drag and drivetrain friction, keeping more chemical energy from fuel available for motion
Renewable energy systems like solar panels and wind farms are designed around how efficiently they capture and convert naturally available energy
Energy harvesting devices (piezoelectric floors, thermoelectric generators) capture small amounts of energy from vibrations or temperature differences that would otherwise be wasted

Work, Energy, and Power Relationships

Defining Work, Energy, and Power, Power · Physics

Interconnections in Mechanical Systems

Work, energy, and power are deeply linked. Work is the mechanism by which energy transfers into or out of a system, and power describes the rate of that transfer.

The direction of energy flow depends on whether work is positive or negative:

Positive work (force in the same direction as motion) increases the system's energy
Negative work (force opposing motion, like friction) decreases the system's energy

For rotational systems, the formulas have direct analogs:

Rotational work: $W = \tau \cdot \theta$ , where τ is torque and θ is angular displacement (in radians)
Rotational power: $P = \tau \cdot \omega$ , where ω is angular velocity (in radians per second)

These rotational formulas are essential for analyzing motors, engines, and any system with spinning components.

When force or velocity varies over time, you use instantaneous power ( $P = F \cdot v$ ) rather than average power to understand what's happening at a specific moment.

Engineering Design Considerations

These relationships drive real design decisions:

Motor selection depends on matching the required torque and speed to the motor's power curve
Gearboxes trade speed for torque (or vice versa) while keeping power roughly constant, minus friction losses
Brake systems must be sized to absorb the vehicle's full kinetic energy ( $\frac{1}{2}mv^2$ ) and convert it to heat safely
Pumps and turbines are sized based on the power needed to move fluid at a given flow rate and pressure
Hybrid vehicles use energy management strategies that decide when to use the electric motor, the combustion engine, or both, based on power demand at any moment

Efficiency of Mechanical Systems

Efficiency Concepts and Calculations

No real system converts 100% of input energy into useful output. Efficiency (η) measures how close a system gets:

$\eta = \frac{E_{out}}{E_{in}} \times 100\%$ or equivalently $\eta = \frac{P_{out}}{P_{in}} \times 100\%$

Energy losses fall into a few main categories:

Frictional losses: Bearing wear, fluid viscosity, surfaces sliding against each other
Transmission losses: Gear mesh inefficiency, belt slippage, chain stretch
Conversion losses: Heat generated by motors, light bulbs producing more heat than light

Here's a detail that trips people up: adding mechanical advantage (like using a longer lever arm or more pulleys) can actually reduce efficiency even though it reduces the required force. More moving parts and more contact surfaces mean more friction. You gain force multiplication but lose some energy to heat.

To improve efficiency, engineers focus on:

Reducing friction with better lubricants or low-friction materials
Optimizing gear ratios for the specific operating conditions
Minimizing the number of energy conversions (each conversion introduces losses)

Analyzing and Optimizing System Efficiency

Efficiency optimization is a major part of engineering practice:

Energy audits systematically track where energy goes in an industrial process, identifying the biggest sources of waste
Regenerative braking in electric and hybrid vehicles recaptures kinetic energy during deceleration and stores it in the battery, rather than wasting it all as brake heat
HVAC optimization in buildings reduces energy consumption through better insulation, smarter controls, and heat recovery ventilation
LED lighting converts a much higher fraction of electrical energy to light compared to incandescent bulbs (roughly 40-50% vs. about 5%)
Heat exchangers in power plants recover thermal energy from exhaust gases or cooling water, feeding it back into the system rather than releasing it to the environment
