6.2 Kirchhoff's laws and circuit theorems
5 min read•august 15, 2024
Kirchhoff's laws and circuit theorems are the backbone of electrical circuit analysis. They provide powerful tools for solving complex circuits, from simple networks to intricate electronic systems.
These laws and theorems simplify circuit analysis, making it easier to understand how electricity flows. By mastering these concepts, you'll be able to tackle real-world engineering problems and design efficient electrical systems.
Kirchhoff's Laws for Circuit Analysis
Fundamental Principles and Formulation
Top images from around the web for Fundamental Principles and Formulation
Kirchhoff’s Rules | Physics View original
Is this image relevant?
Kirchhoff's circuit laws - Wikipedia View original
Is this image relevant?
Kirchhoff’s Rules | Boundless Physics View original
Is this image relevant?
Kirchhoff’s Rules | Physics View original
Is this image relevant?
Kirchhoff's circuit laws - Wikipedia View original
Is this image relevant?
1 of 3
Top images from around the web for Fundamental Principles and Formulation
Kirchhoff’s Rules | Physics View original
Is this image relevant?
Kirchhoff's circuit laws - Wikipedia View original
Is this image relevant?
Kirchhoff’s Rules | Boundless Physics View original
Is this image relevant?
Kirchhoff’s Rules | Physics View original
Is this image relevant?
Kirchhoff's circuit laws - Wikipedia View original
Is this image relevant?
1 of 3

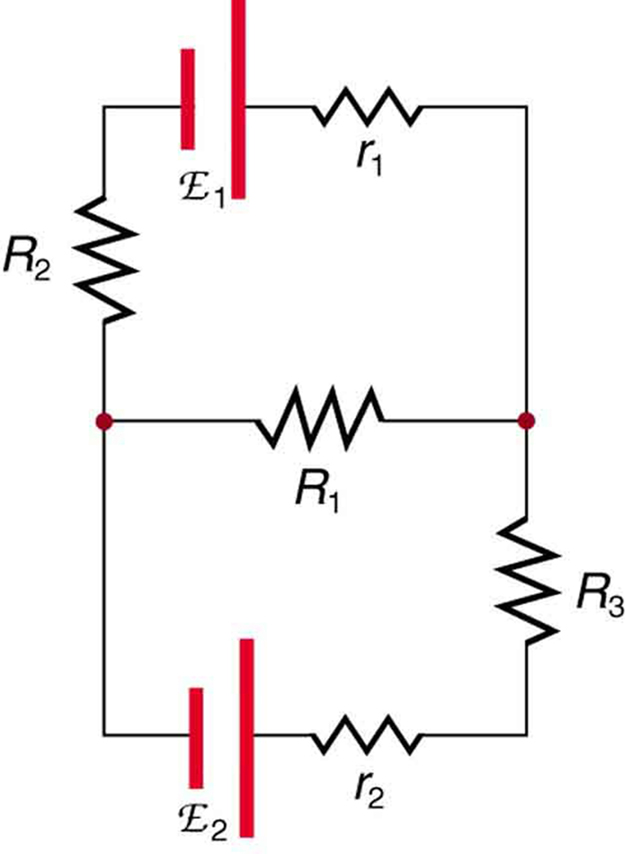

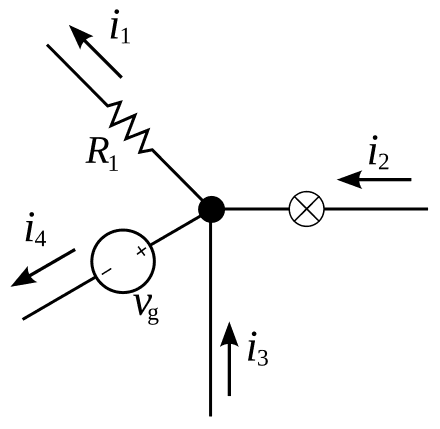

- (KCL) dictates the algebraic sum of currents entering and leaving a in an electrical circuit equals zero
- (KVL) establishes the algebraic sum of voltages around any closed loop in a circuit equals zero
- KCL and KVL stem from conservation of charge and energy principles respectively
- KCL application involves identifying nodes and formulating relationship equations at each node
- KVL application requires identifying loops and creating relationship equations around each loop
- Complex circuits often demand simultaneous application of both KCL and KVL to determine unknown currents and voltages
Advanced Applications and Methods
- Matrix methods (nodal analysis and ) systematically apply Kirchhoff's laws to solve large circuits
- Nodal analysis applies KCL to solve for node voltages in a circuit
- Involves selecting a reference node (ground) and writing KCL equations for other nodes
- Results in a system of linear equations solvable through matrix operations
- Mesh analysis utilizes KVL to solve for loop currents in a circuit
- Involves defining mesh currents and writing KVL equations for each mesh
- Produces a system of linear equations solvable through matrix operations
- Combining KCL and KVL allows analysis of circuits with both voltage and current sources
- Computer-aided circuit analysis tools often employ these methods for efficient problem-solving
Superposition Theorem for Multiple Sources
Theorem Principles and Application
- Superposition theorem states in a linear circuit with multiple sources, the total response equals the sum of individual responses due to each source acting alone
- Application involves analyzing the circuit multiple times, each iteration with only one source active and others replaced by internal resistances
- Voltage sources transform into short circuits (zero ) when deactivated
- Current sources become open circuits (infinite resistance) when deactivated
- Individual responses (currents or voltages) algebraically sum to yield the total response
- Superposition proves particularly useful for circuits with multiple independent sources challenging to analyze through other methods
- Theorem applicability limited to linear circuits adhering to homogeneity and additivity principles
Examples and Limitations
- Example: Circuit with two voltage sources and three resistors
- Analyze with first source active, second replaced by short circuit
- Analyze with second source active, first replaced by short circuit
- Sum the results to obtain total currents and voltages
- Superposition cannot directly solve for power in nonlinear elements (power depends on voltage squared)
- Calculate voltages and currents first, then determine power
- Theorem fails for circuits with nonlinear elements (diodes, transistors)
- Time-varying circuits require consideration of initial conditions for each source activation
Thevenin's and Norton's Theorems for Simplification
Theorem Fundamentals and Equivalence
- replaces any linear circuit with an equivalent circuit consisting of a voltage source in series with a resistance
- substitutes any linear circuit with an equivalent circuit comprising a current source in parallel with a resistance
- Thevenin equivalent voltage (VTH) represents the open-circuit voltage of the original circuit
- Norton equivalent current (IN) equals the short-circuit current of the original circuit
- Thevenin and Norton equivalent resistances (RTH = RN) are identical, calculated by removing all independent sources and finding total resistance seen from terminals
- Thevenin and Norton equivalent circuits are interchangeable, convertible using the relationship VTH = IN * RTH
- These theorems simplify analysis of circuits with varying loads or complex subcircuits within larger networks
Calculation Methods and Applications
- Steps to find Thevenin equivalent:
- Remove the load from the circuit
- Calculate open-circuit voltage (VTH) across load terminals
- Replace independent sources with their internal resistances
- Calculate equivalent resistance (RTH) seen from load terminals
- Steps to find Norton equivalent:
- Remove the load from the circuit
- Calculate short-circuit current (IN) through load terminals
- Replace independent sources with their internal resistances
- Calculate equivalent resistance (RN) seen from load terminals
- Application example: Analyzing impact of different loads on a power supply
- Replace complex power supply circuit with Thevenin equivalent
- Easily calculate output voltage for various load resistances
- Thevenin and Norton equivalents facilitate incremental analysis in small-signal models of nonlinear devices (transistors)
Maximum Power Transfer Theorem for Circuit Problems
Theorem Principles and Calculations
- Maximum power transfer theorem states maximum power transfers from a source to a load when load resistance equals source's internal resistance
- For Thevenin equivalent circuit, maximum power transfer occurs when load resistance RL equals Thevenin resistance RTH
- Maximum power transferred to load calculated as Pmax = VTH^2 / (4RTH), where VTH represents Thevenin equivalent voltage
- Theorem determines optimal load for a given source to maximize power delivery
- Assumes source can supply unlimited current, potentially unrealistic in real-world applications
- Efficiency at maximum power transfer reaches only 50%, half the power dissipates in source's internal resistance
- Some applications (power distribution systems) prioritize efficiency over maximum power transfer
Practical Applications and Considerations
- Audio systems design utilizes maximum power transfer to match speaker impedance to amplifier output impedance
- RF circuit design applies the theorem to match antenna impedance to transmitter output for maximum power transmission
- Considerations beyond maximum power transfer:
- Voltage regulation: Trade-off between power transfer and maintaining stable voltage
- Thermal management: Maximum power transfer may lead to excessive heat generation
- Efficiency: Applications like battery-powered devices prioritize efficiency over maximum power transfer
- Example: Solar panel maximum power point tracking (MPPT)
- Adjusts load to maintain optimal power transfer as sunlight conditions change
- Balances maximum power transfer with other system requirements
