2.4 Latitudinal energy balance and heat transport

Solar Radiation Variation by Latitude

Factors Influencing Solar Radiation Distribution

Earth's spherical shape means that solar radiation hits different latitudes at different angles, and this single geometric fact drives most of the energy imbalance across the planet.

At the equator, sunlight arrives nearly perpendicular to the surface, concentrating energy over a small area. At higher latitudes, the same beam of sunlight strikes at a lower angle and spreads over a larger area, delivering less energy per square meter. On top of that, low-angle sunlight must travel through more atmosphere before reaching the surface, which means more of it gets absorbed and scattered along the way.

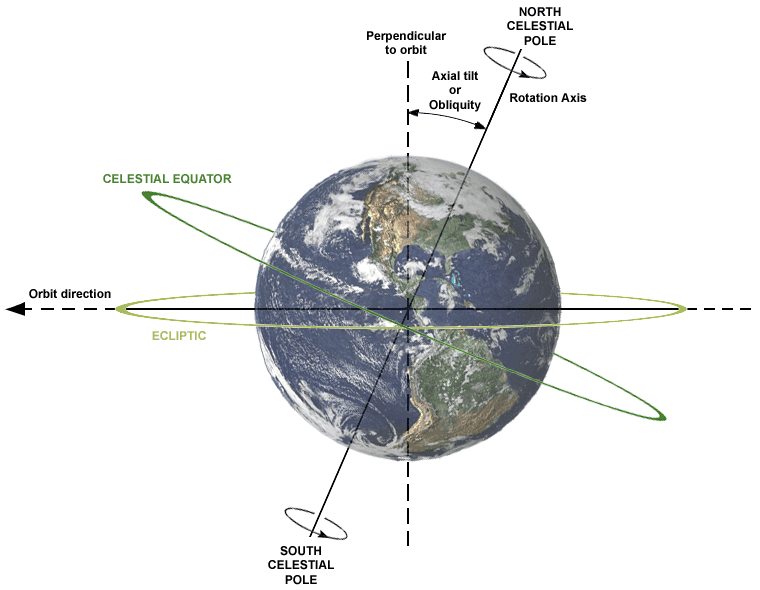

Earth's axial tilt (about 23.5°) adds a seasonal dimension. Higher latitudes experience dramatic swings in day length and solar angle throughout the year, while tropical latitudes stay relatively consistent. This is why seasonal temperature variation is mild near the equator but extreme near the poles.

Quantifying and Measuring Solar Energy

• Insolation (incoming solar radiation) is the measure of how much solar energy a given latitude receives over a given time. Annual average insolation at the equator is roughly 2.5 times what the poles receive.
• The solar constant is the average solar radiation reaching the top of the atmosphere: approximately $1361 \, \text{W/m}^2$. This value is the starting point before geometry, atmosphere, and surface properties reduce what actually gets absorbed.
• Solar zenith angle is the angle between the sun and directly overhead. A zenith angle of 0° means the sun is straight above; larger angles mean weaker radiation per unit area. You can relate intensity to zenith angle using $I = I_0 \cos(\theta)$, where $\theta$ is the zenith angle.
• Albedo (surface reflectivity) determines how much incoming radiation gets absorbed versus reflected:
  • Polar regions have high albedo (0.6–0.9 for fresh snow and ice), reflecting most incoming radiation back to space.
  • Tropical forests and oceans have low albedo (0.06–0.15), absorbing the majority of incoming radiation.
  • This albedo difference amplifies the latitudinal energy imbalance: the tropics absorb more and receive more.

Latitudinal Energy Imbalance and its Consequences

Understanding Energy Imbalance

Every latitude both receives solar (shortwave) radiation and emits thermal (longwave) radiation back to space. The latitudinal energy imbalance is the net difference between these two at each latitude.

• Between roughly 35°N and 35°S, incoming solar radiation exceeds outgoing longwave radiation, creating a net energy surplus.
• Poleward of about 35° in both hemispheres, outgoing radiation exceeds incoming, creating a net energy deficit.

If no heat were transported between latitudes, the tropics would keep getting hotter and the poles would keep getting colder. The fact that this doesn't happen tells you something important: Earth's atmosphere and oceans are constantly moving energy poleward to compensate. This poleward heat transport is the engine behind global circulation.

Climate Impacts of Energy Imbalance

The energy imbalance drives the formation of three major atmospheric circulation cells in each hemisphere:

• Hadley cells (equator to ~30° latitude): the strongest cells, driven directly by intense tropical heating. Rising air near the equator moves poleward aloft, sinks in the subtropics.
• Ferrel cells (~30° to ~60° latitude): indirect, thermally driven cells in the mid-latitudes where most weather systems develop.
• Polar cells (~60° to 90° latitude): cold, dense air sinks at the poles and flows equatorward at the surface.

These cells establish distinct climate zones and precipitation patterns across the globe.

Long-term shifts in the latitudinal energy balance can reshape these patterns. For example, as global temperatures rise, Hadley cells appear to be expanding poleward, pushing subtropical dry zones into previously temperate regions and altering precipitation patterns.

Radiative forcing quantifies any change to Earth's energy balance (measured in $\text{W/m}^2$). Positive radiative forcing (e.g., from increased greenhouse gases) produces a warming effect; negative forcing (e.g., from volcanic aerosols) produces a cooling effect. Changes in radiative forcing at different latitudes can shift the energy imbalance and alter heat transport patterns.

Heat Transport Mechanisms

Atmospheric Heat Transfer

The atmosphere moves heat poleward through three main processes:

• Sensible heat transfer: Thermal energy moves directly from warmer to cooler air through conduction (at the surface) and convection (vertical mixing). Winds then carry this warmed air horizontally.
• Latent heat transfer: When water evaporates (especially in the warm tropics), it absorbs energy. That energy is released as heat when the water vapor condenses into clouds and precipitation at higher latitudes or altitudes. This is a huge component of poleward energy transport.
• Advection: The horizontal movement of heat by winds. Large-scale wind patterns (trade winds, westerlies, polar easterlies) associated with the three circulation cells carry warm air poleward and cool air equatorward.

Of these, latent heat transport is particularly significant in the tropics, while sensible heat transport and advection dominate in the mid-latitudes where storm systems are active.

Oceanic Heat Transfer

The ocean absorbs and stores far more heat than the atmosphere and transports it through several mechanisms:

• Surface currents carry warm tropical water poleward. The Gulf Stream, for instance, transports roughly $1.4 \times 10^{15}$ watts of heat northward in the Atlantic, warming western Europe well above what its latitude would otherwise allow. The Kuroshio Current plays a similar role off eastern Asia.
• Thermohaline circulation (the global ocean conveyor belt) is a deep, slow circulation driven by differences in water density caused by temperature and salinity. Cold, salty water sinks in the North Atlantic and near Antarctica, flows along the ocean floor, and eventually resurfaces in other basins. This process operates on timescales of centuries to millennia and redistributes heat globally.
• Vertical mixing through upwelling (cold deep water rising to the surface) and downwelling (warm surface water sinking) exchanges heat between the surface and deep ocean. Upwelling zones, like those off the coasts of Peru and California, bring cold, nutrient-rich water to the surface and locally cool the climate.

Radiative processes also matter in the upper ocean: sunlight penetrates the top ~200 meters, warming this mixed layer, which then exchanges heat with the atmosphere above and deeper water below.

Energy Redistribution by Circulation

Atmospheric Circulation and Energy Transport

The global wind system is the atmosphere's primary tool for moving heat poleward:

• Trade winds (surface winds of the Hadley cell) blow from the subtropics toward the equator, converging at the Intertropical Convergence Zone (ITCZ) where warm, moist air rises.
• Westerlies in the mid-latitudes carry heat poleward and are associated with the Ferrel cell. Mid-latitude storm systems (cyclones) embedded in the westerlies are especially effective at transporting heat, moving warm air poleward and cold air equatorward in large swirling exchanges.
• Polar easterlies flow from the poles toward the mid-latitudes at the surface, completing the polar cell.

Peak atmospheric heat transport occurs around 30–40° latitude, where the temperature gradient between tropics and poles is steepest and mid-latitude storms are most active.

Oceanic Circulation and Energy Transport

Ocean heat transport peaks at lower latitudes (around 15–20°) and complements atmospheric transport:

• In the tropics, the ocean carries a larger share of total poleward heat transport than the atmosphere.
• In the mid-latitudes, the atmosphere takes over as the dominant transporter.
• The Gulf Stream and North Atlantic Drift keep northern Europe roughly 5–10°C warmer than other regions at the same latitude. The Kuroshio Current similarly moderates the climate of Japan and the western North Pacific.
• The thermohaline circulation connects all ocean basins in a single global loop. If this circulation were to weaken (as some climate models project under continued warming), it could significantly alter regional climates, particularly in the North Atlantic.

Interactions and Climate Impacts

Atmospheric and oceanic circulation don't operate independently. They're coupled through exchanges of heat, moisture, and momentum at the sea surface.

• El Niño-Southern Oscillation (ENSO) is a prime example: changes in tropical Pacific sea surface temperatures alter atmospheric convection patterns, which in turn affect wind-driven ocean currents, creating a feedback loop that influences weather worldwide.
• Together, atmospheric and oceanic heat transport moderate the temperature contrast between equator and poles. Without this redistribution, the equator-to-pole temperature difference would be roughly twice what we actually observe.
• Disruptions to either system can have cascading effects. Changes in topography, ice cover, land-sea distribution, or greenhouse gas concentrations can all alter circulation efficiency, shifting precipitation belts, storm tracks, and regional temperatures in ways that ripple across the globe.
