Elliptic curve is a key operation in elliptic curve arithmetic. It involves taking a point on the curve and computing its double, which is crucial for many cryptographic algorithms and mathematical applications.
Understanding point doubling is essential for grasping the group law of elliptic curves. It forms the basis for generating cyclic subgroups and plays a vital role in elliptic curve cryptography, factorization methods, and primality proving.
Definition of point doubling
Point doubling is a fundamental operation in elliptic curve arithmetic that takes a point P on an elliptic curve and computes 2P, which is the result of adding P to itself
This operation is crucial for many elliptic curve based algorithms, including key generation, encryption, and digital signature schemes
Algebraic definition
Top images from around the web for Algebraic definition
Category:Elliptic curves – Wikimedia Commons View original
Is this image relevant?
The Math Behind Elliptic Curves in Weierstrass Form - Sefik Ilkin Serengil View original
Is this image relevant?

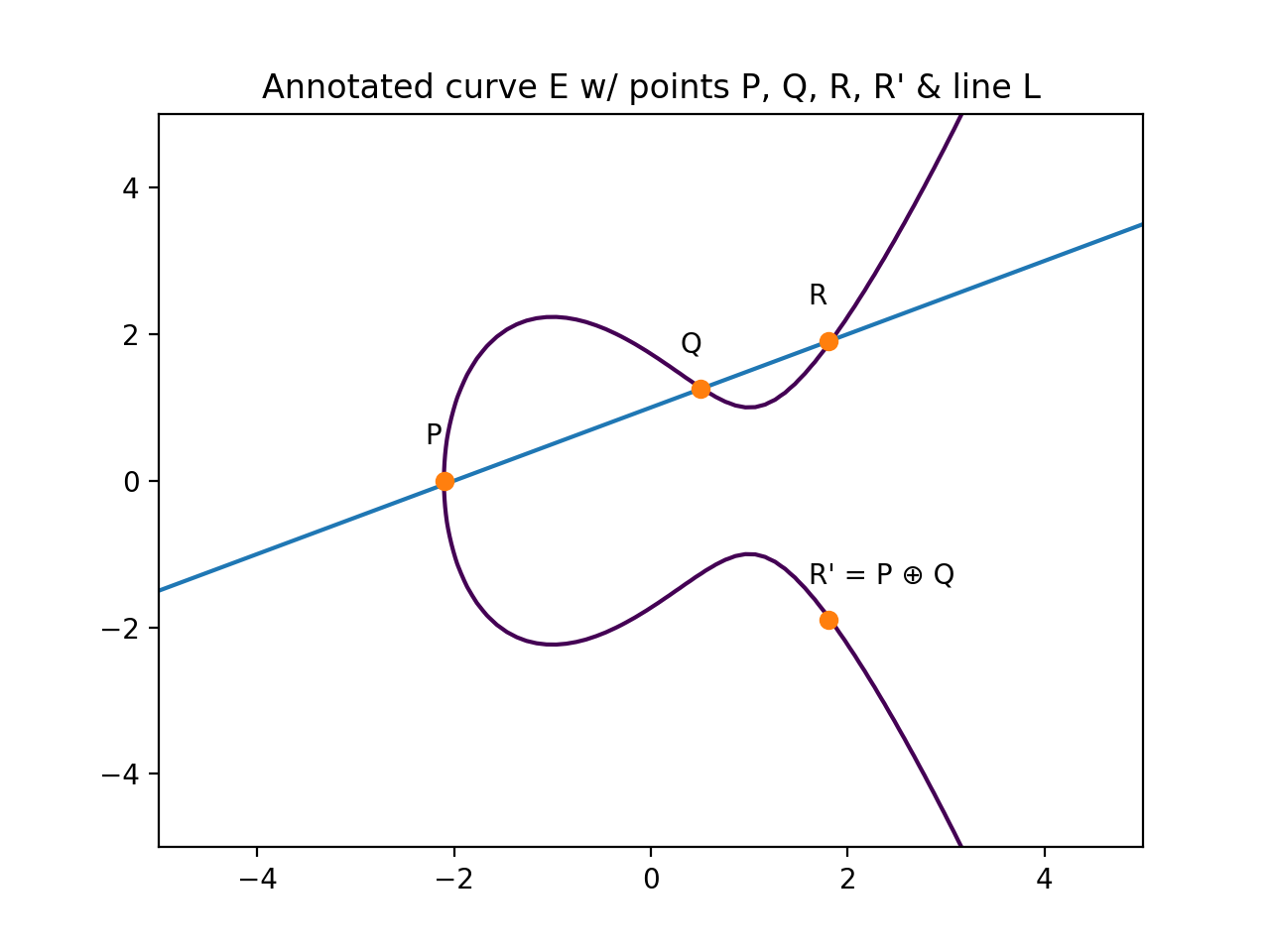

Annotated curve E with points P, Q, R, R' and line L labeled. View original
Is this image relevant?
Category:Elliptic curves – Wikimedia Commons View original
Is this image relevant?
The Math Behind Elliptic Curves in Weierstrass Form - Sefik Ilkin Serengil View original
Is this image relevant?
1 of 3
Top images from around the web for Algebraic definition
Category:Elliptic curves – Wikimedia Commons View original
Is this image relevant?
The Math Behind Elliptic Curves in Weierstrass Form - Sefik Ilkin Serengil View original
Is this image relevant?
Annotated curve E with points P, Q, R, R' and line L labeled. View original
Is this image relevant?
Category:Elliptic curves – Wikimedia Commons View original
Is this image relevant?
The Math Behind Elliptic Curves in Weierstrass Form - Sefik Ilkin Serengil View original
Is this image relevant?
1 of 3
Algebraically, point doubling is defined as follows: given a point P=(x1,y1) on an elliptic curve E, the double of P, denoted as 2P=(x2,y2), is the point obtained by drawing the tangent line to E at P and finding the other point of intersection of this line with E
The resulting point is then reflected across the x-axis to obtain 2P
The algebraic formula for point doubling depends on the specific form of the (short Weierstrass, Montgomery, twisted Edwards)
Geometric interpretation
Geometrically, point doubling can be visualized as follows: consider an elliptic curve E and a point P on E
To find 2P, draw the tangent line to E at P, which intersects E at another point, say Q
Reflect Q across the x-axis to obtain 2P
This geometric interpretation provides an intuitive understanding of the point doubling operation and its relationship to the shape of the elliptic curve
Point doubling formula
The point doubling formula is a set of equations used to compute the coordinates of 2P given the coordinates of P
The specific formula depends on the form of the elliptic curve equation being used (short Weierstrass, Montgomery, twisted Edwards)
These formulas are derived using the algebraic definition of point doubling and the properties of the elliptic curve
Derivation of formula
The derivation of the point doubling formula involves finding the equation of the tangent line at P, substituting it into the elliptic curve equation, and solving for the coordinates of the other point of intersection
This process involves algebraic manipulation and the use of the elliptic curve's group law properties
The resulting equations are then simplified to obtain the final point doubling formula
Formula for short Weierstrass form
For an elliptic curve in , y2=x3+ax+b, the point doubling formula is given by:
x2=λ2−2x1
y2=λ(x1−x2)−y1
where λ=2y13x12+a
Formula for Montgomery form
For an elliptic curve in , By2=x3+Ax2+x, the point doubling formula is given by:
x2=4x1(x12+Ax1+1)(x12−1)2
y2=B(2x1+x2+A)(x1−x2)−2y1
Formula for twisted Edwards form
For an elliptic curve in twisted Edwards form, ax2+y2=1+dx2y2, the point doubling formula is given by:
x2=ax2+y22xy
y2=2−ax2−y2y2−ax2
Point doubling in group law
Point doubling plays a crucial role in the group law of elliptic curves, which defines the rules for point addition and multiplication
The group law states that for any two points P and Q on an elliptic curve, there exists a unique point R such that P+Q=R
Point doubling is a special case of point addition where P=Q
Role in generating cyclic subgroup
Point doubling is essential for generating cyclic subgroups of elliptic curve groups
Given a point P on an elliptic curve, the cyclic subgroup generated by P is the set of all points that can be obtained by repeatedly applying the point doubling operation to P
The cyclic subgroup generated by P is denoted as ⟨P⟩={P,2P,4P,8P,…}
Relationship to point addition
Point doubling is closely related to point addition, as both operations are part of the elliptic curve group law
Point addition is the operation of adding two distinct points on an elliptic curve, while point doubling is the operation of adding a point to itself
The formulas for point addition and point doubling share some similarities, but they differ in the specific equations used and the handling of special cases (point at infinity, singularities)
Efficient computation of point doubling
Efficient computation of point doubling is crucial for the performance of elliptic curve based algorithms, as point doubling is a frequently used operation
Several techniques can be employed to optimize the computation of point doubling, including the use of different coordinate systems and the application of explicit formulas
Affine coordinates vs projective coordinates
Elliptic curve points can be represented using different coordinate systems, such as affine coordinates and projective coordinates
Affine coordinates represent points using two values (x,y), while projective coordinates use three values (X,Y,Z) to represent points
Projective coordinates can help avoid the need for expensive field inversions during point doubling, which can improve performance
Explicit formulas for point doubling
Explicit formulas for point doubling are optimized equations that minimize the number of field operations (additions, multiplications, inversions) required to compute 2P
These formulas are derived by applying algebraic manipulations and substitutions to the standard point doubling formulas
Explicit formulas can be tailored to specific elliptic curve forms (short Weierstrass, Montgomery, twisted Edwards) and coordinate systems (affine, projective)
Cost analysis of point doubling
Cost analysis involves evaluating the computational cost of point doubling in terms of the number and type of field operations required
The cost of point doubling depends on the elliptic curve form, coordinate system, and the specific explicit formula used
By analyzing the cost of different point doubling methods, one can choose the most efficient approach for a given elliptic curve based application
Applications of point doubling
Point doubling is a fundamental operation in elliptic curve arithmetic and has several important applications in cryptography and computational number theory
These applications rely on the security and efficiency of elliptic curve based algorithms, which in turn depend on the performance of point doubling
Elliptic curve cryptography
Elliptic curve cryptography (ECC) is a public-key cryptography approach that uses the algebraic structure of elliptic curves over finite fields
Point doubling is a crucial operation in ECC, as it is used in key generation, encryption, decryption, and digital signature algorithms
The security of ECC relies on the difficulty of solving the elliptic curve discrete logarithm problem (ECDLP), which involves finding the scalar multiple of a given point
Elliptic curve factorization method
The elliptic curve factorization method (ECM) is an integer factorization algorithm that uses elliptic curves to find small factors of large composite numbers
ECM relies on the fact that the order of a random elliptic curve modulo a composite number is likely to have small prime factors
Point doubling is used in ECM to compute scalar multiples of points on elliptic curves, which is a key step in the factorization process
Elliptic curve primality proving
Elliptic curve primality proving (ECPP) is a method for proving the primality of large integers using elliptic curves
ECPP is based on the idea that if a certain condition holds for an elliptic curve modulo a given integer, then that integer must be prime
Point doubling is used in ECPP to compute the order of points on elliptic curves, which is necessary for verifying the primality condition
Challenges in point doubling
While point doubling is a well-defined operation in elliptic curve arithmetic, there are some challenges that need to be addressed when implementing point doubling in practice
These challenges include handling special cases, such as the point at infinity and singularities, and ensuring the security of point doubling against side-channel attacks
Handling point at infinity
The point at infinity, denoted as O, is a special point on an elliptic curve that serves as the identity element for point addition
When doubling the point at infinity, the result is the point at infinity itself: 2O=O
Implementations of point doubling must handle this special case correctly to ensure the consistency and correctness of elliptic curve arithmetic
Dealing with singularities
Singularities are points on an elliptic curve where the tangent line is not well-defined, which can occur when the denominator of the point doubling formula becomes zero
In the short , singularities can happen when the y-coordinate of the point being doubled is zero
To handle singularities, implementations of point doubling must check for these special cases and apply appropriate logic to compute the correct result
Resistance to side-channel attacks
Side-channel attacks are a type of cryptanalytic attack that exploits information leaked by the physical implementation of a cryptographic algorithm, such as timing, power consumption, or electromagnetic radiation
Point doubling, being a fundamental operation in elliptic curve cryptography, can be a target for side-channel attacks
To resist these attacks, implementations of point doubling must employ countermeasures, such as constant-time execution, randomization, and masking, to minimize the leakage of sensitive information
Key Terms to Review (16)
Additive Identity: The additive identity is a unique element in a mathematical structure that, when added to any other element in that structure, leaves the other element unchanged. In the context of elliptic curves, the additive identity is crucial for defining operations on points, especially during point doubling and addition. Understanding this concept helps clarify how points interact under addition and how they relate to the curve's geometry.
Chord and Tangent: In the context of elliptic curves, a chord is a straight line segment that connects two points on the curve, while a tangent is a line that touches the curve at exactly one point and represents the slope of the curve at that point. Understanding these concepts is crucial for performing operations such as point doubling, as they help visualize how points interact on the elliptic curve and are fundamental to deriving equations for adding points together.
Double-and-add algorithm: The double-and-add algorithm is a method for performing scalar multiplication on elliptic curves efficiently. This technique involves doubling a point on the curve and adding it to itself multiple times, which optimizes the calculations needed to find a multiple of a given point. This approach is particularly useful in cryptographic applications where speed and efficiency are crucial, connecting well with concepts of point doubling and the group law inherent in elliptic curves.
ECDSA: The Elliptic Curve Digital Signature Algorithm (ECDSA) is a cryptographic algorithm that utilizes the mathematics of elliptic curves to create secure digital signatures. It combines the properties of elliptic curves with a hashing function to ensure data integrity and authenticity in communications, making it a critical component in various security protocols.
Elliptic Curve Equation: An elliptic curve equation is a mathematical equation of the form $$y^2 = x^3 + ax + b$$ where the coefficients a and b are constants that satisfy a specific condition to ensure that the curve has no singular points. These equations define elliptic curves, which are essential in number theory and cryptography, providing a framework for operations like point doubling and exploring their properties over various fields, such as rational numbers.
Key Exchange Protocols: Key exchange protocols are cryptographic methods used to securely share cryptographic keys between parties, ensuring that the communication remains private and authenticated. These protocols enable two or more users to establish a shared secret key over an insecure channel, which can then be used for encrypting and decrypting messages. They are fundamental in establishing secure communications, especially in environments where data confidentiality and integrity are crucial.
Montgomery Form: Montgomery form refers to a specific representation of elliptic curves that facilitates efficient computations, particularly in cryptographic applications. This form is crucial for operations like point doubling and addition, as it simplifies the arithmetic needed, making it a favorite in schemes like the Elliptic Curve Digital Signature Algorithm (ECDSA) and other cryptographic protocols.
Montgomery Ladder: The Montgomery ladder is an efficient algorithm used for performing scalar multiplication on elliptic curves. This method simplifies the process by using a consistent sequence of point additions and doublings, enhancing security by being resistant to timing attacks. It connects various elliptic curve operations, particularly point addition and doubling, providing a structured way to compute multiple instances of these operations while optimizing performance.
Order of a Point: The order of a point on an elliptic curve refers to the smallest positive integer n such that n times the point, when added to itself repeatedly using elliptic curve addition, yields the identity element (often denoted as O). This concept is crucial in understanding how points behave under elliptic curve operations, particularly in cryptographic applications and algorithms. The order directly influences the security and efficiency of methods involving elliptic curves, like encryption schemes and point doubling operations.
Point Doubling: Point doubling is a key operation in elliptic curve arithmetic, where a point on the curve is added to itself to produce a new point. This operation is essential for performing scalar multiplication, which underlies many applications in cryptography and coding theory. Understanding point doubling helps in grasping the group structure of elliptic curves and their arithmetic properties over various fields.
Reflection across the x-axis: Reflection across the x-axis is a transformation that involves flipping a point or shape over the x-axis, resulting in a new position that maintains the same horizontal coordinate while reversing the sign of the vertical coordinate. This concept is crucial in understanding geometric transformations in the context of elliptic curves, particularly when dealing with point doubling, where the symmetry of the curve plays an important role.
Short Weierstrass form: The short Weierstrass form is a specific equation used to describe elliptic curves, given by the general form $$y^2 = x^3 + ax + b$$, where 'a' and 'b' are constants. This form simplifies the study of elliptic curves, particularly when performing operations like point addition and point doubling, and helps in understanding the structure of the group of rational points on elliptic curves, which relates to the Mordell-Weil theorem.
Slope: In the context of elliptic curves, the slope refers to the steepness or angle of the tangent line at a given point on the curve. This concept is crucial for determining how points on elliptic curves interact, especially when it comes to point doubling, where the slope helps calculate the new point that results from this operation. Understanding slope allows for a clearer grasp of the geometry of elliptic curves and the underlying algebraic structures involved in operations like addition and doubling.
Slope Formula: The slope formula is a mathematical expression used to calculate the steepness or inclination of a line, defined as the ratio of the change in the vertical direction (rise) to the change in the horizontal direction (run). In the context of elliptic curves, particularly during point doubling, the slope helps determine the tangent line at a given point on the curve, which is essential for finding the new point resulting from this operation.
Tangent Line Equation: The tangent line equation represents the linear approximation of a curve at a specific point, allowing for the calculation of slopes and points of intersection. In the context of elliptic curves, this equation is critical for understanding point doubling, as it provides a means to find new points on the curve by determining where the tangent intersects the curve again. The slope of this tangent line can lead to the calculation of new points, which is fundamental for operations on elliptic curves.
Weierstrass form: Weierstrass form is a specific way of representing elliptic curves using a cubic equation in two variables, typically expressed as $$y^2 = x^3 + ax + b$$, where $$a$$ and $$b$$ are constants. This representation is fundamental because it simplifies the study of elliptic curves, enabling clear definitions of point addition and doubling, and serving as a basis for various applications in number theory and cryptography.
