AP Pre-Calculus Unit 3 ReviewTrigonometric and Polar Functions

AP Precalculus Unit 3 is about functions that repeat. Trigonometric functions like sine, cosine, and tangent model periodic phenomena (tides, Ferris wheels, blood pressure) because their outputs cycle with every full trip around a circle, and polar functions use that same circle thinking to describe location with a radius and an angle instead of x and y. The single biggest idea is periodicity, meaning the entire behavior of a function is captured in one cycle that repeats forever. At 30-35% of the exam, this is the heaviest unit in the course.

What this unit covers

The unit circle and the three core functions

• Periodic relationships repeat their output pattern over equal-length input intervals, and the period is the smallest positive k where f(x + k) = f(x). Once you know one cycle, you know the whole graph.
• An angle in standard position has its vertex at the origin with one ray on the positive x-axis. Counterclockwise rotation is positive, clockwise is negative, and angles that differ by full revolutions land on the same terminal ray (coterminal angles).
• Radian measure is the ratio of arc length to radius, which is why the unit circle (radius 1) makes everything cleaner.

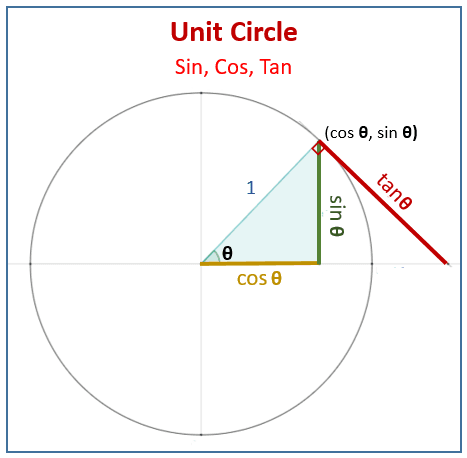

• On a circle of radius r, the terminal ray hits the point (r cos θ, r sin θ). On the unit circle, cosine is literally the x-coordinate and sine is the y-coordinate. That one fact generates the whole unit.
• Special triangles (45-45-90 and 30-60-90) give exact values for multiples of π/4 and π/6. Quadrant signs matter, so always check where the terminal ray lands.
• Tangent is the slope of the terminal ray, which means tan θ = sin θ / cos θ.

Sinusoidal graphs, transformations, and modeling

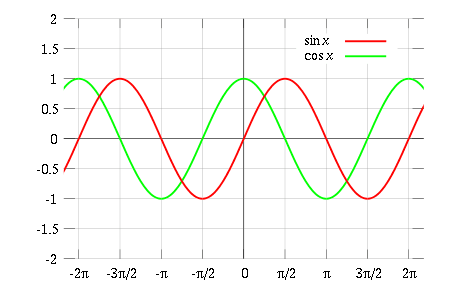

• Sine and cosine both oscillate between -1 and 1 with period 2π. They are the same wave shifted, since cos θ = sin(θ + π/2). Any transformed version of either is called a sinusoidal function.
• For f(θ) = a sin(b(θ + c)) + d, |a| is the amplitude (half the distance between max and min), 2π/|b| is the period, c controls the phase shift, and d is the vertical shift (the midline). Frequency is the reciprocal of the period.
• Modeling a real periodic context means reading these values off the situation. The distance between consecutive maxima gives the period, the max and min give the amplitude and midline, and a known point pins down the phase shift.
• Sinusoidal graphs also have features you tracked in earlier units, like intervals of increase and decrease, concavity that flips at the midline, and points of inflection.

Tangent, the reciprocal functions, and inverses

• Tangent has period π (slope values repeat every half revolution) and vertical asymptotes wherever cos θ = 0, at θ = π/2 + kπ. Between asymptotes, tangent always increases and switches from concave down to concave up at its inflection point.
• Secant, cosecant, and cotangent are the reciprocals of cosine, sine, and tangent. Secant and cosecant have vertical asymptotes where their partner function is zero, and their range is (-∞, -1] ∪ [1, ∞), never the gap in between.
• Trig functions fail the horizontal line test, so inverses (arcsin, arccos, arctan) only exist on restricted domains. The inverse swaps inputs and outputs, so arcsin takes a ratio and returns an angle.

Identities and trigonometric equations

• The Pythagorean identity sin²θ + cos²θ = 1 comes straight from the unit circle (it is the Pythagorean theorem applied to the point (cos θ, sin θ)). Dividing through gives variants like tan²θ + 1 = sec²θ.
• The sum identities for sine and cosine generate difference identities and double-angle identities, and they let you rewrite ugly expressions into solvable forms.
• Because trig functions are periodic, equations like sin θ = 1/2 have infinitely many solutions. Inverse functions hand you one solution; you use symmetry and the period to write the rest. In a real-world context, the domain restriction usually trims that infinite list down to a few answers that make sense.

Polar coordinates and polar graphs

• Polar coordinates locate a point as (r, θ), a radius and an angle, instead of (x, y). The same point has many polar names, since you can add 2π to θ or flip the sign of r and adjust the angle.
• Conversions tie the two systems together. Polar to rectangular uses x = r cos θ and y = r sin θ. Rectangular to polar uses r² = x² + y² and tan θ = y/x, with a quadrant check on θ.

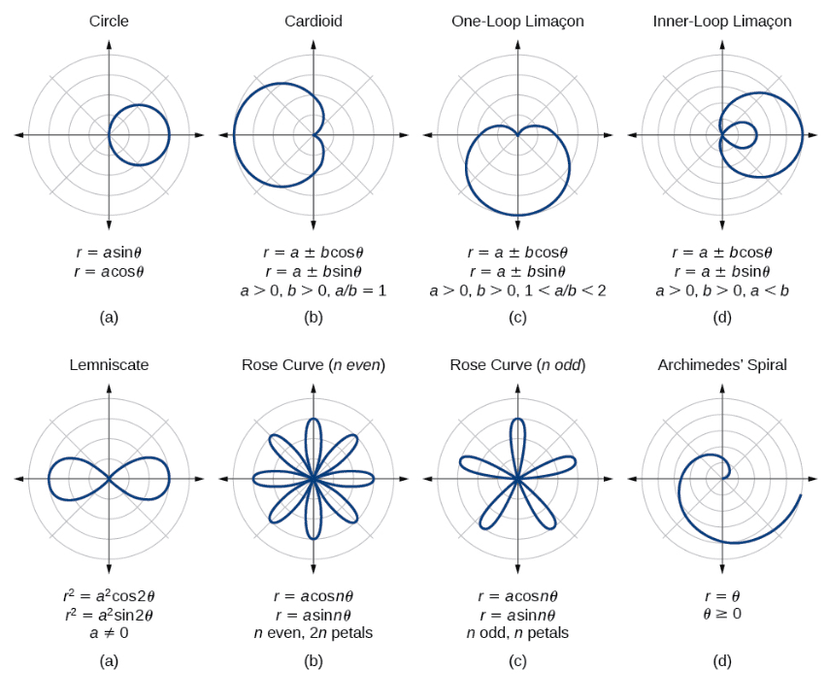

• A polar graph r = f(θ) plots a radius for each angle. As θ sweeps around, the radius grows and shrinks, tracing circles, roses, limaçons, and spirals.
• Rates of change work differently here. If r is positive and increasing (or negative and decreasing), the point is moving away from the origin. If r is positive and decreasing (or negative and increasing), it is moving toward the origin. Relative extrema of f mark points of maximum or minimum distance from the pole.

Unit 3, Trigonometric and Polar Functions at a glance

Why Unit 3, Trigonometric and Polar Functions matters in AP Pre-Calc

Units 1 and 2 gave you function families for growth and decay, but nothing that could repeat. Unit 3 fills that gap, and the course treats trig functions the same way it treated polynomials and exponentials. You analyze rates of change, concavity, transformations, inverses, and modeling, just with a new family.

• This is the largest slice of the exam at 30-35%, so fluency here moves your score more than any other unit.
• The transformation framework you built earlier (stretches, shifts, reflections) gets its most demanding workout in sinusoidal functions, where every parameter has a physical meaning.
• Polar coordinates are your first taste of describing the plane a different way, which is the central move of the rest of the course.
• The modeling cycle (identify the pattern, extract parameters, write a function, interpret and predict) is a course-wide skill, and periodic contexts are where it gets tested hardest.

How this unit connects across the course

• The rate-of-change language from polynomial and rational functions (Unit 1), like increasing, decreasing, concavity, and inflection points, applies directly to sinusoidal and polar graphs. A sine curve changes concavity at its midline the same way a cubic does at its inflection point.
• Inverse trig functions follow the same playbook as logarithms (Unit 2). Both invert a function that fails the horizontal line test by restricting the domain, and both exist mainly to solve equations.
• Polar coordinates set up parametric functions, vectors, and matrices (Unit 4), where you again describe position and motion in ways that go beyond y = f(x). Converting (r, θ) to (x, y) is a preview of working with components.
• Sinusoidal modeling extends the data-modeling thread from exponential models (Unit 2). Exponentials fit growth patterns; sinusoids fit repeating ones, and you choose the family based on the behavior of the data.

Key formulas and procedures

• $\sin^2\theta + \cos^2\theta = 1$, the Pythagorean identity, used to swap between sine and cosine in expressions and equations. Variants include $\tan^2\theta + 1 = \sec^2\theta$.
• $\sin(\alpha + \beta) = \sin\alpha\cos\beta + \cos\alpha\sin\beta$ and $\cos(\alpha + \beta) = \cos\alpha\cos\beta - \sin\alpha\sin\beta$, the sum identities, which also generate the difference and double-angle identities.
• $\tan\theta = \dfrac{\sin\theta}{\cos\theta}$, with asymptotes wherever $\cos\theta = 0$.
• For $f(\theta) = a\sin(b(\theta + c)) + d$, amplitude is $|a|$, period is $2\pi/|b|$, phase shift is $-c$, midline is $y = d$. The same parameters work for cosine.
• Amplitude from data equals (max − min)/2 and the midline value equals (max + min)/2. Use these first when building a model.
• Coordinates on a circle of radius r are $(r\cos\theta, r\sin\theta)$. This is also the polar-to-rectangular conversion, $x = r\cos\theta$, $y = r\sin\theta$.
• Rectangular to polar conversion uses $r = \sqrt{x^2 + y^2}$ and $\tan\theta = y/x$, then a quadrant check to pick the correct angle.
• Solving trig equations: isolate the trig expression, apply the inverse function for one solution, use unit circle symmetry for the second solution in a cycle, then add multiples of the period for the rest. Trim to the stated domain.
• Polar distance reasoning: r positive and increasing means the point moves away from the origin; r positive and decreasing means it moves toward the origin. Flip both statements when r is negative.

Unit 3, Trigonometric and Polar Functions on the AP exam

This unit carries 30-35% of the exam weight, the most of any unit, so expect trig and polar content in both the multiple-choice and free-response sections, with some questions allowing a calculator and others not.

• Periodic modeling is a signature free-response task. You get a real context, like a wheel rotating or a quantity that cycles daily, and you build a sinusoidal model, identify its parameters, and interpret values and rates of change in context. Write your interpretations with units and in full sentences.
• Multiple-choice questions test exact unit circle values, reading amplitude, period, phase shift, and midline from equations or graphs, solving trig equations over a given interval, and identifying features of tangent, secant, cosecant, and cotangent graphs (especially asymptote locations and ranges).
• Identity work shows up as "which expression is equivalent" questions and inside equation solving, where rewriting with the Pythagorean or sum identities turns an unsolvable equation into a familiar one.
• Polar questions ask you to convert between coordinate systems, match polar equations to graphs, and reason about whether a point on a polar curve is moving toward or away from the origin on an interval.
• Watch domain restrictions everywhere. Inverse trig outputs live in restricted ranges, and contextual problems limit which of the infinitely many solutions actually count.

Essential questions

• Why are circular functions the right tool for modeling anything that repeats, from heartbeats to traffic patterns?
• How does every feature of a sinusoidal graph (amplitude, period, phase shift, midline) correspond to something measurable in a real situation?
• If a trigonometric equation has infinitely many solutions, how do you find all of them, and how does context decide which ones matter?
• What do you gain by describing location with a radius and an angle instead of x and y?

Key terms to know

• Period: The smallest positive value k such that f(x + k) = f(x), meaning one full cycle of the function.
• Radian: The measure of an angle as the ratio of arc length to radius, the default angle unit in this course.
• Standard position: An angle with its vertex at the origin and initial ray along the positive x-axis.
• Sinusoidal function: Any transformation of sin θ, including cosine, since cos θ = sin(θ + π/2).
• Amplitude: Half the difference between a sinusoidal function's maximum and minimum values.
• Midline: The horizontal line halfway between a sinusoidal function's max and min, set by the vertical shift d.
• Phase shift: The horizontal translation of a sinusoidal or tangent graph, given by -c in the form a sin(b(θ + c)) + d.
• Frequency: The reciprocal of the period, the number of cycles completed per unit of input.
• Coterminal angles: Angles in standard position that share a terminal ray and differ by whole revolutions (multiples of 2π).
• Inverse trigonometric function: arcsin, arccos, or arctan, which takes a ratio as input and returns an angle from a restricted range.
• Pythagorean identity: The relationship sin²θ + cos²θ = 1, derived from the unit circle.
• Polar coordinates: An ordered pair (r, θ) locating a point by its distance from the origin and an angle in standard position.
• Polar function: A function r = f(θ) whose inputs are angles and whose outputs are radii.
• Periodic asymptotic behavior: Vertical asymptotes that repeat at regular intervals, like tangent's asymptotes at π/2 + kπ.

Common mix-ups

• Amplitude is |a|, never just a. A negative a reflects the graph over the midline but the amplitude is still positive. Similarly, the period is 2π/|b|, so a larger b means a shorter period, not a longer one.
• Tangent's period is π, not 2π. Slope values repeat every half revolution because opposite points on the circle give the same slope.
• arcsin(x) does not mean 1/sin(x). The inverse function returns an angle; the reciprocal of sine is cosecant.
• In polar coordinates, a negative r is allowed. The point (-2, π/3) sits 2 units from the origin in the direction opposite the π/3 ray, which is the same as (2, 4π/3). Also, when converting to polar, tan⁻¹(y/x) alone can land you in the wrong quadrant, so always check the signs of x and y.
