9.3 Interpreting geologic maps and cross-sections

Map Interpretation and Analysis

Geologic maps compress three-dimensional geology onto a flat surface. They use colors, patterns, and symbols to show what rock types exist at the surface, how old they are, and how they've been deformed. Reading these maps well means you can visualize what's happening underground and reconstruct the sequence of events that built a landscape.

This section covers how to read geologic maps, build cross-sections from them, extract geologic history, and apply structural geology concepts to map analysis.

Geologic Map Interpretation

A geologic map is only useful if you can decode its components. Before diving into the geology, orient yourself with the map's basic tools.

Map basics:

• Scale tells you how distances on the map relate to real-world distances (e.g., 1:24,000 means 1 cm on the map equals 24,000 cm on the ground)
• Legend (or explanation) defines every color, pattern, and symbol on the map. Always read it first.
• North arrow gives directional reference so you can orient the map to the landscape

Geologic symbols to recognize:

• Different colors and patterns represent different rock units, usually grouped by type (sedimentary, igneous, metamorphic) and age
• Contacts are lines showing boundaries between rock units. Solid lines mean the contact is well-located; dashed lines mean it's approximate.
• Fault lines appear as bold or specially marked lines, often with symbols indicating fault type (normal, reverse, strike-slip)

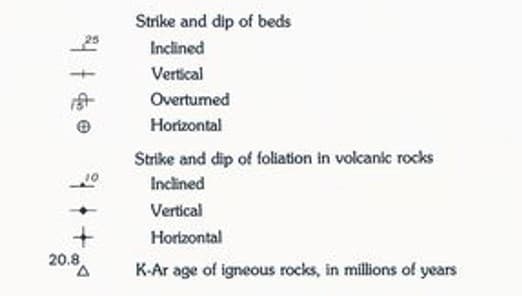

• Strike and dip symbols are T-shaped marks showing the orientation of tilted rock layers. The long line shows strike (the direction the bed trends along the surface), and the short tick points in the dip direction (the direction the bed slopes downward). The number next to it is the dip angle in degrees.

Reading topographic contours on geologic maps:

Many geologic maps overlay geology on topographic base maps. Contour lines connect points of equal elevation. Where contours are closely spaced, the slope is steep. Where they're widely spaced, the terrain is gentle. V-shaped contour patterns pointing upstream indicate valleys; concentric closed contours indicate hilltops.

Colors and patterns:

Rock unit ages are often shown using a color gradient that follows a standard scheme (e.g., Quaternary units in yellow, Cretaceous in green, Precambrian in pink). Lithology can be indicated by fill patterns within the color, such as brick patterns for limestone or dot patterns for sandstone.

Structural features on the map:

• Anticlines appear as older rocks in the center with younger rocks on either side, often marked with an arrow-tipped fold axis line pointing away from the hinge
• Synclines show younger rocks in the center flanked by older rocks, with arrows pointing inward
• Faults of different types reflect different stress regimes: normal faults form under extension, reverse (thrust) faults under compression, and strike-slip faults under shear

Cross-Section Construction from Maps

A geologic cross-section is a side-view slice through the Earth along a chosen line. It translates the map's 2D surface information into a picture of subsurface geology. Here's how to build one:

1. Choose your line of section. Pick a line (A–A') that cuts across the most important geologic features you want to illustrate, such as folds, faults, or contacts between key units.
2. Project the topography. Lay the edge of a strip of paper along your section line and mark where each contour line crosses it, noting the elevation. Transfer these points to your cross-section frame and connect them to draw the surface profile.
3. Transfer geologic contacts. Mark where each rock unit boundary (contact) crosses your section line on the same strip of paper, then project those points down onto the topographic profile.
4. Apply strike and dip data. Use nearby strike and dip measurements to draw the rock layers at their correct angles beneath the surface. Beds dipping toward you in the cross-section appear to slope in that direction underground.
5. Use the Rule of V's. Where a dipping bed crosses a valley, its contact line forms a V shape on the map. The V points in the dip direction for beds dipping more steeply than the valley floor, and points upstream for beds dipping less steeply. This helps you confirm subsurface geometry.
6. Maintain unit thicknesses. Measure the true thickness of each unit and keep it consistent as you draw beds into the subsurface. Don't let layers magically thicken or thin unless the geology calls for it.
7. Project faults at depth. Extend fault lines downward based on their surface expression and known dip. Normal faults typically dip 60°; thrust faults dip at shallower angles.
8. Consider vertical exaggeration. If the topographic relief is subtle compared to the horizontal distance, you may exaggerate the vertical scale (e.g., 2x or 5x) to make features visible. Always note this on the cross-section, because it distorts dip angles.
9. Label everything. Mark each rock unit with its map symbol, label faults and folds, and include a scale bar.

Geologic History from Maps

One of the most powerful things you can do with a geologic map is reconstruct the sequence of events that shaped an area. You do this by applying a few key principles.

Superposition: In undisturbed sedimentary sequences, older layers sit below younger ones. On a map, if beds are horizontal, the lowest-elevation outcrops are the oldest.

Cross-cutting relationships: Any feature that cuts across another is younger than what it cuts. A fault slicing through three rock units is younger than all three. A dike intruding into surrounding rock formed after that rock.

Intrusive relationships: Where igneous rock intrudes into existing rock, the intrusion is younger. Look for contact metamorphism (baked zones) in the surrounding rock as evidence.

Unconformities represent gaps in the geologic record where erosion removed rock or deposition paused. There are three types:

• Angular unconformity: Tilted or folded layers below, horizontal layers above. This tells you the lower beds were deposited, then tilted/folded, then eroded flat, then buried by new sediment.
• Disconformity: Parallel beds above and below the surface, but with a time gap between them. These can be hard to spot on a map without fossil or age data.
• Nonconformity: Sedimentary layers deposited directly on top of eroded igneous or metamorphic rock. This means crystalline basement was exposed at the surface before burial.

Interpreting depositional environments: The rock types themselves tell you about past landscapes. Limestone suggests shallow marine conditions. Sandstone with cross-bedding might indicate a river system or desert dunes. Coal beds point to swampy environments.

Reconstructing tectonic events: Folding episodes indicate compression. Faulting records brittle failure under various stress conditions. By noting which units are affected by each structure, you can determine when deformation occurred (it happened after the youngest affected unit was deposited but before any unaffected overlying unit).

Putting it all together: Build a numbered chronological list from oldest to youngest event. A typical sequence might look like: (1) deposition of units A, B, C; (2) folding of A–C; (3) erosion (angular unconformity); (4) deposition of unit D; (5) intrusion of dike E cutting all units; (6) faulting displacing everything.

Structural Geology in Map Analysis

Structural geology concepts help you interpret the deformation recorded on a geologic map.

Stress and strain: Rocks deform when subjected to stress (force per unit area). The resulting change in shape or volume is strain. Rocks near the surface tend to deform in a brittle way (fracturing, faulting), while rocks at depth under high temperature and pressure deform in a ductile way (folding, flowing).

True dip vs. apparent dip: The true dip is the maximum angle a bed makes with horizontal, measured perpendicular to strike. If your cross-section line isn't perpendicular to strike, you'll see a shallower angle called the apparent dip. You need to calculate true dip from apparent dip to get accurate subsurface projections.

Calculating true bed thickness: If a bed is tilted, the distance you measure across it on the surface (or on a map) isn't the true thickness. Use:

$\text{True thickness} = \text{Apparent thickness} \times \sin(\text{dip angle})$

For example, if a dipping sandstone unit appears 50 m wide on the map and dips at 30°, its true thickness is $50 \times \sin(30°) = 50 \times 0.5 = 25 \text{ m}$.

Fault offset: You can measure displacement along a fault by finding the same rock unit or marker bed on both sides and measuring how far it has been shifted. This quantifies how much movement the fault has accommodated.

Recognizing structural patterns on maps:

• En echelon faults (short, parallel, offset fault segments) suggest an underlying strike-slip zone
• Horsts and grabens (alternating upthrown and downthrown blocks bounded by normal faults) indicate extensional tectonics, like a rift zone
• Fold-and-thrust belts (parallel folds with associated reverse faults) reveal compressional settings, common at convergent plate boundaries

Stereonets (stereographic projections): These circular diagrams let you plot and analyze the 3D orientation of planes and lines on a 2D surface. You can plot bedding planes, fault surfaces, and lineations, then use the stereonet to find fold axes, determine axial plane orientations, and identify patterns in structural data. Stereonets are especially useful when you have many orientation measurements and need to see the overall structural trend.

Applications to resource exploration: Structural geology directly guides the search for natural resources. Oil and gas accumulate in structural traps like anticlines (where an arched impermeable layer seals hydrocarbons below) and fault seals (where fault gouge blocks migration). Mineral deposits often concentrate along fracture zones where hydrating fluids circulated, or near igneous contacts where heat drove metamorphic reactions (contact metamorphism).
