Metamorphic rocks showcase unique textures and structures shaped by intense and heat deep within the Earth. These features, from foliated schists to contorted folds, tell a story of the rock's transformation and the forces that molded it.
Understanding metamorphic textures and structures is key to decoding the Earth's hidden processes. By examining foliation, , and other telltale signs, geologists can piece together the complex history of rock formation and deformation beneath our feet.
Metamorphic Textures
Foliated vs non-foliated textures
Top images from around the web for Foliated vs non-foliated textures
Rock Key, Selection, and Splitting - Trailism View original
Is this image relevant?
Overview of Metamorphic Rocks – Laboratory Manual for Earth Science View original
Is this image relevant?
7.2 Classification of Metamorphic Rocks | Physical Geology View original
Is this image relevant?
Rock Key, Selection, and Splitting - Trailism View original
Is this image relevant?
Overview of Metamorphic Rocks – Laboratory Manual for Earth Science View original
Is this image relevant?
1 of 3
Top images from around the web for Foliated vs non-foliated textures
Rock Key, Selection, and Splitting - Trailism View original
Is this image relevant?
Overview of Metamorphic Rocks – Laboratory Manual for Earth Science View original
Is this image relevant?
7.2 Classification of Metamorphic Rocks | Physical Geology View original
Is this image relevant?
Rock Key, Selection, and Splitting - Trailism View original
Is this image relevant?
Overview of Metamorphic Rocks – Laboratory Manual for Earth Science View original
Is this image relevant?
1 of 3

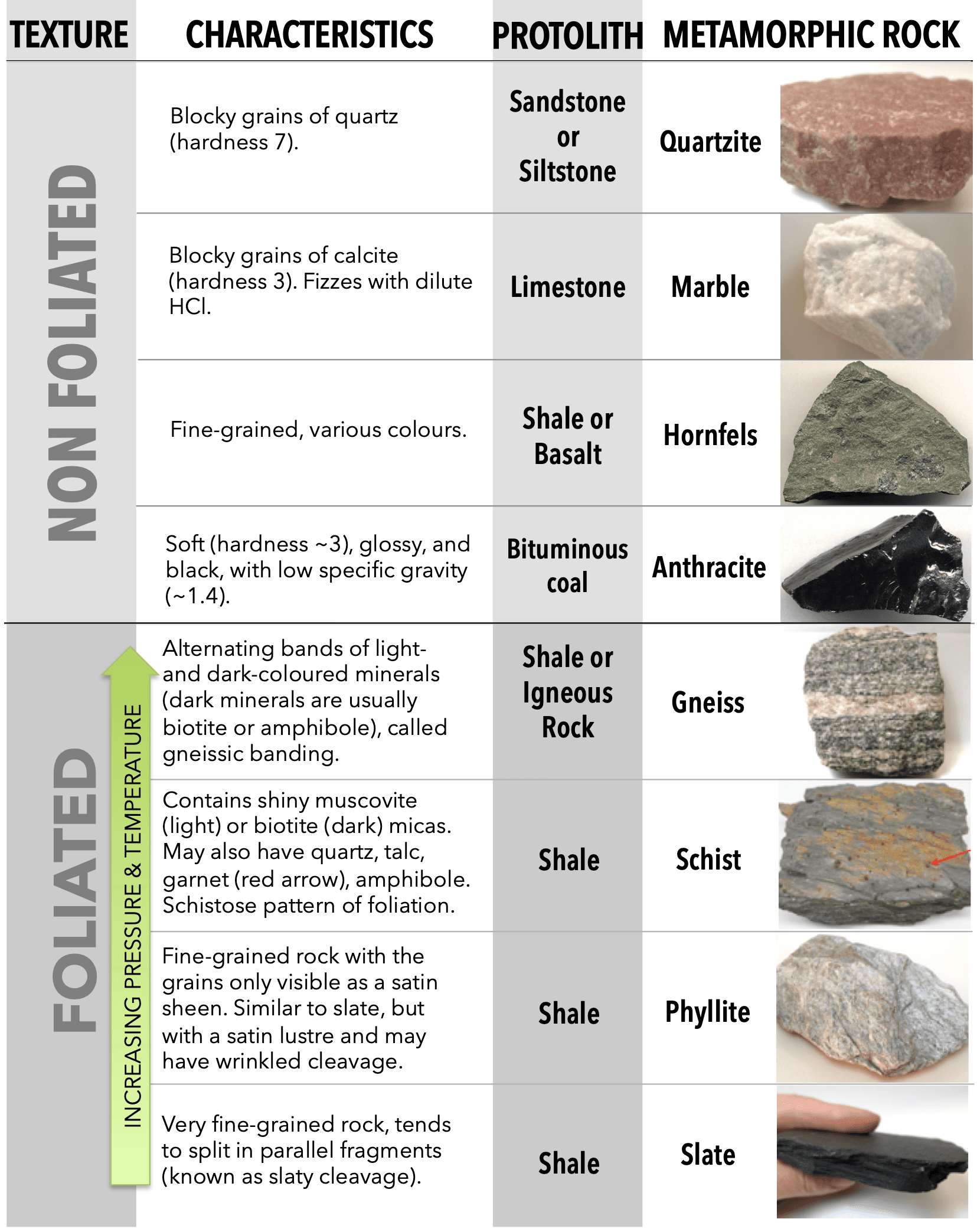

- Foliated textures defined by alignment of platy minerals create distinct layered appearance metamorphic rocks (schist, gneiss)
- Non-foliated textures lack preferred orientation of minerals resulting in more homogeneous appearance (marble, )
- Foliated textures form under directed pressure causing minerals to align perpendicular to maximum stress
- Non-foliated textures develop under uniform pressure or high temperatures allowing random mineral growth
Development of metamorphic features
- Foliations result from differential stress causing minerals to recrystallize perpendicular to maximum stress creating planar fabric ()
- Lineations form linear alignment of minerals or structural features indicating direction of stretching or mineral growth (stretched pebbles, aligned amphiboles)
- grow as large crystals during metamorphism often containing inclusions forming internal foliations (garnet, staurolite)
Metamorphic Structures
Common metamorphic structures
- creates sausage-shaped structures by stretching competent layers in layered rocks with contrasting competencies (stretched quartz veins in schist)
- form highly contorted crenulated folds in layers with high ductility contrast (folded quartz veins in marble)
- produced by intense ductile deformation in shear zones resulting in fine-grained strongly foliated rocks (fault zones)
Stress-strain in metamorphic formation
- Stress types include causing shortening leading to extension and resulting in angular distortion
- Strain responses vary from elastic temporary deformation to plastic permanent deformation without fracturing to by fracturing
- Factors influencing deformation include pressure strain rate and rock composition
- Stress-strain relationships manifest in various structures:
- Foliation develops perpendicular to maximum compressive stress
- Lineation forms parallel to direction of extension
- Boudinage occurs with extension parallel to layering
- Folding results from shortening perpendicular to axial planes
Key Terms to Review (26)
Boudinage: Boudinage is a geological structure characterized by the formation of elongated, sausage-like shapes in rock layers, typically occurring during ductile deformation. This phenomenon often arises when a more competent rock layer is pulled apart or stretched, leading to the formation of necks and swellings that resemble sausages. It plays a significant role in understanding the mechanics of metamorphic textures and structures, particularly in how rocks respond to stress and strain under varying conditions.
Brittle Deformation: Brittle deformation refers to the process where rocks break or fracture under stress rather than bending or flowing. This type of deformation is typically seen in cooler, more rigid rocks and occurs when the applied stress exceeds a material's strength. Understanding brittle deformation is essential for interpreting the structural features of the Earth's crust, including faults and fractures, and how these features manifest in geological maps and cross-sections.
Compressive Stress: Compressive stress is a type of mechanical stress that occurs when an object is subjected to forces pushing or compressing it together. This stress can lead to deformation, changing the shape and structure of rocks, particularly in metamorphic processes. Compressive stress is essential in understanding how rocks respond to tectonic forces, which can result in various metamorphic textures and structures.
Contact Metamorphism: Contact metamorphism is the process by which rocks are altered due to exposure to high temperatures and pressures resulting from nearby molten magma or lava. This type of metamorphism typically occurs in localized areas around an igneous intrusion, leading to changes in mineral composition and texture, which can significantly influence the rock cycle and the formation of various metamorphic textures and structures.
Elastic deformation: Elastic deformation refers to the temporary change in shape or size of a material when subjected to stress, where the material returns to its original form once the stress is removed. This behavior is crucial in understanding how rocks respond to forces, allowing them to maintain structural integrity while experiencing varying levels of stress and strain. Elastic deformation sets the stage for further rock behavior, including plastic deformation and fracturing, which are essential concepts in comprehending geological processes.
Foliated texture: Foliated texture refers to a type of metamorphic rock structure where minerals are aligned in parallel layers or bands, giving the rock a distinct striped or layered appearance. This texture develops under directed pressure during metamorphism, causing minerals such as mica, chlorite, and biotite to reorient and grow perpendicular to the stress direction. Foliated rocks are often indicative of specific metamorphic conditions, including high pressure and temperature environments.
Gneissic banding: Gneissic banding is a metamorphic texture characterized by the alternating layers or bands of light and dark minerals found in gneiss rock. This distinct arrangement results from high-grade metamorphism, where the original parent rock undergoes significant heat and pressure, leading to the segregation of mineral components based on their chemical properties. The presence of gneissic banding indicates not only the metamorphic processes but also provides insights into the geological history of the region.
Lineation: Lineation refers to the linear features found in metamorphic rocks, which are typically a result of the directional pressure and stress during the metamorphic process. These features can manifest as a series of parallel lines or folds within the rock, indicating the orientation of mineral grains and contributing to the overall texture and structure of the rock. Lineation is crucial for understanding the geological history and deformation of the rock, as it provides insights into the conditions under which the metamorphism occurred.
Metamorphic Grade: Metamorphic grade refers to the degree of metamorphism that a rock has undergone, which is determined by the temperature and pressure conditions during its formation. Higher grades indicate increased temperature and pressure, leading to more significant mineral changes and structural transformations in the rock. Understanding metamorphic grade helps in identifying the specific metamorphic processes and the textures that characterize different metamorphic rocks.
Micas: Micas are a group of sheet silicate minerals characterized by their layered structure and perfect basal cleavage, allowing them to be easily split into thin sheets. These minerals are important components in both igneous and metamorphic rocks and play a significant role in understanding Earth's structure and composition, as well as the textures and structures found in metamorphic environments.
Mylonites: Mylonites are a type of metamorphic rock formed through the intense shearing and deformation of rocks along fault zones. They are characterized by their fine-grained texture and foliation, which results from the dynamic conditions of high strain and pressure during tectonic activity. The presence of mylonites indicates significant geological processes, often associated with fault movement and plate tectonics.
Non-foliated texture: Non-foliated texture refers to a type of metamorphic rock texture that lacks the layered or banded appearance characteristic of foliated rocks. This texture typically forms in conditions where pressure is applied uniformly, leading to mineral grains that are interlocking rather than aligned. Non-foliated rocks often consist of a single dominant mineral or a mixture of minerals that do not exhibit preferred orientation.
Parent rock: Parent rock, also known as protolith, is the original rock from which a metamorphic rock forms. Understanding the characteristics of the parent rock is crucial because it influences the textures and structures of the resulting metamorphic rock, as well as its classification and facies. The minerals present in the parent rock and the conditions under which metamorphism occurs determine the transformation processes that lead to the formation of new metamorphic features.
Phyllitic texture: Phyllitic texture is a type of metamorphic texture characterized by a distinct, shiny appearance due to the alignment of fine-grained minerals like mica. This texture reflects moderate to high-grade metamorphism and is typically seen in rocks such as phyllite, which often features a wavy or undulating foliation. The alignment of the minerals results in a strong directional fabric, indicating the conditions under which the rock was formed and transformed.
Plastic Deformation: Plastic deformation is the permanent alteration of a material's shape or size when subjected to stress beyond its elastic limit, resulting in changes that do not revert upon the removal of the stress. This process plays a crucial role in the formation of various metamorphic textures and structures, as well as influencing rock behavior under tectonic forces. Understanding plastic deformation is essential for recognizing how rocks respond to environmental pressures and how these changes contribute to geological formations.
Porphyroblasts: Porphyroblasts are large crystals that form in a metamorphic rock, typically within a finer-grained matrix. They grow during metamorphism and are indicative of the conditions under which the rock underwent transformation, often providing insights into the metamorphic history of the rock. These distinctive minerals can be used to understand the texture and structural development of the rock, as they often display a contrasting size and shape compared to the surrounding minerals.
Pressure: Pressure is the force applied per unit area, and it plays a crucial role in the formation and transformation of rocks within the Earth's crust. This force is primarily due to the weight of overlying materials, which influences the metamorphic processes that alter rock textures, structures, and classifications. In addition to its effects on metamorphic rocks, pressure also impacts magma composition and properties during the processes that lead to the formation of igneous rocks.
Ptygmatic folds: Ptygmatic folds are irregular, often chaotic folds that occur in metamorphic rocks due to intense deformation, typically associated with high strain conditions. These folds result from the bending and wrinkling of rock layers, leading to complex and intricate shapes that can indicate the history of tectonic stress in a region. They are an important feature to understand in the study of metamorphic textures and structures as they provide insights into the forces acting on rocks during metamorphism.
Quartzite: Quartzite is a hard, metamorphic rock formed from the recrystallization of quartz sandstone under intense heat and pressure. This process not only transforms the original sandstone but also enhances the strength and durability of the rock, making it a popular choice for construction and decorative purposes.
Regional metamorphism: Regional metamorphism is a geological process that occurs over large areas, where rocks are subjected to high pressures and temperatures, typically due to tectonic forces and the convergence of tectonic plates. This process often results in significant changes in the mineral composition and texture of the rocks, influencing the rock cycle, metamorphic structures, and the classification of metamorphic rocks.
Schistosity: Schistosity is a type of foliation found in metamorphic rocks, characterized by the alignment of platy minerals, such as mica, which gives the rock a layered appearance. This texture results from directed pressure during metamorphism, leading to the reorientation of minerals and creating a distinct structure that can often be seen in schist. The presence of schistosity helps classify metamorphic rocks and provides insights into the conditions under which they formed.
Shear Stress: Shear stress is a type of stress that occurs when forces are applied parallel or tangential to a surface, causing deformation in the material. This stress is crucial in understanding how rocks and minerals behave under different conditions, particularly during processes like metamorphism and tectonic activity, where it influences the development of textures and the formation of structures like folds and faults.
Slaty cleavage: Slaty cleavage is a type of foliation found in certain metamorphic rocks, characterized by the ability of the rock to split into thin, flat layers. This texture arises due to the alignment of platy minerals, such as mica, which are subjected to directional pressure during metamorphism. Slaty cleavage is significant in understanding the conditions under which the rock formed and the intensity of the metamorphic processes it underwent.
Subduction Zones: Subduction zones are regions where one tectonic plate is being forced under another, leading to intense geological activity. This process plays a critical role in the formation of metamorphic rocks as it generates extreme temperatures and pressures, which alter existing rocks. Additionally, subduction zones are associated with diverse metamorphic textures and structures, as well as various classifications of metamorphic rock, significantly influencing their formation and characteristics.
Temperature: Temperature is a measure of the average kinetic energy of particles in a substance, which plays a crucial role in geological processes. It influences the physical and chemical changes that rocks undergo during metamorphism and impacts magma properties during formation and eruption, affecting mineral stability and reaction rates.
Tensile Stress: Tensile stress is the force per unit area exerted on an object that is being stretched or pulled apart. This stress is critical in understanding how materials respond to deformation under force, influencing their structural integrity and behavior during geological processes such as metamorphism and the formation of folds, faults, and joints.
