11.1 Groundwater movement and aquifers

Groundwater Recharge and Aquifer Characteristics

Groundwater recharge is the process of water moving from the surface into underground aquifers. It's affected by climate, geology, topography, and land use. Understanding recharge is crucial for managing water resources and predicting aquifer sustainability.

Aquifers come in two main types: unconfined and confined. Unconfined aquifers have a water table exposed to the atmosphere, while confined ones are sandwiched between impermeable layers. This distinction impacts how they're recharged, their vulnerability to contamination, and their water-yielding properties.

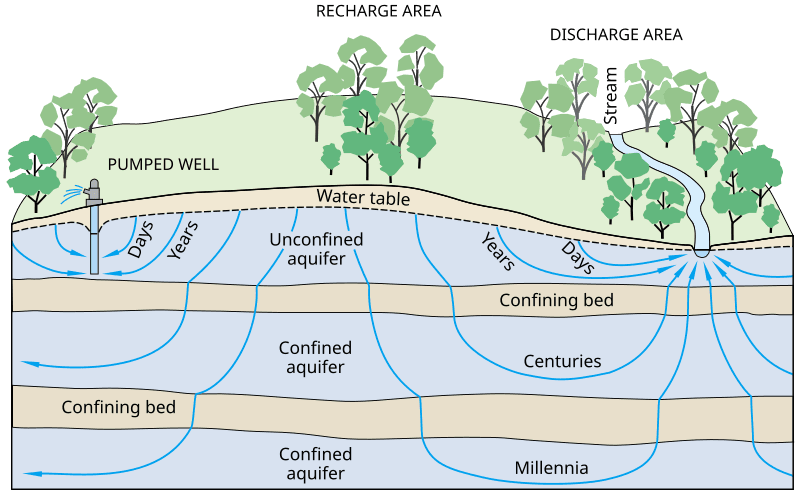

Process of Groundwater Recharge

Water reaches aquifers through two stages: infiltration (water soaking into the soil from the surface) and percolation (that water continuing to move downward through pore spaces and fractures until it reaches the saturated zone).

Common recharge sources include:

• Precipitation seeping directly into soil
• Rivers and lakes leaking water into the ground through their beds
• Excess irrigation water percolating downward past the root zone

Several factors control how much recharge actually occurs in a given area:

• Climate sets the baseline. In tropical regions with heavy rainfall and low evapotranspiration, recharge rates are high. In arid regions, most precipitation evaporates before it can infiltrate.
• Geology determines whether water can pass through. Porous rocks like limestone or sandstone allow water to flow through pore spaces and fractures, while dense rocks like unfractured granite block it.
• Topography affects how long water stays on the surface. Steep slopes send water downhill as runoff before it can soak in, while flat terrain gives water more time to infiltrate.
• Land use can dramatically alter recharge. Forests and grasslands slow runoff and promote infiltration, while urban pavement creates impervious surfaces that prevent water from reaching the ground at all.

Recharge zones are specific areas where water infiltrates most easily, such as regions with highly permeable soils or exposed bedrock fractures. Protecting these zones is critical for maintaining aquifer supply.

Confined vs. Unconfined Aquifers

Unconfined aquifers:

• The water table forms the upper boundary and is exposed to the atmosphere through pore spaces in overlying soil
• Directly recharged by surface water percolating downward
• Water pressure at the water table equals atmospheric pressure
• More vulnerable to contamination from surface sources like agricultural runoff or leaking fuel tanks

Confined aquifers:

• Bounded above and below by impermeable layers called aquitards (often clay or shale)
• Water is under pressure that exceeds atmospheric pressure because the weight of the confining layer pushes down on it
• Recharge only occurs at limited locations where the confining layer is absent or fractured, allowing water to flow in
• Much less vulnerable to surface contamination because the aquitard acts as a protective barrier

Key differences between the two:

• Unconfined water levels fluctuate more with seasonal rainfall, while confined levels remain steadier
• Unconfined aquifers generally store and yield more water per unit volume, but confined aquifers can produce artesian wells where pressure forces water to rise above the aquifer without pumping
• Unconfined aquifers recharge faster, but confined aquifers can store water for centuries or even millennia

Groundwater Flow and Hydraulics

Hydraulic Head in Groundwater Flow

Hydraulic head represents the total mechanical energy per unit weight of water at a given point. It's what drives groundwater movement: water always flows from areas of high hydraulic head to areas of low hydraulic head.

Hydraulic head has three components:

• Elevation head is the height of the measurement point above a reference datum (usually sea level)
• Pressure head reflects the pressure exerted by the column of water above the measurement point
• Velocity head accounts for kinetic energy, but because groundwater moves so slowly (often just meters per year), this component is negligible and typically ignored

Hydraulic head is measured using piezometers, which are narrow tubes or wells inserted into an aquifer. The water level inside the piezometer rises to a height that reflects the hydraulic head at that point. By comparing readings from multiple piezometers, you can map the direction and rate of groundwater flow.

Darcy's Law for Flow Velocity

Darcy's Law describes how fast groundwater moves through a porous medium. The equation is:

$Q = -KA\frac{dh}{dl}$

• $Q$ = volumetric flow rate ($m^3/s$)
• $K$ = hydraulic conductivity, a measure of how easily water passes through the material ($m/s$)
• $A$ = cross-sectional area perpendicular to flow ($m^2$)
• $\frac{dh}{dl}$ = hydraulic gradient, the change in hydraulic head over a given distance (dimensionless ratio)

The negative sign indicates that flow moves in the direction of decreasing head.

To find the actual average speed of water moving through pore spaces, you use:

$v = \frac{-K}{n}\frac{dh}{dl}$

• $v$ = average linear velocity ($m/s$)
• $n$ = effective porosity, the fraction of connected pore space water can actually flow through

You divide by porosity because water can only travel through the open pore spaces, not the solid grains. This means the actual velocity through pores is faster than the bulk flow rate would suggest.

Factors that affect groundwater velocity:

• Higher hydraulic conductivity increases flow. Gravel ($K$ around $10^{-2}$ m/s) transmits water far more readily than clay ($K$ around $10^{-9}$ m/s).
• Steeper hydraulic gradient accelerates movement, just as water flows faster down a steeper hill.
• Greater porosity actually slows the average linear velocity because the same volume of flow is spread across more pore space.

Common applications of Darcy's Law include estimating well yields for water supply, predicting how fast a contaminant plume will migrate through an aquifer, and designing dewatering systems for construction projects.
