Two-component phase diagrams show how temperature and composition affect the equilibrium phases of binary . They help us understand phase transitions, stability, and the relative amounts of different phases present in a system.
The Gibbs phase rule and lever rule are key tools for interpreting these diagrams. By mastering these concepts, we can predict how changes in temperature or composition will impact the behavior of two-component systems in real-world applications.
Phase Diagrams for Two-Component Systems
Representation of Equilibrium Phases
Top images from around the web for Representation of Equilibrium Phases

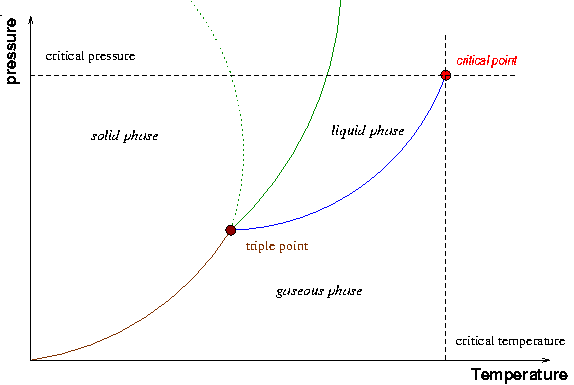

Solid to Gas Phase Transition | Introduction to Chemistry View original
Is this image relevant?
Major Features of a Phase Diagram | Introduction to Chemistry View original
Is this image relevant?
Interpreting Phase Diagrams | Introduction to Chemistry View original
Is this image relevant?
Solid to Gas Phase Transition | Introduction to Chemistry View original
Is this image relevant?
Major Features of a Phase Diagram | Introduction to Chemistry View original
Is this image relevant?
1 of 3
Top images from around the web for Representation of Equilibrium Phases
Solid to Gas Phase Transition | Introduction to Chemistry View original
Is this image relevant?
Major Features of a Phase Diagram | Introduction to Chemistry View original
Is this image relevant?
Interpreting Phase Diagrams | Introduction to Chemistry View original
Is this image relevant?
Solid to Gas Phase Transition | Introduction to Chemistry View original
Is this image relevant?
Major Features of a Phase Diagram | Introduction to Chemistry View original
Is this image relevant?
1 of 3
Two-component phase diagrams represent the equilibrium phases of binary mixtures as a function of temperature and composition
The x-axis typically represents the composition of the mixture, while the y-axis represents the temperature
Regions on the phase diagram correspond to specific phases or phase combinations, such as solid, liquid, gas, or a mixture of these phases (e.g., solid-liquid, liquid-gas)
Interpreting Phase Diagrams
Phase boundaries separate the regions and indicate the conditions at which phase transitions occur
Examples of phase boundaries include solidus line (solid-liquid boundary) and liquidus line (liquid-gas boundary)
To determine the phases present at a given composition and temperature, locate the point on the phase diagram and identify the region in which it lies
For example, a point in the solid-liquid region indicates the coexistence of solid and liquid phases at that specific composition and temperature
Phase Rule and Degrees of Freedom
Gibbs Phase Rule
The phase rule, F = C - P + 2, relates the number of degrees of freedom (F), the number of components (C), and the number of phases (P) in a system at equilibrium
In a two-component system, C = 2, simplifying the phase rule to F = 4 - P
For example, in a two-phase system (P = 2), the degrees of freedom are F = 4 - 2 = 2
Degrees of Freedom
Degrees of freedom represent the number of independent variables (e.g., temperature, pressure, or composition) that can be changed without altering the number of phases in the system
When the number of phases increases, the degrees of freedom decrease, limiting the ability to change variables without causing a phase transition
For example, in a three-phase system (P = 3), there is only one degree of freedom (F = 1), meaning only one variable can be changed independently
The phase rule helps predict the behavior of the system when changes in temperature, pressure, or composition occur
Eutectic, Peritectic, and Monotectic Systems
Eutectic Systems
Eutectic phase diagrams exhibit a single , where a liquid phase transforms directly into two solid phases upon cooling
The eutectic point represents the lowest temperature of the binary mixture
Examples of eutectic systems include lead-tin (Pb-Sn) and aluminum-silicon (Al-Si)
Eutectic systems have no solid solubility, and the solid phases have distinct compositions
Peritectic Systems
Peritectic phase diagrams feature a , where a liquid phase reacts with one solid phase to form another solid phase upon cooling
Peritectic reactions involve the simultaneous formation and disappearance of phases
An example of a peritectic system is the iron-carbon (Fe-C) system, where austenite (γ-Fe) forms from the reaction between liquid and ferrite (α-Fe)
Peritectic systems have partial solid solubility, and the solid phases have a range of compositions
Monotectic Systems
Monotectic phase diagrams display a monotectic point, where a liquid phase decomposes into another liquid phase and a solid phase upon cooling
Monotectic systems have a miscibility gap in the liquid phase, resulting in two immiscible liquids
An example of a monotectic system is the copper-lead (Cu-Pb) system, where a lead-rich liquid and solid copper form from a single liquid phase
The solid phase formed at the monotectic point has a specific composition
Lever Rule for Phase Composition
Applying the Lever Rule
The lever rule is a graphical method used to calculate the relative amounts of phases present in a two-component system at equilibrium
The lever rule is based on the principle of mass conservation and assumes that the system is at equilibrium
To apply the lever rule, construct a that connects the compositions of the two phases in equilibrium at a given temperature
Calculating Phase Amounts
The relative amounts of each phase are inversely proportional to the distances from the overall composition to the phase compositions on the tie line
For example, if the overall composition is closer to the composition of phase A, then the system will have a larger amount of phase A compared to phase B
The lever rule can be used to determine the mass fractions or mole fractions of the phases present in the system
Mass fraction of phase A = (distance from overall composition to phase B composition) / (total tie line length)
Mass fraction of phase B = (distance from overall composition to phase A composition) / (total tie line length)
Temperature and Composition Effects on Binary Mixtures
Phase Transitions
Changing the temperature can cause phase transitions, such as melting, , or vaporization, depending on the composition of the mixture
For example, increasing the temperature of a solid-liquid mixture can cause the solid to melt, resulting in a single liquid phase
The composition of the mixture determines the relative amounts of the components and affects the phase transitions and the properties of the phases
For example, in a eutectic system, the composition of the mixture determines the melting point and the relative amounts of the solid phases formed upon cooling
Phase Stability and Intermediate Phases
Phase diagrams provide information on the temperature and composition ranges over which specific phases are stable
By analyzing the phase diagram, one can predict the phase changes that occur when the temperature or composition of the mixture is altered
The presence of intermediate phases, solid solutions, or miscibility gaps can significantly impact the phase behavior of binary mixtures
Intermediate phases are distinct phases with specific compositions that form between the pure components (e.g., intermetallic compounds)
Solid solutions are single-phase regions where one component is dissolved in the crystal structure of the other component
Miscibility gaps are regions where two phases are immiscible and do not form a single homogeneous phase (e.g., oil and water)
Key Terms to Review (17)
Alloys: Alloys are mixtures of two or more elements, where at least one of them is a metal, created to enhance certain properties like strength, corrosion resistance, and ductility. They play a crucial role in material science, enabling the development of materials with tailored characteristics for specific applications. Understanding alloys is essential for analyzing their phase behavior and stability in different conditions, which is often represented through phase diagrams.
Binary phase diagram: A binary phase diagram is a graphical representation that shows the phases present in a two-component system at various temperatures and compositions. It illustrates how the phases of two materials interact with each other, including regions of solid, liquid, and vapor, as well as phase transitions between them. Understanding binary phase diagrams is essential for predicting the behavior of mixtures and the conditions under which different phases coexist.
Composition curve: A composition curve is a graphical representation that shows the relationship between the composition of a mixture and its phase behavior, particularly in two-component systems. This curve helps visualize how different phases coexist at various compositions and temperatures, providing insight into the thermodynamic properties of mixtures and their transitions between phases.
Critical Pressure: Critical pressure is the pressure required to liquefy a substance at its critical temperature, beyond which distinct liquid and gas phases do not exist. This concept is crucial for understanding the behavior of substances in two-component phase diagrams, where different compositions and phases interact under varying pressure and temperature conditions.
Eutectic Point: The eutectic point is the specific composition and temperature at which two components can coexist in a stable liquid phase and simultaneously solidify into two distinct solid phases upon cooling. This unique point is significant because it represents the lowest melting temperature for a mixture of the two components, providing critical insights into phase behavior and the arrangement of phases within a system.
Gibbs Free Energy: Gibbs free energy is a thermodynamic potential that measures the maximum reversible work obtainable from a system at constant temperature and pressure. This concept is vital for predicting the spontaneity of processes, as it combines the system's enthalpy and entropy to determine whether a reaction or process can occur naturally without external input.
Le Chatelier's Principle: Le Chatelier's Principle states that if a dynamic equilibrium is disturbed by changing the conditions, the position of equilibrium shifts to counteract the change and restore a new equilibrium. This principle helps to understand how chemical reactions respond to changes in concentration, temperature, and pressure, which are crucial when discussing equilibrium constants, electrochemical cells, and phase behavior in mixtures.
Melting: Melting is the process where a solid substance transitions into a liquid state when it is heated to its melting point. This phenomenon is crucial in understanding phase changes and the interactions between components in a two-component phase diagram, where the melting behavior can influence the overall phase stability and properties of the mixture.
Mixtures: Mixtures are combinations of two or more substances where each retains its own chemical properties. They can be homogeneous, where the components are evenly distributed, or heterogeneous, where the composition varies throughout. Understanding mixtures is crucial for studying phase behavior, especially in the context of two-component phase diagrams, which illustrate how different components interact and exist in various phases under changing conditions.
Peritectic Point: A peritectic point is a specific composition and temperature in a two-component phase diagram where a solid phase and a liquid phase coexist, and upon cooling, one solid phase forms from the liquid and an existing solid phase. This unique point marks a critical juncture in phase transitions, indicating a reaction where a liquid and one solid phase combine to create a second solid phase as the temperature decreases.
Phase boundary: A phase boundary is the interface that separates different phases in a material system, indicating where changes in physical state occur, such as from solid to liquid or liquid to gas. These boundaries are crucial for understanding phase diagrams, as they help visualize the conditions under which various phases coexist and interact. By examining these boundaries, one can also analyze how temperature, pressure, and composition affect phase stability and transitions.
Solidification: Solidification is the process by which a substance transitions from a liquid state to a solid state, typically as it cools and loses thermal energy. This phenomenon is crucial in understanding the behavior of materials in different phases and is represented in phase diagrams, which illustrate the relationships between temperature, pressure, and composition of substances.
Solute: A solute is a substance that is dissolved in a solvent to form a solution. In this process, the solute's particles disperse uniformly throughout the solvent, leading to a homogeneous mixture. Understanding how solutes interact with solvents is crucial in discussing the thermodynamics of mixing and two-component phase diagrams, as these concepts reveal how different substances behave when mixed together and how their phases change.
Solvent: A solvent is a substance, typically in a liquid state, that dissolves a solute to form a solution. In the context of two-component phase diagrams, solvents play a critical role as they determine the behavior of solutes within mixtures, influencing solubility, phase separation, and interactions between components.
Temperature-composition diagram: A temperature-composition diagram is a graphical representation that illustrates the relationship between temperature and the composition of a two-component system, showcasing how phases change with varying compositions and temperatures. These diagrams help in understanding the phase behavior of mixtures, indicating regions of single-phase and multi-phase coexistence, as well as phase boundaries.
Ternary phase diagram: A ternary phase diagram is a graphical representation of the phase behavior of three-component systems, showing how the components interact and the regions where different phases exist. These diagrams provide insight into the composition and properties of mixtures, allowing for the visualization of how varying amounts of each component can affect the phases present in the system.
Tie line: A tie line is a horizontal line on a phase diagram that connects the compositions of two coexisting phases in a two-component system at equilibrium. This line helps to illustrate how the components of the mixture interact and how their relative amounts can be altered by changing temperature or pressure, which are crucial aspects when examining the thermodynamics of mixing.
