11.2 Inorganic Pigments and Dyes

Types of Inorganic Pigments and Dyes

Inorganic pigments produce color through their interactions with visible light, governed by their chemical composition and crystal structure. Unlike organic dyes, which are typically soluble, inorganic pigments are particulate materials that remain dispersed in a medium. Understanding the chemical origins of their color connects core inorganic chemistry concepts (d-orbital splitting, band theory, charge transfer) to real-world materials.

Classification Based on Chemical Composition and Structure

Inorganic pigments fall into several major classes based on their chemical makeup:

• Metal oxides — iron oxides, chromium oxide ($\text{Cr}_2\text{O}_3$), titanium dioxide ($\text{TiO}_2$)
• Metal sulfides — cadmium sulfide ($\text{CdS}$), mercury sulfide ($\text{HgS}$)
• Metal chromates — lead chromate ($\text{PbCrO}_4$), zinc chromate ($\text{ZnCrO}_4$)
• Metal molybdates — lead molybdate ($\text{PbMoO}_4$), calcium molybdate ($\text{CaMoO}_4$)
• Metal complexes — Prussian blue (iron hexacyanoferrate), cobalt blue (cobalt aluminate, $\text{CoAl}_2\text{O}_4$)

Properties and Characteristics of Different Classes

Metal oxide pigments are the workhorses of the pigment world. They have high opacity, strong hiding power, and excellent lightfastness (resistance to fading). Iron oxides alone cover a range of reds, yellows, and browns depending on the specific phase and oxidation state. Chromium oxide gives a stable green, and $\text{TiO}_2$ is by far the most widely used white pigment globally.

Metal sulfide pigments produce bright, intense colors and tolerate high temperatures well. Cadmium sulfide yields vivid yellows, while mercury sulfide (cinnabar/vermilion) gives a deep red. Their use has declined significantly because of the toxicity of cadmium and mercury.

Metal chromate pigments offer bright yellows and greens with good hiding power. Lead chromate was historically important in anticorrosive coatings, but both lead and hexavalent chromium are toxic, so these pigments are being phased out under modern regulations.

Metal molybdate pigments provide vibrant colors and good chemical resistance, making them suitable for plastics and coatings. Lead molybdate produces reds, and calcium molybdate produces oranges.

Metal complex pigments achieve unique shades through specific coordination environments around the metal center. Prussian blue ($\text{Fe}_4[\text{Fe(CN)}_6]_3$) gets its intense blue from an intervalence charge transfer between $\text{Fe}^{2+}$ and $\text{Fe}^{3+}$. Cobalt blue ($\text{CoAl}_2\text{O}_4$) is a spinel where $\text{Co}^{2+}$ in tetrahedral sites produces a deep blue through d-d transitions. These pigments tend to have lower hiding power than oxides but excellent thermal and chemical stability.

Chemical Principles of Inorganic Color

Absorption and Reflection of Light

A pigment's color comes from its selective absorption of certain wavelengths of visible light. The wavelengths that are not absorbed are reflected or transmitted, and those are what you perceive as color. The chemical composition and crystal structure together determine which electronic transitions are available and at what energies they occur.

Electronic Transitions in Metal Oxides

In metal oxide pigments, color originates primarily from d-d electronic transitions of the metal ions within the crystal lattice. Two factors control which transitions are possible and at what energy:

• Oxidation state of the metal ion — this determines the d-electron count and thus which transitions are allowed.
• Crystal structure and coordination geometry — the ligand field splitting energy ($\Delta$) depends on whether the metal sits in an octahedral, tetrahedral, or other site.

A clear example is the iron oxides. $\text{Fe}^{3+}$ in the hematite structure ($\alpha\text{-Fe}_2\text{O}_3$) absorbs in the blue-green region, producing a red pigment. $\text{Fe}^{2+}/\text{Fe}^{3+}$ mixed-valence magnetite ($\text{Fe}_3\text{O}_4$) absorbs broadly across the visible spectrum, appearing black. Same element, different oxidation states and structures, completely different colors.

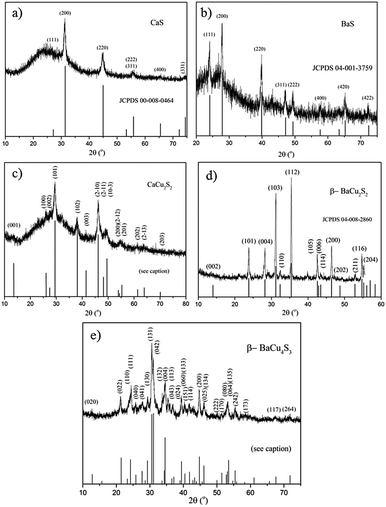

Band Gap Energy in Metal Sulfides

Metal sulfide pigments are semiconductors, so their color mechanism is fundamentally different from d-d transitions. Here, the relevant quantity is the band gap ($E_g$), the energy separation between the valence band and the conduction band.

Photons with energy greater than $E_g$ are absorbed (promoting electrons across the gap), while lower-energy photons are transmitted or reflected. For $\text{CdS}$, the band gap is approximately 2.4 eV, which corresponds to absorption of blue/violet light, leaving yellow to be reflected. Adjusting composition (e.g., alloying $\text{CdS}$ with $\text{CdSe}$) tunes the band gap and shifts the color from yellow through orange to red.

Charge Transfer Transitions in Metal Chromates and Molybdates

In chromate and molybdate pigments, color arises from ligand-to-metal charge transfer (LMCT) transitions. Electron density shifts from the oxygen-based anion ($\text{CrO}_4^{2-}$ or $\text{MoO}_4^{2-}$) to the metal center upon absorbing light. These transitions are Laporte-allowed and therefore have high molar absorptivities, which is why chromate and molybdate pigments tend to be intensely colored.

The energy of the charge transfer band depends on the identity of the metal cation in the lattice and its coordination environment, which is why lead chromate (yellow) and zinc chromate (greenish-yellow) differ in hue despite sharing the chromate anion.

Absorption of Light by Metal Complexes

Metal complex pigments rely on the ligand field around the metal ion to create characteristic absorption bands. The ligands control the splitting of the d-orbitals, and the magnitude of that splitting determines which wavelengths are absorbed.

In Prussian blue, the mechanism is more specific: it involves an intervalence charge transfer (IVCT) between $\text{Fe}^{2+}$ (low-spin, bonded to carbon of cyanide) and $\text{Fe}^{3+}$ (high-spin, bonded to nitrogen). This transition absorbs in the red/orange region, producing the deep blue color. In cobalt blue, $\text{Co}^{2+}$ occupies tetrahedral sites in the spinel lattice, and the relatively small tetrahedral splitting leads to absorption in the red/yellow region, giving blue.

Influence of Particle Size and Morphology

Beyond electronic structure, the physical characteristics of pigment particles affect perceived color:

• Smaller particles scatter shorter wavelengths more effectively (Rayleigh-type scattering), giving a bluer undertone.
• Larger particles shift the apparent hue toward red or yellow.
• Particle shape and surface roughness also influence how light is scattered versus absorbed.

This is why milling and particle size control during synthesis are not just processing details but directly affect the final optical properties of the pigment.

Applications and Environmental Impact

Extensive Use in Various Industries

Inorganic pigments are valued for their color stability, opacity, durability, and chemical resistance. Major application areas include:

• Paints and coatings
• Plastics and polymers
• Ceramics and glass
• Cosmetics

Specific Applications in Different Industries

In paints and coatings, inorganic pigments provide color, hiding power, and surface protection. $\text{TiO}_2$ dominates as the white pigment due to its extremely high refractive index ($n \approx 2.7$ for the rutile phase), which gives outstanding opacity. Iron oxides are the standard for earth-tone reds, yellows, and browns because they combine low cost with excellent weather resistance.

In the plastics industry, pigments must withstand the high processing temperatures of polymer extrusion and injection molding. Inorganic pigments generally handle this better than organic dyes, making them the preferred choice for automotive parts, building materials, and other demanding applications.

In ceramics and glass, metal oxide pigments (cobalt for blue, chromium for green, iron for amber/brown) are incorporated into glazes, enamels, and glass melts. These pigments must survive firing temperatures that would destroy organic colorants.

Environmental and Health Concerns

Several historically important inorganic pigments contain toxic heavy metals:

• Lead (in lead chromate, lead molybdate, red lead)
• Cadmium (in cadmium sulfide, cadmium selenide)
• Mercury (in mercury sulfide/vermilion)
• Hexavalent chromium (in chromate pigments, which are both toxic and carcinogenic)

These substances can accumulate in the environment and pose serious risks through ingestion, inhalation of dust, or leaching into water systems.

Development of Safer Alternatives

The push to replace toxic pigments has driven significant materials research. A notable example is bismuth vanadate ($\text{BiVO}_4$), which now serves as a non-toxic replacement for lead chromate in bright yellow applications. Other strategies include developing complex inorganic color pigments (CICPs) based on mixed metal oxide spinels and rutile-type solid solutions that avoid regulated heavy metals entirely.

Regulations and Proper Handling Practices

Regulatory frameworks like REACH (EU) and TSCA (US) restrict or ban the use of the most hazardous pigment components. Proper handling, disposal, and recycling protocols are essential for any remaining applications of heavy-metal-containing pigments. In practice, this means that formulation chemists increasingly need to achieve the same color performance using the constrained palette of approved, non-toxic inorganic pigments.

Synthesis and Processing of Inorganic Pigments and Dyes

Synthesis Methods

The synthesis route determines the pigment's purity, particle size distribution, crystal phase, and ultimately its color and performance. Common methods include:

1. Precipitation reactions — Mixing soluble precursors to form an insoluble pigment product (used for many metal oxide and metal sulfide pigments). Reaction pH, temperature, and concentration control the particle characteristics.
2. Sol-gel processes — Hydrolysis and condensation of metal alkoxide precursors produce metal oxide pigments with high purity and uniform, fine particle sizes.
3. Solid-state reactions — Intimate mixing of solid precursors followed by high-temperature calcination. This is the standard route for complex pigments like cobalt blue and other spinel-type pigments, where temperatures of 1000–1400°C are typical.
4. Chemical vapor synthesis — Gas-phase reactions produce ultrafine particles with tightly controlled size and morphology, though this method is more expensive and typically reserved for specialty applications.

Post-Processing Steps

After the initial synthesis, pigments go through several steps to reach their final form:

1. Washing — removes soluble byproducts and unreacted precursors
2. Filtering — separates the pigment from the reaction medium
3. Drying — removes residual solvent/water
4. Calcination — heat treatment to achieve the desired crystal phase and improve crystallinity (critical for color development)
5. Milling — reduces particle size and narrows the size distribution to optimize optical properties

Surface Treatment and Quality Control

Raw pigment particles often need surface modification before they perform well in a given application medium. Surface treatments improve:

• Dispersibility — preventing agglomeration in paints, plastics, or coatings
• Compatibility — ensuring good wetting and adhesion with the binder or polymer matrix
• Weather resistance — protecting the pigment surface from photocatalytic degradation (especially important for $\text{TiO}_2$, which is photoactive)

Common surface coatings include dense silica ($\text{SiO}_2$), alumina ($\text{Al}_2\text{O}_3$), and organic surface modifiers like silanes or fatty acids.

Quality control for the final product typically involves:

• Particle size analysis (laser diffraction, electron microscopy)
• Colorimetry (CIE $L^*a^*b^*$ color space measurements for precise, reproducible color specification)
• Chemical composition testing (XRF, ICP-OES) to verify stoichiometry and detect impurities
