11.3 Galaxy clusters and large-scale structure

Galaxy Clusters and Large-Scale Structure

Galaxy clusters are the largest gravitationally bound structures in the universe, containing hundreds to thousands of galaxies along with vast amounts of hot gas and dark matter. Understanding them is central to astrophysics because they sit at the intersection of several big questions: How does structure form in the universe? What is dark matter doing? How fast is the cosmos expanding?

Properties of Galaxy Clusters

Galaxy clusters span several megaparsecs and have total masses in the range of $10^{14}$ to $10^{15}$ solar masses. That mass breaks down into three main components, and the proportions matter:

• Dark matter dominates, making up roughly 80–85% of the total cluster mass. It can't be observed directly but is inferred through its gravitational effects on visible matter and light. The dark matter halo extends well beyond the visible boundaries of the cluster.
• Intracluster medium (ICM) is a diffuse, hot gas filling the space between galaxies. It reaches temperatures of $10^7$ to $10^8$ K and is composed primarily of ionized hydrogen and helium. At these extreme temperatures, the gas emits X-rays through a process called thermal bremsstrahlung (radiation produced when charged particles are decelerated by other charged particles). The ICM actually contains more baryonic mass than all the galaxies in the cluster combined.
• Galaxies themselves contribute only a small fraction of the total mass. Cluster galaxy populations are dominated by elliptical and lenticular (S0) types. Many clusters host a massive cD galaxy at their center, a giant elliptical that has grown through repeated mergers and accretion. Galaxy interactions and mergers are frequent in the dense cluster environment.

Detection Methods for Clusters

Each detection method reveals different physical information about a cluster. Combining them gives a much more complete picture.

X-ray observations detect thermal emission from the hot ICM. Telescopes like Chandra and XMM-Newton measure gas temperature and density profiles. From these, you can estimate the cluster's total mass by assuming hydrostatic equilibrium, where the outward thermal pressure of the gas balances the inward pull of gravity.

Optical observations identify clusters by looking for overdensities of galaxies on the sky. The red sequence method is particularly effective: early-type galaxies in a cluster share similar colors at a given redshift, so a concentration of galaxies with matching red colors flags a likely cluster. Spectroscopic follow-up provides redshifts and velocity dispersions, which in turn yield mass estimates through the virial theorem.

Gravitational lensing uses the bending of light from background sources by the cluster's gravitational field.

• Strong lensing produces dramatic arcs and multiple images of background galaxies near the cluster core, constraining the mass distribution in the densest regions.
• Weak lensing measures subtle, statistical distortions in the shapes of many background galaxies across a wider field. This provides a direct measurement of the total projected mass distribution, independent of assumptions about the cluster's dynamical state.

Sunyaev-Zel'dovich (SZ) effect occurs when CMB photons passing through the ICM are inverse Compton scattered by the hot electrons, gaining energy. This shifts the CMB spectrum in a characteristic way (a decrement at lower frequencies, an increment at higher frequencies). The SZ signal is proportional to the integrated electron pressure along the line of sight and, crucially, does not dim with distance. That makes it especially powerful for detecting clusters at high redshift.

Cosmic Web and Large-Scale Structure

Zoom out far enough and the distribution of matter in the universe reveals a network-like pattern called the cosmic web. This structure emerged from tiny density fluctuations in the early universe that grew through gravitational instability over billions of years.

The cosmic web has four main components:

• Filaments are thread-like structures of dark matter and galaxies that connect clusters and superclusters. They can extend over hundreds of megaparsecs and contain a significant fraction of all matter in the universe.
• Walls (or sheets) are flattened, planar structures formed where filaments intersect. The CfA Great Wall and the Sloan Great Wall are well-known examples.
• Voids are large underdense regions between filaments and walls, typically 10–100 Mpc in diameter. They contain very few galaxies.
• Nodes are where filaments converge, and this is where galaxy clusters and superclusters sit.

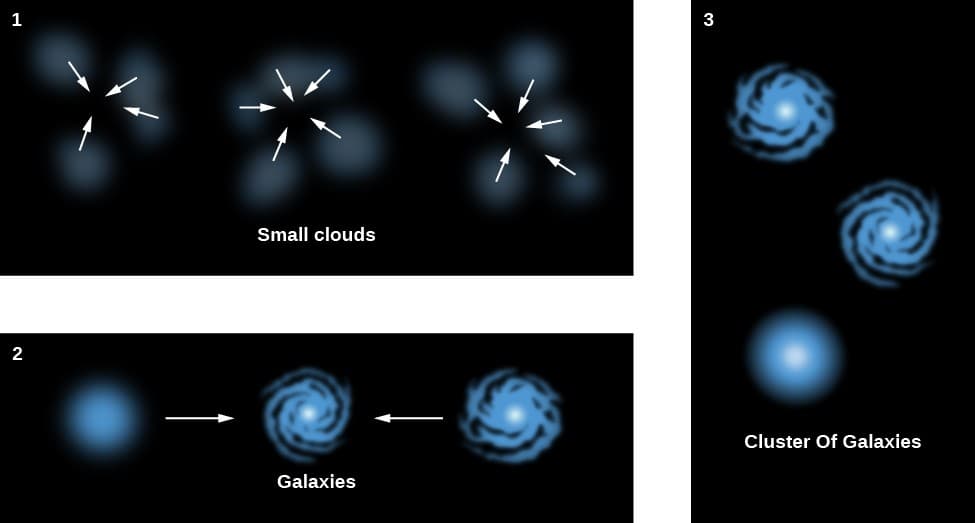

Structure formation follows a hierarchical clustering model: smaller structures (galaxies, groups) form first from the initial density perturbations, then merge over time into progressively larger structures (clusters, superclusters). This bottom-up assembly is a key prediction of the $\Lambda$CDM cosmological model.

Clusters as Cosmological Probes

Galaxy clusters are sensitive tools for testing cosmological models because their abundance and properties depend on fundamental parameters of the universe.

• Structure growth: The number of clusters as a function of mass and redshift (the cluster mass function) traces how structure has grown over cosmic time. Comparing observed mass functions to theoretical predictions directly tests the $\Lambda$CDM model.
• Dark matter evidence: Cluster dynamics (galaxy velocities) and gravitational lensing both point to far more mass than visible matter can account for. Clusters provided some of the earliest and most compelling evidence for dark matter, and they continue to be used to test alternative gravity theories.
• Dark energy constraints: The evolution of cluster abundance is sensitive to the expansion history of the universe, which is governed by dark energy. Faster expansion suppresses the growth of structure, so counting clusters at different redshifts constrains dark energy properties.
• Baryon fraction: The ratio of baryonic to total mass in clusters should reflect the cosmic average. Measuring this fraction and comparing it to predictions from Big Bang nucleosynthesis constrains the matter density parameter $\Omega_m$.
• Hubble constant from SZ + X-ray: The SZ effect depends on the integrated electron pressure (proportional to $n_e T_e$), while X-ray luminosity depends on $n_e^2$. Combining both measurements lets you solve for the physical size of the cluster. Comparing that physical size to the angular size on the sky gives a distance, and thus an independent estimate of the Hubble constant, completely bypassing the traditional cosmic distance ladder.
