1.1 Fundamental concepts and scales in astrophysics

Units and Scales in Astrophysics

Astrophysics covers objects and distances so vast that everyday units like meters and kilometers become impractical. To work at cosmic scales, you need a set of purpose-built distance units, a solid grasp of scientific notation, and an understanding of how the electromagnetic spectrum serves as our primary tool for observing the universe.

Units and scales in astrophysics

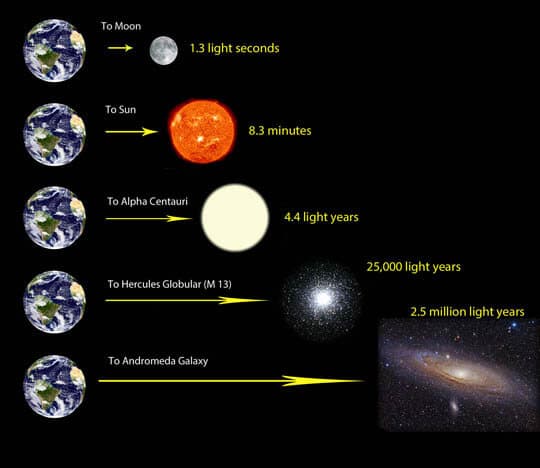

Three distance units come up constantly in astrophysics, each suited to a different scale:

• Astronomical Unit (AU): The average Earth-Sun distance, equal to $1 \text{ AU} = 1.496 \times 10^{11} \text{ m}$. This is the go-to unit for distances within a solar system. For example, Jupiter orbits at about 5.2 AU from the Sun.
• Light-year (ly): The distance light travels in one year, about $9.46 \times 10^{12} \text{ km}$. This unit is natural for interstellar distances. The nearest star system, Alpha Centauri, is roughly 4.37 ly away.
• Parsec (pc): Derived from "parallax of one arcsecond," equal to $1 \text{ pc} = 3.086 \times 10^{16} \text{ m} \approx 3.26 \text{ ly}$. Parsecs are the standard professional unit for galactic and extragalactic distances because they connect directly to the parallax measurement method.

Scientific notation is essential here. Writing out $3.086 \times 10^{16}$ m is far more practical than writing 30,860,000,000,000,000 m. You'll use it in virtually every calculation in this course.

Electromagnetic spectrum for observations

Almost everything we know about the universe comes from detecting electromagnetic (EM) radiation. Different types of radiation reveal different physical processes, so observing at multiple wavelengths gives a much fuller picture than visible light alone.

The EM spectrum, from longest to shortest wavelength: radio waves → microwaves → infrared → visible light → ultraviolet → X-rays → gamma rays.

Wavelength and frequency are inversely related through:

$c = \lambda f$

where $c$ is the speed of light ($3.0 \times 10^8$ m/s), $\lambda$ is wavelength, and $f$ is frequency. A longer wavelength means a lower frequency, and vice versa.

Different celestial objects and processes emit strongly at different wavelengths. Hot gas in galaxy clusters emits X-rays. Cool dust clouds glow in infrared. Pulsars are bright in radio. Observing across the full spectrum is called multi-wavelength astronomy, and it's how we study everything from star formation to galaxy evolution.

Earth's atmosphere absorbs or scatters many wavelengths, particularly X-rays, gamma rays, and much of the infrared and ultraviolet. That's why space-based telescopes like Hubble (optical/UV) and the James Webb Space Telescope (infrared) are so valuable: they observe from above the atmosphere where those wavelengths aren't blocked.

Astrophysical Measurements and Scales

Angular size vs. distance

When you look at an object in the sky, you can't directly tell whether it's small and nearby or large and far away. What you measure is its angular size, expressed in degrees (°), arcminutes (′), or arcseconds (″). There are 60 arcminutes in a degree and 60 arcseconds in an arcminute.

For objects that appear small (which is most things in astronomy), the small-angle approximation relates angular size to physical size and distance:

$\theta \approx \frac{d}{D}$

where $\theta$ is the angular size in radians, $d$ is the object's actual (physical) size, and $D$ is the distance to the object.

This tells you two things at once: if you know an object's true size, you can estimate its distance from its angular size, and vice versa. Angular size decreases as distance increases, which is why distant galaxies appear as tiny smudges even though they span tens of thousands of light-years.

Telescope angular resolution sets a limit on how small an angular separation you can distinguish. This matters for resolving things like binary star systems or detecting exoplanets close to their host stars.

Orders of magnitude of celestial objects

Getting a feel for the relative sizes and masses of astrophysical objects helps you build physical intuition. Here are the key benchmarks:

Sizes:

• Planets: Earth's radius is about 6,371 km; Jupiter's is roughly 69,911 km (about 11 times Earth's)
• Stars: The Sun's radius is 696,340 km. Red supergiants like Betelgeuse can exceed 1,000 solar radii.
• Galaxies: The Milky Way's disk spans about 100,000 ly in diameter. Andromeda is roughly 220,000 ly across.

Masses:

• Planets: Earth is $5.97 \times 10^{24}$ kg; Jupiter is $1.90 \times 10^{27}$ kg (about 318 Earth masses)
• Stars: The Sun is $1.99 \times 10^{30}$ kg (defined as 1 solar mass, $M_\odot$). Stars range from about $0.08 \, M_\odot$ (the minimum for hydrogen fusion) up to around $150 \, M_\odot$.
• Galaxies: The Milky Way's total mass (including dark matter) is estimated at roughly $1.5 \times 10^{12} \, M_\odot$.

Notice the enormous jumps between these categories. A star like the Sun is about $10^5$ times wider than Earth, and a galaxy is about $10^9$ times wider than a star. Keeping track of these orders of magnitude is one of the core skills in astrophysics.
