7.4 Solid and Liquid Propellant Rocket Systems

Rocket propulsion systems come in two main types: solid and liquid. Each has distinct design features, operational behavior, and performance trade-offs. Understanding these differences helps explain why engineers choose certain propellants for specific missions.

Propellant selection shapes nearly every aspect of rocket design. Engineers balance specific impulse, thrust-to-weight ratio, cost, safety, and environmental impact. These choices directly determine a rocket's performance envelope and what missions it can realistically fly.

Solid and Liquid Propellant Rocket Systems

Solid vs liquid propellant rockets

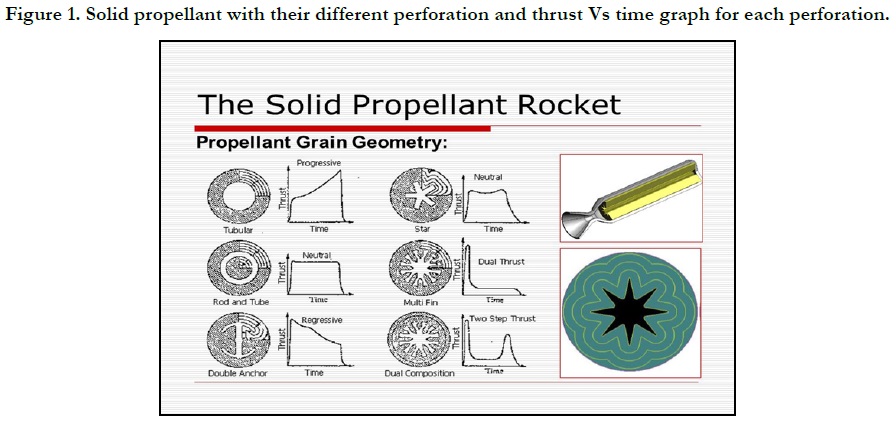

Solid propellant rocket systems use a pre-mixed propellant "grain" that's cast directly into the combustion chamber. This makes the overall design much simpler since you don't need separate tanks, turbopumps, or complex plumbing. The propellant burns from its exposed surface inward, generating hot gases that exit through the nozzle. The catch: once you light a solid motor, you can't throttle it or shut it down. It burns until the propellant is gone.

Performance-wise, solid motors have a lower specific impulse ($I_{sp}$) than liquid systems, meaning they're less fuel-efficient. But their compact, simple design gives them a higher thrust-to-weight ratio, which makes them excellent for applications where you need a lot of thrust in a small, lightweight package.

Liquid propellant rocket systems store fuel and oxidizer in separate tanks and feed them into a combustion chamber where they mix and burn. This requires more hardware (turbopumps, injectors, valves, plumbing), making the design significantly more complex. The payoff is control: you can throttle the engine up or down, shut it off, and even restart it by adjusting propellant flow rates.

Liquid engines achieve higher $I_{sp}$ values, so they extract more performance per kilogram of propellant. The trade-off is a lower thrust-to-weight ratio because all that extra hardware adds mass.

Pros and cons of solid propellants

Advantages:

• Simplicity: Fewer components and no moving parts like turbopumps or valves. This makes solid motors easier to manufacture, store, and handle.
• Reliability: The simple design means fewer things can go wrong. Solid motors can sit in storage for years and still fire reliably, which is why they're widely used in military missiles.
• High thrust-to-weight ratio: Their compact design packs a lot of thrust into a lightweight package. The Space Shuttle's Solid Rocket Boosters (SRBs) are a classic example, providing about 71% of the thrust at liftoff.

Disadvantages:

• No throttling or shutdown: Once ignited, a solid motor burns until the propellant is consumed. You can't adjust thrust or turn it off mid-flight, which limits abort options.
• Lower $I_{sp}$: Solid propellants are less efficient than liquid propellants. A typical solid motor might achieve an $I_{sp}$ around 250 seconds, compared to 350+ seconds for common liquid engines. This means less payload capacity for the same amount of propellant mass.
• Reduced mission flexibility: Because you can't restart or throttle the motor, solid systems are poorly suited for missions requiring precise orbital maneuvers. That's why they're rarely used as upper stages.

Components of liquid propellant rocket engines

A liquid engine has several key components that work together:

• Propellant tanks: Store fuel and oxidizer separately. Common combinations include RP-1/LOX (kerosene and liquid oxygen) and LH2/LOX (liquid hydrogen and liquid oxygen). The tanks are pressurized to ensure steady propellant flow.
• Turbopumps: High-speed pumps that force propellants from the tanks into the combustion chamber at very high pressures. They're typically driven by a gas generator or preburner that taps off a small amount of propellant to spin the turbine.
• Injectors: Atomize the propellants into fine droplets and mix them together inside the combustion chamber. Designs like impinging-jet injectors ensure thorough mixing for efficient combustion.
• Combustion chamber: Where the propellants mix, ignite, and burn, producing high-temperature, high-pressure gas.
• Nozzle: A converging-diverging (de Laval) nozzle that accelerates the hot exhaust gases to supersonic speeds, converting thermal energy into kinetic energy to produce thrust.

How it all works together:

1. Turbopumps draw propellants from their respective tanks and deliver them at high pressure to the combustion chamber.
2. Injectors atomize and mix the fuel and oxidizer inside the chamber.
3. The propellant mixture ignites and burns, creating extremely hot, high-pressure gases.
4. These gases expand through the nozzle, accelerating to produce thrust.

Factors in propellant selection

Performance factors:

• Specific impulse ($I_{sp}$): The primary measure of propellant efficiency. Higher $I_{sp}$ means more thrust per unit of propellant consumed. LH2/LOX offers the highest $I_{sp}$ of common propellant combinations (around 450 seconds in vacuum), which is why it's used on upper stages where efficiency matters most.
• Thrust-to-weight ratio: How much thrust the engine produces relative to its own weight. RP-1/LOX engines tend to have favorable thrust-to-weight ratios, making them popular for first-stage boosters where raw lifting power is the priority.

Cost factors:

• Propellant cost: RP-1 is essentially refined kerosene and is cheap to produce and store. LH2 is far more expensive to manufacture and requires cryogenic storage infrastructure, driving up costs.
• Development and testing costs: More complex engine cycles (like staged combustion engines using LH2/LOX) require extensive development and testing, adding to the overall program budget.

Safety and environmental aspects:

• Toxicity and handling: Some propellants are highly toxic. Nitrogen tetroxide ($N_2O_4$) and hydrazine ($N_2H_4$), used in many spacecraft, require strict handling protocols. Cryogenic propellants like LH2 pose their own hazards due to extreme cold and flammability.
• Storage stability: Propellants need to remain stable during storage and transport. Hypergolic propellants (which ignite on contact with each other) are convenient for restartable engines but can be dangerous to handle. Concentrated hydrogen peroxide ($H_2O_2$) can decompose violently if contaminated.
• Environmental impact: Exhaust products matter. LH2/LOX engines produce mostly water vapor. Solid motors using perchlorate-based oxidizers release hydrogen chloride and other compounds, which has drawn increasing regulatory scrutiny.
