4.3 Acid anhydrides

Structure of Acid Anhydrides

Acid anhydrides have the general structure $(RCO)_2O$: two acyl groups linked through a bridging oxygen atom. You can think of them as two carboxylic acids that have lost a molecule of water between them (hence "anhydride," meaning "without water"). This structure gives them two electrophilic carbonyl carbons, which is why they're more reactive than esters and serve as excellent acylating agents.

Symmetrical vs. Unsymmetrical Anhydrides

• Symmetrical anhydrides have identical acyl groups on both sides of the oxygen. Acetic anhydride ($(CH_3CO)_2O$) is the classic example, formed from two molecules of acetic acid.
• Unsymmetrical (mixed) anhydrides have two different acyl groups. For example, acetic formic anhydride combines an acetyl group and a formyl group. These are less commonly encountered because they can be trickier to prepare selectively and can react at either carbonyl.

Cyclic vs. Acyclic Anhydrides

• Acyclic anhydrides are open-chain structures like acetic anhydride.
• Cyclic anhydrides form closed rings, typically derived from dicarboxylic acids through intramolecular dehydration. Common examples include maleic anhydride (five-membered ring) and phthalic anhydride (from phthalic acid, also five-membered).
• Five- and six-membered cyclic anhydrides form readily because those ring sizes are thermodynamically favorable. Ring strain in smaller cyclic anhydrides can increase their electrophilicity and reactivity.

Nomenclature of Acid Anhydrides

IUPAC Naming Rules

1. Identify the parent carboxylic acid(s).
2. Drop the word "acid" and replace it with "anhydride."
3. For symmetrical anhydrides, name the single parent acid followed by "anhydride." Example: acetic acid → acetic anhydride (not "diacetic anhydride").
4. For unsymmetrical anhydrides, name both parent acids in alphabetical order, then add "anhydride." Example: acetic acid + benzoic acid → acetic benzoic anhydride.
5. For cyclic anhydrides, name the parent dicarboxylic acid and append "anhydride." Example: succinic acid → succinic anhydride. Use locants for any substituents on the ring.

Common Names

Many anhydrides are known almost exclusively by common names in practice:

• Acetic anhydride ($Ac_2O$) is by far the most widely used.
• Succinic anhydride, glutaric anhydride, maleic anhydride, and phthalic anhydride are standard cyclic anhydride names you should recognize.

Synthesis of Acid Anhydrides

From Carboxylic Acids (Direct Dehydration)

Two molecules of a carboxylic acid can be condensed by removing water:

$2 \; RCOOH \xrightarrow{-H_2O} (RCO)_2O$

This requires strong heating or a powerful dehydrating agent like $P_2O_5$. Removing water (e.g., with a Dean-Stark trap or molecular sieves) drives the equilibrium toward the anhydride product. This method works best for making symmetrical anhydrides from simple aliphatic or aromatic acids.

From Acid Chlorides and Carboxylate Salts

This is the most versatile route, especially for unsymmetrical anhydrides:

1. React an acid chloride ($RCOCl$) with the sodium or potassium salt of a carboxylic acid ($R'COO^-Na^+$).
2. The carboxylate acts as a nucleophile, attacking the electrophilic carbonyl carbon of the acid chloride.
3. $NaCl$ precipitates out as a byproduct.

$RCOCl + R'COO^-Na^+ \rightarrow RCOOCOR' + NaCl$

This reaction proceeds at room temperature and gives you control over which two acyl groups end up in the product.

Cyclic Anhydrides by Intramolecular Dehydration

Dicarboxylic acids with the right geometry undergo intramolecular dehydration to form cyclic anhydrides. Five-membered rings (from succinic and maleic acids) and six-membered rings (from glutaric acid) form readily upon heating. Longer-chain diacids don't cyclize as easily because the two carboxyl groups are too far apart for efficient intramolecular reaction.

Reactivity of Acid Anhydrides

Nucleophilic Acyl Substitution

Nearly all acid anhydride reactions follow the same general mechanism:

1. A nucleophile attacks one of the two electrophilic carbonyl carbons.
2. A tetrahedral intermediate forms as the $\pi$ bond breaks.
3. The tetrahedral intermediate collapses, expelling a carboxylate ion as the leaving group.
4. If the nucleophile was a neutral species (alcohol, amine), the carboxylate may deprotonate the product in a final acid-base step.

The carboxylate is a good leaving group because it's resonance-stabilized, which is why anhydrides are reactive acylating agents.

Hydrolysis

Water acts as the nucleophile, cleaving the anhydride into two equivalents of carboxylic acid:

$(RCO)_2O + H_2O \rightarrow 2 \; RCOOH$

This happens readily, even at room temperature, which is why anhydrides must be stored away from moisture. Acid or base catalysis speeds up the process further.

Reactions with Nucleophiles

Alcohols and Phenols (Ester Formation)

$(RCO)_2O + R'OH \rightarrow RCOOR' + RCOOH$

• The alcohol attacks one carbonyl; the other half leaves as a carboxylic acid.
• Primary alcohols react fastest. Secondary and tertiary alcohols are slower due to steric hindrance.
• Phenols are weaker nucleophiles, so they typically require a base catalyst (like pyridine) to react efficiently.
• A key advantage over acid chlorides: the carboxylic acid byproduct is less corrosive than $HCl$.

Amines and Ammonia (Amide Formation)

$(RCO)_2O + R'NH_2 \rightarrow RCONHR' + RCOOH$

• Primary and secondary amines react readily because nitrogen is a strong nucleophile.
• Tertiary amines lack an N-H bond and cannot form amides this way (though they can act as base catalysts).
• Ammonia gives primary amides ($RCONH_2$).
• Aliphatic amines react faster than aromatic amines (e.g., aniline) because the nitrogen lone pair in aromatic amines is partially delocalized into the ring, reducing nucleophilicity.

Grignard Reagents (Ketone Formation)

$( RCO)_2O + R'MgBr \rightarrow RCOR' + RCOOMgBr$

• One equivalent of Grignard reagent gives a ketone after aqueous workup.
• With excess Grignard reagent, the ketone product can react further to give a tertiary alcohol. Controlling stoichiometry (1 equivalent) and temperature is critical to stop at the ketone stage.
• Strictly anhydrous conditions are required since Grignard reagents react violently with water.

Mechanisms of Acid Anhydride Reactions

Addition-Elimination Pathway (Step by Step)

1. Nucleophilic addition: The nucleophile ($Nu$) attacks one carbonyl carbon, breaking the $C=O$ $\pi$ bond and forming a new $C-Nu$ $\sigma$ bond. This generates the tetrahedral intermediate.
2. Elimination of leaving group: The tetrahedral intermediate collapses as the $C-O$ bond to the carboxylate fragment breaks. The carboxylate anion departs.
3. Proton transfer (if applicable): If the nucleophile carried a proton (as with alcohols or amines), the carboxylate anion can deprotonate the initial product to give the final neutral product.

Tetrahedral Intermediate

• The tetrahedral intermediate has four $\sigma$ bonds around the former carbonyl carbon (now $sp^3$).
• Its stability depends on steric and electronic factors. Bulky groups destabilize it; electron-withdrawing groups on the leaving group side stabilize it by making departure easier.
• The intermediate is transient and not usually isolable, but its formation is the rate-determining step for most anhydride reactions.

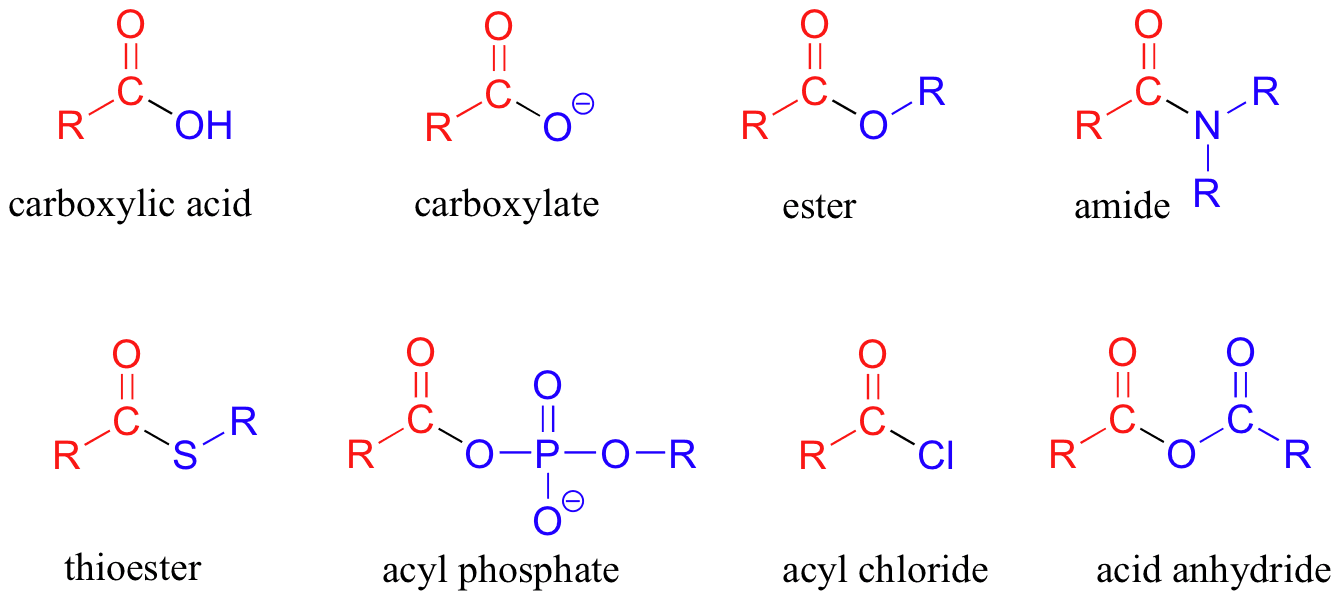

Acid Anhydrides vs. Other Acyl Compounds

Reactivity Comparison

The reactivity order for nucleophilic acyl substitution is:

This ranking reflects how good the leaving group is in each case. Acid chlorides have $Cl^-$ (excellent leaving group), anhydrides have $RCOO^-$ (good, resonance-stabilized), esters have $RO^-$ (moderate), and amides have $NH_2^-$ or $NHR^-$ (poor, strongly basic).

Leaving Group Ability

• The carboxylate anion ($RCOO^-$) is stabilized by resonance across both oxygens, making it a willing leaving group.
• It's a better leaving group than an alkoxide ($RO^-$) from esters because the negative charge is delocalized over two oxygens rather than localized on one.
• It's not as good a leaving group as chloride, which explains why anhydrides are less reactive than acid chlorides but more practical in many cases (less moisture-sensitive, milder byproducts).

Applications of Acid Anhydrides

Industrial Uses

• Aspirin synthesis: Salicylic acid reacts with acetic anhydride to acetylate the phenol group, producing acetylsalicylic acid (aspirin). This is a classic esterification.
• Cellulose acetate: Acetic anhydride acetylates hydroxyl groups on cellulose to produce fibers and plastics.
• Phthalic anhydride is used to make plasticizers (like dioctyl phthalate) for PVC, as well as alkyd resins for paints and coatings.
• Anhydrides also serve as curing agents in epoxy resin systems and as intermediates in dye and pesticide manufacturing.

Synthetic Organic Chemistry

• Anhydrides are commonly used as acylating agents when acid chlorides are too reactive or when you want to avoid $HCl$ as a byproduct.
• Protecting groups: Acetic anhydride can protect alcohols (as acetate esters) and amines (as acetamides) during multi-step syntheses. These protecting groups are later removed under mild conditions.
• Cyclic anhydrides are useful in polymer chemistry (e.g., ring-opening reactions with diols or diamines to build polyesters or polyamides).

Spectroscopic Characterization

IR Spectroscopy

The IR spectrum of an acid anhydride is distinctive because of the two C=O stretching bands:

• Symmetric stretch: ~1800–1830 $cm^{-1}$
• Asymmetric stretch: ~1740–1775 $cm^{-1}$

These two peaks are the hallmark of an anhydride. A C-O-C stretch also appears around 1040–1100 $cm^{-1}$. Critically, anhydrides lack the broad O-H stretch (~2500–3300 $cm^{-1}$) that carboxylic acids show, which makes it straightforward to distinguish between the two.

NMR Spectroscopy

• $^1H$ NMR: The anhydride functional group itself has no protons, so there's no diagnostic peak for it. You'll see signals from the R groups attached to the carbonyls.
• $^{13}C$ NMR: The carbonyl carbons appear around 160–170 ppm. Symmetrical anhydrides show a single carbonyl carbon signal, while unsymmetrical ones show two distinct signals.
• Cyclic anhydrides may show characteristic splitting patterns from the ring protons and carbons.

Environmental and Safety Considerations

Handling and Storage

• Store in tightly sealed containers in a cool, dry location. Moisture causes hydrolysis, degrading the anhydride.
• Always work in a fume hood. Many anhydrides (especially maleic and acetic anhydride) produce irritating or corrosive vapors.
• Wear gloves, safety goggles, and a lab coat. Anhydrides can cause severe burns on skin contact and are harmful if inhaled or ingested.
• Keep away from water, alcohols, amines, and strong bases to prevent uncontrolled exothermic reactions.

Disposal Methods

1. Small quantities: Carefully hydrolyze by slow addition to excess water, then neutralize the resulting carboxylic acid solution to near-neutral pH before disposal.
2. Larger quantities: Collect in appropriate chemical waste containers and arrange for professional hazardous waste disposal.
3. Never pour anhydrides down the drain or into regular trash. Follow your institution's chemical waste guidelines and local environmental regulations.
