6.2 Consolidation tests (oedometer test)

The oedometer test is crucial for understanding soil consolidation and settlement. It measures how soils compress under load, helping engineers predict ground movement. This test simulates real-world conditions, applying pressure to soil samples and measuring their response over time.

Results from oedometer tests provide key soil parameters like compression index and pre-consolidation pressure. These values are essential for designing foundations, estimating settlement, and assessing soil stability. Understanding these concepts is vital for geotechnical engineers tackling real-world construction challenges.

Oedometer Test Procedure

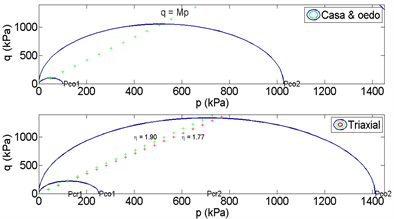

Test Setup and Sample Preparation

• Oedometer test determines consolidation characteristics of fine-grained soils (compressibility and rate of consolidation)
• Test applies incremental vertical loads to soil sample confined laterally in rigid ring
• Allows vertical drainage through porous stones
• Oedometer apparatus includes consolidation cell, loading frame, dial gauge for vertical displacement, and timer for time-settlement data
• Soil sample typically measures 50-75 mm in diameter and 20-25 mm in height
• Thickness-to-diameter ratio of about 1:3 minimizes side friction effects
• Careful sample extraction and preparation crucial to minimize disturbance (undisturbed samples preferred)

Loading and Measurement Process

• Load increments typically doubled for each stage (25, 50, 100, 200 kPa)
• Each load maintained for 24 hours or until primary consolidation completes
• Vertical displacement readings taken at specific time intervals during loading stages
• Captures both primary and secondary consolidation behavior
• Primary consolidation involves expulsion of pore water and particle rearrangement
• Secondary consolidation represents creep behavior of soil skeleton
• Test concludes with unloading phase to assess soil's rebound characteristics
• Unloading phase helps determine overconsolidation ratio (OCR)

Soil Parameters from Oedometer Tests

Compression and Recompression Indices

• Void ratio (e) versus effective stress (σ') relationship plotted on semi-logarithmic scale
• Produces e-log σ' curve used to determine compression and recompression indices
• Compression index (Cc) calculated from slope of virgin compression line on e-log σ' curve
• Cc represents soil's compressibility in normally consolidated range
• Recompression index (Cr) determined from slope of recompression curve
• Cr indicates soil's behavior during unloading and reloading cycles
• Typical values: Cc ranges from 0.1-0.5 for clays, Cr usually 1/5 to 1/10 of Cc

Volume Change and Consolidation Parameters

• Coefficient of volume compressibility (mv) calculated for each load increment
• mv quantifies soil's change in volume per unit increase in effective stress
• Coefficient of consolidation (cv) determined using logarithm of time or square root of time method
• cv represents rate at which consolidation occurs
• Initial void ratio (e0) and specific gravity (Gs) used to calculate volume-mass relationships
• Relationships include porosity and degree of saturation
• Permeability indirectly estimated using cv and mv (k = cv * mv * γw)

Pre-Consolidation Pressure and Consolidation Analysis

Determination and Significance of Pre-Consolidation Pressure

• Pre-consolidation pressure (σ'p) represents maximum effective stress soil experienced in geologic history
• σ'p marks threshold between overconsolidated and normally consolidated states
• Casagrande method commonly used to determine σ'p from e-log σ' curve
• Method identifies point of maximum curvature and constructs tangent and horizontal lines
• Overconsolidation ratio (OCR) calculated as ratio of σ'p to current effective overburden stress
• OCR indicates soil's stress history (OCR > 1: overconsolidated, OCR = 1: normally consolidated)
• σ'p crucial for predicting soil behavior under loading (recompression vs. virgin compression)

Applications in Geotechnical Analysis

• σ'p helps estimate potential settlements in soil deposits
• Soils loaded beyond σ'p experience significantly larger deformations
• Understanding σ'p aids in identifying geological processes affecting soil stress history
• Processes include erosion, glaciation, or groundwater table fluctuations
• σ'p essential in evaluating long-term creep settlements in cohesive soils
• Influences design decisions for foundations, embankments, and excavations
• Helps in assessing potential for differential settlements in variable soil conditions

Oedometer Test Limitations and Errors

Sample Disturbance and Boundary Conditions

• Sample disturbance during extraction, transportation, and preparation affects measured parameters
• Particularly impacts pre-consolidation pressure determination
• Rigid ring constrains lateral deformation, may not accurately represent field conditions
• Especially problematic for soils with significant lateral strain potential (highly plastic clays)
• Applied stress range in laboratory may not fully replicate in-situ stress conditions
• Limitation for deeply buried or highly overconsolidated soils
• One-dimensional consolidation assumption may not be valid for all field situations
• Particularly where significant lateral drainage occurs (stratified deposits)

Measurement and Interpretation Challenges

• Secondary compression effects introduce errors in determining end of primary consolidation
• Affects calculation of consolidation parameters (cv, mv)
• Temperature fluctuations during long-duration tests impact pore water viscosity and soil skeleton behavior
• Can lead to errors in measured parameters, especially for temperature-sensitive clays
• Side friction between soil sample and oedometer ring causes non-uniform stress distribution
• More pronounced for samples with high height-to-diameter ratios
• Interpretation methods (e.g., Casagrande method) involve subjective judgment
• Can lead to variability in determined pre-consolidation pressure among different analysts
