2.2 Soil composition and structure

Soil composition and structure determine how soil behaves under load, how water moves through it, and how well it supports foundations. For geotechnical engineers, understanding what soil is made of and how its particles are arranged is the starting point for predicting performance in any project involving the ground.

This section covers the three phases of soil, how particles arrange themselves into different structures, and why all of that matters for engineering applications.

Soil Components

Primary Soil Phases

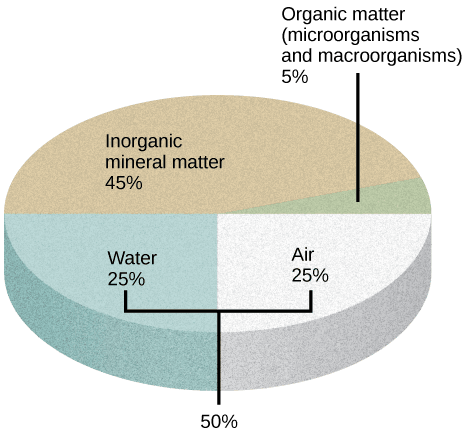

Every soil sample is a mixture of three phases: solid particles, water, and air. The relative proportions of these three phases control nearly every soil property you'll encounter in geotechnical work.

Solid particles are mostly minerals, classified by grain size:

• Sand: 2.0–0.05 mm (visible to the naked eye, gritty texture)
• Silt: 0.05–0.002 mm (feels smooth, like flour)
• Clay: < 0.002 mm (sticky when wet, extremely high surface area)

Organic matter makes up a smaller fraction (typically 1–5% by volume in mineral soils) but punches above its weight. It comes from decomposed plant and animal material and acts as a binding agent that holds aggregates together and improves soil fertility.

Soil water exists in three forms, each behaving differently:

• Gravitational water drains freely downward under gravity. This is the water that flows through soil after a heavy rain.
• Capillary water is held in small pores by surface tension. Plants can access this water, and it influences soil suction.
• Hygroscopic water clings tightly to particle surfaces and is essentially unavailable for drainage or plant use.

Soil air fills whatever pore space water doesn't occupy. In well-drained soils, air typically makes up 15–35% of the total volume. It's needed for root respiration and microbial activity, and its presence (or absence) affects how soil responds to loading.

Soil Fabric and Particle Arrangement

Soil fabric refers to how solid particles and voids are physically arranged within a soil mass. Different soil types naturally develop different fabrics:

• Single-grain arrangements occur in sandy soils, where individual grains sit in contact with each other without bonding.
• Flocculated structures form in clay-rich soils, where particles cluster together in an edge-to-face "card house" pattern. This creates a relatively open structure with high void ratio.
• Honeycomb structures develop in silty soils, where fine grains form arching chains around large void spaces.

Particle orientation matters too. When clay particles align in parallel, the soil behaves differently depending on the direction of loading (this is called anisotropic behavior). Random orientation tends to produce more uniform, isotropic properties.

Two key ratios quantify the pore space in soil:

• Void ratio ($e$): $e = \frac{V_v}{V_s}$, where $V_v$ is the volume of voids and $V_s$ is the volume of solids. This can exceed 1.0 in loose or clay-rich soils.
• Porosity ($n$): $n = \frac{V_v}{V_t}$, where $V_t$ is the total volume. Porosity is always between 0 and 1 (or 0–100%).

These two are related: $n = \frac{e}{1 + e}$. You'll use both frequently in phase relationship problems.

Particle size distribution also influences packing:

• Well-graded soils contain a wide range of particle sizes. Smaller grains fill gaps between larger ones, producing denser packing and fewer voids.
• Poorly-graded (uniform) soils have particles of similar size, leaving more void space and generally lower density.

Soil Structure Types

Common Soil Structure Classifications

Soil structure describes how individual particles group into larger units called aggregates (or "peds"). The shape, size, and arrangement of these aggregates control water flow, root penetration, and mechanical behavior.

• Granular: Small, roughly spherical aggregates. Found in surface soils (A horizons) with high organic matter. This structure promotes good water infiltration and is generally favorable for both agriculture and engineering drainage.
• Blocky: Cube-like aggregates with defined edges. Common in subsoils (B horizons). Can be angular blocky (sharp corners) or subangular blocky (slightly rounded corners). Water and roots can move along the faces between blocks.
• Prismatic: Tall, vertical columns with flat tops. Columnar structure is similar but has rounded tops and is often associated with sodium-affected soils in arid regions. Both types can restrict horizontal water movement because the vertical columns create preferential flow paths downward.

Additional Structure Types and Characteristics

• Platy: Thin, flat, horizontally oriented plates. Often found in compacted soils or E horizons (eluvial layers). Platy structure can seriously impede vertical water movement and root growth because the horizontal plates act like stacked barriers.
• Single-grain: No aggregation at all. Typical of clean sands with very little clay or organic matter. These soils have high permeability but hold very little water.
• Massive: No visible aggregates, but unlike single-grain, the soil is cohesive and dense. Common in compacted soils or C horizons (parent material). Poor for root growth and drainage.
• Crumb: Similar to granular but with more internal porosity within each aggregate. This is the ideal structure for agricultural topsoil because it balances water retention, drainage, and aeration.

Factors Influencing Soil Structure Stability

Several factors determine whether soil aggregates hold together or break apart:

Organic matter is one of the strongest natural binding agents. It coats particles, glues aggregates together, and increases resistance to both erosion and compaction.

Clay mineralogy plays a major role:

• 1:1 clays (like kaolinite) have relatively stable structures because their layers are tightly bonded and don't absorb much water between layers.
• 2:1 clays (like montmorillonite/smectite) can absorb water between their layers, causing significant swelling. This shrink-swell behavior repeatedly disrupts and reforms aggregates.

Environmental cycles shape structure over time:

• Freeze-thaw cycles tend to break aggregates apart.
• Wet-dry cycles can actually promote aggregate formation in some soils as particles are drawn together during drying.

Biological activity is an underappreciated factor. Plant roots create channels and physically bind particles. Earthworms enhance aggregation through burrowing and producing casts. Microbial activity generates organic compounds that act as additional binding agents.

Soil Structure in Engineering

Geotechnical Properties Influenced by Structure

Soil structure directly affects the three properties geotechnical engineers care about most:

• Strength: Shear strength, cohesion, and friction angle all depend on how particles are arranged and bonded. A flocculated clay has different strength characteristics than the same clay with a dispersed fabric.
• Compressibility: Settlement potential and consolidation behavior are tied to how much void space exists and how easily it collapses under load.
• Permeability: Hydraulic conductivity depends on the size, shape, and connectivity of pore spaces, all of which are controlled by structure.

The arrangement of particles and pores also governs how water transmits stress through the soil. This connects directly to effective stress, which is the stress carried by the soil skeleton (total stress minus pore water pressure). Structure determines how pore pressures develop and dissipate.

Well-aggregated soils resist erosion better than soils with degraded structure. When aggregates break down, individual particles are easily transported by water or wind, increasing erodibility. Soils with stable structure also resist compaction more effectively under applied loads.

Engineering Applications and Considerations

Soil structure shows up in nearly every geotechnical design decision:

Foundations: Well-structured soils generally provide higher bearing capacity. If structure degrades over time (from chemical changes, repeated loading, or water exposure), bearing capacity can decrease, potentially causing settlement problems.

Earth structures: Embankments need properly compacted soil with controlled structure for stability. Retaining walls depend on the soil behind them having adequate drainage and predictable lateral pressure, both influenced by structure.

Hazard assessment: Understanding structure helps predict:

• Liquefaction in loose, saturated sands (single-grain structure collapses under cyclic loading)
• Landslides in soils with weak structural integrity
• Differential settlement where structural properties vary across a site

Ground improvement: Many improvement techniques work by deliberately modifying soil structure. Compaction increases density by rearranging particles into a tighter configuration. Chemical stabilization (adding lime or cement) creates new bonds between particles, fundamentally altering the fabric.

Long-term performance: Soil structure isn't static. Weathering breaks it down, repeated loading and unloading cycles alter particle arrangements, and changes in chemistry (pH shifts, chemical exposure) can modify how particles interact. Geotechnical designs need to account for how structure may evolve over the life of a project.

Composition vs Structure

Mineralogical Influences on Structure

The minerals that make up soil particles directly control what kinds of structures can form. Clay minerals are the most influential because of their extremely high surface area and electrical surface charges, which allow particles to attract each other and form aggregates. Quartz-dominated soils (sands) have low surface activity and tend to develop weak or no structural aggregation.

Particle size distribution affects structure too. Well-graded soils develop more complex, interlocking structures because smaller particles wedge between larger ones. Uniformly graded soils form simpler arrangements with less particle interlocking.

Clay content and type determine plasticity and cohesion. Higher clay content generally means stronger aggregate formation. But the type of clay matters just as much: smectite clays (montmorillonite) undergo significant shrink-swell cycles that repeatedly disrupt structure, while kaolinite forms more dimensionally stable aggregates.

The chemical environment of the soil also matters. Soil pH affects the surface charge on clay particles, which changes whether they attract or repel each other. Cation exchange capacity (CEC) influences how strongly particles bind together. Soils with high CEC and abundant multivalent cations (like calcium) tend to flocculate and form stable aggregates, while sodium-dominated soils tend to disperse.

Organic Matter and Environmental Factors

Organic matter acts as both a physical and chemical binding agent. It promotes stable aggregate formation and creates a network of micropores (within aggregates) and macropores (between aggregates) that control water movement and storage.

The interaction between composition and environment determines which structural types develop. Moisture content affects cohesion between particles. Temperature influences the rate of chemical weathering and biological processes that build or destroy structure.

Human activities can significantly alter both composition and structure. Tillage breaks up natural aggregates and disrupts pore networks. On the positive side, adding amendments like lime (raises pH, promotes flocculation) or gypsum (supplies calcium, reduces sodium effects) can improve structural stability.

Biological processes tie composition and structure together. Root exudates (sticky organic compounds released by plant roots) promote aggregation at the microscale. Microbial communities produce polysaccharides and other binding agents that enhance aggregate stability over time.
