4.2 Simultaneous localization and mapping (SLAM)

SLAM is a crucial technology for autonomous vehicles, enabling them to navigate and map unknown environments simultaneously. It combines localization and mapping, solving the chicken-and-egg problem of determining position while creating a map.

SLAM has evolved from early Extended Kalman Filter approaches to modern graph-based and visual methods. It's used in self-driving cars, drones, and robots, providing essential spatial awareness for navigation and decision-making in GPS-denied or unmapped areas.

Fundamentals of SLAM

• SLAM enables autonomous vehicles to navigate and understand their environment without prior knowledge
• Combines localization (determining vehicle position) and mapping (creating a representation of surroundings) simultaneously
• Forms the foundation for various autonomous navigation tasks in robotics and self-driving cars

Definition and purpose

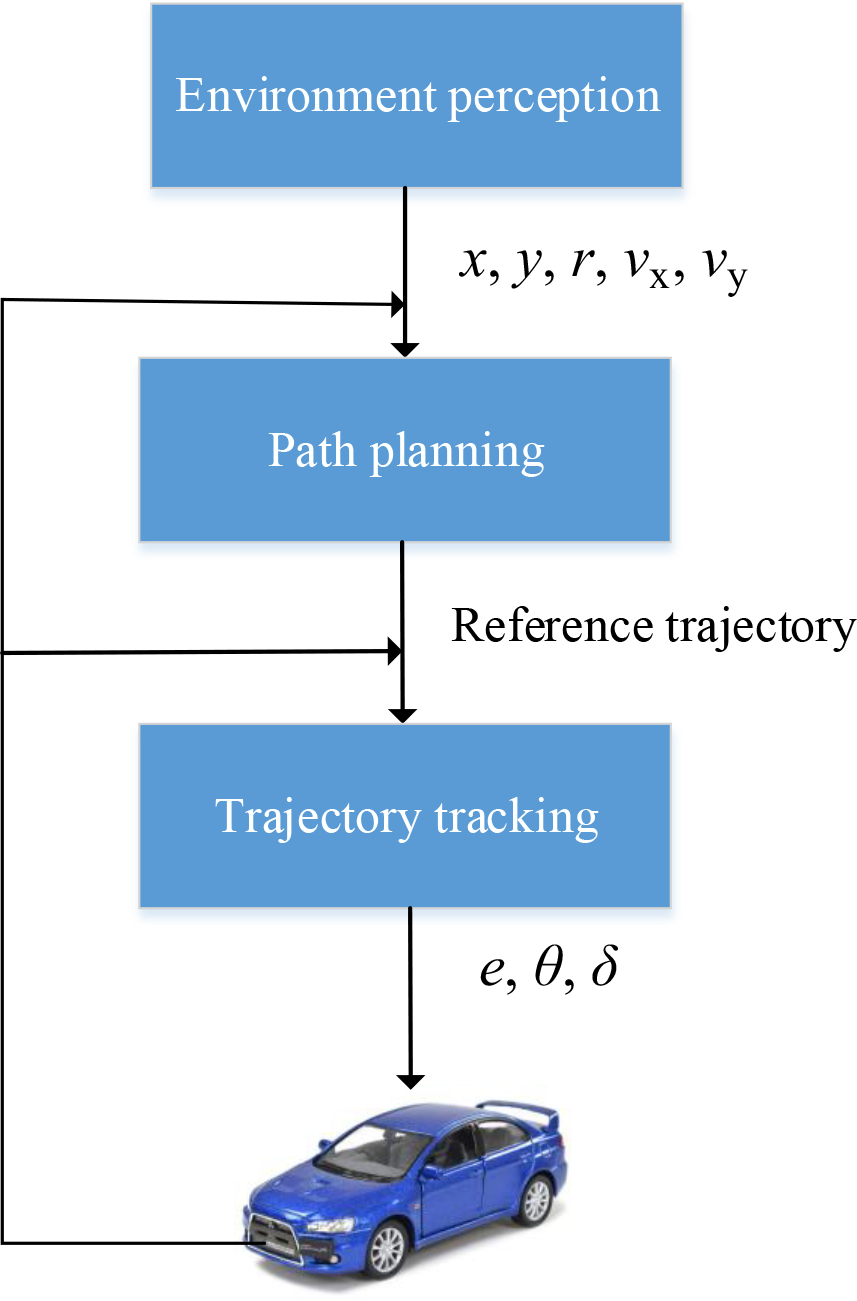

• Simultaneous Localization and Mapping (SLAM) solves the chicken-and-egg problem of mapping an unknown environment while tracking the robot's position
• Allows robots to build and update maps of their surroundings while navigating through them
• Enables autonomous operation in GPS-denied or previously unmapped environments
• Provides crucial spatial awareness for decision-making and path planning in autonomous systems

Historical development

• Originated in the 1980s with work by Hugh Durrant-Whyte and John J. Leonard
• Early approaches relied on Extended Kalman Filters (EKF) for state estimation
• Particle filter-based methods (FastSLAM) emerged in the early 2000s
• Graph-based optimization techniques gained popularity in the late 2000s
• Recent advancements include visual SLAM and deep learning integration

Applications in autonomous vehicles

• Self-driving cars use SLAM for real-time mapping and localization on roads
• Autonomous drones employ SLAM for obstacle avoidance and navigation in 3D spaces
• Robotic vacuum cleaners utilize SLAM for efficient cleaning path planning
• Warehouse robots leverage SLAM for inventory management and navigation
• Augmented reality applications use SLAM for accurate virtual object placement

SLAM algorithms

• SLAM algorithms process sensor data to estimate robot pose and map features simultaneously
• Different approaches balance computational complexity, accuracy, and real-time performance
• Algorithm choice depends on the specific application, environment, and available sensors

Feature-based vs dense methods

• Feature-based methods extract and track distinct landmarks in the environment
  • Computationally efficient and work well in structured environments
  • Struggle in featureless or highly repetitive scenes
• Dense methods use all available sensor data to create detailed maps
  • Provide rich environmental representations
  • Require more computational resources and memory
• Hybrid approaches combine elements of both to balance efficiency and detail

EKF SLAM

• Extended Kalman Filter SLAM uses a probabilistic approach to estimate robot pose and landmark positions
• Maintains a state vector containing robot pose and landmark coordinates
• Updates state estimates using prediction and correction steps
• Assumes Gaussian noise in measurements and motion models
• Computational complexity grows quadratically with the number of landmarks
• Suitable for small-scale environments with limited landmarks

FastSLAM

• Particle filter-based algorithm that addresses the scaling issues of EKF SLAM
• Represents robot pose as a set of particles, each with its own map
• Uses Rao-Blackwellized particle filter to factorize the SLAM problem
• Scales better to larger environments and can handle non-linear motion models
• Requires careful tuning of particle numbers and resampling strategies

Graph-based SLAM

• Represents SLAM problem as a graph optimization problem
• Nodes represent robot poses and landmark positions
• Edges represent constraints between nodes (odometry, loop closures)
• Uses nonlinear optimization techniques to find the best configuration of the graph
• Handles large-scale environments and loop closures effectively
• Popular implementations include g2o and GTSAM frameworks

Sensors for SLAM

• Sensor selection impacts SLAM performance, accuracy, and environmental suitability
• Different sensor types provide complementary information for robust SLAM systems
• Sensor fusion techniques combine data from multiple sources for improved results

LiDAR vs cameras

• LiDAR (Light Detection and Ranging) provides accurate depth measurements
  • Works well in low-light conditions and outdoor environments
  • Generates sparse point clouds that require additional processing
  • Higher cost and power consumption compared to cameras
• Cameras offer rich visual information and texture details
  • More affordable and compact than LiDAR sensors
  • Struggle in low-light conditions and with featureless surfaces
  • Require complex algorithms for depth estimation in monocular setups
• Hybrid systems combine LiDAR and cameras for comprehensive environmental sensing

Inertial measurement units

• IMUs provide high-frequency motion data (acceleration and angular velocity)
• Help bridge gaps between other sensor measurements
• Improve short-term pose estimation accuracy
• Suffer from drift over time due to error accumulation
• Often combined with visual or LiDAR SLAM for improved robustness

Sensor fusion techniques

• Kalman filter-based fusion combines data from multiple sensors probabilistically
• Factor graph approaches integrate different sensor measurements as constraints
• Deep learning methods learn optimal fusion strategies from data
• Tight coupling integrates raw sensor data, while loose coupling fuses pre-processed outputs
• Sensor synchronization and calibration crucial for accurate fusion results

Map representation

• Map representation affects memory usage, computational efficiency, and decision-making capabilities
• Different representations suit various environments and navigation tasks
• Choice of map type influences localization accuracy and path planning strategies

Occupancy grid maps

• Discretize space into cells, each representing occupancy probability
• Suitable for 2D environments and some 3D applications
• Efficient for obstacle avoidance and path planning
• Memory-intensive for large or high-resolution environments
• Updates easily with new sensor measurements
• Struggle to represent fine details or dynamic objects

Topological maps

• Represent environment as a graph of nodes and edges
• Nodes correspond to distinct places or landmarks
• Edges represent traversable paths between nodes
• Compact representation suitable for large-scale navigation
• Enable efficient path planning and qualitative reasoning
• Less precise for local navigation compared to metric maps
• Often combined with local metric maps for hierarchical representation

Landmark-based maps

• Represent environment as a set of distinct features or landmarks
• Suitable for feature-rich environments (urban areas, indoor spaces)
• Compact representation compared to dense maps
• Enable efficient loop closure detection
• Require robust feature extraction and matching algorithms
• May struggle in featureless or highly repetitive environments
• Often used in visual SLAM systems

Loop closure

• Loop closure detects when a robot revisits a previously mapped area
• Critical for correcting accumulated errors and maintaining map consistency
• Enables global map optimization and improved localization accuracy

Importance in SLAM

• Reduces drift in odometry and mapping over long trajectories
• Enables correction of global map inconsistencies
• Improves overall accuracy of both localization and mapping
• Allows for creation of globally consistent maps in large-scale environments
• Crucial for long-term autonomy and persistent mapping applications

Detection methods

• Appearance-based methods compare visual features or descriptors
  • Bag-of-Words models for efficient image matching
  • Deep learning-based place recognition techniques
• Geometric methods analyze spatial relationships between landmarks
  • ICP (Iterative Closest Point) for point cloud alignment
  • RANSAC-based outlier rejection for robust matching
• Probabilistic approaches consider uncertainty in measurements and matches
• Hybrid methods combine multiple techniques for improved robustness

Pose graph optimization

• Formulates loop closure as a graph optimization problem
• Nodes represent robot poses at different time steps
• Edges represent odometry constraints and loop closure detections
• Nonlinear optimization minimizes the error in the graph configuration
• Popular algorithms include Levenberg-Marquardt and Gauss-Newton methods
• Sparse matrix techniques enable efficient optimization of large graphs
• Results in globally consistent trajectory and map estimates

Challenges in SLAM

• SLAM faces various challenges that impact its reliability and performance
• Ongoing research addresses these issues to improve SLAM systems
• Practical implementations must balance accuracy, efficiency, and robustness

Data association

• Matching observations to existing map features or landmarks
• Critical for accurate mapping and loop closure detection
• Challenges include perceptual aliasing and dynamic objects
• Robust methods use probabilistic approaches and multi-hypothesis tracking
• Feature descriptors and geometric consistency checks improve matching accuracy
• Machine learning techniques show promise in handling ambiguous associations

Computational complexity

• SLAM algorithms can be computationally intensive, especially for large-scale environments
• Real-time performance crucial for many autonomous navigation applications
• Challenges in balancing accuracy and computational efficiency
• Approaches include:
  • Sparse optimization techniques
  • Keyframe-based methods to reduce processed data
  • Hierarchical representations for efficient large-scale mapping
• Hardware acceleration (GPUs, FPGAs) helps achieve real-time performance

Dynamic environments

• Most SLAM algorithms assume static environments, leading to issues with moving objects
• Challenges include:
  • Distinguishing between static and dynamic features
  • Handling temporarily static objects (parked cars)
  • Mapping in crowded or highly dynamic scenes
• Solutions involve:
  • Motion segmentation techniques
  • Dynamic object tracking and removal from maps
  • Probabilistic approaches to handle uncertain static/dynamic classifications
• Semantic SLAM integrates object recognition to improve robustness in dynamic scenes

Visual SLAM

• Visual SLAM uses camera images as the primary sensor input
• Enables SLAM in environments where other sensors (LiDAR) may be impractical
• Provides rich environmental information for mapping and localization

Monocular vs stereo vision

• Monocular SLAM uses a single camera
  • Compact and low-cost hardware setup
  • Suffers from scale ambiguity in reconstruction
  • Requires special initialization and scale recovery techniques
• Stereo SLAM uses two cameras with known baseline
  • Provides direct depth estimation for features
  • Overcomes scale ambiguity issue of monocular systems
  • Requires careful calibration and synchronization of cameras
  • Limited depth perception range based on baseline distance

Feature extraction and matching

• Detect salient points or regions in images (corners, blobs)
  • Popular detectors include FAST, Harris corner, and SIFT
• Compute descriptors for detected features
  • Binary descriptors (BRIEF, ORB) for efficiency
  • Floating-point descriptors (SIFT, SURF) for robustness
• Match features across frames using descriptor similarity
  • Nearest neighbor search with ratio test for outlier rejection
  • RANSAC-based geometric verification for robust matching
• Track features over multiple frames for consistent mapping

Visual odometry

• Estimates camera motion from sequential image frames
• Key component in visual SLAM for local trajectory estimation
• Steps include:
  • Feature detection and matching between consecutive frames
  • Estimating relative pose using epipolar geometry
  • Minimizing reprojection error for refined pose estimation
• Integrates with mapping and loop closure for complete SLAM system
• Challenges include dealing with fast motion, motion blur, and featureless regions

LiDAR SLAM

• LiDAR SLAM uses 3D point cloud data for mapping and localization
• Provides accurate depth measurements and works well in various lighting conditions
• Enables precise 3D reconstruction of environments

Point cloud processing

• Filtering and downsampling to reduce noise and data size
  • Voxel grid filtering for uniform point density
  • Statistical outlier removal for noise reduction
• Feature extraction from point clouds
  • Edge and planar feature detection
  • Normal estimation for surface characterization
• Segmentation techniques to identify distinct objects or surfaces
  • Region growing algorithms
  • RANSAC-based plane and cylinder detection

Scan matching techniques

• ICP (Iterative Closest Point) aligns consecutive point cloud scans
  • Point-to-point and point-to-plane variants
  • Challenges include local minima and slow convergence
• NDT (Normal Distributions Transform) represents surface as a combination of normal distributions
  • Faster convergence compared to ICP in many cases
  • Works well for both sparse and dense point clouds
• Feature-based matching using extracted edge and planar features
  • Efficient for real-time applications
  • Robust to partial occlusions and dynamic objects

3D map construction

• Accumulation of aligned point cloud scans
• Voxel-based occupancy mapping for efficient representation
• Mesh reconstruction for surface-based maps
  • Poisson surface reconstruction
  • Marching cubes algorithm
• Octree-based representations for multi-resolution mapping
• Integration of semantic information for object-level mapping

SLAM in GPS-denied environments

• SLAM enables navigation in areas where GPS signals are unavailable or unreliable
• Critical for autonomous systems operating in challenging environments
• Relies heavily on local sensing and map building for localization

Indoor navigation

• Challenges include lack of GPS, complex structures, and dynamic obstacles
• WiFi fingerprinting combines with SLAM for improved localization
• Visual markers (QR codes) aid in initial localization and loop closure
• IMU integration crucial for smooth trajectory estimation
• Map representations often combine 2D occupancy grids with 3D feature maps

Underground and underwater applications

• Limited visibility and lack of distinct visual features
• Sonar-based SLAM for underwater environments
  • Acoustic image processing for feature extraction
  • Challenges in dealing with sound velocity variations
• LiDAR-based SLAM for underground mines and tunnels
  • Robust to dust and low-light conditions
  • Scan matching in repetitive tunnel structures

Urban canyons

• High-rise buildings block or reflect GPS signals
• Multi-path effects cause inaccurate GPS readings
• Visual SLAM using building facades as landmarks
• Integration of inertial sensors for short-term localization
• Map matching techniques to align SLAM results with existing city maps

Real-time SLAM

• Real-time performance crucial for autonomous navigation and decision-making
• Balances accuracy and computational efficiency
• Enables reactive behavior in dynamic environments

Computational efficiency

• Algorithmic optimizations to reduce complexity
  • Sparse matrix operations in graph optimization
  • Efficient feature detection and matching algorithms
• Data structure optimizations for fast access and updates
  • KD-trees for nearest neighbor search
  • Octrees for efficient spatial queries
• Trade-offs between map resolution and update frequency

Parallel processing

• Multi-threading to utilize multi-core CPUs
  • Separate threads for sensing, mapping, and localization
  • Load balancing to maximize CPU utilization
• Distributed SLAM for multi-robot systems
  • Centralized vs decentralized architectures
  • Challenges in data synchronization and consistency

GPU acceleration

• Offloading computationally intensive tasks to GPUs
  • Feature detection and matching
  • Point cloud processing and registration
• CUDA and OpenCL frameworks for GPU programming
• Challenges in memory transfer overhead between CPU and GPU
• Specialized embedded GPUs for mobile robotics applications

SLAM evaluation metrics

• Quantitative measures to assess SLAM system performance
• Enable comparison between different algorithms and implementations
• Guide improvements and optimizations in SLAM systems

Accuracy and precision

• Absolute Trajectory Error (ATE) measures overall position drift
• Relative Pose Error (RPE) evaluates local accuracy
• Map consistency metrics compare built maps to ground truth
• Loop closure accuracy assesses the ability to detect and correct loops
• Scale drift evaluation for monocular SLAM systems

Computational performance

• Runtime analysis for real-time capability assessment
• Memory usage profiling for resource-constrained platforms
• Scalability evaluation with increasing map size and trajectory length
• Sensor processing latency and its impact on overall performance
• Benchmarking on standard datasets (KITTI, EuRoC) for fair comparisons

Robustness and reliability

• Performance under varying environmental conditions (lighting, weather)
• Resilience to sensor noise and calibration errors
• Handling of dynamic objects and scene changes
• Recovery from localization failures or mapping errors
• Long-term stability in persistent mapping scenarios

Future trends in SLAM

• Ongoing research pushes the boundaries of SLAM capabilities
• Integration with other AI technologies for more intelligent systems
• Focus on robustness, scalability, and semantic understanding

Deep learning integration

• End-to-end SLAM systems trained on large datasets
• Improved feature detection and matching using neural networks
• Learning-based loop closure detection for increased robustness
• Uncertainty estimation in deep SLAM for improved reliability
• Transfer learning for adaptation to new environments

Semantic SLAM

• Incorporating object recognition and scene understanding
• Building maps with semantic labels and object-level representations
• Improved data association using semantic information
• Enables high-level reasoning and task planning for autonomous systems
• Challenges in real-time performance and generalization to unknown objects

Collaborative multi-robot SLAM

• Distributed SLAM algorithms for robot teams
• Efficient map merging and consistency maintenance
• Communication protocols for data sharing in bandwidth-limited scenarios
• Heterogeneous robot teams with complementary sensing capabilities
• Applications in search and rescue, exploration, and large-scale mapping
