Audio connections can make or break your sound quality. Balanced connections use three conductors to reject interference, making them ideal for pro setups and long cable runs. Unbalanced connections, with two conductors, work well for shorter distances and consumer gear.
Understanding these differences is crucial for proper gain staging and signal flow. Balanced connections offer better noise rejection and can transmit signals over longer distances without degradation. This knowledge helps you choose the right connections for your audio setup.
Balanced vs Unbalanced Connections
Key Differences and Applications
Top images from around the web for Key Differences and Applications
Balanced / Unbalanced Audio Cables - PEDAL POINT SOUND View original
Is this image relevant?
Balanced / Unbalanced Audio Cables - PEDAL POINT SOUND View original
Is this image relevant?
Balanced / Unbalanced Audio Cables - PEDAL POINT SOUND View original
Is this image relevant?
Balanced / Unbalanced Audio Cables - PEDAL POINT SOUND View original
Is this image relevant?
Balanced / Unbalanced Audio Cables - PEDAL POINT SOUND View original
Is this image relevant?
1 of 3
Top images from around the web for Key Differences and Applications
Balanced / Unbalanced Audio Cables - PEDAL POINT SOUND View original
Is this image relevant?
Balanced / Unbalanced Audio Cables - PEDAL POINT SOUND View original
Is this image relevant?
Balanced / Unbalanced Audio Cables - PEDAL POINT SOUND View original
Is this image relevant?
Balanced / Unbalanced Audio Cables - PEDAL POINT SOUND View original
Is this image relevant?
Balanced / Unbalanced Audio Cables - PEDAL POINT SOUND View original
Is this image relevant?
1 of 3
Balanced connections utilize three conductors
Two for audio signal (positive and negative)
One for ground
Unbalanced connections employ two conductors
One for signal
One for ground
Primary distinction lies in EMI/RFI rejection capability
Enhanced dynamic range (wider range between quietest and loudest sounds)
Superior protection against ground loops
Reduces audible hum and buzz in audio systems
Better overall signal integrity
Clearer and more accurate audio reproduction
Reduced distortion and noise artifacts
Professional Applications
Widely used in professional audio environments
Recording studios (for connecting microphones, preamps, and other gear)
Live sound reinforcement (for long cable runs on stage)
Broadcast facilities (for maintaining signal quality over complex routing)
Essential for maintaining audio quality in complex setups
Multiple interconnected devices
Long cable runs between equipment
Allows for flexible equipment placement
Reduced concern about interference from nearby electronic devices
Supports higher signal levels without degradation
Professional line-level signals (+4 dBu)
Maintains headroom for dynamic audio content
Connectors for Balanced and Unbalanced Signals

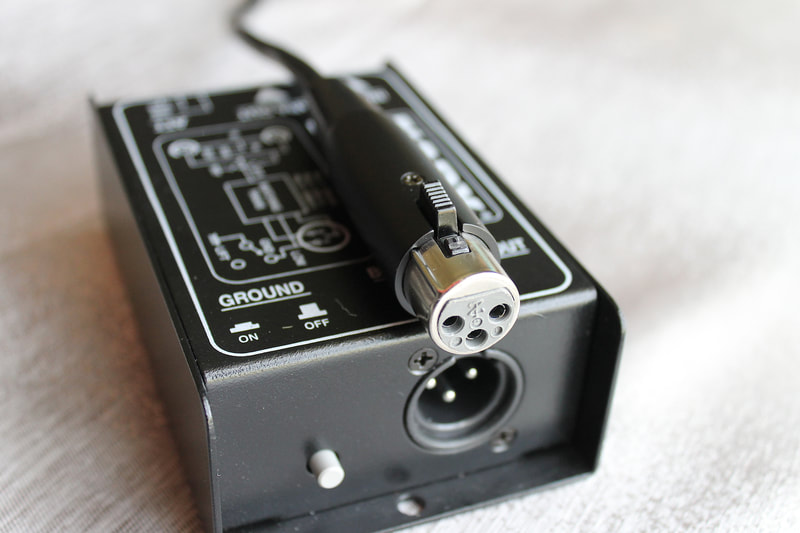

Balanced Connectors
connectors
Most common balanced connector type
Three pins (positive, negative, ground)
Locking mechanism for secure connections
Widely used for microphones and professional audio gear
TRS (Tip-Ring-Sleeve) connectors
Also known as balanced 1/4-inch connectors
Can be used for both balanced and unbalanced connections
Wiring configuration determines balanced or unbalanced use
Common in professional audio interfaces and mixing consoles
DB25 connectors
Multi-channel balanced connectors
Used in professional audio installations
Carry multiple balanced signals in a single cable
Often found on recording interfaces and patch bays
Unbalanced Connectors
TS (Tip-Sleeve) connectors
Unbalanced 1/4-inch connectors
Commonly used for instrument cables (guitars, keyboards)
Also found in some consumer audio equipment
RCA connectors
Widely used in consumer audio equipment
Typically carry line-level signals
Common in home stereo systems and DJ equipment
Mini-jack (3.5mm) connectors
Unbalanced connectors used in consumer devices
Found in smartphones, laptops, and portable audio players
Also used for headphones and some microphones
Troubleshooting Connection Issues
Common Problems and Solutions
Phase cancellation
Occurs when balanced and unbalanced connections improperly mixed
Results in thin or hollow sound
Inverted signal combines with non-inverted signal
Solution: Ensure proper wiring and signal flow between balanced and unbalanced equipment
Ground loops
Form when multiple devices have different ground potentials
Causes audible hum or buzz in audio signal
Solution: Use balanced connections, ground lift adapters, or power conditioning
Impedance mismatching
Occurs between balanced and unbalanced equipment
Leads to signal loss, distortion, or altered frequency response
Solution: Use appropriate impedance matching transformers or direct boxes
Signal degradation in long unbalanced runs
Results in increased susceptibility to interference
Solution: Switch to balanced connections for longer cable runs
Incorrect balanced connector wiring
Swapping hot and cold pins leads to out-of-phase signals
Potential equipment damage
Solution: Double-check wiring and use cable testers to verify correct pin configuration
Systematic Troubleshooting Approach
Check cable integrity
Inspect cables for physical damage
Use cable testers to verify continuity and proper wiring
Verify proper grounding
Ensure all equipment is properly grounded
Check for ground loops using a voltmeter
Confirm correct matching of balanced and unbalanced equipment
Use appropriate adapters or transformers when necessary
Isolate problem areas
Systematically disconnect and reconnect equipment
Identify specific components causing issues
Use proper cable management
Separate audio cables from power cables
Minimize cable length to reduce potential interference
Consider using diagnostic tools
Audio analyzers to measure signal quality
Oscilloscopes to visualize waveforms and identify distortion
Key Terms to Review (18)
1/4 inch TRS: 1/4 inch TRS (Tip-Ring-Sleeve) is a type of audio connector commonly used for balanced audio signals in professional audio equipment. It features three contacts: the tip carries the left audio signal, the ring carries the right audio signal or the return path, and the sleeve is the ground. This design helps to reduce noise and interference, making it essential for connecting microphones, instruments, and mixers in a studio or live sound setting.
AES/EBU: AES/EBU is a digital audio interface standard developed by the Audio Engineering Society (AES) and the European Broadcasting Union (EBU) for transmitting uncompressed digital audio signals over balanced connections. It ensures high-quality audio transfer, making it essential in professional audio settings where reliability and fidelity are critical. AES/EBU connections are commonly used to connect various audio equipment, allowing for seamless integration in both live sound and studio environments.
Audio interface: An audio interface is a hardware device that connects microphones, instruments, and other audio sources to a computer for recording and playback. It converts analog signals into digital data for processing in a computer and allows for the monitoring of audio signals in real time.
Cable Length: Cable length refers to the physical measurement of audio cables used for connecting various audio equipment. It plays a crucial role in determining the quality of sound transmission, particularly in the context of balanced and unbalanced connections, where longer cables can introduce more noise and signal degradation.
Cable Length Limitations: Cable length limitations refer to the maximum distance that audio and data signals can travel through cables before experiencing significant loss of quality or integrity. This concept is particularly important when distinguishing between balanced and unbalanced connections, as each type of connection exhibits different performance characteristics over varying distances, impacting overall sound fidelity and reliability in audio systems.
Cost differences: Cost differences refer to the variations in price associated with balanced and unbalanced connections in audio production and recording. Understanding these differences is crucial, as balanced connections often involve higher costs due to their complex design and materials, which lead to better sound quality and reduced interference compared to unbalanced connections. This knowledge helps in making informed decisions about equipment and wiring in a studio environment.
High Impedance: High impedance refers to a state where an electrical circuit or device exhibits a high resistance to the flow of electrical current. In audio and recording contexts, high impedance can significantly affect how signals are transmitted through cables and connections, impacting signal quality and noise levels. Understanding high impedance is essential for effectively utilizing balanced and unbalanced connections in audio systems, as it helps determine compatibility with various equipment and the potential for signal degradation.
Interference Immunity: Interference immunity refers to the ability of a system, particularly in audio and electronic contexts, to resist unwanted signals or noise that can disrupt the intended signals. This is crucial for maintaining signal integrity in various connections, specifically when comparing balanced and unbalanced connections, as balanced connections generally offer higher levels of interference immunity due to their design and wiring configurations.
Limited Distance: Limited distance refers to the maximum effective range for transmitting audio signals before signal degradation occurs, which is particularly important in distinguishing between balanced and unbalanced connections. This concept is crucial because it impacts how far you can place equipment from each other while maintaining audio quality. In audio systems, limited distance often determines the choice of connection type based on the requirements for noise reduction and signal integrity over various lengths of cable.
Low Impedance: Low impedance refers to a condition in electrical circuits where the resistance to current flow is relatively low, allowing for more efficient signal transmission. In the context of audio and recording, low impedance is crucial as it influences the compatibility and performance of various devices, especially when distinguishing between balanced and unbalanced connections. Low impedance connections are often used in professional audio settings, where they help minimize noise and signal loss over longer cable runs.
Noise Reduction: Noise reduction refers to the techniques and processes used to minimize unwanted ambient sounds that can interfere with audio recordings. It plays a critical role in achieving clear sound quality, as background noise can significantly detract from the listener's experience. Effective noise reduction helps in distinguishing the desired audio signals from the extraneous sounds, thereby improving the overall clarity and fidelity of recordings.
Patch Bay: A patch bay is a centralized hub used in audio systems to connect various audio sources and destinations using patch cables. It allows for flexible routing of audio signals, making it easier to organize connections in recording studios or live sound setups. By providing a visual interface for managing audio paths, patch bays simplify the process of connecting balanced and unbalanced lines, which is crucial for maintaining sound quality and reducing interference.
Return: In audio production, a return refers to the pathway that sends a signal back to the mixing console or audio interface after processing through effects or external devices. This is crucial for creating dynamic soundscapes, as it allows producers to apply effects and then blend them back into the mix, giving control over how much of the processed signal is heard.
S/PDIF: S/PDIF, or Sony/Philips Digital Interface, is a standard for transmitting digital audio signals between devices using either coaxial or optical cables. It allows for the transfer of high-quality audio data without the interference that can occur in analog signals, making it an essential component in both consumer and professional audio setups. S/PDIF is crucial for understanding how digital and analog signals interact, as well as how devices synchronize their clocks for optimal performance.
Send: In audio production, a 'send' refers to the process of routing a portion of an audio signal from one source to another destination, often for the purpose of applying effects or processing. Sends are essential for creating complex soundscapes and managing signal flow, as they allow producers to blend various effects like reverb or delay without altering the original audio track permanently.
Shielding: Shielding refers to the protective measures taken to prevent electromagnetic interference (EMI) from affecting audio signals in cables and connectors. This is crucial when working with balanced and unbalanced connections, as proper shielding helps maintain audio integrity by reducing noise and hum that can corrupt the signal during transmission.
Signal Degradation: Signal degradation refers to the deterioration of a signal's quality as it travels through a medium, which can lead to a loss of information and clarity. This is especially important in audio and video transmission where preserving the integrity of the original signal is crucial. Factors such as distance, interference, and the type of connection used can significantly affect how much degradation occurs.
XLR: XLR is a type of electrical connector widely used in professional audio, video, and stage lighting applications. This connector features three pins and is designed for balanced audio connections, which helps to reduce noise and interference in signal transmission. Its robust design and locking mechanism make it a popular choice for connecting microphones, mixers, and other audio equipment in studio and live settings.
