are crucial in molecular electronics. To understand their properties and behavior, scientists use various characterization techniques like microscopy, spectroscopy, and surface analysis methods.
These techniques help researchers examine SAM structure, composition, and electrical properties. From atomic-level imaging to probing molecular orientation, these tools provide valuable insights into SAM formation and function in electronic devices.
Microscopy Techniques
Scanning Probe Microscopy
Top images from around the web for Scanning Probe Microscopy
Frontiers | Atomic Force Microscopy (AFM) As a Surface Mapping Tool in Microorganisms Resistant ... View original
Is this image relevant?
Atomic force microscope - Simple English Wikipedia, the free encyclopedia View original
Is this image relevant?
Frontiers | Atomic Force Microscopy (AFM) As a Surface Mapping Tool in Microorganisms Resistant ... View original
Is this image relevant?
Atomic force microscope - Simple English Wikipedia, the free encyclopedia View original
Is this image relevant?
1 of 2
Top images from around the web for Scanning Probe Microscopy
Frontiers | Atomic Force Microscopy (AFM) As a Surface Mapping Tool in Microorganisms Resistant ... View original
Is this image relevant?
Atomic force microscope - Simple English Wikipedia, the free encyclopedia View original
Is this image relevant?
Frontiers | Atomic Force Microscopy (AFM) As a Surface Mapping Tool in Microorganisms Resistant ... View original
Is this image relevant?
Atomic force microscope - Simple English Wikipedia, the free encyclopedia View original
Is this image relevant?
1 of 2
provides high-resolution images of surfaces at the atomic level
Utilizes a sharp conducting tip that scans over the surface
Measures the tunneling current between the tip and the surface
Sensitive to the electronic structure and topography of the surface
Requires conductive substrates and ultra-high vacuum conditions

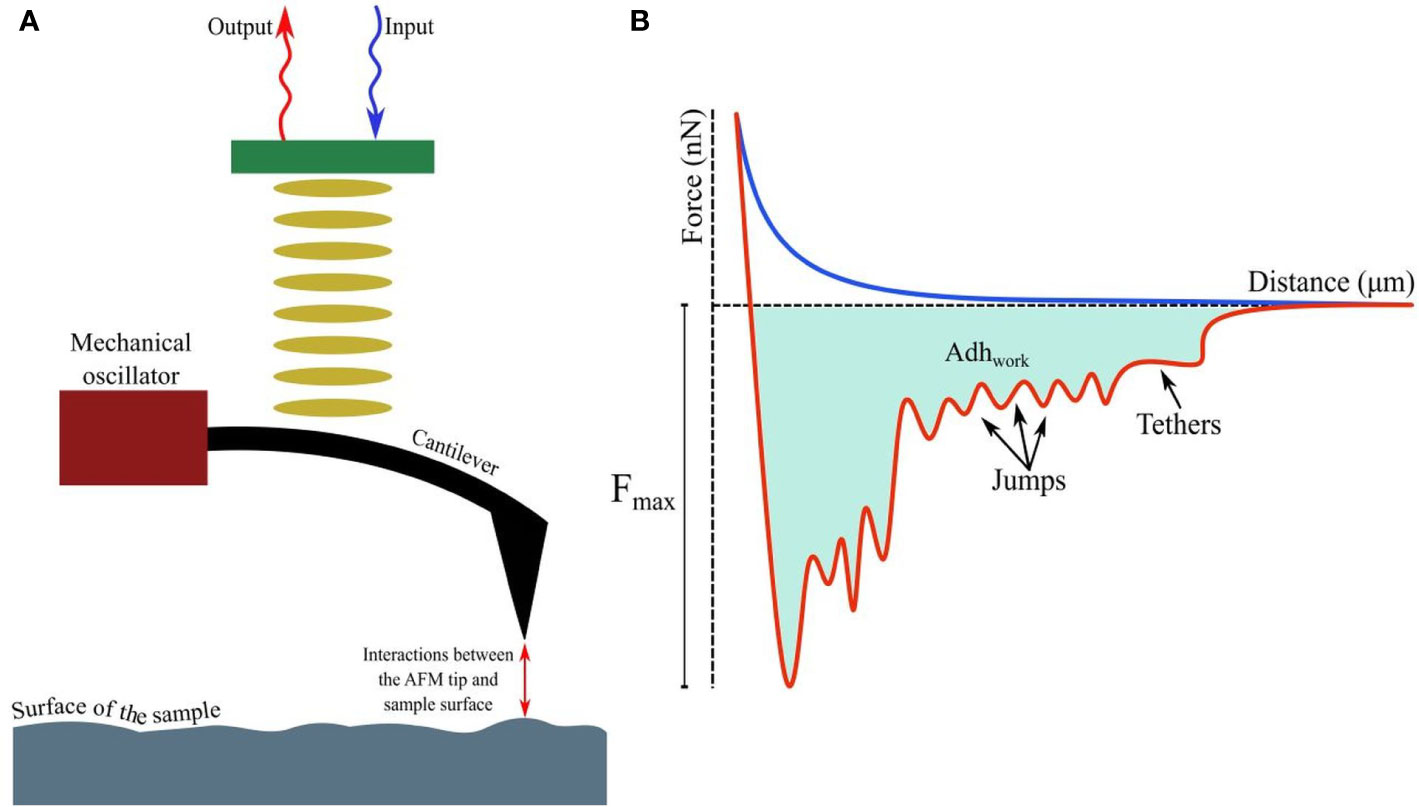

maps the topography and mechanical properties of surfaces
Uses a cantilever with a sharp tip that interacts with the surface through force interactions
Measures the deflection of the cantilever as it scans over the surface
Can operate in contact, non-contact, or tapping mode
Provides nanometer-scale resolution and can be used on a variety of surfaces (conductive and non-conductive)
Spectroscopic Methods
Surface Composition Analysis
determines the elemental composition and chemical state of surfaces
Irradiates the surface with X-rays, causing the emission of photoelectrons
Measures the kinetic energy and number of photoelectrons emitted
Provides quantitative information about the elemental composition and oxidation states
Probes the top few nanometers of the surface
Infrared spectroscopy investigates the molecular structure and orientation of SAMs
Utilizes infrared light to excite vibrational modes of molecules
Techniques include and polarization modulation-infrared reflection-absorption spectroscopy (PM-IRRAS)
Provides information about the presence of functional groups, molecular orientation, and packing density
Sensitive to the molecular structure and ordering of SAMs
Surface Characterization
Optical and Mass-Sensitive Techniques
Contact angle measurements assess the wettability and surface energy of SAMs
Measures the angle formed between a liquid droplet and the surface
Provides information about the /hydrophilicity of the surface
Reflects the chemical composition and packing density of the SAM
Higher contact angles indicate more hydrophobic surfaces
determines the thickness and optical properties of thin films
Measures the change in polarization of light upon reflection from the surface
Provides information about the thickness, refractive index, and absorption coefficient of the SAM
Non-destructive technique with high precision and accuracy
monitors the mass changes on surfaces
Uses a piezoelectric quartz crystal oscillator coated with the SAM
Measures the change in resonance frequency of the crystal due to mass adsorption or desorption
Provides real-time monitoring of SAM formation and subsequent interactions
Sensitive to mass changes in the nanogram range
Electrochemical Analysis
Electrochemical Characterization Techniques
Electrochemical techniques probe the electrical properties and redox behavior of SAMs
studies the redox processes and charge transfer at the SAM-modified electrode
Applies a varying potential to the electrode and measures the resulting current
Provides information about the redox potentials, electron transfer kinetics, and surface coverage
investigates the interfacial properties and charge transfer resistance
Applies a small-amplitude alternating potential and measures the impedance response
Provides information about the capacitance, resistance, and dielectric properties of the SAM
measures the current response over time upon application of a potential step
Useful for studying the kinetics of electron transfer and mass transport processes
These techniques offer insights into the barrier properties, defects, and permeability of SAMs
Key Terms to Review (18)
Atomic Force Microscopy (AFM): Atomic Force Microscopy (AFM) is a high-resolution imaging technique that allows for the visualization of surfaces at the atomic scale by measuring the forces between a sharp tip and the sample. AFM is crucial in analyzing the structure and properties of materials, particularly in the context of molecular electronics, as it provides detailed insights into molecule-electrode interfaces, self-assembled monolayers (SAMs), and surface chemistry.
Biocompatibility: Biocompatibility refers to the ability of a material to interact with biological systems without eliciting an adverse reaction. This characteristic is crucial when designing materials for medical devices and electronic applications, as it ensures that they can function effectively within the body and promote healing without causing inflammation or toxicity.
Chronoamperometry: Chronoamperometry is an electrochemical technique used to measure the current response of a system as a function of time after a potential step is applied. This method allows researchers to investigate the kinetics of electrochemical reactions, particularly at modified surfaces such as self-assembled monolayers (SAMs), where it can reveal information about charge transfer and diffusion processes.
Contact angle measurement: Contact angle measurement is a technique used to quantify the wettability of a surface by measuring the angle formed at the three-phase contact line where a liquid droplet meets a solid surface. This measurement is important in understanding surface properties and interactions, as it provides insights into how molecules adhere to surfaces and how self-assembled monolayers (SAMs) form and behave.
Cyclic voltammetry (CV): Cyclic voltammetry (CV) is an electrochemical technique used to study the redox behavior of chemical species by applying a varying potential to an electrode and measuring the resulting current. This method allows for the characterization of self-assembled monolayers (SAMs) by revealing information about electron transfer kinetics and thermodynamics, which are crucial for understanding their properties and applications in molecular electronics.
Electrical Conductivity: Electrical conductivity is a measure of a material's ability to conduct electric current, indicating how easily electrons can flow through it. This property is crucial in various applications, particularly in molecular electronics, where understanding how molecules and materials facilitate or impede electrical flow can determine device performance. Analyzing electrical conductivity helps in characterizing self-assembled monolayers (SAMs) and in developing hybrid fabrication methods for molecular electronic devices.
Electrochemical impedance spectroscopy (EIS): Electrochemical impedance spectroscopy (EIS) is a powerful analytical technique used to study the electrochemical properties of materials and interfaces by measuring the impedance of a system over a range of frequencies. It provides insights into various electrochemical processes, such as charge transfer, diffusion, and the behavior of surface modifications like self-assembled monolayers (SAMs). By analyzing the resulting data, researchers can gain valuable information about the kinetics and mechanisms involved in electrochemical reactions.
Ellipsometry: Ellipsometry is an optical technique used to measure the thickness and optical properties of thin films by analyzing the change in polarization as light reflects off a surface. This method provides precise information about the film's characteristics, such as refractive index and extinction coefficient, making it valuable for studying self-assembled monolayers (SAMs) and other thin film applications.
Fourier Transform Infrared Spectroscopy (FTIR): Fourier Transform Infrared Spectroscopy (FTIR) is an analytical technique used to identify organic and inorganic compounds by measuring their infrared absorption spectra. This method provides a fingerprint of the molecular composition of a sample, allowing researchers to characterize surface-anchored molecules in Self-Assembled Monolayers (SAMs) and study their chemical structure and interactions.
Head-group chemistry: Head-group chemistry refers to the study of the functional groups located at the terminus of self-assembled monolayers (SAMs) that interact with substrates or other molecules. These head-groups play a crucial role in determining the properties and stability of SAMs, influencing characteristics such as binding affinity, molecular orientation, and surface reactivity. Understanding head-group chemistry is essential for optimizing SAM design for various applications in molecular electronics and nanotechnology.
Hydrophobicity: Hydrophobicity refers to the tendency of a substance to repel water or avoid interaction with water molecules. This property is crucial in molecular interactions and surfaces, influencing phenomena like self-assembly in materials and the behavior of biomolecules in aqueous environments. Understanding hydrophobicity helps in designing and characterizing surfaces, especially in the context of molecular assemblies and imaging techniques that rely on surface properties.
Molecular packing density: Molecular packing density refers to the arrangement and organization of molecules within a given volume, specifically how closely the molecules are packed together in a material. This concept is crucial when examining the properties of self-assembled monolayers (SAMs), as it affects their stability, conductivity, and overall performance in electronic applications. Understanding molecular packing density allows researchers to manipulate and optimize SAMs for various technological uses.
Quartz crystal microbalance (QCM): A quartz crystal microbalance (QCM) is a highly sensitive analytical technique used to measure mass changes at the nanoscale by monitoring the frequency shift of a quartz crystal oscillator. This method is particularly useful for characterizing self-assembled monolayers (SAMs) since it provides real-time data on the mass and density of thin films formed on the crystal surface, allowing researchers to study molecular interactions and adsorption processes.
Scanning tunneling microscopy (STM): Scanning tunneling microscopy (STM) is a powerful imaging technique that allows scientists to visualize surfaces at the atomic level by measuring the tunneling current between a sharp metal tip and the conductive surface being examined. This technique provides insights into the electronic properties of materials, enabling the study of molecule-electrode interfaces, surface chemistry, and self-assembled monolayers.
Self-assembled monolayers (SAMs): Self-assembled monolayers (SAMs) are organized layers of molecules that spontaneously form on surfaces, driven by interactions like van der Waals forces or chemical bonding. These structures play a crucial role in modifying surfaces for various applications in electronics, biosensors, and nanotechnology by influencing how molecules interact with electrodes and other materials. The unique properties of SAMs make them essential in understanding surface chemistry and the design of molecular devices.
Substrate interaction: Substrate interaction refers to the process by which molecules, particularly those forming self-assembled monolayers (SAMs), interact with a solid surface to create organized structures. This interaction is crucial in determining the properties and stability of SAMs, as it influences how well these layers can adhere to the substrate and how they function in electronic applications.
Surface Plasmon Resonance: Surface plasmon resonance (SPR) is an optical phenomenon that occurs when light interacts with electrons at the surface of a metal, resulting in the collective oscillation of these electrons. This technique is particularly valuable for studying biomolecular interactions, as it provides real-time monitoring of binding events, allowing researchers to assess molecular interactions without the need for labeling.
X-ray photoelectron spectroscopy (XPS): X-ray photoelectron spectroscopy (XPS) is a surface-sensitive quantitative spectroscopic technique that can analyze the elemental composition and chemical state of materials by measuring the energies of photoelectrons ejected from a sample when it is irradiated with X-rays. This method is particularly useful for studying self-assembled monolayers (SAMs) as it provides insights into their formation processes, allows for characterization of surface properties, and can be employed in in-situ studies to monitor changes during chemical reactions or physical processes.
