13.2 Geospatial Technology and GIS Applications
5 min read•august 16, 2024
Geospatial technology and GIS applications are revolutionizing how we understand and interact with our world. These tools allow us to capture, analyze, and visualize geographic data in ways that unlock new insights and solutions to complex problems across various fields.
From to disaster response, GIS empowers decision-makers with spatial context and powerful analytical capabilities. However, it's crucial to consider the ethical implications, including and potential misuse, as these technologies continue to shape our society.
GIS Principles and Applications
Core Components and Data Models
Top images from around the web for Core Components and Data Models
Introduction to GIS – EO4GEO View original
Is this image relevant?
Urban Heat Islands – Basic GIS knowledge vector and raster data – EO4GEO View original
Is this image relevant?
GIS - EESC 3750 - Geographic Information Systems - Brooklyn College Library LibGuides Home at ... View original
Is this image relevant?
Introduction to GIS – EO4GEO View original
Is this image relevant?
Urban Heat Islands – Basic GIS knowledge vector and raster data – EO4GEO View original
Is this image relevant?
1 of 3
Top images from around the web for Core Components and Data Models
Introduction to GIS – EO4GEO View original
Is this image relevant?
Urban Heat Islands – Basic GIS knowledge vector and raster data – EO4GEO View original
Is this image relevant?
GIS - EESC 3750 - Geographic Information Systems - Brooklyn College Library LibGuides Home at ... View original
Is this image relevant?
Introduction to GIS – EO4GEO View original
Is this image relevant?
Urban Heat Islands – Basic GIS knowledge vector and raster data – EO4GEO View original
Is this image relevant?
1 of 3
- capture, store, manipulate, analyze, manage, and present spatial or geographic data
- Key components include hardware, software, data, people, and methods for working with spatial information
- GIS operates on a layered data model organizing different types of geographic information into separate thematic for overlay and analysis

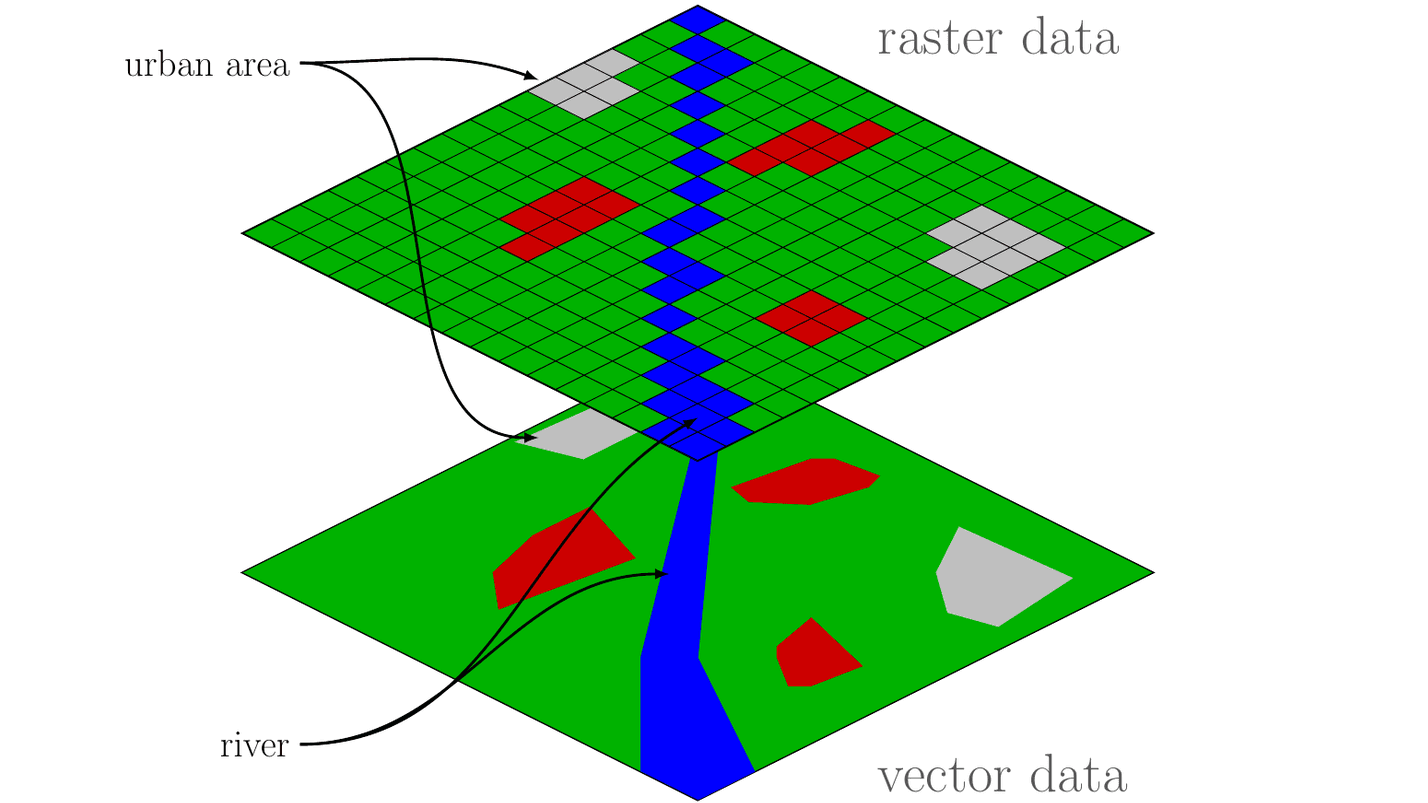

- Vector and raster serve as the two primary data models representing spatial features and phenomena
- Vector data uses points, lines, and polygons to represent discrete features (buildings, roads)
- Raster data uses a grid of cells to represent continuous phenomena (elevation, temperature)
Spatial Analysis Techniques
- creates zones around features to assess proximity or influence (500m buffer around a river)
- combines multiple data layers to identify relationships (overlaying soil and vegetation layers)
- Network analysis evaluates connectivity and optimal paths (finding the quickest route for emergency vehicles)
- Terrain analysis examines topographic characteristics (slope, aspect, viewshed)
- integrates satellite or aerial imagery for land cover classification and change detection
- enhances with precise location information
Applications Across Fields
- Urban planning utilizes GIS for zoning, infrastructure management, and growth projections
- employs GIS for habitat assessment, pollution modeling, and conservation planning
- Transportation sector uses GIS for route optimization, traffic analysis, and infrastructure maintenance
- Public health applications include disease mapping, healthcare facility planning, and epidemiological studies
- Disaster response leverages GIS for risk assessment, evacuation planning, and damage assessment
Geospatial Technology for Problem-Solving
Data Query and Analysis Techniques
- Spatial query extracts information based on location (find all schools within 5km of a proposed development)
- Attribute query selects features based on characteristics (identify all roads with a speed limit over 60 km/h)
- Geoprocessing tools enable complex
- Proximity analysis evaluates relationships based on distance (finding customers within a store's delivery range)
- Interpolation estimates values at unsampled locations (creating a continuous surface of air pollution from point measurements)
- Predictive modeling forecasts future conditions or outcomes (projecting urban growth patterns)
Visualization and Communication
- Cartographic principles guide effective map design for clear communication of spatial information
- and visualization represent terrain, buildings, and other features for enhanced spatial understanding
- create realistic terrain representations
- integrates detailed 3D building data with GIS
- Web-based GIS platforms facilitate collaborative data collection, analysis, and sharing
- ( Online, Google Earth Engine) enable access to vast geospatial datasets and processing capabilities
- Mobile GIS applications support field data collection and real-time updates
Integration with Advanced Technologies
- Artificial intelligence enhances GIS capabilities through machine learning and computer vision
- Object detection in satellite imagery for automated feature extraction (identifying buildings or crop types)
- Predictive analytics for complex spatial phenomena (forecasting natural disaster impacts)
- Big data analytics integration allows processing and analysis of massive geospatial datasets
- for urban management (traffic flow optimization, air quality monitoring)
- for understanding spatial patterns of human behavior and sentiment
Benefits and Limitations of Geospatial Technology
Advantages in Decision-Making and Analysis
- Provides spatial context to complex problems enabling more accurate and efficient decision-making
- Facilitates integration of diverse data sources for comprehensive analysis (combining demographic, economic, and environmental data)
- Identifies spatial patterns and relationships leading to new insights and solutions
- reveals hotspots of crime or disease outbreaks
- uncovers relationships between environmental factors and health outcomes
- Improves resource allocation, emergency response times, and operational efficiency
- Optimizing delivery routes for logistics companies
- Strategically placing emergency services for faster response times
Challenges and Limitations
- Data quality and currency significantly impact analysis effectiveness
- Outdated or inaccurate data can lead to flawed conclusions
- Maintaining up-to-date, high-resolution data can be costly and time-consuming
- Specialized skills and training required for effective use of advanced GIS software
- Steep learning curve for complex spatial analysis techniques
- Shortage of skilled GIS professionals in some sectors
- High costs associated with advanced GIS software, hardware, and data acquisition
- Licensing fees for enterprise GIS software can be prohibitive for smaller organizations
- High-resolution satellite imagery and LiDAR data can be expensive to obtain
- Interoperability issues between different GIS platforms and data formats
- Difficulty in sharing data between organizations using different software systems
- Incompatible data formats can hinder collaboration and comprehensive analysis
Potential Pitfalls in Application
- Overreliance on GIS without considering other forms of knowledge or local context
- Neglecting qualitative data or local expertise in favor of purely quantitative GIS analysis
- Misinterpreting results due to lack of ground-truthing or contextual understanding
- Risk of oversimplified or misguided decision-making based solely on GIS outputs
- Failing to account for complex social or cultural factors not easily represented in
- Misuse of spatial statistics leading to ecological fallacies or modifiable areal unit problem (MAUP)
Ethical Considerations of Geospatial Data
Privacy and Surveillance Concerns
- High-resolution spatial data can reveal individuals' locations, movements, and personal information
- Location data from mobile devices tracking daily routines and frequented locations
- Satellite imagery capable of identifying individuals or activities on private property
- Potential for surveillance and tracking raises questions about civil liberties
- Government use of geospatial technology for monitoring citizens' movements
- Corporate tracking of consumer behavior through location-based services
Data Ownership and Access Issues
- Ethical concerns surrounding ownership, access, and sharing of geospatial information
- Indigenous knowledge and culturally sensitive locations requiring protection from public access
- Balancing open data initiatives with privacy and security considerations
- Digital divide in access to geospatial technology and data exacerbating existing inequalities
- Unequal distribution of GIS resources between developed and developing countries
- Limited access to high-quality spatial data in rural or underserved communities
Potential Misuse and Security Risks
- poses significant security risks
- Planning terrorist attacks using detailed infrastructure maps
- Targeting vulnerable populations through analysis of demographic data
- Manipulation of geospatial data or creation of misleading maps to influence public opinion
- Gerrymandering electoral districts using GIS to gain political advantage
- Misrepresenting environmental data to downplay pollution or climate change impacts
Algorithmic Bias and Accountability
- Ethical considerations in the use of AI and machine learning in geospatial analysis
- Potential for bias in automated decision-making processes based on historical data
- Lack of transparency in complex algorithms used for spatial analysis and prediction
- Need for accountability and explainability in GIS-based decision support systems
- Ensuring fairness in AI-driven urban planning and resource allocation
- Developing ethical guidelines for the use of geospatial AI in sensitive applications (criminal justice, social services)
Key Terms to Review (29)
3D Modeling: 3D modeling is the process of creating a mathematical representation of a three-dimensional object using specialized software. This technique allows for the visualization and manipulation of objects in virtual space, making it essential in fields like geospatial technology and GIS applications. By using 3D modeling, users can analyze spatial relationships, visualize complex data, and enhance decision-making processes.
Algorithmic bias: Algorithmic bias refers to systematic and unfair discrimination that results from algorithms, particularly in the context of data processing and decision-making. It occurs when an algorithm produces results that are prejudiced due to the data it was trained on, which may reflect historical inequalities or biases. This bias can affect various applications, including those in geospatial technology and GIS, leading to skewed representations and decisions that can reinforce existing social disparities.
Arcgis: ArcGIS is a comprehensive geographic information system (GIS) software platform developed by Esri that allows users to visualize, analyze, and interpret spatial data. By integrating mapping tools and spatial analysis capabilities, ArcGIS plays a crucial role in geospatial technology, facilitating decision-making in various fields like urban planning, environmental management, and disaster response.
Buffer analysis: Buffer analysis is a spatial analysis technique used in geographic information systems (GIS) that involves creating a zone around a specific feature or location to assess its impact on surrounding areas. This method helps in understanding proximity relationships and environmental influences, which are key for effective decision-making in urban planning, resource management, and environmental conservation.
Building information modeling (BIM): Building Information Modeling (BIM) is a digital representation of the physical and functional characteristics of a facility. This technology is crucial in the planning, design, construction, and management phases of a building project, facilitating collaboration among architects, engineers, contractors, and owners throughout the lifecycle of the project.
Cartography: Cartography is the art and science of creating maps, which serve as visual representations of geographic information. This field combines technical skills and creative design to communicate spatial relationships effectively. Through cartography, geographers can illustrate data about physical landscapes, human activities, and various themes that connect people with their environments.
Cloud-based services: Cloud-based services are online services that provide storage, processing power, and software applications over the internet, allowing users to access data and applications from anywhere with an internet connection. These services have transformed how individuals and organizations manage and utilize data, enabling real-time collaboration, scalability, and reduced IT costs.
Cluster analysis: Cluster analysis is a statistical method used to group similar data points into distinct clusters based on their characteristics. This technique is widely utilized in geospatial technology and GIS applications to identify patterns, trends, and relationships within spatial data, making it easier to analyze complex datasets and derive meaningful insights.
Correlation analysis: Correlation analysis is a statistical method used to evaluate the strength and direction of the relationship between two variables. It helps in understanding how one variable may change in relation to another, which is especially useful in geospatial technology to analyze patterns and trends across geographic data sets.
Data accuracy: Data accuracy refers to the degree to which data is correct, precise, and reliable. In the context of geospatial technology and GIS applications, data accuracy is crucial because it directly impacts the quality of analyses, decision-making, and the representation of geographic information. Accurate data ensures that spatial analyses yield meaningful results, allowing users to trust the conclusions drawn from that data.
Data collection: Data collection is the systematic process of gathering and measuring information on variables of interest to answer research questions, test hypotheses, and evaluate outcomes. This process is crucial for effective analysis in various fields, including geography, where accurate data informs spatial patterns and decision-making.
Data visualization: Data visualization is the graphical representation of information and data, allowing complex data sets to be presented in a visual context such as charts, maps, and infographics. This approach helps in identifying patterns, trends, and insights that might go unnoticed in text-based data. By transforming raw data into a visual format, it enhances understanding and communication of geographic information and analytical results.
Digital elevation models (DEMs): Digital elevation models (DEMs) are 3D representations of terrain surfaces created from elevation data, providing a digital representation of the Earth's surface. These models are essential tools in geospatial technology and geographic information systems (GIS), enabling users to analyze topography, simulate landscapes, and assess environmental changes over time.
Environmental Management: Environmental management refers to the systematic approach to managing human interactions with the environment, aiming to balance economic development with environmental sustainability. This practice involves using various tools and strategies, including geospatial technology and GIS applications, to monitor, analyze, and mitigate environmental impacts effectively. The goal is to ensure that natural resources are used responsibly while protecting ecosystems and promoting sustainable practices.
Geocoding: Geocoding is the process of converting addresses or place names into geographic coordinates, typically latitude and longitude, that can be used to place markers on a map or to analyze spatial data. This technique is essential for various applications, including location-based services and geographic information systems (GIS), enabling users to visualize and manipulate spatial data more effectively.
Geographic Information Systems (GIS): Geographic Information Systems (GIS) are powerful tools that capture, store, manipulate, analyze, manage, and visualize spatial or geographic data. By integrating various forms of data with maps, GIS helps users understand patterns and relationships in the landscape, making it a crucial asset in planning, decision-making, and problem-solving in various fields such as urban planning, environmental science, and transportation.
GPS (Global Positioning System): GPS is a satellite-based navigation system that allows users to determine their exact location (latitude, longitude, and altitude) anywhere on Earth. This technology relies on a network of satellites that transmit signals to GPS receivers, enabling them to calculate precise positions. GPS has become essential in various applications, including mapping, transportation, and emergency response, highlighting its importance in modern geospatial technology.
Layers: Layers refer to distinct levels or components of data and information that can be visualized and analyzed in geographic systems. These layers allow for the integration and representation of various types of spatial data, such as physical features, political boundaries, and demographic information, helping users to gain insights into complex geographic relationships.
Malicious use of geospatial technology: Malicious use of geospatial technology refers to the exploitation of geographic information systems (GIS) and related technologies to cause harm, violate privacy, or manipulate data for unethical purposes. This can involve activities like stalking, surveillance, cyberattacks, or the spread of disinformation, which pose significant risks to individuals and societies. As geospatial technology becomes more accessible and sophisticated, the potential for its misuse increases, highlighting the need for ethical guidelines and protective measures.
Overlay analysis: Overlay analysis is a powerful technique used in geographic information systems (GIS) that involves superimposing multiple layers of spatial data to identify relationships, patterns, and trends. This method allows geographers and analysts to combine various datasets, such as land use, population density, and environmental features, to gain insights that would be difficult to achieve using individual layers alone.
Privacy concerns: Privacy concerns refer to the issues and anxieties related to the collection, storage, and use of personal information by various entities, often amplified by advancements in technology. These concerns arise from fears of unauthorized access to sensitive data, potential misuse of information, and the loss of individual autonomy in a digital age. In the context of geospatial technology and GIS applications, privacy concerns are particularly relevant as location data can reveal personal habits, preferences, and movements.
QGIS: QGIS, or Quantum GIS, is an open-source Geographic Information System that allows users to create, edit, visualize, analyze, and publish geospatial information. Its flexibility and user-friendly interface make it a popular choice among researchers, urban planners, and environmentalists for managing spatial data and producing maps. QGIS supports various file formats and integrates with other GIS tools, providing a robust platform for geospatial analysis.
Real-time sensor networks: Real-time sensor networks are systems that consist of interconnected sensors which continuously monitor and collect data from their surroundings. This data is then transmitted in real-time to a centralized system for analysis, allowing for immediate responses to changes in the environment. These networks play a crucial role in various applications, such as environmental monitoring, urban planning, and disaster management, by providing timely information that enhances decision-making processes.
Remote sensing: Remote sensing is the process of acquiring information about the Earth's surface from a distance, typically using satellite or aerial imagery. This technology enables geographers and scientists to analyze and monitor various phenomena such as land use, vegetation cover, and environmental changes without direct contact with the subject.
Social media data analysis: Social media data analysis is the process of collecting and interpreting data from social media platforms to gain insights into user behavior, trends, and preferences. This analysis helps organizations understand how their audience interacts with content, enabling them to make informed decisions regarding marketing strategies, product development, and customer engagement. By utilizing geospatial technology and GIS applications, social media data analysis can also reveal geographic patterns in user activity and sentiment.
Spatial analysis: Spatial analysis is the technique of using mathematical, statistical, and computational methods to understand patterns, relationships, and trends in geographic data. This approach allows for the examination of how human activities and environmental factors are distributed across space and time, helping to visualize and interpret complex data in a meaningful way.
Spatial data: Spatial data refers to information that is related to a specific location on the Earth's surface, which can include coordinates, distances, and areas. This type of data is essential in mapping and analyzing geographical patterns and relationships, allowing for the visualization of spatial phenomena. By leveraging spatial data, various technologies and applications can offer insights into the environment, urban planning, resource management, and more.
Temporal data: Temporal data refers to information that is time-dependent, meaning it changes over time and can be analyzed in relation to different points or periods. This type of data is crucial in geospatial technology and GIS applications, as it allows for the examination of patterns, trends, and relationships over various time intervals, enabling users to visualize how geographic phenomena evolve.
Urban planning: Urban planning is the process of designing and managing the physical, social, and economic aspects of urban spaces to create sustainable, functional, and aesthetically pleasing communities. This practice involves evaluating land use, transportation systems, infrastructure, and public spaces while addressing issues like population growth, environmental sustainability, and community needs.
