In this section, we will address all the short-run costs associated with production. In the short-run, at least 1 resource is fixed, or cannot change. Fixed resources can include plant capacity, or the number of factories in operation.
The table above shows the various cost curves of a particular firm at various levels of output. You can see at any level that Fixed Cost + Variable Cost = Total Cost. For example, at output level 6, the fixed costs are $200 and the variable costs are $45 which results in a total cost of $245. The table also shows how average fixed cost + average variable cost = average total cost. At output level 8, the AFC is $25 and the AVC is $9.75, and their sum gives you the ATC of $34.75. The final column in the table is the marginal cost (MC). Marginal cost is the change in total cost divided by the change in output, so going from an output of 2 to 3, the total cost changes from $220 to $224, and the change in output is 1 unit. This leads to a marginal cost of $4.
The diagram above shows what the FC, VC, and TC look like when graphed. The distance between the TC line and the VC line represents fixed costs. Fixed costs are constant and don't change with the production levels, but variable costs change with the level of production. Total costs change as variable costs change due to changes in output.

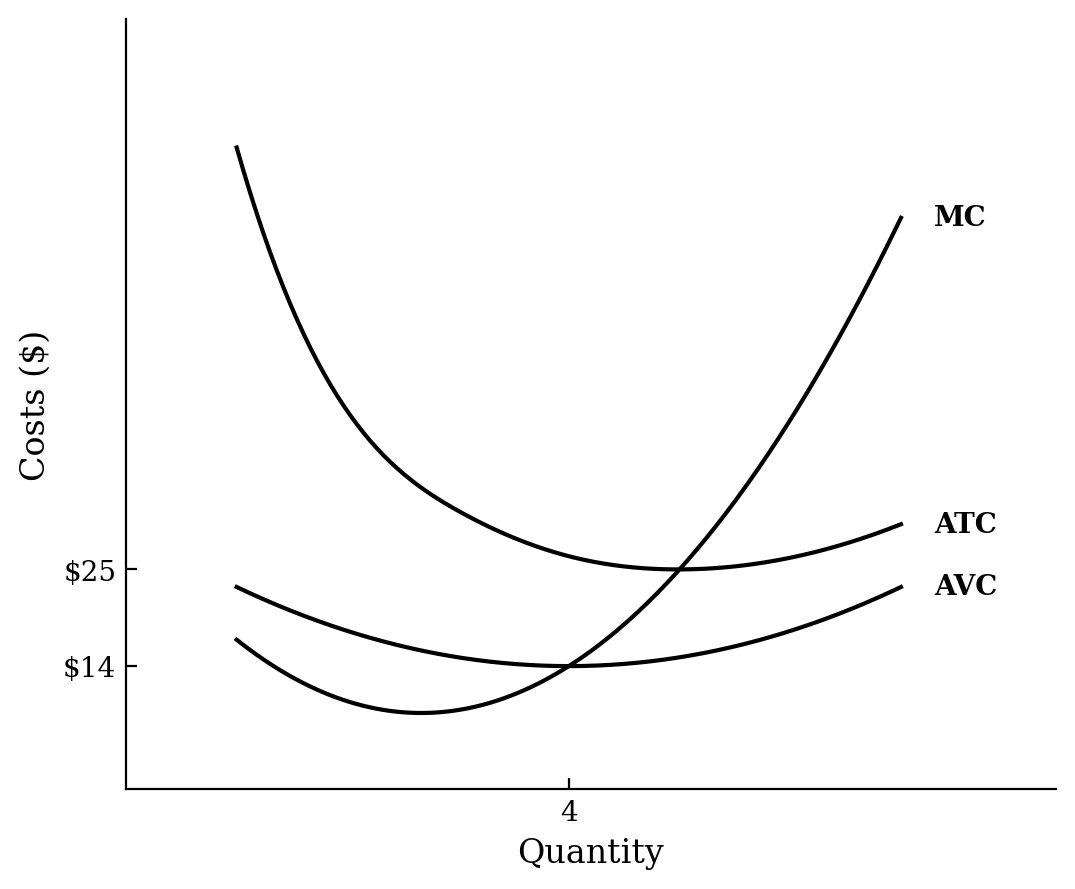

The diagram above shows how we graph marginal cost (MC), average fixed cost (AFC), average variable cost (AVC), and average total cost (ATC). MC always crosses both AVC and ATC at their lowest point. If fixed costs increase, then both the AFC and ATC would shift up and vice versa. If variable costs increase, then both AVC and ATC will shift upward and vice versa. The MC curve only shifts when variable costs change. It will shift upward for an increase in variable costs and downward for a decrease in variable costs.
This graph shows what happens when all the cost curves, except for AFC, shift upward due to changes in variable costs. The opposite would happen if there was a decrease in variable costs.
