3.6 Deviations from the Ideal Gas Law

#idealgaslaw

#deviations

#vanderwaalsequation

⏱️  4 min read

written by

kanya shah

Dalia Savy

dalia savy

October 7, 2020

available on hyper typer

When Do Gases Deviate From The Ideal Gas Law?

In the real world, gases don’t always behave as defined by the Kinetic Molecular Theory. Conditions of high pressure and low temperature will cause gases to deviate from ideal gas behavior for the following reasons:

Gas particles can become attracted to each other➡️⬅️

When the gas particles are close together due to a large number of particles, this can cause more attractive forces. At low temperatures🌡️, gas particles move slower and spend more time around each other.

Polar molecules and larger molecules behave less ideally than smaller non-polar molecules. The IMFs between polar molecules and larger molecules can cause these gas molecules to exert attractive forces on one another.

🌟In other words, the pressure of real gases is usually lower than the pressure of ideal gases due to attractive forces. When particles are attracted to each other, IMFs become significant and the particles aren't hitting the walls of the container as often.

Gas particles can make up a significant portion of a gas samples’ volume

At a high pressure, as shown through Boyle's Law, the volume of the container gasses are kept in decreases. When volume decreases, the volume of gas particles begins to be more significant. This can be shown visually:

https://files.askiitians.com/cdn1/images/2014916-151521304-473-pv.gif

Image Courtesy of AskIITians

🌟In other words, the volume of real gases is much higher than the volume of ideal gases.

Graphically

This graph shows how when you increase pressure, gasses pretty quickly deviate from the Ideal Gas Law:

https://files.askiitians.com/cdn1/images/2014916-145646696-5994-image002.gif

When we increase the pressure, PV/RT, which should equal one (PV = nRT, and with 1 mol of ideal gas, PV = RT), but these gases deviate from one.

Image Courtesy of AskIITians

Correcting the Ideal Gas Law using the Van der Waals Equation

While the traditional ideal gas law has been shown to have certain exceptions, chemists have created new equations to correct for intermolecular forces and for volumes that become significant. This is called the Van der Waals equation:

https://lh3.googleusercontent.com/K2X_0UCvGHzfjlco_MbIKlWQBqAOG5DJ2aq0hYemEeZnVkcYUnTvAJBFL8ZYpardzICdLUI7R9TWDoaOt_GMLidoOS0Hi1dSNw3n7MbUfaD28bx0DKO3xbqccTEeHGHzAnbnLKcOmII

Woah! That equation looks really scary, but there are few things you need to know about this equation🥳:

  1. You will NEVER have to use this equation on the AP exam to make calculations, you only need to know it conceptually. Don't even bother memorizing it.

  2. All this does is makes corrections to the pressure and volume terms to make it so at high pressures and/or low volumes, PV=nRT is corrected. That's why we're adding to P and subtracting from V.

    1. The +a is used to correct the pressure since the pressure is lower in real gases

    2. The -b is used to correct the volume since the volume is higher in real gases

Practice Question

In the last key topic, we went over the first 3 parts of #4 on the 2019 AP Chemistry Exam - FRQ Section. Now that we know about real gases, we can answer the 4th question:

  1. The student measures the actual pressure of CO2(g) in the container at 425K and observes that it is less than the pressure predicted by the ideal gas law. Explain this observation.

This is what we just went over, and it all has to do with pressure and attractive forces!

Sample Response: The attractive forces between CO2(g) molecules result in a pressure that is lower than that predicted by the ideal gas law. Since the particles are attracted to each other, they aren't colliding with the walls of the container as often as ideal gases with no attractive forces would.

Diffusion and Effusion

Diffusion

Diffusion describes the mixing of gases. There are a few rules that you should memorize:

  • As temperature increases, the rate of diffusion increases since the particles are moving faster🏃.

  • The bigger the molecules, the slower the diffusion. This is because these molecules contain more mass and make slower movements.

https://firebasestorage.googleapis.com/v0/b/fiveable-92889.appspot.com/o/images%2F-8vJfEbKUctrs.JPG?alt=media&token=0c5714a3-ef1e-45c4-aeb4-f1eacff4ae29

Image Courtesy of Ideal Gas law and the KMT

Effusion

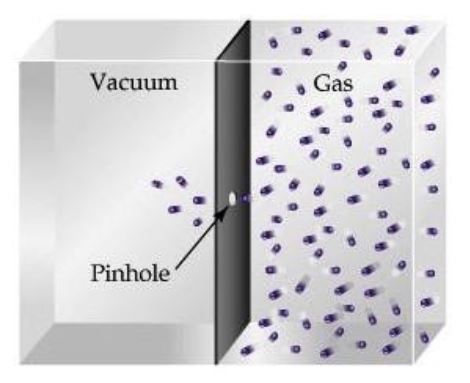

Effusion is very similar to diffusion, but it describes the passage of gas through a tiny space into a vacuum space. Basically, the gases are flowing from a space with higher pressure to a space with lower pressure through a pinhole.

https://firebasestorage.googleapis.com/v0/b/fiveable-92889.appspot.com/o/images%2F-9TcQn0GbUDBb.JPG?alt=media&token=80ad633b-4b8d-4b8d-a3df-6cea62bf8c4b

Image Courtesy of Ideal Gas law and the KMT

Same rules for effusion: temperature increases the rate of effusion while a higher mass decreases the rate of effusion. The only difference is that the rate of effusion represents the speed at which the particles are transferred into the vacuum.

Graham's Law of Effusion

Graham's Law of Effusion is:

https://firebasestorage.googleapis.com/v0/b/fiveable-92889.appspot.com/o/images%2F-mifVmd4oKHVc.JPG?alt=media&token=e173acc6-aea2-4fd6-a9d6-7c8bd84fbfd3

where

  • Rate1 represents the rate of effusion of the first gas

  • Rate2 represents the rate of effusion of the second gas

  • M2 represents the molar mass of the second gas

  • M1 represents the molar mass of the first gas

It is best to put the lighter gas as gas 1 (rate 1 / m1), and then in your explanation you could state that the rate of gas 1 is __ times as fast as gas 2.

🎥Watch: AP Chemistry - Unit 3 Review
