9.4 Effusion and Diffusion of Gases

Effusion and Diffusion of Gases

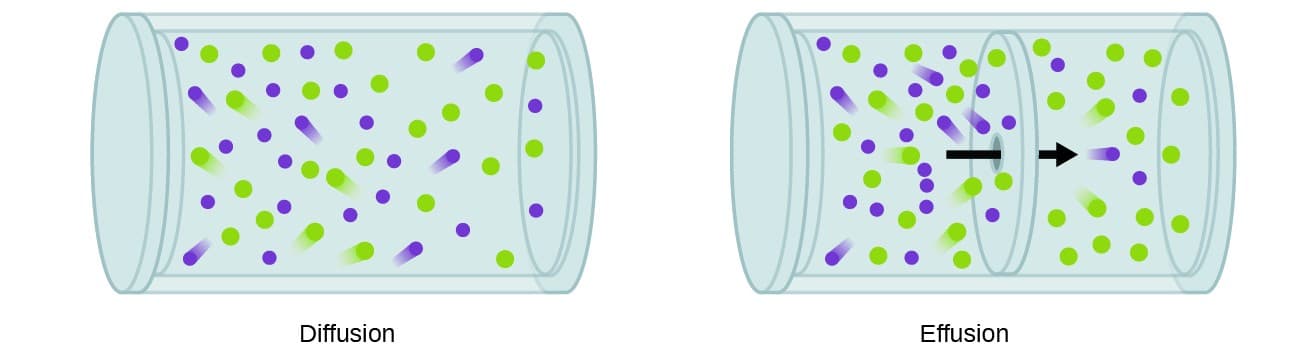

Effusion and diffusion processes

Effusion and diffusion both describe how gas molecules move, but they refer to different situations.

• Effusion is when gas molecules escape through a tiny opening into a region of lower pressure (like helium slowly leaking out of a balloon through microscopic pores). The opening has to be small enough that molecules pass through one at a time rather than flowing as a bulk gas.
  • Lighter gases effuse faster than heavier gases. Hydrogen ($M = 2 \text{ g/mol}$) effuses much faster than oxygen ($M = 32 \text{ g/mol}$).
• Diffusion is the gradual spreading of gas molecules throughout a space or into another substance (like perfume scent spreading across a room). This happens because of the random motion of gas molecules, which naturally move from regions of high concentration to regions of low concentration.
  • Lighter gases also diffuse faster. Ammonia ($M = 17 \text{ g/mol}$) diffuses faster than chlorine ($M = 71 \text{ g/mol}$).
  • Brownian motion, the random zigzag movement of particles caused by collisions with surrounding molecules, is part of what drives diffusion.

Applications of Graham's law

Graham's law gives you a way to compare how fast two gases effuse or diffuse. It states that the rate of effusion or diffusion is inversely proportional to the square root of the gas's molar mass:

$\frac{r_1}{r_2} = \sqrt{\frac{M_2}{M_1}}$

where $r_1$ and $r_2$ are the rates for gas 1 and gas 2, and $M_1$ and $M_2$ are their molar masses.

Comparing effusion rates (step-by-step):

1. Identify the two gases and look up their molar masses.
2. Plug the molar masses into Graham's law. Put the heavier gas's molar mass in the numerator under the square root if you want the ratio to come out greater than 1.
3. Take the square root to get the rate ratio.

For example, comparing hydrogen ($M = 2 \text{ g/mol}$) to oxygen ($M = 32 \text{ g/mol}$):

$\frac{r_{H_2}}{r_{O_2}} = \sqrt{\frac{32}{2}} = \sqrt{16} = 4$

So hydrogen effuses 4 times faster than oxygen.

Finding an unknown molar mass:

You can also rearrange Graham's law to solve for an unknown molar mass. If you measure how fast an unknown gas effuses compared to a known reference gas (like nitrogen, $M = 28 \text{ g/mol}$), you can solve for $M_{unknown}$:

$M_{unknown} = M_{reference} \times \left(\frac{r_{reference}}{r_{unknown}}\right)^2$

Factors affecting gas diffusion

Several factors change how quickly gases diffuse in real situations:

• Temperature: Higher temperatures mean greater kinetic energy, so molecules move faster and diffusion speeds up. Heating a room makes air freshener spread more quickly.
• Pressure: At lower pressures, molecules have more space between them and collide less often, so diffusion is faster. This is why diffusion happens more rapidly at high altitudes.
• Molar mass: Lighter gases diffuse faster. Methane ($M = 16 \text{ g/mol}$) diffuses faster than carbon dioxide ($M = 44 \text{ g/mol}$).

Mean free path is the average distance a molecule travels between collisions. It affects how quickly diffusion actually happens in practice, because frequent collisions slow molecules down from their straight-line paths.

• Higher pressure → shorter mean free path (molecules are packed closer, so they collide more often)
• Higher temperature → longer mean free path (molecules move faster and spread out more)
• Larger molecules → shorter mean free path (bigger targets collide more frequently)
• Denser gases → shorter mean free path (more molecules in a given space means more collisions)

Gas behavior and properties

These diffusion and effusion concepts connect to broader gas behavior you've already studied:

• The ideal gas law ($PV = nRT$) relates pressure, volume, temperature, and the number of moles of gas. The temperature in this equation is the same temperature that drives molecular speed and diffusion rates.
• Partial pressure is the pressure contributed by one specific gas in a mixture. Each gas in a mixture diffuses independently based on its own concentration gradient and molar mass.
• Molecular collisions between gas particles are what create gas pressure and also what slow down diffusion (by interrupting straight-line molecular paths).
