4.4 Addition and Subtraction in Base Systems
2 min read•june 18, 2024
Non- use unique digits and . Addition and subtraction follow similar rules to decimal math, but with different carrying and borrowing thresholds based on the base number.
Understanding these systems helps grasp number representation in various contexts. Mastering addition and subtraction in different bases builds a foundation for more complex mathematical operations and computer science concepts.
Addition and Subtraction in Non-Decimal Base Systems
Addition and subtraction in non-decimal bases
Top images from around the web for Addition and subtraction in non-decimal bases

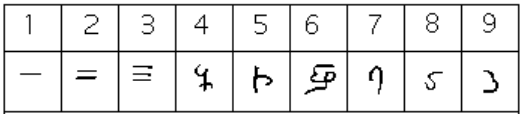

Early Counting Systems | MA 124 Contemporary Mathematics View original
Is this image relevant?
CS101 - Number systems and binary View original
Is this image relevant?
Series of Activities on Number Systems - Karnataka Open Educational Resources View original
Is this image relevant?
Early Counting Systems | MA 124 Contemporary Mathematics View original
Is this image relevant?
CS101 - Number systems and binary View original
Is this image relevant?
1 of 3
Top images from around the web for Addition and subtraction in non-decimal bases
Early Counting Systems | MA 124 Contemporary Mathematics View original
Is this image relevant?
CS101 - Number systems and binary View original
Is this image relevant?
Series of Activities on Number Systems - Karnataka Open Educational Resources View original
Is this image relevant?
Early Counting Systems | MA 124 Contemporary Mathematics View original
Is this image relevant?
CS101 - Number systems and binary View original
Is this image relevant?
1 of 3
- Understand in non-decimal bases where each represents a power of the base ()
- Perform addition by adding digits in each place value from right to left, carrying over when the sum exceeds the base value ()
- Perform subtraction by subtracting digits in each place value from right to left, borrowing from the next place value when needed ()
- Recognize that different base systems (also called numeral systems) use different numbers of digits
Addition tables for various bases
- Create addition tables showing the sum of any two digits in a given base system with rows and columns for base
- Example base 5 addition table: | + | 0 | 1 | 2 | 3 | 4 | |---|---|---|---|---|---| | 0 | 0 | 1 | 2 | 3 | 4 | | 1 | 1 | 2 | 3 | 4 | 10 | | 2 | 2 | 3 | 4 | 10 | 11 | | 3 | 3 | 4 | 10 | 11 | 12 | | 4 | 4 | 10 | 11 | 12 | 13 |
Common errors in non-decimal calculations
- Forgetting to over when the sum exceeds the base value (, not )
- Incorrectly borrowing during subtraction (, not )
- Mixing up digits from different base systems by using digits outside the range of the base system
- Applying decimal (base 10) rules to non-decimal base calculations instead of using the unique rules for each base system based on place values and carrying/borrowing procedures
Understanding Base Systems and Positional Notation
- Base systems use a (the base number) to determine the number of unique digits used
- assigns a value to each digit based on its position in the number
- The place value of each digit is determined by multiplying the digit by the base raised to the power of its position
- Different base systems use different sets of symbols or digits to represent numbers
Key Terms to Review (22)
0b: The prefix '0b' denotes binary numbers, which are base-2 numeral representations that use only two symbols: 0 and 1. This notation is essential for understanding how binary numbers are constructed and manipulated in various mathematical operations, particularly in addition and subtraction processes within base systems. The '0b' prefix serves to clearly indicate that the number following it is in binary format, distinguishing it from decimal or other base systems.
0x: 0x is a prefix used to denote that a number is in hexadecimal (base-16) format. This notation is crucial when dealing with different base systems, as it helps to clearly identify that the number following it is not in the usual decimal (base-10) format. The hexadecimal system is commonly used in computing and digital electronics because it allows for a more compact representation of binary numbers.
Base Systems: Base systems are numerical systems that define how numbers are represented and calculated based on a specific base or radix. Each base system uses a set of digits to express values, where the base indicates the number of unique digits available, including zero. Understanding base systems is crucial for performing arithmetic operations like addition, subtraction, multiplication, and division in different numeral formats, including early numeration systems that laid the groundwork for modern mathematics.
Base-10: Base-10, also known as the decimal system, is a positional numeral system that uses ten distinct digits (0-9) to represent numbers. This system is fundamental in mathematics and everyday counting, as it allows for easy representation of values and operations through place value, where the position of a digit affects its contribution to the overall value. Base-10 is integral to understanding more complex numerical systems and operations, enabling seamless conversions and calculations across various mathematical frameworks.
Base-2: Base-2, also known as binary, is a numeral system that uses only two symbols, typically 0 and 1, to represent values. This system is foundational in computer science and digital electronics, as it aligns perfectly with the on-off states of electronic circuits. Base-2 allows for straightforward conversions to and from other numeral systems, facilitates efficient addition and subtraction operations, and forms the basis for multiplication and division methods that computers employ.
Base-5: Base-5, also known as quinary, is a numeral system that uses five distinct symbols: 0, 1, 2, 3, and 4. This system is an example of a non-decimal base and operates on powers of five, meaning each digit's place value is a power of 5 rather than a power of 10. Understanding base-5 is crucial when performing addition and subtraction within different base systems, as it requires a different approach compared to the more familiar base-10 system.
Binary: Binary is a base-2 numeral system that uses only two symbols, typically 0 and 1, to represent numbers. This system is fundamental in computer science and digital electronics, as it is the language of computers, enabling them to perform calculations and store data. Understanding binary is crucial for converting between different base systems, as well as performing mathematical operations like addition, subtraction, multiplication, and division within these systems.
Borrow: In the context of base systems, 'borrow' refers to the process of taking a value from a higher digit when performing subtraction. This action becomes necessary when the digit being subtracted is larger than the digit it is being subtracted from. Borrowing helps maintain the integrity of the subtraction operation across various base systems, ensuring accurate results while adhering to the rules of each specific base.
Carry: In mathematics, particularly in addition and multiplication, 'carry' refers to the process of transferring a value from one digit to the next higher digit when the sum or product exceeds the base value. This operation is essential for correctly performing arithmetic in any base system, as it ensures that calculations remain accurate and properly aligned across each positional place value.
Decimal: A decimal is a number that represents a fraction whose denominator is a power of ten, typically expressed in the form of digits with a decimal point separating the whole number part from the fractional part. Decimals are essential for expressing rational numbers in a format that allows for easier calculations, comparisons, and conversions, especially in various base systems and when working with ratios and proportions.
Digit: A digit is a single numerical symbol used to represent numbers in various numeral systems. In the context of the Hindu-Arabic positional system, digits range from 0 to 9 and are combined to form larger numbers, where each digit's position affects its value. This concept is crucial for performing mathematical operations like addition, subtraction, multiplication, and division across different base systems.
Expansion method: The expansion method is a technique used to perform addition and subtraction in various base systems by breaking down numbers into their positional components. This method relies on expressing numbers in terms of their base and applying arithmetic operations to each component separately, which makes calculations more manageable. The expansion method highlights the importance of understanding place value across different bases, facilitating operations that might otherwise seem complicated.
Hexadecimal: Hexadecimal is a base-16 number system that uses sixteen symbols: the numbers 0-9 and the letters A-F to represent values from zero to fifteen. This system is commonly used in computing and digital electronics because it is more compact than binary, allowing for easier representation of binary-coded values. Each hexadecimal digit corresponds to four binary digits (bits), making it particularly useful for simplifying binary representation and making conversions more manageable.
Least significant digit: The least significant digit (LSD) is the digit in a number that holds the smallest value and is farthest to the right. In base systems, it plays a crucial role in determining the outcome of operations such as addition and subtraction, as changes to this digit can affect the overall value of the number. Understanding the least significant digit is essential for converting numbers between bases and performing arithmetic operations accurately, particularly in non-decimal systems.
Most significant digit: The most significant digit (MSD) is the digit in a number that holds the greatest value and therefore contributes most to the overall magnitude of the number. In the context of various base systems, the MSD is critical when converting numbers between bases and when performing addition or subtraction, as it influences how we determine place values and carry operations.
Numeral system: A numeral system is a writing system for expressing numbers, consisting of a set of symbols or digits and rules for their arrangement to represent values. Each numeral system has a base, which determines the number of unique digits used, affecting how addition and subtraction are performed. Understanding different numeral systems is crucial for performing mathematical operations across various bases, especially in contexts like computer science and digital electronics.
Octal: Octal is a base-8 numeral system that uses digits from 0 to 7. It serves as a convenient method for representing binary numbers in a more compact form since each octal digit corresponds to exactly three binary digits. This system plays a crucial role in computer science and digital electronics, where grouping bits can simplify the representation and manipulation of data.
Place value: Place value is a numerical system that assigns a specific value to a digit based on its position within a number. This concept allows for the representation of large numbers and the performance of arithmetic operations by giving meaning to each digit in relation to its placement, which is fundamental to understanding various number systems.
Place values: Place values refer to the numerical value that a digit has by virtue of its position in a number. In the Hindu-Arabic positional system, each place represents a power of 10.
Positional notation: Positional notation is a method of representing numbers where the position of each digit in a number determines its value. This system is fundamental to modern numerical systems, allowing for efficient representation and manipulation of numbers across various base systems, which directly influences how addition, subtraction, multiplication, and division are performed in mathematics.
Radix: Radix is the base of a number system that determines how many unique digits, including zero, are used to represent numbers. It plays a crucial role in how numbers are expressed and manipulated in various base systems, such as binary (base 2), decimal (base 10), and hexadecimal (base 16). Understanding radix is essential for converting between different bases, performing arithmetic operations, and comprehending the structure of numerical systems.
Repeated division: Repeated division is a mathematical technique used to break down a number into smaller components by continuously dividing it by a divisor until reaching a desired outcome, such as zero or a specific quotient. This method is particularly useful in base systems for converting numbers from one base to another, and it helps in understanding the structure of numbers within those systems. The process can also aid in addition and subtraction by providing insights into how numbers are represented and manipulated in various bases.
