Magnetism and electromagnetism form the backbone of modern technology. These forces govern the behavior of charged particles and electric currents, creating magnetic fields that interact with matter. Understanding these principles is crucial for explaining phenomena from compass needles to electric motors. Electromagnetic induction, described by Faraday's and Lenz's laws, explains how changing magnetic fields generate electric currents. This concept underpins the operation of transformers, generators, and other devices that convert between electrical and mechanical energy, powering our world in countless ways.

Key Concepts and Definitions

  • Magnetism is a force of attraction or repulsion that acts at a distance between particles with magnetic properties (magnetic dipoles)
  • Magnetic fields are regions around magnets or current-carrying wires where magnetic forces can be detected and measured
    • Represented by magnetic field lines that show the direction and strength of the field at each point
  • Magnetic flux (ΦB\Phi_B) is the total magnetic field passing through a given area, measured in webers (Wb)
    • Calculated using the equation ΦB=B⃗⋅A⃗\Phi_B = \vec{B} \cdot \vec{A}, where B⃗\vec{B} is the magnetic field and A⃗\vec{A} is the area vector
  • Electromagnetic induction is the production of an electromotive force (emf) and current in a conductor by a changing magnetic field
  • Faraday's law states that the induced emf in a closed loop is equal to the negative rate of change of the magnetic flux through the loop
    • Mathematically expressed as ε=−dΦBdt\varepsilon = -\frac{d\Phi_B}{dt}, where ε\varepsilon is the induced emf and dΦBdt\frac{d\Phi_B}{dt} is the rate of change of magnetic flux
  • Lenz's law determines the direction of the induced current, stating that it flows to oppose the change in magnetic flux that produced it
  • Permeability (μ\mu) is a measure of a material's ability to support the formation of a magnetic field within itself, affecting the strength of the magnetic field in the material

Magnetic Fields and Forces

  • Moving charges (electric currents) create magnetic fields around them, with the field strength proportional to the current
  • The direction of the magnetic field around a current-carrying wire can be determined using the right-hand rule
    • Point your thumb in the direction of the current, and your fingers will curl in the direction of the magnetic field
  • Magnetic fields exert forces on moving charges and current-carrying wires, with the force perpendicular to both the magnetic field and the velocity of the charge or direction of the current

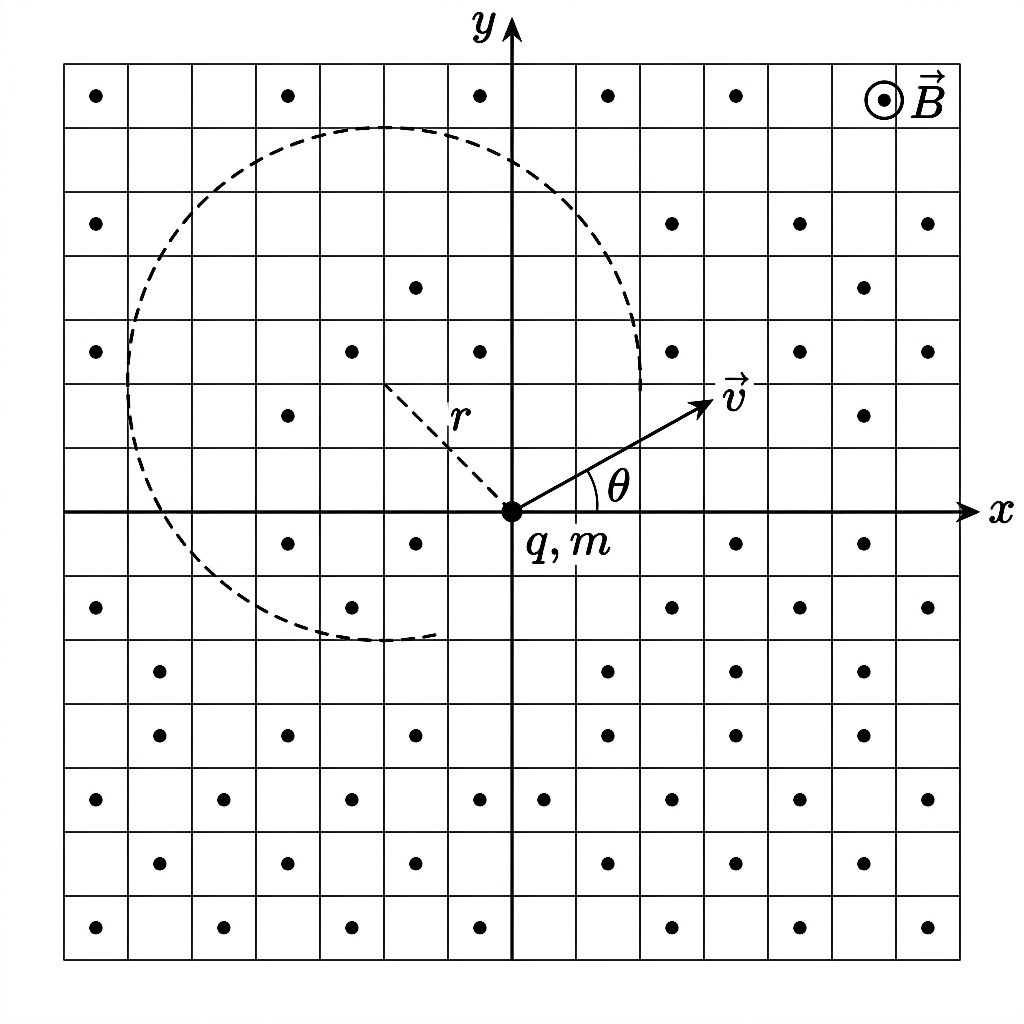

  • The magnetic force on a moving charge is given by F⃗=qv⃗×B⃗\vec{F} = q\vec{v} \times \vec{B}, where qq is the charge, v⃗\vec{v} is the velocity, and B⃗\vec{B} is the magnetic field
  • The magnetic force on a current-carrying wire is F⃗=IL⃗×B⃗\vec{F} = I\vec{L} \times \vec{B}, where II is the current and L⃗\vec{L} is the length of the wire
  • Magnetic fields can be created by permanent magnets, which have north and south poles that attract or repel each other
    • Opposite poles (north and south) attract, while like poles (north-north or south-south) repel
  • Earth's magnetic field acts like a giant bar magnet, with field lines extending from the magnetic south pole to the magnetic north pole
    • The magnetic poles do not coincide with the geographic poles, and the magnetic field is tilted about 11 degrees from Earth's rotational axis

Electromagnetic Induction

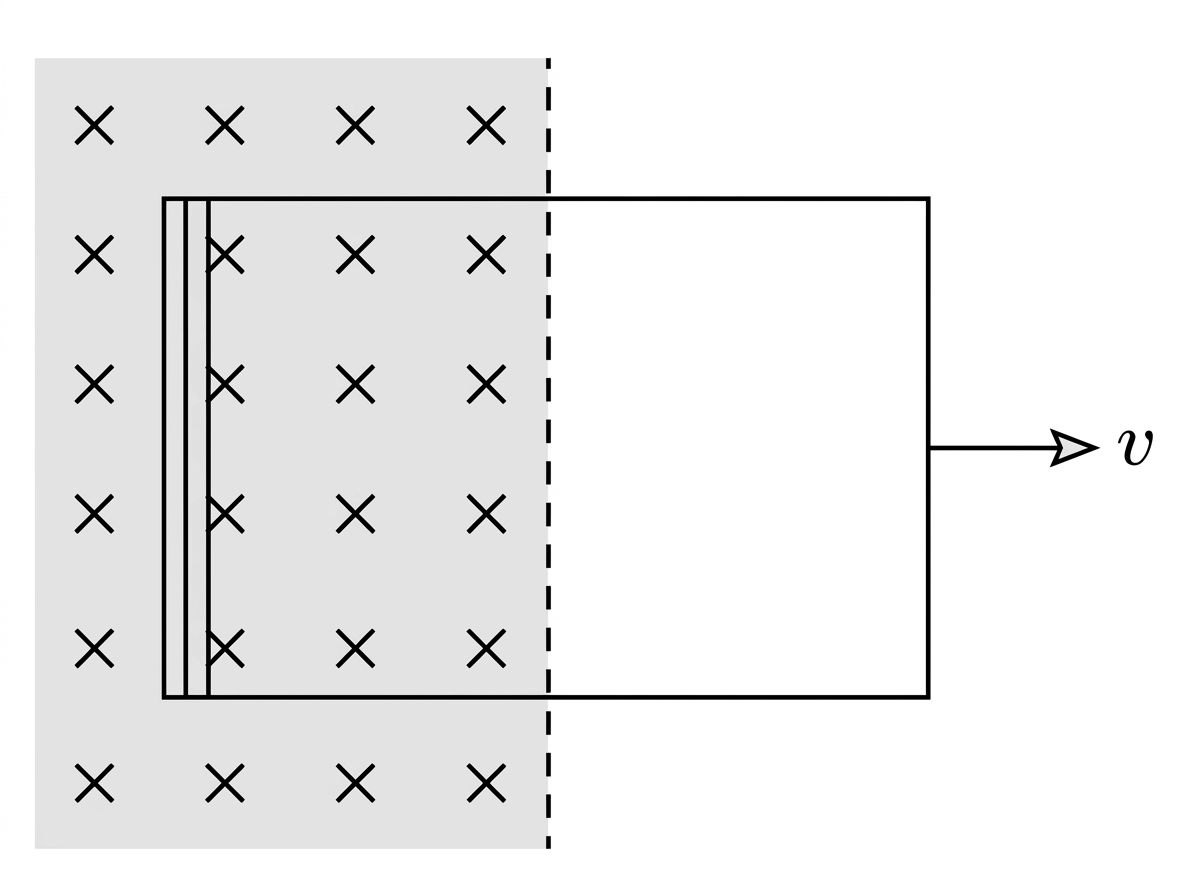

  • A changing magnetic flux through a loop induces an emf and current in the loop, known as electromagnetic induction
  • The induced emf depends on the rate of change of the magnetic flux, as described by Faraday's law (ε=−dΦBdt\varepsilon = -\frac{d\Phi_B}{dt})
    • A faster change in magnetic flux results in a larger induced emf
  • The direction of the induced current is determined by Lenz's law, which states that the induced current flows in a direction to oppose the change in magnetic flux that produced it
  • Transformers use electromagnetic induction to change the voltage and current of AC power
    • Consist of two coils (primary and secondary) wound around a common iron core
    • A changing current in the primary coil induces an emf in the secondary coil, with the voltage ratio determined by the ratio of the number of turns in each coil
  • Generators convert mechanical energy into electrical energy using electromagnetic induction
    • A coil of wire rotates in a magnetic field, inducing an emf and current in the coil
    • The induced emf alternates as the coil rotates, producing AC power
  • Eddy currents are induced currents in bulk conductors caused by changing magnetic fields, often leading to energy losses due to heating

Magnetic Materials and Properties

  • Magnetic materials can be classified as diamagnetic, paramagnetic, or ferromagnetic based on their response to external magnetic fields
    • Diamagnetic materials (copper, silver) weakly repel magnetic fields and have a negative magnetic susceptibility
    • Paramagnetic materials (aluminum, platinum) are weakly attracted to magnetic fields and have a positive magnetic susceptibility
    • Ferromagnetic materials (iron, nickel, cobalt) are strongly attracted to magnetic fields and can retain their magnetic properties even after the external field is removed
  • Magnetic domains are regions within a ferromagnetic material where the magnetic dipoles are aligned in the same direction
    • In an unmagnetized material, the domains are randomly oriented, resulting in no net magnetic field
    • When exposed to an external magnetic field, the domains align, causing the material to become magnetized
  • Magnetic hysteresis is the dependence of a ferromagnetic material's magnetization on its previous magnetic history
    • Represented by a hysteresis loop, which shows the relationship between the applied magnetic field and the resulting magnetization
  • Curie temperature is the temperature above which a ferromagnetic material loses its ferromagnetic properties and becomes paramagnetic
    • Occurs because thermal energy disrupts the alignment of the magnetic dipoles
  • Magnetic shielding involves using materials with high magnetic permeability (mu-metal) to redirect magnetic fields away from sensitive devices or areas

Applications of Magnetism

  • Magnetic compasses use Earth's magnetic field to determine direction, with the needle aligning itself with the field lines
  • Electric motors convert electrical energy into mechanical energy using the interaction between magnetic fields and current-carrying wires
    • Consist of a coil of wire (armature) that rotates between the poles of a permanent magnet or electromagnet (stator)
    • The magnetic force on the current-carrying armature causes it to rotate, producing mechanical motion
  • Loudspeakers use the interaction between a current-carrying coil and a permanent magnet to convert electrical signals into sound waves
    • The coil is attached to a diaphragm, which vibrates in response to the changing current, producing sound
  • Magnetic levitation (maglev) trains use strong magnetic fields to lift and propel the train above a guideway, reducing friction and allowing high-speed travel
  • Magnetic Resonance Imaging (MRI) uses strong magnetic fields and radio waves to create detailed images of the body's internal structures
    • Hydrogen atoms in the body align with the magnetic field and absorb and emit radio waves, providing information about the tissue density and composition
  • Magnetohydrodynamics (MHD) studies the behavior of electrically conducting fluids (plasmas) in the presence of magnetic fields
    • Applications include plasma confinement in fusion reactors and propulsion systems for spacecraft

Electromagnetic Waves

  • Electromagnetic waves are self-propagating waves composed of oscillating electric and magnetic fields that travel through space at the speed of light
  • The electric and magnetic fields in an electromagnetic wave are perpendicular to each other and to the direction of wave propagation
  • Electromagnetic waves can be characterized by their wavelength, frequency, and energy
    • Wavelength (λ\lambda) is the distance between two consecutive crests or troughs of the wave
    • Frequency (ff) is the number of wave cycles that pass a fixed point per unit time, measured in hertz (Hz)
    • The relationship between wavelength, frequency, and the speed of light (cc) is given by c=λfc = \lambda f
  • The electromagnetic spectrum is the range of all possible frequencies and wavelengths of electromagnetic waves, including radio waves, microwaves, infrared, visible light, ultraviolet, X-rays, and gamma rays
    • Different regions of the spectrum have different properties and applications, such as communication, heating, and medical imaging
  • Electromagnetic waves carry energy and momentum, which can be absorbed, reflected, or transmitted by matter
    • The energy carried by an electromagnetic wave is proportional to its frequency, as described by the equation E=hfE = hf, where hh is Planck's constant

Mathematical Models and Equations

  • The Biot-Savart law describes the magnetic field (B⃗\vec{B}) generated by a current-carrying wire, given by dB⃗=μ04πIdl⃗×r^r2d\vec{B} = \frac{\mu_0}{4\pi} \frac{I d\vec{l} \times \hat{r}}{r^2}
    • μ0\mu_0 is the permeability of free space, II is the current, dl⃗d\vec{l} is a small segment of the wire, and r^\hat{r} is the unit vector pointing from the wire segment to the point where the field is being calculated
  • Ampère's circuital law relates the magnetic field around a closed loop to the electric current passing through the loop, expressed as ∮B⃗⋅dl⃗=μ0Ienc\oint \vec{B} \cdot d\vec{l} = \mu_0 I_{enc}
    • IencI_{enc} is the total current enclosed by the loop
  • Faraday's law of induction states that the induced emf (ε\varepsilon) in a closed loop is equal to the negative rate of change of the magnetic flux (ΦB\Phi_B) through the loop, given by ε=−dΦBdt\varepsilon = -\frac{d\Phi_B}{dt}
  • The magnetic flux (ΦB\Phi_B) through a surface is the product of the magnetic field (B⃗\vec{B}) and the area (A⃗\vec{A}) of the surface, given by ΦB=B⃗⋅A⃗\Phi_B = \vec{B} \cdot \vec{A}
  • Lenz's law determines the direction of the induced current, stating that it flows to oppose the change in magnetic flux that produced it
  • The magnetic force on a moving charge (F⃗\vec{F}) is given by F⃗=qv⃗×B⃗\vec{F} = q\vec{v} \times \vec{B}, where qq is the charge and v⃗\vec{v} is the velocity
  • The magnetic force on a current-carrying wire is F⃗=IL⃗×B⃗\vec{F} = I\vec{L} \times \vec{B}, where II is the current and L⃗\vec{L} is the length of the wire

Lab Experiments and Demonstrations

  • Mapping magnetic fields using iron filings or small compasses to visualize the field lines around bar magnets and current-carrying wires
  • Demonstrating the magnetic force on a current-carrying wire by observing the deflection of a wire suspended between the poles of a magnet when a current is passed through it
  • Investigating electromagnetic induction by moving a magnet through a coil of wire connected to a galvanometer and observing the induced current
  • Building a simple electric motor using a coil of wire, a battery, and a permanent magnet to demonstrate the conversion of electrical energy into mechanical energy
  • Constructing a transformer using two coils of wire wound around a common iron core and measuring the input and output voltages to explore the principle of electromagnetic induction
  • Observing the effect of magnetic shielding by placing a magnetic compass inside a mu-metal container and noting the reduction in the compass's response to external magnetic fields
  • Demonstrating Lenz's law by dropping a strong magnet through a copper tube and observing the reduced acceleration due to the induced currents in the tube
  • Exploring the properties of electromagnetic waves by setting up a simple radio transmitter and receiver using a coil of wire, a capacitor, and a diode to send and detect radio waves

Frequently Asked Questions

What topics are covered in AP Physics 2 Unit 12 (magnetism and electromagnetism)?

Unit 12 (Magnetism and Electromagnetism) covers 12.1–12.4. You’ll study magnetic fields and properties of magnetic dipoles; magnetic behavior of materials and permeability; magnetic fields from moving charges and forces on moving charges (including FB = qvB sinθ and the right-hand rule); magnetic fields from current-carrying wires and forces on wires (B = μ0I/2πr and FB = IℓB sinθ); and electromagnetic induction — magnetic flux (ΦB = BA cosθ), Faraday’s law, Lenz’s law, and examples like ε = Bℓv. This unit typically makes up about 12–15% of the exam and usually takes ~10–14 class periods. For a full breakdown, study guide, cheatsheets, and cram videos, check out the unit page (https://library.fiveable.me/ap-physics-2-revised/unit-12).

How much of the AP Physics 2 exam is Unit 12 material?

Expect Unit 12 (Magnetism and Electromagnetism) to account for roughly 12–15% of the AP Physics 2 exam. It usually gets about 10–14 class periods in the CED and includes magnetic fields and forces on charges and currents, magnetic fields produced by currents, and electromagnetic induction. On exam day you’ll see both multiple-choice and free-response questions that test those subtopics and basic math representations. For focused review, find the Unit 12 study guide at https://library.fiveable.me/ap-physics-2-revised/unit-12 and extra practice problems at https://library.fiveable.me/practice/physics-2-revised.

What's the hardest part of AP Physics 2 Unit 12?

Many students say electromagnetic induction is the toughest bit — especially applying Faraday’s law and Lenz’s law to changing magnetic flux (see the full unit here: https://library.fiveable.me/ap-physics-2-revised/unit-12). The challenge comes from mixing geometry (ΦB = B·A·cosθ), time dependence (dΦ/dt), and sign/direction reasoning for induced EMFs and currents. People also trip up on using the right-hand rule consistently and telling whether motion or the field is changing. Focus on setting up the flux correctly, tracking what’s changing (B, A, or θ), and drilling sign/direction problems. For clear walkthroughs and practice sets, try Fiveable’s Unit 12 guide and practice questions at the link above.

How long should I study AP Physics 2 Unit 12 to master magnetism and current-carrying wires?

Aim for about 10–20 total hours spread over 2–3 weeks (or follow the CED’s ~10–14 class periods) to really get Unit 12. Break it into 3–4 focused sessions: 1) magnetic force on moving charges and on wires (2–4 hrs), 2) fields from currents and Biot–Savart/Ampère concepts (3–5 hrs), 3) electromagnetic induction and Faraday’s/Lenz’s laws (3–5 hrs), plus 2–4 hrs of mixed practice and lab-style questions. Use spaced practice and tackle multiple current-carrying-wire problems. If vector cross products or right-hand rules feel weak, add extra practice. Fiveable’s Unit 12 study guide can speed review: https://library.fiveable.me/ap-physics-2-revised/unit-12

Where can I find AP Physics 2 Unit 12 PDF notes or a progress check?

You can find AP Physics 2 Unit 12 PDF notes (https://library.fiveable.me/ap-physics-2-revised/unit-12) and the College Board’s official Progress Check is assigned through AP Classroom. Teachers should assign the unit progress check there; students will see assigned progress checks in their AP Classroom accounts. For extra review materials like a unit study guide, cheatsheets, cram videos, and additional practice questions, check Fiveable’s practice page (https://library.fiveable.me/practice/physics-2-revised) to help prepare before or after the progress check.

Are there reliable AP Physics 2 Unit 12 practice problems or quizzes (multiple choice and free-response)?

You can find Unit 12 practice problems and quizzes (multiple-choice style and free-response style) at https://library.fiveable.me/ap-physics-2-revised/unit-12. That page has topic-aligned practice and explanations for Magnetism and Electromagnetism (12.1–12.4). For extra multiple-choice practice across the course, try the practice bank (https://library.fiveable.me/practice/physics-2-revised), which includes 1000+ practice questions. The College Board also posts past free-response questions and scoring guidelines — use the AP Physics 2 section of the College Board site for authentic FRQs and official scoring rubrics. Use Fiveable’s unit guide and practice bank to drill magnetic force, Biot–Savart/Ampère law, induction, and Faraday’s law problems, then test yourself with College Board FRQs to see how official marking works. Fiveable’s cheatsheets and cram videos are great quick reviews before timed practice.

How do I use the AP Physics 2 equation sheet for Unit 12 problems?

Think of the equation sheet as a toolkit: keep the Unit 12 guide handy (https://library.fiveable.me/ap-physics-2-revised/unit-12) and start by reading the problem and sketching vectors (v, B, current, area). Decide which relation applies: $$F_B=qvB\sin\theta$$ or $$F_B=I\ell B\sin\theta$$ for magnetic forces. Use $$B=\frac{\mu_0}{2\pi}\frac{I}{r}$$ for long straight wires. For flux and induction use $$\Phi_B=BA\cos\theta,\ \mathcal{E}=-\frac{\Delta\Phi_B}{\Delta t}$$ (or $$\mathcal{E}=B\ell v$$ for rails). Check angle conventions and units. Use right-hand rules for direction and watch signs for Lenz’s law. Remember CED limits: quantitative treatment often focuses on 0°, 90°, 180°. Finish by plugging numbers and showing algebraic steps in FRQs. For quick refreshers and practice, Fiveable’s Unit 12 cheatsheets and problems help reinforce this approach.

What are common mistakes students make on AP Physics 2 Unit 12 questions?

You'll see these mistakes a lot: sign and direction errors with magnetic forces and induced emf — practice right-hand-rule directions and Lenz’s law (https://library.fiveable.me/ap-physics-2-revised/unit-12). Students often treat magnetic quantities like scalars instead of vectors, mixing up v, B, and F directions or forgetting the cross product. Other frequent errors: using the wrong formula (confusing Biot–Savart, Ampère’s law, or the solenoid field), dropping the negative sign in Faraday’s law, misidentifying the area or orientation that changes flux, and mixing up motional emf versus emf from a changing B. Watch units, account for multiple loops or segments, and slow down on FRQ diagrams — show B, flux direction, and current clearly. For targeted review, check Fiveable’s Unit 12 study guide and practice questions.
