AP Physics 2 Unit 10 ReviewElectric Force, Field, and Potential

AP Physics 2 Unit 10, Electric Force, Field, and Potential, is where you learn how charges push and pull on each other, and how to describe those interactions three different ways: as forces (Coulomb's law), as fields (vectors filling space), and as energy (potential and potential energy). The single biggest idea is that an electric charge changes the space around it, creating a field, and that field then exerts forces on other charges and stores energy. Everything in the unit, from sparks to capacitors, comes back to that one picture. This unit makes up 15-18% of the AP exam, the largest weight of any unit, so fluency here pays off more than anywhere else in the course.

What this unit covers

Charge and the electric force

• Charge is a fundamental property of matter, positive or negative, and it comes in indivisible chunks of the elementary charge $e = 1.6 \times 10^{-19}$ C. An electron carries $-e$, a proton carries $+e$, a neutron carries zero.
• Coulomb's law gives the force between two point charges. It looks exactly like Newton's law of gravitation (inverse square, proportional to the product of the two "amounts"), except electric force can attract or repel while gravity only attracts.
• For a proton and electron, the electric force between them is enormously larger than the gravitational force. Gravity wins at planetary scales only because big objects are almost perfectly neutral, so their electric effects cancel.
• A point charge is a model. Whenever an object's size doesn't matter for the problem, treat it as all its charge at one point.
• Permittivity ($\varepsilon$) measures how easily a material polarizes in an electric field. Free space has the constant value $\varepsilon_0$, and matter has different (usually larger) values because its electrons rearrange in response to the field.

Conservation of charge and how things get charged

• Charge is never created or destroyed, only moved around. If one object gains $+3$ nC, something else lost it.
• Charging by friction or contact physically transfers electrons between objects.
• Induced charge separation (polarization) happens without contact. A nearby charged object shifts the electrons inside a neutral object, so one side becomes slightly positive and the other slightly negative. This is why a charged balloon sticks to a neutral wall.

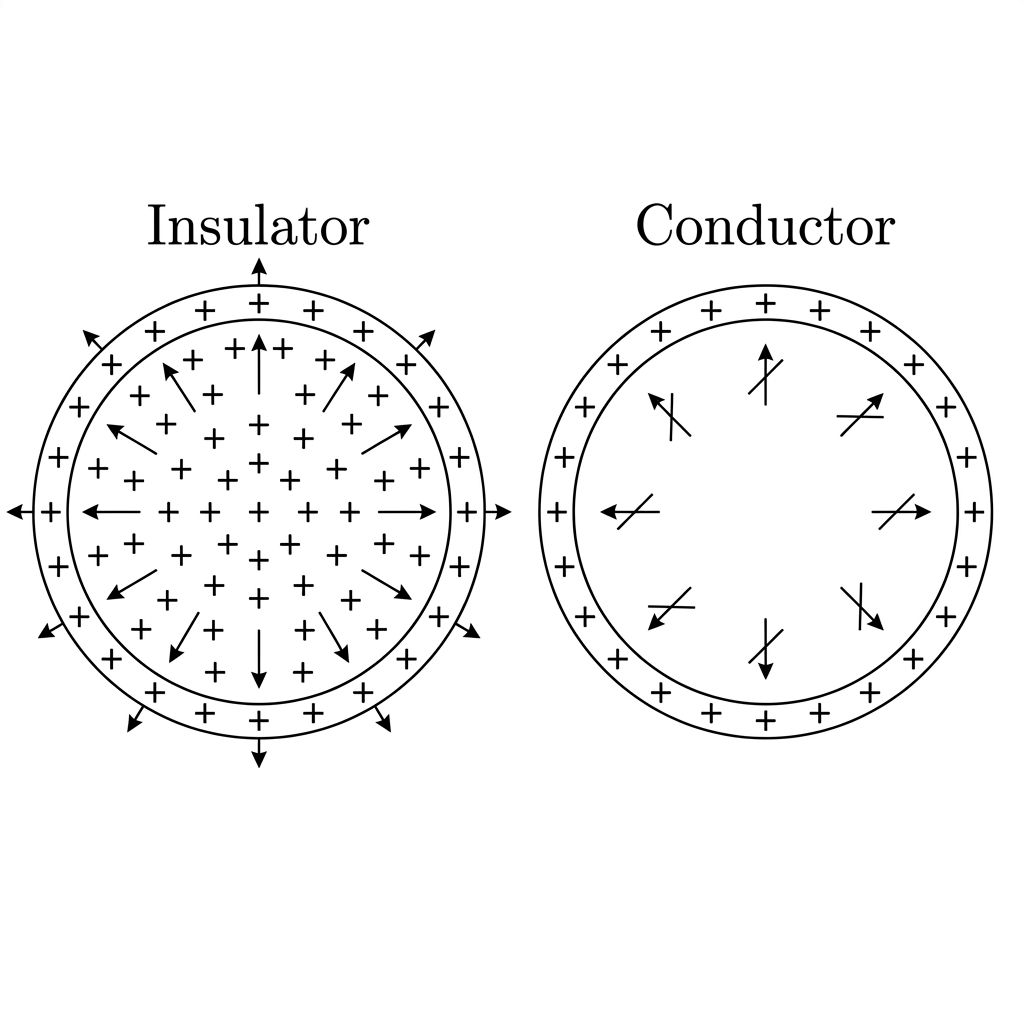

• Conductors let charge flow freely; insulators don't. In a conductor at electrostatic equilibrium, all excess charge sits on the surface and the field inside is zero.

Electric fields

• The field is defined operationally. Drop a tiny test charge at a point, measure the force on it, and divide: $E = F_E / q$. The test charge has to be small enough that it doesn't disturb the field it's measuring.
• Field lines point away from positive charges and toward negative charges. A positive charge placed in the field feels a force along $\vec{E}$; a negative charge feels a force opposite to $\vec{E}$.
• Fields from multiple point charges add as vectors (vector superposition). You'll do a lot of "find the net field at point P" problems that are really just vector addition.

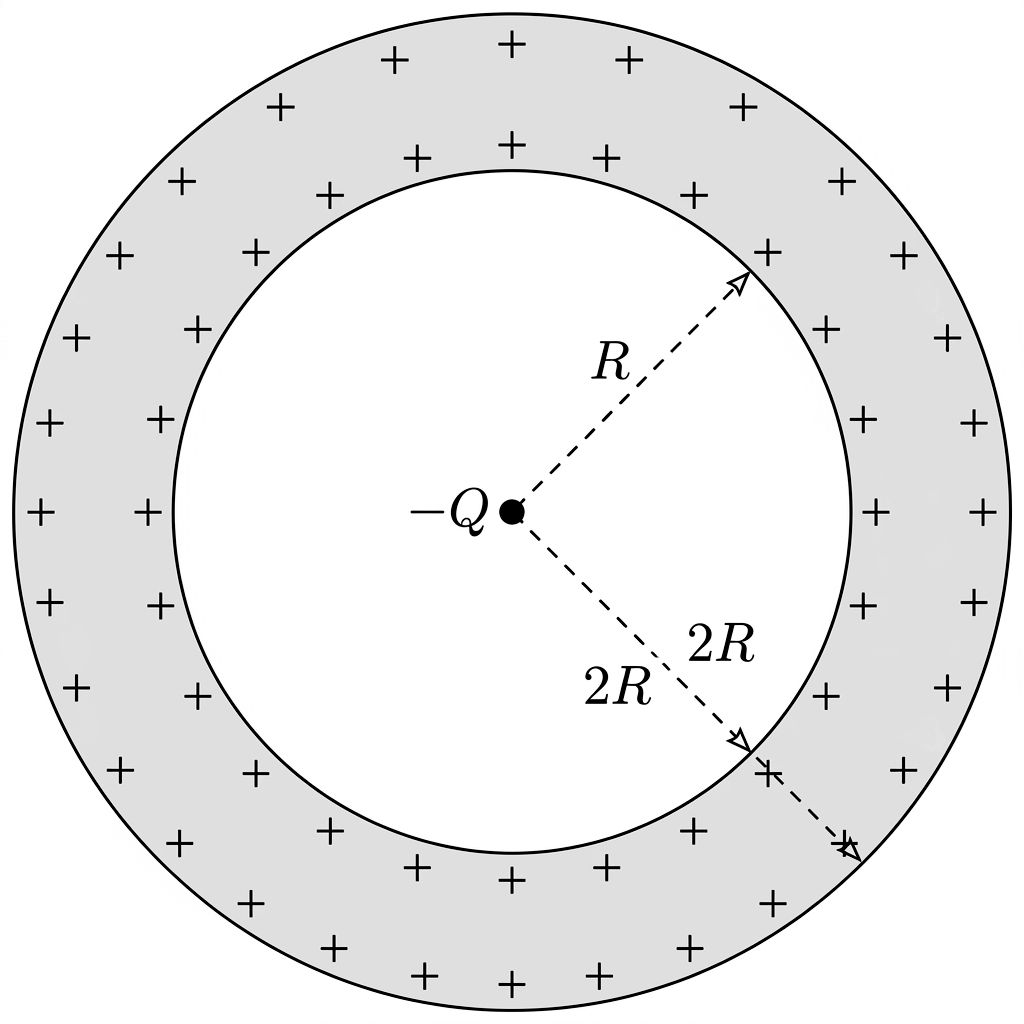

• For conductors, the field at the surface is perpendicular to the surface, and a uniformly charged sphere acts (from outside) exactly like a point charge at its center.

Potential energy, potential, and equipotentials

• Electric potential energy of two point charges is the work an external force must do to bring them together from infinitely far away. Like charges store positive energy when pushed together; unlike charges have negative potential energy when close.
• Electric potential ($V$) is potential energy per unit charge. It's a scalar, so potentials from multiple charges add with plain arithmetic (scalar superposition), no components needed.
• The field and the potential are two views of the same thing. The field points "downhill" in potential, and its magnitude equals how steeply the potential changes with distance: $|\vec{E}| = |\Delta V / \Delta r|$.
• Equipotential lines are contours of equal potential, like elevation lines on a topographic map. Field lines always cross equipotentials at right angles, and moving a charge along an equipotential takes zero work.

Capacitors and energy conservation

• A parallel-plate capacitor is two conducting plates holding equal and opposite charges. Capacitance is defined by $C = Q / \Delta V$, and it depends only on the capacitor's geometry and the material between the plates, not on the charge or voltage you happen to put on it.
• Inserting a dielectric (an insulating material that polarizes) increases capacitance because the material's polarization weakens the field between the plates.
• When a charge moves through a potential difference, the system's electric potential energy changes by $\Delta U_E = q\,\Delta V$, and conservation of energy converts that into kinetic energy. This is how you find the speed of an electron accelerated through a voltage.

Unit 10, Electric Force, Field, and Potential at a glance

Why Unit 10, Electric Force, Field, and Potential matters in AP Physics 2

This unit is the foundation of the entire second half of the course. AP Physics 2 is built around a few recurring themes (fields, forces, conservation laws, and systems), and Unit 10 is where all four come together at once. The skills you build here are not electrostatics-only skills; they're the template for everything that follows.

• The field model introduced here is the course's central idea. Magnetism, circuits, and even how light travels all get explained using fields, and electric fields are your first deep practice with them.
• Conservation of charge and conservation of energy show up as the unit's two governing principles. The AP exam loves questions where you decide which conservation law applies and use it to predict behavior.
• The force-field-energy triple view (same situation, three descriptions) is exactly the kind of multiple-representation reasoning AP Physics 2 free-response questions reward.

How this unit connects across the course

• Electric potential difference here becomes voltage in Electric Circuits (Unit 11). A battery is just a device that maintains a potential difference, and the capacitors you analyze here reappear as circuit elements that charge and discharge over time.
• Electric fields set up Magnetism and Electromagnetism (Unit 12), where moving charges create and respond to magnetic fields. The vector-field reasoning (superposition, field lines, force on a charge) transfers directly.
• Energy conservation arguments from Thermodynamics (Unit 9) continue here in electric form. $\Delta U_E = q\,\Delta V$ is the same energy-accounting logic applied to charges instead of gases.
• Accelerating charges through potential differences pays off in Modern Physics (Unit 15), where electrons gain kinetic energy measured in electron-volts and the photoelectric effect uses stopping potentials.

Key equations and processes

• $F_E = \frac{1}{4\pi\varepsilon_0}\frac{|q_1 q_2|}{r^2}$ (Coulomb's law). Magnitude of the force between two point charges; direction comes from the signs (like repel, unlike attract).
• $E = \frac{F_E}{q}$. Defines the electric field as force per unit test charge; rearrange to find the force on any charge sitting in a known field.
• $E = \frac{1}{4\pi\varepsilon_0}\frac{|q|}{r^2}$. Field magnitude due to a single point charge; add vectorially for multiple charges.
• $U_E = \frac{1}{4\pi\varepsilon_0}\frac{q_1 q_2}{r}$. Potential energy of a two-charge system, measured from infinity; keep the signs of the charges.
• $V = \frac{1}{4\pi\varepsilon_0}\sum_i \frac{q_i}{r_i}$. Potential from multiple point charges; scalar sum, signs included, no components.
• $|\vec{E}| = \left|\frac{\Delta V}{\Delta r}\right|$. Connects field strength to how fast potential changes with position; great for reading equipotential maps.
• $C = \frac{Q}{\Delta V}$. Defines capacitance; use it to relate stored charge to plate voltage.
• $\Delta U_E = q\,\Delta V$. Energy change when a charge moves through a potential difference; pair it with $\Delta K = -\Delta U_E$ to find final speeds.

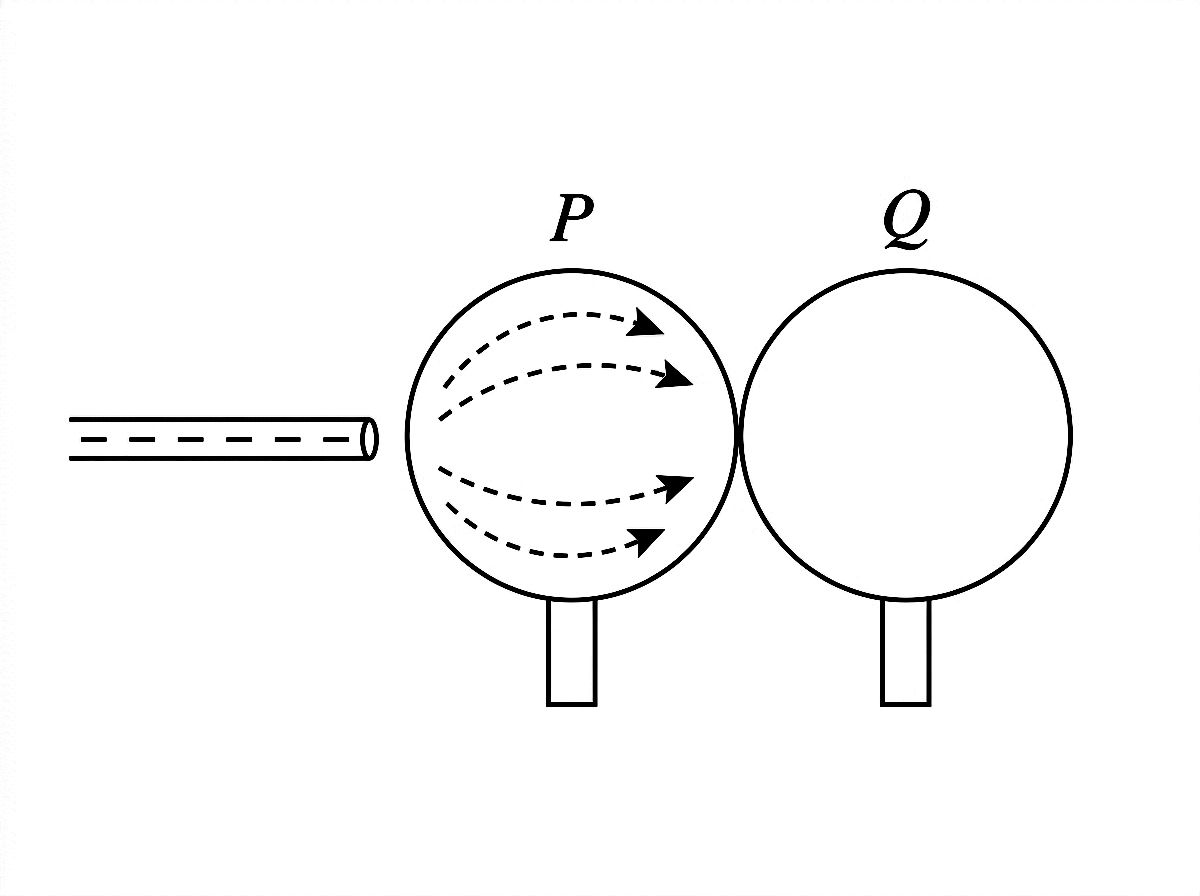

• Process, charging by induction: bring a charged object near a neutral conductor, let the conductor's electrons shift, ground or separate, and you've charged it without contact.
• Process, reading equipotential maps: closely spaced equipotentials mean a strong field, the field points from high to low potential, and zero work is done moving along a line.

Unit 10, Electric Force, Field, and Potential on the AP exam

At 15-18% of the exam, this is the heaviest unit in AP Physics 2, so expect it to show up across both multiple-choice and free-response. Electrostatics content appears in several recognizable forms. Multiple-choice questions ask you to rank field strengths or potentials at labeled points, predict how force changes when charge or distance changes (the inverse-square scaling trap), and interpret diagrams of field lines and equipotential curves. Free-response questions lean on the course's standard formats. A qualitative-quantitative translation question might have you explain in words why a charge speeds up between two plates, then back it with $\Delta U_E = q\,\Delta V$. Experimental design questions can ask you to investigate what capacitance depends on, or how charge distributes on conductors. Paragraph-length argument questions reward connecting the three representations, force, field, and energy, in one coherent explanation. Practice deriving symbolic answers, justifying claims with conservation of charge or energy, and checking signs and directions every single time.

Essential questions

• How can two objects exert forces on each other without touching, and what does it mean to say a field "exists" in empty space?
• Why does gravity control the universe at large scales even though the electric force is vastly stronger?
• How do the force picture, the field picture, and the energy picture describe the same physical situation, and when is each one the easiest tool?
• What stays constant when charges move around a system, and how do those conservation laws let you predict what happens next?

Key terms to know

• Elementary charge (e): The smallest indivisible amount of charge, $1.6 \times 10^{-19}$ C, carried by a single proton ($+e$) or electron ($-e$).
• Point charge: A model that treats a charged object as if all its charge sits at a single point because its size doesn't matter for the problem.
• Test charge: A charge small enough that placing it in a field doesn't noticeably change the field it's measuring.
• Permittivity: A measure of how strongly a material polarizes in an electric field; free space has the constant value $\varepsilon_0$.
• Polarization: The induced separation of positive and negative charge within a material caused by an external electric field.
• Induction: Charging or rearranging charge in an object using a nearby charged object, without direct contact.
• Electrostatic equilibrium: The state of a conductor in which charges have stopped moving, excess charge sits on the surface, and the interior field is zero.
• Electric field: A vector quantity at every point in space equal to the electric force per unit charge a test charge would feel there.
• Electric potential: The electric potential energy per unit charge at a point in space; a scalar measured in volts.
• Equipotential line: A curve along which the electric potential is constant; field lines cross it at right angles and no work is needed to move along it.
• Capacitance: The ratio of charge stored on a capacitor plate to the potential difference between the plates, set entirely by geometry and material.
• Dielectric: An insulating material placed between capacitor plates that polarizes, weakens the internal field, and increases capacitance.

Common mix-ups

• Force and potential energy scale differently with distance. Coulomb force goes as $1/r^2$, but potential energy and potential go as $1/r$. Doubling the separation quarters the force but only halves the potential energy.
• Fields add as vectors, potentials add as numbers. If two equal positive charges sit on either side of a midpoint, the field there is zero (the vectors cancel) but the potential is definitely not zero (two positive scalars add).
• "Zero field" does not mean "zero potential," and vice versa. They're related through how potential changes in space, not through their values at a single point.
• Capacitance is fixed by geometry. Doubling the voltage on a capacitor doubles the stored charge, but $C = Q/\Delta V$ stays the same. Only changing plate area, separation, or the dielectric changes $C$.
