15.4 Adiabatic flame temperature

Adiabatic Flame Temperature

Adiabatic flame temperature is the maximum theoretical temperature a combustion process can reach when no heat is lost to the surroundings. It sets an upper bound on flame temperature, which directly affects combustion efficiency, pollutant formation, and the materials you need to withstand those temperatures. Fuel type, air-fuel ratio, and the initial state of the reactants all play a role in determining this value.

Definition and Significance

The adiabatic flame temperature assumes two ideal conditions: zero heat transfer to the surroundings ($Q = 0$) and complete combustion of the fuel. In reality, neither condition is perfectly met, so the actual flame temperature is always lower. Still, the adiabatic value serves as the benchmark engineers use when designing combustion systems.

This temperature matters because it directly controls:

• Thermal efficiency of engines and furnaces
• NOx formation, which increases sharply at high flame temperatures
• Material selection for combustion chambers, turbine blades, and nozzle linings

Influencing Factors

Fuel composition determines how much energy is released per unit of fuel. Fuels with higher heating values (like hydrogen) produce higher adiabatic flame temperatures. The hydrogen-to-carbon ratio matters too: hydrogen-rich fuels release more energy per unit mass. Inert components in the fuel (like nitrogen in low-grade natural gas) absorb energy without contributing to combustion, which lowers the flame temperature.

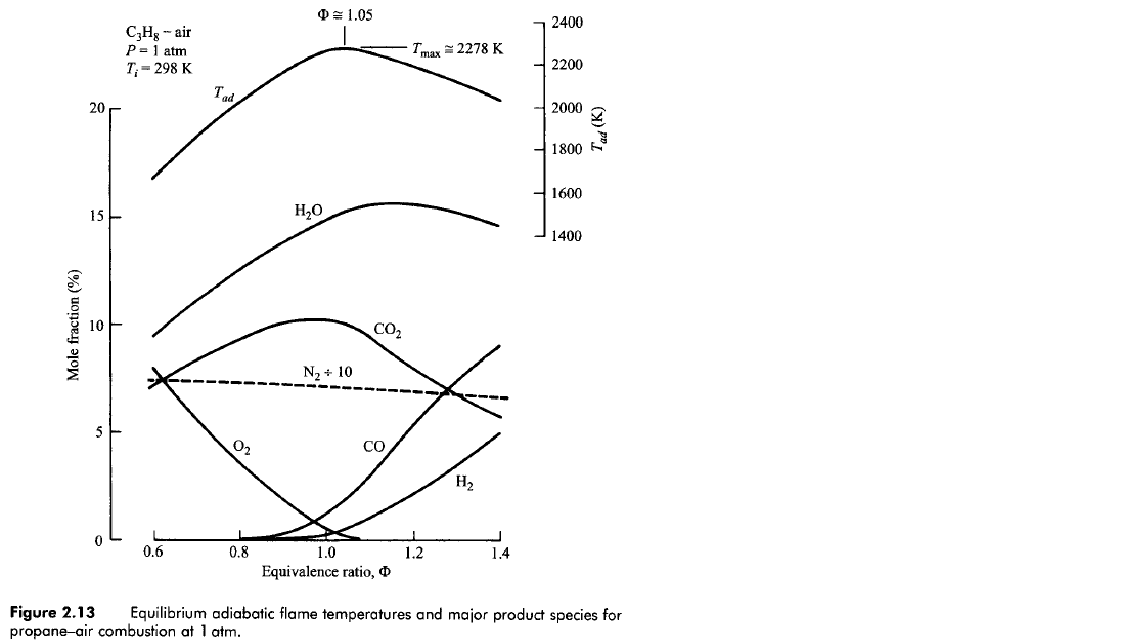

Air-fuel ratio has the single largest practical effect. A stoichiometric mixture (exactly enough air to completely burn the fuel) produces the highest adiabatic flame temperature. Lean mixtures (excess air) have extra nitrogen and oxygen that absorb heat without reacting, pulling the temperature down. Rich mixtures (excess fuel) leave unburned fuel that carries away chemical energy.

Initial temperature and pressure of the reactants shift the baseline. Preheating the air or fuel raises the starting enthalpy, which raises the final flame temperature. Pressure effects are more subtle and depend on the specific reaction, but higher pressures generally suppress dissociation (discussed next), which tends to keep the flame temperature higher.

Dissociation becomes significant above roughly 1800 K. At these temperatures, product molecules like $CO_2$ and $H_2O$ partially break apart into species like $CO$, $OH$, $H$, and $O$. These dissociation reactions are endothermic, so they absorb energy and reduce the actual flame temperature below what you'd calculate if you ignored them.

Calculating Adiabatic Flame Temperature

Energy Balance Setup

The calculation starts from the first law of thermodynamics for a steady-flow or closed system with no heat transfer, no work interaction, and negligible changes in kinetic and potential energy. The core equation is:

$H_{\text{reactants}}(T_1) = H_{\text{products}}(T_{ad})$

In words: the total enthalpy of everything going in (fuel + oxidizer at their initial temperature $T_1$) must equal the total enthalpy of everything coming out (products at the unknown adiabatic flame temperature $T_{ad}$).

Expanding this using enthalpies of formation and sensible enthalpy changes:

$\sum_{\text{react}} n_i \left[\bar{h}_{f,i}^{\circ} + \Delta \bar{h}_i(T_1)\right] = \sum_{\text{prod}} n_j \left[\bar{h}_{f,j}^{\circ} + \Delta \bar{h}_j(T_{ad})\right]$

where $n$ is the number of moles, $\bar{h}_{f}^{\circ}$ is the standard enthalpy of formation, and $\Delta \bar{h}(T)$ is the sensible enthalpy change from the reference temperature (typically 298 K) to temperature $T$.

Step-by-Step Procedure

1. Write the balanced combustion equation. Determine the products for complete combustion (typically $CO_2$, $H_2O$, $N_2$, and excess $O_2$ if lean).
2. Look up enthalpies of formation ($\bar{h}_{f}^{\circ}$) for all reactants and products at the reference state (25°C, 1 atm).
3. Calculate the total enthalpy of the reactants at their initial temperature $T_1$. If $T_1 = 298$ K, the sensible enthalpy terms for the reactants are zero.
4. Set up the energy balance so that the total product enthalpy at $T_{ad}$ equals the total reactant enthalpy.
5. Guess a value for $T_{ad}$, then calculate the right-hand side using enthalpy tables or specific heat polynomials ($c_p(T)$ data).
6. Iterate. If the product enthalpy is too high, your guess is too high; if too low, guess higher. Repeat until the two sides balance. The Newton-Raphson method or simple interpolation between two bracketing guesses both work.

Example: Methane-Air at Stoichiometric Conditions

For $CH_4$ burning in air at 25°C and 1 atm, the balanced stoichiometric equation is:

$CH_4 + 2(O_2 + 3.76\,N_2) \rightarrow CO_2 + 2\,H_2O + 7.52\,N_2$

Setting up the energy balance and iterating through enthalpy tables gives $T_{ad} \approx 2230$ K when dissociation is neglected. Including dissociation drops this to roughly 2100 K. Chemical equilibrium software (like NASA CEA or Cantera) handles the dissociation calculation automatically.

Controlling Adiabatic Flame Temperature

Methods of Control

In practice, engineers rarely want the maximum flame temperature. High temperatures accelerate NOx formation and can damage components. Several strategies bring the temperature down in a controlled way:

• Lean combustion adds excess air beyond stoichiometric. The extra $N_2$ and $O_2$ absorb energy, lowering peak temperature. This is common in gas turbines.
• Exhaust gas recirculation (EGR) mixes a portion of the exhaust (mostly $CO_2$ and $N_2$) back into the intake charge. These inert gases increase the thermal mass of the mixture without adding fuel, reducing flame temperature and NOx.
• Staged combustion splits the process into a fuel-rich primary zone followed by a lean secondary zone. Neither zone reaches the peak stoichiometric temperature, which suppresses NOx while still achieving complete burnout.
• Thermal barrier coatings on combustion chamber walls don't lower the flame temperature itself, but they reduce heat loss to the structure, keeping the temperature distribution more uniform and protecting components.

Practical Applications

Gas turbines use lean premixed combustion and staged burners to keep flame temperatures below the threshold where NOx formation spikes (roughly 1800 K). This also extends turbine blade life by reducing thermal stress.

Internal combustion engines adjust air-fuel ratio and use EGR to balance efficiency against emissions. Running slightly lean reduces NOx, but running too lean causes misfires. EGR provides an additional knob for temperature control.

Industrial furnaces optimize air-fuel ratio and use staged combustion to hit target temperatures for processes like steel annealing or glass melting. Too high a flame temperature wastes fuel and can damage product quality; too low reduces throughput.

Rocket engines operate at or near stoichiometric conditions to maximize thrust, so adiabatic flame temperatures are extremely high (often above 3000 K). Calculating $T_{ad}$ for different propellant combinations (e.g., $LOX/LH_2$ vs. $LOX/RP\text{-}1$) drives decisions about nozzle geometry, chamber pressure, and cooling system design.
