2.3 Atomic Structure and Symbolism

Atomic Structure and Symbolism

Atoms are the building blocks of matter, and chemical symbols give you a shorthand way to represent them. A single symbol can tell you how many protons and neutrons an atom has, plus its charge. Mastering this notation is essential because you'll use it constantly throughout chemistry.

This section also covers atomic mass units and how to calculate average atomic mass from isotope data, which is one of the most common calculation types you'll see on exams.

Subatomic Particles

Before diving into symbols, you need to know the three particles that make up an atom:

• Protons: positively charged particles found in the nucleus. The number of protons defines which element an atom is.
• Neutrons: neutral (no charge) particles, also found in the nucleus. They add mass but don't affect the element's identity or charge.
• Electrons: negatively charged particles that exist in energy levels around the nucleus. They have negligible mass compared to protons and neutrons.

In a neutral atom, the number of protons equals the number of electrons, so the charges cancel out.

Chemical Symbols for Atoms

Chemical symbols use one or two letters to represent an element (H for hydrogen, He for helium). The first letter is always capitalized; the second letter, if present, is always lowercase.

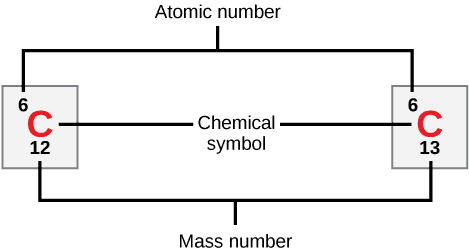

The full isotope notation packs more information around the symbol:

• Atomic number ($Z$): written as a subscript to the left. This is the number of protons, and it's unique to each element.
• Mass number ($A$): written as a superscript to the left. This equals protons + neutrons.
• Ionic charge: written as a superscript to the right. This appears when an atom has gained or lost electrons. A positive charge means electrons were lost ($Ca^{2+}$, $Fe^{3+}$); a negative charge means electrons were gained ($Cl^{-}$). The number goes before the sign.

Full example: $^{23}_{11}Na^{+}$ tells you sodium has 11 protons, a mass number of 23 (so 23 - 11 = 12 neutrons), and a +1 charge (meaning it lost one electron).

To find the number of neutrons in any atom, subtract the atomic number from the mass number: $\text{neutrons} = A - Z$.

Atomic Mass Unit Concept

Individual atoms are far too light to measure in grams, so chemists use the atomic mass unit (amu). One amu is defined as exactly 1/12 the mass of a carbon-12 atom.

On this scale, a proton and a neutron each have a mass of approximately 1 amu, while an electron's mass is so small (about 0.0005 amu) that it's usually ignored in mass calculations.

Most elements exist as a mixture of isotopes, which are atoms of the same element with different numbers of neutrons. The average atomic mass you see on the periodic table is a weighted average that accounts for each isotope's mass and how common it is in nature.

Calculation of Average Atomic Mass

$\text{Average atomic mass} = \sum(\text{mass of isotope} \times \text{fractional abundance})$

Example: Chlorine

Chlorine has two naturally occurring isotopes: $^{35}Cl$ (75.77% abundant) and $^{37}Cl$ (24.23% abundant).

1. Convert percentages to fractions: 75.77% = 0.7577 and 24.23% = 0.2423

2. Multiply each isotope's mass by its fractional abundance:

   • $^{35}Cl$: $34.97 \times 0.7577 = 26.50$
   • $^{37}Cl$: $36.97 \times 0.2423 = 8.95$

3. Add the products:

   • $26.50 + 8.95 = 35.45 \text{ amu}$

This matches the value on the periodic table for chlorine.

Working backwards: Finding isotopic abundance

Sometimes you're given the average atomic mass and asked to find the abundance of each isotope. For an element with two isotopes, you can set up an algebra problem.

Example: Boron has two isotopes, $^{10}B$ (mass 10.01 amu) and $^{11}B$ (mass 11.01 amu), with an average atomic mass of 10.81 amu.

1. Let $x$ = fractional abundance of $^{10}B$. Then $(1 - x)$ = fractional abundance of $^{11}B$ (since the two fractions must add to 1).

2. Set up the equation: $10.01x + 11.01(1 - x) = 10.81$

3. Distribute: $10.01x + 11.01 - 11.01x = 10.81$

4. Combine like terms: $-1.00x + 11.01 = 10.81$

5. Solve: $x = 0.20$, so $^{10}B$ is about 20% abundant and $^{11}B$ is about 80% abundant.

Electron Structure and Configuration

Electrons are arranged in energy levels (also called shells) around the nucleus, numbered 1, 2, 3, and so on outward from the nucleus. Each energy level contains orbitals, which are regions of space where electrons are most likely to be found.

Electron configuration describes how electrons fill these orbitals. Three rules govern the filling order:

• Aufbau principle: electrons fill the lowest-energy orbitals first.
• Pauli exclusion principle: each orbital can hold a maximum of two electrons, and they must have opposite spins.
• Hund's rule: when orbitals of equal energy are available, electrons fill them singly before pairing up.

Valence electrons are the electrons in the outermost energy level. These are the ones that participate in chemical bonding and determine most of an element's chemical behavior. You'll rely on valence electrons heavily when you get to bonding and Lewis structures.
