Unit 7 Overview: Quality Control and Six Sigma
7.1 Statistical Process Control (SPC)
7.2 Acceptance Sampling
7.3 Six Sigma Methodology and Tools
7.4 Total Quality Management (TQM)

Six Sigma is a data-driven approach to quality improvement. It uses statistical methods to reduce defects and variability in processes, aiming for near-perfect output. This methodology is crucial for businesses looking to enhance efficiency and customer satisfaction.

The DMAIC framework (Define, Measure, Analyze, Improve, Control) is Six Sigma's core problem-solving process. It guides teams through systematic improvement steps, using various tools like SIPOC diagrams, control charts, and design of experiments to optimize processes and maintain gains.

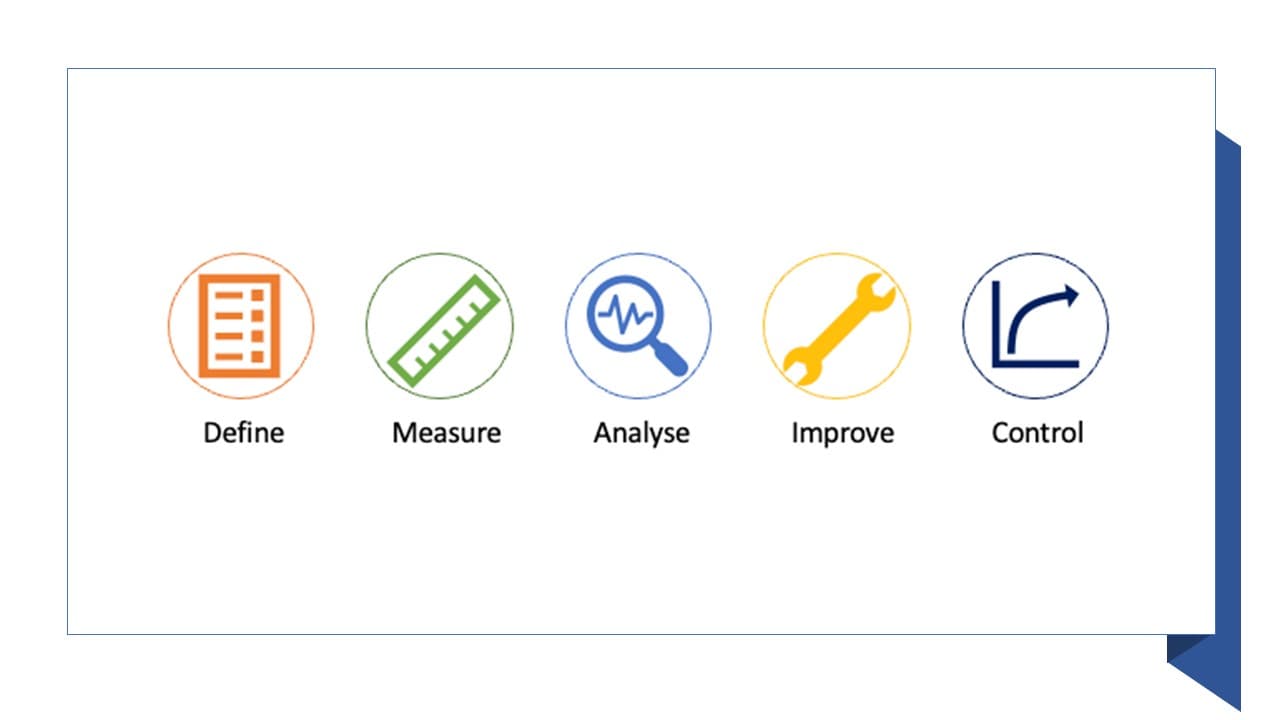

DMAIC Methodology

Define, Measure, Analyze Phases

  • DMAIC data-driven improvement cycle optimizes and stabilizes business processes and designs
  • Define phase identifies problem, scope, goals, and deliverables while forming project team
    • Utilizes tools like project charters to clearly outline project parameters
  • Measure phase collects baseline data, validates measurement systems, and determines process capability
    • Employs control charts to visualize process performance over time
  • Analyze phase uses statistical tools to identify root causes of defects and improvement opportunities
    • Applies hypothesis testing to validate potential causes of process issues

Improve and Control Phases

  • Improve phase develops, tests, and implements solutions addressing root causes from Analyze phase
    • May involve piloting new processes or equipment to validate improvements
  • Control phase sustains improvements through documentation, monitoring, and response plans
    • Creates control plans detailing ongoing measurement and response procedures
  • Each DMAIC phase associates with specific tools and techniques
    • Define: Project charters, SIPOC diagrams
    • Measure: Gage R&R studies, process capability analysis
    • Analyze: Fishbone diagrams, regression analysis
    • Improve: Design of experiments, mistake-proofing
    • Control: Statistical process control, standardized work procedures

Six Sigma Tools for Problem-Solving

SIPOC and Voice of Customer

  • SIPOC (Suppliers, Inputs, Process, Outputs, Customers) high-level process map identifies relevant project elements
    • Helps understand process scope and key stakeholders (production managers, suppliers, end-users)
  • Voice of the Customer (VOC) captures customer requirements, expectations, preferences, and aversions
    • Collects data through surveys, focus groups, customer complaints, and direct observation
    • Example: For a smartphone manufacturer, VOC might reveal preferences for longer battery life and improved camera quality

Critical to Quality Trees

  • Critical to Quality (CTQ) trees translate broad customer needs into specific, measurable requirements
    • Prioritizes customer needs and links them to measurable process characteristics
    • Example: For a pizza delivery service, a CTQ tree might break down "timely delivery" into measurable factors like order processing time, cooking time, and transportation time
  • These tools typically used in Define phase of DMAIC to articulate project goals and customer needs
    • Help align project objectives with customer expectations and process capabilities
  • CTQ trees assist in developing key performance indicators (KPIs) for process improvement projects
    • Example: For a call center, CTQ tree might lead to KPIs like average call handling time and first call resolution rate

Data Analysis for Process Improvement

Descriptive Statistics

  • Descriptive statistics summarize main features of a dataset
    • Measures of central tendency include mean, median, and mode
    • Measures of dispersion include range, variance, and standard deviation
  • Probability distributions, especially normal distribution, fundamental for understanding process behavior
    • Used to model and analyze process variation and capability
  • Statistical Process Control (SPC) charts monitor process stability and detect special cause variation
    • Examples include X-bar and R charts for variable data, and p-charts for attribute data

Inferential Statistics

  • Inferential statistics use sample data to make generalizations about larger populations
    • Includes hypothesis testing and confidence intervals
  • Regression analysis understands relationships between variables and predicts outcomes
    • Simple linear regression examines relationship between two variables
    • Multiple regression analyzes impact of multiple independent variables on a dependent variable
  • Analysis of Variance (ANOVA) compares means across multiple groups or factors
    • One-way ANOVA compares means of three or more independent groups
    • Two-way ANOVA examines effects of two independent variables on a dependent variable
  • Non-parametric tests utilized when data doesn't meet assumptions of parametric tests
    • Examples include Mann-Whitney U test and Kruskal-Wallis test

Process Improvement Techniques

Design of Experiments (DOE)

  • DOE systematically determines relationship between factors affecting a process and its output
    • Helps optimize process parameters and understand factor interactions
  • DOE techniques include full factorial, fractional factorial, and response surface designs
    • Full factorial design tests all possible combinations of factors
    • Fractional factorial design uses a subset of combinations to reduce experimental runs
    • Response surface methodology explores relationships between several variables and one or more response variables
  • DOE typically used in Improve phase of DMAIC to optimize process settings
    • Example: Optimizing parameters for a chemical reaction (temperature, pressure, catalyst concentration)

Failure Mode and Effects Analysis (FMEA)

  • FMEA identifies possible failures in design, manufacturing process, or product/service
    • Proactive tool prevents failures before occurrence, improving reliability and safety
  • FMEA process rates severity, occurrence, and detection of potential failure modes
    • Calculates Risk Priority Number (RPN) to prioritize improvement efforts
  • Used in both Improve and Control phases of DMAIC
    • In Improve phase, identifies potential failures in proposed solutions
    • In Control phase, helps develop monitoring and response plans for critical process parameters
  • Example: Automotive industry uses FMEA to identify and mitigate potential safety issues in vehicle designs

Key Terms to Review (23)

Poka-yoke: Poka-yoke is a Japanese term that means 'mistake-proofing' or 'error prevention.' It involves designing processes or systems to help avoid human errors by creating mechanisms that either prevent mistakes from happening or make them immediately obvious. This concept is crucial for ensuring high quality in production and service delivery, contributing significantly to methodologies focused on efficiency and continuous improvement.
Kaizen: Kaizen is a Japanese term meaning 'continuous improvement' that emphasizes small, incremental changes to enhance efficiency, productivity, and quality in processes. It is rooted in the belief that every employee can contribute to improving the workplace, making it a key component of various methodologies aimed at waste reduction and quality enhancement.
Defects per million opportunities: Defects per million opportunities (DPMO) is a measurement used in quality management to quantify the number of defects in a process relative to the total number of opportunities for error. This metric is essential in assessing process performance and is a key component of the Six Sigma methodology, which aims to reduce variability and improve quality in manufacturing and business processes. A lower DPMO indicates a more efficient process with fewer defects, contributing to higher customer satisfaction and lower operational costs.
Cost of poor quality: Cost of poor quality refers to the total costs associated with producing defective products or services, which includes costs related to failure, appraisal, and prevention. This term highlights the financial impact that inadequate quality management can have on an organization, emphasizing that poor quality does not just affect customer satisfaction but also leads to increased operational expenses and lost revenue. Understanding these costs is crucial for organizations aiming to implement effective quality improvement initiatives and leverage methodologies like Six Sigma.
Black belt: A black belt is a certification level in the Six Sigma methodology, representing a high level of expertise in process improvement and statistical analysis. Individuals who achieve this status are skilled in leading complex projects, mentoring green belts, and using advanced statistical tools to drive quality improvements within organizations. Black belts play a crucial role in implementing Six Sigma principles to reduce defects and enhance processes across various industries.
ISO 9001: ISO 9001 is an internationally recognized standard that sets criteria for a quality management system (QMS). It helps organizations ensure they meet customer and regulatory requirements while continually improving their processes. This standard is essential for implementing effective quality management principles, which connect to various methodologies aimed at enhancing operational efficiency and product quality.
FMEA: Failure Mode and Effects Analysis (FMEA) is a systematic approach used to identify potential failure modes in a product or process and assess their impact on performance. This method helps teams prioritize risks and implement actions to mitigate those risks, making it an essential tool in quality management and continuous improvement initiatives.
Sigma level: Sigma level is a statistical measure that quantifies the capability of a process to produce defect-free outputs. It represents the number of standard deviations from the mean a process can operate while still maintaining a specified quality level, which is crucial in quality management and process improvement initiatives like Six Sigma.
Lean Six Sigma: Lean Six Sigma is a methodology that combines the principles of Lean manufacturing and Six Sigma to improve efficiency and quality in processes by eliminating waste and reducing variation. This approach seeks to enhance customer satisfaction while maximizing productivity and minimizing costs. By integrating these two powerful methodologies, organizations can achieve operational excellence through systematic problem-solving and continuous improvement.
Project charter: A project charter is a formal document that authorizes the existence of a project and outlines its objectives, scope, key stakeholders, and overall framework. It serves as a roadmap for project execution and sets clear expectations among team members and stakeholders, ensuring everyone is aligned on the project's goals and requirements.
Green Belt: A Green Belt is a certification level within the Six Sigma framework that signifies a professional who has a foundational understanding of the Six Sigma methodologies and tools. Green Belts typically participate in projects led by Black Belts and are instrumental in process improvement initiatives, utilizing data analysis and problem-solving skills to enhance organizational performance and quality.
Voice of the customer: The voice of the customer refers to the expressed needs, expectations, and preferences of customers regarding a product or service. It acts as a vital input for organizations to understand what their customers truly want, enabling them to align their processes and outputs with these insights. By incorporating this feedback, businesses can enhance product development, improve quality, and ensure customer satisfaction, making it essential in both quality management and process improvement methodologies.
Fishbone diagram: A fishbone diagram, also known as an Ishikawa or cause-and-effect diagram, is a visual tool used to systematically identify and analyze the potential causes of a specific problem or effect. This diagram resembles a fish skeleton, with the main problem at the head and various categories of causes branching off like bones, helping teams understand the root causes of issues in processes and improve quality.
Regression analysis: Regression analysis is a statistical method used to examine the relationship between a dependent variable and one or more independent variables. This technique helps in predicting outcomes, assessing the strength of predictors, and understanding how changes in independent variables affect the dependent variable. It's widely applied in various fields, including quality control and process improvement.
Control Charts: Control charts are statistical tools used to monitor and analyze the variability in processes over time, allowing for the detection of trends, shifts, or out-of-control conditions. These charts help organizations maintain consistent quality and improve processes by providing a visual representation of process data, enabling teams to identify when corrective actions are necessary. By integrating control charts into quality management practices, organizations can enhance their decision-making processes and align with continuous improvement efforts.
Design of Experiments: Design of Experiments (DOE) is a systematic approach to planning, conducting, and analyzing controlled tests to evaluate the factors that may influence a particular outcome. It helps identify cause-and-effect relationships by manipulating independent variables and observing their impact on dependent variables. This method is crucial for process optimization, quality control, and improving decision-making in various fields.
Process capability: Process capability refers to the inherent ability of a manufacturing or service process to produce output that meets specified requirements. It involves the assessment of a process's performance, usually in terms of its variability and how well it conforms to defined specifications. Understanding process capability is crucial for quality control and improvement efforts, particularly within methodologies aimed at reducing defects and enhancing efficiency.
Hypothesis testing: Hypothesis testing is a statistical method used to make inferences or draw conclusions about a population based on sample data. It involves formulating two competing statements, the null hypothesis and the alternative hypothesis, and using sample data to determine which hypothesis is supported. This process helps in decision-making by assessing the strength of evidence against the null hypothesis, often incorporating significance levels to quantify the likelihood of observing the sample results under the null hypothesis.
Critical to Quality: Critical to Quality (CTQ) refers to the key measurable characteristics of a product or service that must be met to satisfy customer needs and expectations. Identifying CTQs is essential for ensuring that processes are designed and controlled effectively to meet these critical requirements, thereby enhancing customer satisfaction and overall quality. By focusing on CTQs, organizations can prioritize improvement efforts that directly impact the quality of their offerings.
DMAIC: DMAIC is a data-driven improvement cycle used for optimizing and stabilizing business processes and products. It stands for Define, Measure, Analyze, Improve, and Control, each representing a phase in the methodology. This structured approach helps teams identify root causes of issues, implement solutions, and sustain improvements over time, making it a cornerstone of process improvement initiatives.
Gantt Chart: A Gantt chart is a visual project management tool that displays a project schedule, illustrating the start and finish dates of various elements of a project. It helps in organizing tasks, managing resources, and tracking progress over time, making it essential for effective planning, monitoring, and control. By clearly showing which tasks overlap and how they relate to each other, it aids in optimizing resource allocation and ensuring timely completion of project goals.
SIPOC: SIPOC stands for Suppliers, Inputs, Process, Outputs, and Customers. It's a tool used in process management and improvement that helps teams understand the high-level view of a process. By mapping out these five elements, teams can identify key components and relationships, leading to clearer communication and improved efficiency within the context of quality improvement methodologies like Six Sigma.
Statistical Process Control: Statistical Process Control (SPC) is a method used to monitor and control a process by utilizing statistical tools to ensure that it operates at its full potential. This technique helps identify any variations in the process that could lead to defects or inefficiencies, enabling organizations to maintain high levels of quality and performance. By applying SPC, companies can make informed decisions based on data, fostering a culture of continuous improvement.
