10.4 Transient and steady-state response analysis
2 min read•august 9, 2024
Laplace transforms are crucial for analyzing circuit behavior over time. They help us understand how circuits respond to sudden changes and reach steady states. This powerful tool simplifies complex differential equations into algebraic ones.
Transient and analysis gives us insight into a circuit's dynamic behavior. We'll explore key concepts like , time constants, and . We'll also examine steady-state characteristics and , essential for designing robust electrical systems.
Transient Response Characteristics
Fundamental Concepts of Transient Response
Top images from around the web for Fundamental Concepts of Transient Response

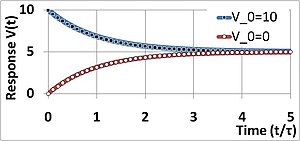

Time constant - Wikipedia View original
Is this image relevant?
Transient responses — Electromagnetic Geophysics View original
Is this image relevant?

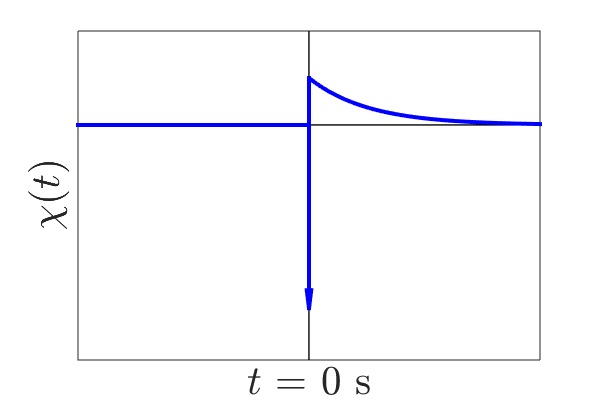

Impulse Response — Electromagnetic Geophysics View original
Is this image relevant?
Time constant - Wikipedia View original
Is this image relevant?
Transient responses — Electromagnetic Geophysics View original
Is this image relevant?
1 of 3
Top images from around the web for Fundamental Concepts of Transient Response
Time constant - Wikipedia View original
Is this image relevant?
Transient responses — Electromagnetic Geophysics View original
Is this image relevant?
Impulse Response — Electromagnetic Geophysics View original
Is this image relevant?
Time constant - Wikipedia View original
Is this image relevant?
Transient responses — Electromagnetic Geophysics View original
Is this image relevant?
1 of 3
- describes system behavior immediately after applying an input signal
- Step response analyzes system reaction to a sudden change in input (unit step function)
- evaluates system behavior when subjected to a brief, intense input signal (unit impulse function)
- measures how quickly a system reaches its steady-state value (63.2% of final value)
- Settling time indicates duration for output to remain within specified error band of final value (typically 2% or 5%)
Key Performance Metrics
- quantifies maximum deviation above final steady-state value during transient period
- measures time taken for output to increase from 10% to 90% of final value
- represents time required to reach maximum overshoot
- indicates time for output to reach 50% of final value
Analyzing Transient Response
- exhibit exponential response curves without oscillations
- may display underdamped, critically damped, or
- oscillate before settling to steady-state value
- reach steady-state fastest without oscillation
- Overdamped responses approach steady-state slowly without oscillation
Steady-State and Frequency Response
Steady-State Response Analysis
- Steady-state response represents long-term system behavior after transients decay
- determines steady-state output for step inputs
- measures difference between desired and actual output in steady-state
- describes ratio of steady-state output to input magnitude
- refers to steady-state gain for constant (zero frequency) inputs
Frequency Response Characteristics
- Frequency response analyzes system behavior for sinusoidal inputs of varying frequencies
- graphically represent magnitude and phase responses across frequency range
- measures additional gain system can tolerate before instability
- indicates additional phase lag system can handle before instability
- defines frequency range where system maintains useful operation (typically -3dB point)
- Resonant frequency occurs at peak magnitude response for underdamped systems
Frequency Response Applications
- Filters design uses frequency response to selectively attenuate or amplify specific frequency components
- Control systems utilize frequency response analysis for stability assessment and performance optimization
- Audio systems employ frequency response measurements to evaluate sound quality and speaker performance
- Communication systems analyze frequency response to determine signal transmission characteristics
Key Terms to Review (25)
Bandwidth: Bandwidth refers to the range of frequencies over which a system can operate effectively, often defined as the difference between the upper and lower frequency limits. It plays a crucial role in determining how a system responds to signals, influencing aspects like quality and performance across various applications.
Bode Plots: Bode plots are graphical representations of a system's frequency response, displaying the gain and phase shift as functions of frequency. They consist of two separate plots: one for gain (magnitude) and another for phase, both plotted against a logarithmic scale of frequency. Bode plots are essential for analyzing both transient and steady-state responses in control systems, as they provide insight into system behavior across a range of frequencies.
Critically damped responses: Critically damped responses occur in dynamic systems when the system returns to equilibrium as quickly as possible without oscillating. This type of response is significant because it represents an optimal balance between speed and stability in a system's transient response, ensuring that it reaches its steady state swiftly while avoiding overshoot.
Dc gain: DC gain refers to the ratio of the output voltage to the input voltage of a system when a steady-state input is applied, typically at zero frequency. It is a critical measure in evaluating how effectively a system processes direct current signals and is essential for understanding a system's behavior in both transient and steady-state conditions. The concept of DC gain is closely tied to the overall stability and performance of electrical systems, influencing how they respond over time.
Delay time: Delay time refers to the duration that elapses from the instant an input signal is applied to a system until the system produces a significant output response. This concept is crucial in understanding how systems react to changes, highlighting the time lag between an input being introduced and the resultant behavior or output of the system.
Final Value Theorem: The Final Value Theorem is a mathematical tool used in control theory and signal processing that allows the determination of the steady-state value of a function from its Laplace transform. It provides a quick way to find the long-term behavior of systems without having to compute the inverse Laplace transform, linking directly to the analysis of circuit responses and transient behaviors.
First-order systems: First-order systems are dynamic systems characterized by a single energy storage element, such as a capacitor or an inductor, and are defined by a first-order differential equation. They exhibit a predictable response to inputs, typically represented as exponential behavior during the transient phase and reaching a steady state over time. Understanding these systems is essential for analyzing their transient and steady-state behaviors, which reflect how the system responds to changes in input over time.
Frequency Response: Frequency response is the measure of an output signal's amplitude and phase change in response to a range of input frequencies, providing insight into how a system behaves when subjected to different signals. It helps analyze systems in terms of their stability, performance, and effectiveness in processing signals, making it crucial for understanding circuit behavior under AC conditions and its filtering characteristics.
Gain Margin: Gain margin is a key measure of the stability of a feedback control system, defined as the amount by which the gain of the system can be increased before it reaches instability. It quantifies how much the gain can change before the system's response shifts from stable to unstable, and is closely related to concepts like transfer functions, frequency response, and Bode plots, which help in analyzing system behavior in the frequency domain.
Impulse Response: Impulse response is a fundamental concept in system theory that describes how a linear time-invariant (LTI) system reacts to an impulse input, which is a signal that is zero everywhere except at one point where it is infinitely high and has an area of one. This response provides essential insights into the characteristics of the system, including its stability, frequency response, and transient behavior. By analyzing the impulse response, one can determine both the transient and steady-state responses of the system to any arbitrary input signal through convolution.
Laplace Transform: The Laplace Transform is a mathematical technique that transforms a function of time into a function of a complex variable, typically denoted as 's'. This powerful tool is used to analyze linear time-invariant systems, allowing for easier manipulation of differential equations by converting them into algebraic equations, which simplifies the study of system behaviors in the frequency domain.
Overdamped responses: Overdamped responses refer to a type of transient response in second-order linear systems where the system returns to equilibrium without oscillating. This behavior occurs when the damping ratio is greater than one, leading to a slower return to steady-state conditions compared to critically damped or underdamped systems. In practical terms, overdamped systems are characterized by their sluggish response, which can be both beneficial and detrimental depending on the application.
Overshoot: Overshoot refers to the phenomenon where a system exceeds its desired final value during transient response before settling at the steady-state value. This behavior is significant in understanding how systems react to changes and is closely related to stability, damping, and the speed of response. Overshoot is an important factor in control systems, as excessive overshoot can lead to undesirable performance and potential instability.
Peak Time: Peak time refers to the duration it takes for a system's response to reach its maximum value during a transient response after a disturbance or input. This concept is crucial in understanding how quickly a system can react and stabilize, which relates to both the transient and steady-state behavior of electrical circuits. The peak time helps determine system performance, such as responsiveness and stability, essential in designing effective circuits and control systems.
Phase Margin: Phase margin is a stability criterion in control systems that indicates how much additional phase lag can be tolerated before the system becomes unstable. It represents the difference between the phase of the open-loop transfer function and -180 degrees at the gain crossover frequency, where the magnitude of the transfer function is equal to one. A higher phase margin generally indicates a more stable system.
Rise time: Rise time is the duration required for a signal to change from a specified low value to a specified high value, typically measured between 10% and 90% of the final steady-state value. This parameter is crucial for understanding how quickly a system can respond to changes and is a key aspect of transient response analysis in electrical circuits.
Second-order systems: Second-order systems are dynamic systems characterized by a differential equation of the second order, which typically involves terms related to acceleration, velocity, and position. These systems are widely recognized for their unique transient and steady-state response characteristics, which include oscillations and damping effects. Understanding second-order systems is crucial for analyzing how they respond to inputs over time, particularly in terms of stability and behavior during transient conditions.
Settling Time: Settling time is the time required for a system's response to reach and stay within a certain percentage of its final value after a change in input. This concept is crucial as it indicates how quickly a system can stabilize after a disturbance or input signal, impacting performance in various applications. It helps evaluate the efficiency of feedback systems and plays a significant role in determining the overall responsiveness of circuits, especially in dynamic scenarios like analog-to-digital conversions.
Static Gain: Static gain refers to the constant ratio of output to input in a system when it reaches a steady state, indicating how much the output will change for a given change in input. This concept is essential in understanding how systems respond to inputs over time, especially during steady-state conditions, where the behavior of the system becomes predictable and stable.
Steady-state error: Steady-state error is the difference between the desired output and the actual output of a system when it has reached a stable condition after transient effects have diminished. This concept highlights how well a control system can achieve and maintain its target performance over time, reflecting both the accuracy and effectiveness of the system's design.
Steady-state response: The steady-state response refers to the behavior of a system after transients have dissipated and the system has reached a stable output in response to a constant input. This state is crucial for analyzing how circuits respond to sinusoidal inputs, revealing their characteristics over time without the effects of initial conditions.
Step Response: The step response of a system is the output that results when a step input, typically a sudden change in input signal, is applied. It reveals how the system reacts over time, showcasing both transient and steady-state behaviors. Understanding the step response is essential for analyzing system stability, performance, and control characteristics, providing insights into how quickly and effectively a system can respond to changes.
Time Constant: The time constant is a measure of the time it takes for a system to respond to changes in its input, specifically the time required for a system's response to reach approximately 63.2% of its final value after a step change. It is critical in understanding how quickly a system can reach its steady state after being disturbed, playing a key role in analyzing both transient responses and system stability.
Transient response: Transient response refers to the behavior of a circuit when it is subjected to a sudden change in conditions, such as switching on a voltage or current source. This period of time is characterized by temporary fluctuations before the system settles into its steady-state condition. Understanding transient response is crucial for analyzing how circuits react immediately after disturbances, as it influences stability, performance, and how well a circuit meets design specifications.
Underdamped responses: Underdamped responses refer to a system's behavior characterized by oscillations that gradually decrease in amplitude over time before eventually settling at a steady state. This occurs in systems where the damping is insufficient to prevent oscillation, leading to a response that is neither purely oscillatory nor critically damped, resulting in overshoot and oscillatory motion as the system stabilizes.
