10.3 Transfer functions and system stability
Last Updated on August 9, 2024
Transfer functions are essential tools in circuit analysis, linking input and output signals in the Laplace domain. They help us understand system behavior and stability. This topic builds on Laplace transform concepts, showing how they're applied to real-world electrical systems.
Poles and zeros of transfer functions reveal crucial information about system stability and response. By analyzing these elements, we can predict how circuits will behave under different conditions. This knowledge is vital for designing stable and efficient electrical systems.
Transfer Functions and Poles/Zeros

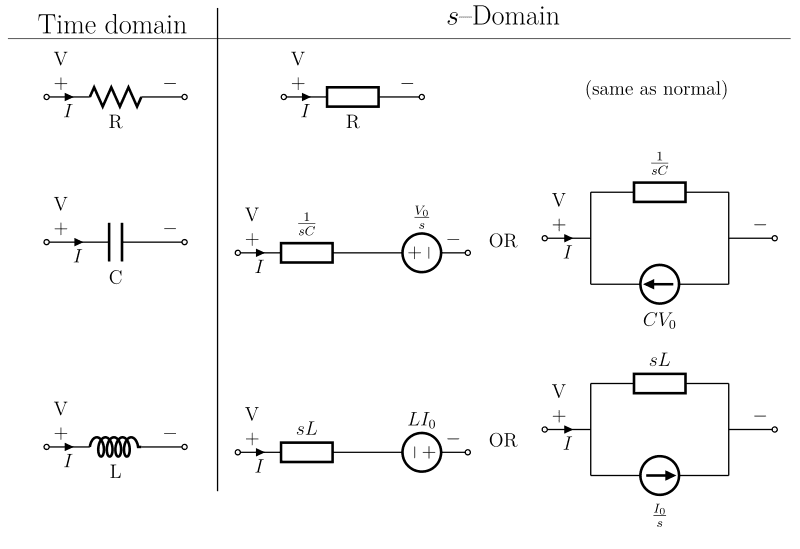

Transfer Function Fundamentals
Top images from around the web for Transfer Function Fundamentals
Laplace transform - Wikipedia View original
Is this image relevant?
Laplace transform - Wikipedia View original
Is this image relevant?
1 of 1
Top images from around the web for Transfer Function Fundamentals
Laplace transform - Wikipedia View original
Is this image relevant?
Laplace transform - Wikipedia View original
Is this image relevant?
1 of 1
- Transfer function represents mathematical relationship between input and output of linear time-invariant system
- Expressed as ratio of output to input in Laplace domain:
- Provides compact description of system behavior in frequency domain
- Facilitates analysis of system response to various inputs
- Commonly used in control systems, signal processing, and circuit analysis
Poles, Zeros, and Their Significance
- Poles defined as roots of denominator polynomial in transfer function
- Zeros identified as roots of numerator polynomial in transfer function
- Pole locations determine system stability and transient response characteristics
- Left-half plane poles indicate stable system
- Right-half plane poles signify unstable system
- Imaginary axis poles result in marginally stable system
- Zero locations influence system's steady-state response and frequency behavior
- Pole-zero plot visually represents system dynamics in complex s-plane
Bode Plot Analysis
- Bode plots consist of magnitude and phase plots versus frequency
- Magnitude plot displays gain of system in decibels (dB) against logarithmic frequency scale
- Phase plot shows phase shift between input and output signals against logarithmic frequency scale
- Useful for analyzing system frequency response and stability
- Helps determine system bandwidth and cutoff frequencies
- Facilitates design of compensation networks for improved system performance
- Straight-line approximations simplify manual sketching of Bode plots
- Corner frequencies correspond to poles and zeros in transfer function
System Stability
Stability Criteria and Analysis
- System stability refers to bounded output response for bounded input
- Stable system returns to equilibrium after disturbance
- Unstable system exhibits growing oscillations or divergent behavior
- Marginal stability characterized by sustained oscillations without growth or decay
- BIBO (Bounded-Input, Bounded-Output) stability concept widely used in control theory
- Lyapunov stability theory provides more general framework for nonlinear systems
- Nyquist stability criterion assesses closed-loop stability based on open-loop transfer function
Routh-Hurwitz Stability Criterion
- Algebraic method to determine stability of linear time-invariant systems
- Analyzes characteristic equation of system without solving for roots
- Constructs Routh array using coefficients of characteristic polynomial
- Number of sign changes in first column of Routh array indicates number of right-half plane poles
- No sign changes in first column ensures system stability
- Special cases (zero entries in first column) require additional steps
- Applicable to systems with polynomial characteristic equations
- Provides necessary and sufficient conditions for stability
Stability Margins and Robustness
- Gain margin measures additional gain system can tolerate before instability
- Calculated as inverse of magnitude at frequency where phase crosses -180 degrees
- Phase margin indicates additional phase lag system can withstand before instability
- Measured as difference between -180 degrees and phase at unity gain frequency
- Larger stability margins indicate more robust system against parameter variations
- Typical design goals: gain margin > 6 dB, phase margin > 45 degrees
- Trade-off between stability margins and system performance (speed, accuracy)
- Stability margins visualized on Bode plots or Nyquist diagrams
Key Terms to Review (18)
Frequency Response: Frequency response is the measure of an output signal's amplitude and phase change in response to a range of input frequencies, providing insight into how a system behaves when subjected to different signals. It helps analyze systems in terms of their stability, performance, and effectiveness in processing signals, making it crucial for understanding circuit behavior under AC conditions and its filtering characteristics.
Positive feedback: Positive feedback is a process where the output of a system amplifies its own input, leading to an increase in activity or effect within the system. This mechanism can lead to exponential growth or runaway effects, significantly influencing the behavior of electronic circuits and systems. In many cases, positive feedback can enhance performance, but it also risks instability if not controlled properly.
Negative feedback: Negative feedback is a process in control systems where the output of a system is fed back in a way that reduces the overall output. This mechanism helps stabilize systems by automatically correcting deviations from a desired level. It plays a crucial role in various applications, enabling improved accuracy and stability in performance.
Pole-zero plot: A pole-zero plot is a graphical representation of the poles and zeros of a transfer function in the complex frequency plane. This plot helps in understanding the behavior and stability of linear time-invariant systems by visually indicating how the locations of poles and zeros affect system dynamics, frequency response, and stability characteristics.
Control systems design: Control systems design is the process of developing a control strategy to regulate the behavior of dynamic systems. This involves creating mathematical models that represent the system's dynamics and establishing criteria for performance, stability, and robustness. By analyzing transfer functions, designers can ensure that the system responds appropriately to inputs while maintaining stability under various conditions.
Compensator Design: Compensator design refers to the process of modifying a control system to achieve desired performance characteristics, such as stability, speed of response, and accuracy. By altering the transfer function of a system, compensators can improve stability margins and mitigate issues like overshoot and steady-state error. This process involves selecting appropriate compensator types and parameters based on the system's transfer function and stability analysis.
Control theory: Control theory is a branch of engineering and mathematics that deals with the behavior of dynamical systems with inputs, and how their behavior is modified by feedback. It focuses on designing systems that maintain desired outputs despite disturbances, ensuring stability and performance. By using mathematical models, control theory connects to key concepts like transfer functions and system stability, which help in analyzing how systems respond to changes and uncertainties.
Input-output relation: The input-output relation refers to the mathematical representation that describes how the output of a system responds to various inputs. This concept is essential for understanding the behavior and dynamics of systems, particularly in analyzing how changes in input affect the resulting output, which is crucial for determining system stability and performance. The relationship can often be expressed through transfer functions, enabling engineers to model and predict system responses under different conditions.
State-space representation: State-space representation is a mathematical framework used to model and analyze dynamic systems by describing them in terms of state variables and their time evolution. This approach allows for the analysis of system stability, response, and control by employing state equations that encapsulate the system's dynamics and interactions. It connects closely with transfer functions, state variables, and solutions to state equations, offering a comprehensive view of linear systems.
BIBO Stability: BIBO stability, or Bounded Input Bounded Output stability, refers to the property of a system where every bounded input leads to a bounded output. This concept is critical when analyzing the performance of systems, particularly in the context of transfer functions, as it ensures that the system will not produce unbounded outputs in response to any bounded inputs, leading to predictable and reliable behavior.
Asymptotic Stability: Asymptotic stability refers to a property of a dynamical system where, after a disturbance, the system will return to its equilibrium state over time. This concept is crucial in understanding how systems behave in response to changes and disturbances, indicating not just stability but also the speed of return to equilibrium. Asymptotic stability ensures that any trajectory of the system will converge towards the equilibrium point as time progresses.
Stability: Stability refers to the ability of a system to return to a state of equilibrium after being disturbed. In the context of control systems and circuits, stability is crucial for ensuring that systems respond predictably and do not oscillate uncontrollably or diverge over time.
Causal System: A causal system is one in which the output at any given time depends only on the current and past input values, not on future inputs. This means that the system's response is determined by what has already happened, ensuring that it behaves in a predictable manner. Causal systems are essential for real-time processing and control applications, as they rely on information that is available at the moment or from earlier times, making them closely linked to concepts like transfer functions and system stability.
Time Constant: The time constant is a measure of the time it takes for a system to respond to changes in its input, specifically the time required for a system's response to reach approximately 63.2% of its final value after a step change. It is critical in understanding how quickly a system can reach its steady state after being disturbed, playing a key role in analyzing both transient responses and system stability.
Laplace Transform: The Laplace Transform is a mathematical technique that transforms a function of time into a function of a complex variable, typically denoted as 's'. This powerful tool is used to analyze linear time-invariant systems, allowing for easier manipulation of differential equations by converting them into algebraic equations, which simplifies the study of system behaviors in the frequency domain.
Transfer Function: A transfer function is a mathematical representation that defines the relationship between the input and output of a linear time-invariant (LTI) system in the frequency domain. It captures how a system responds to various frequencies, providing insights into system behavior, stability, and dynamics.
System response: System response refers to how a system reacts to external inputs or disturbances over time. This concept is crucial in analyzing the behavior of dynamic systems, as it helps determine stability and performance by understanding how outputs change in relation to various inputs. By studying system response, engineers can design and optimize systems to achieve desired performance metrics.
Signal processing: Signal processing refers to the analysis, interpretation, and manipulation of signals to improve their quality or extract valuable information. This involves the use of various techniques and algorithms to filter unwanted noise, enhance specific features, and transform signals for easier analysis. Effective signal processing is crucial for ensuring system performance, stability, and the successful implementation of control strategies across various applications.
