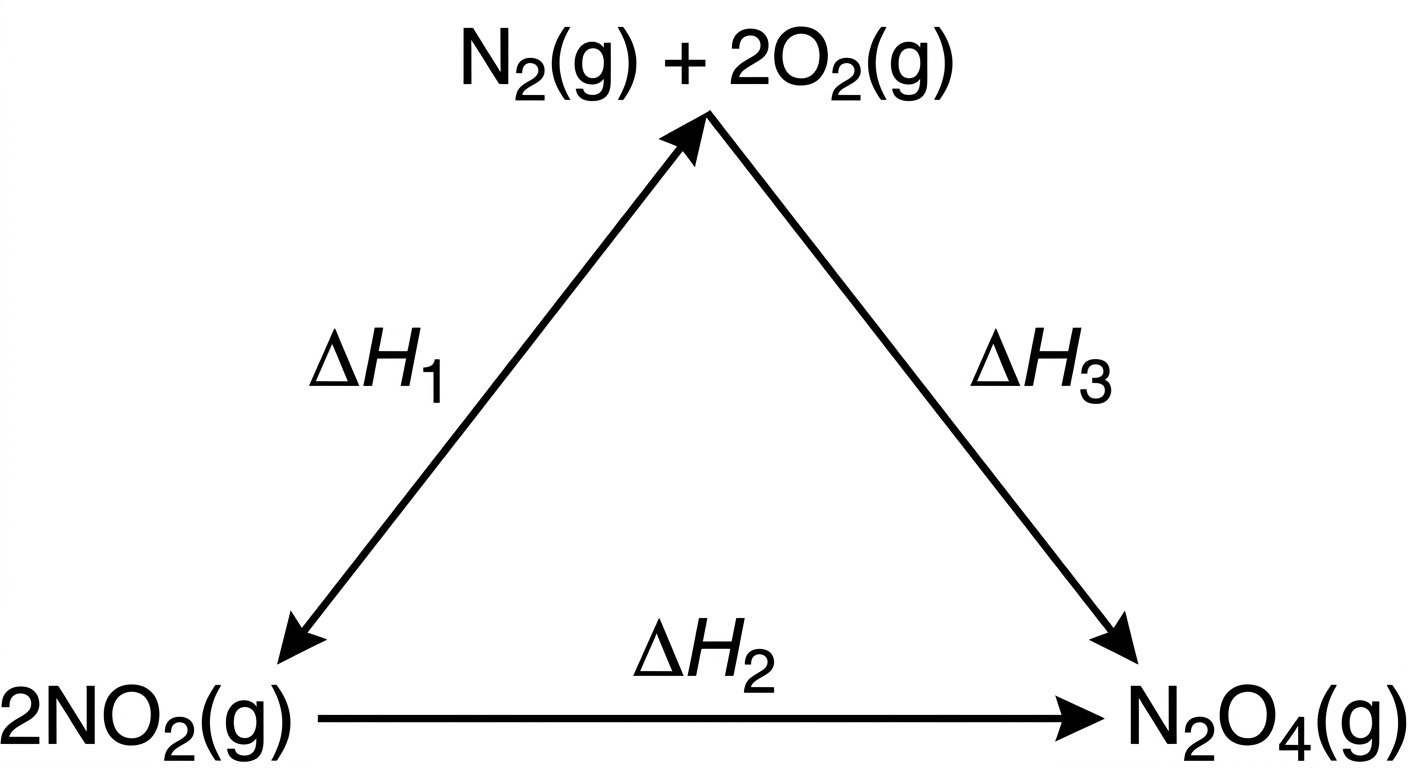

An energy diagram (reaction coordinate diagram) plots potential energy on the y-axis against reaction progress on the x-axis. The relative heights of reactants and products show whether the process is endothermic or exothermic, and the peak represents the transition state. For Unit 6, focus on reading ΔH from the diagram rather than activation energy, which is covered more in Unit 5.
- Exothermic diagram: Products sit lower than reactants on the y-axis. The energy difference is negative ΔH, and energy is released to the surroundings.
- Endothermic diagram: Products sit higher than reactants. The energy difference is positive ΔH, and energy is absorbed from the surroundings.
- Transition state: The highest-energy point on the diagram. It represents the activated complex and is not a stable intermediate.
- Activation energy (Ea): The energy difference between the reactants and the transition state. A catalyst lowers Ea without changing the overall ΔH.

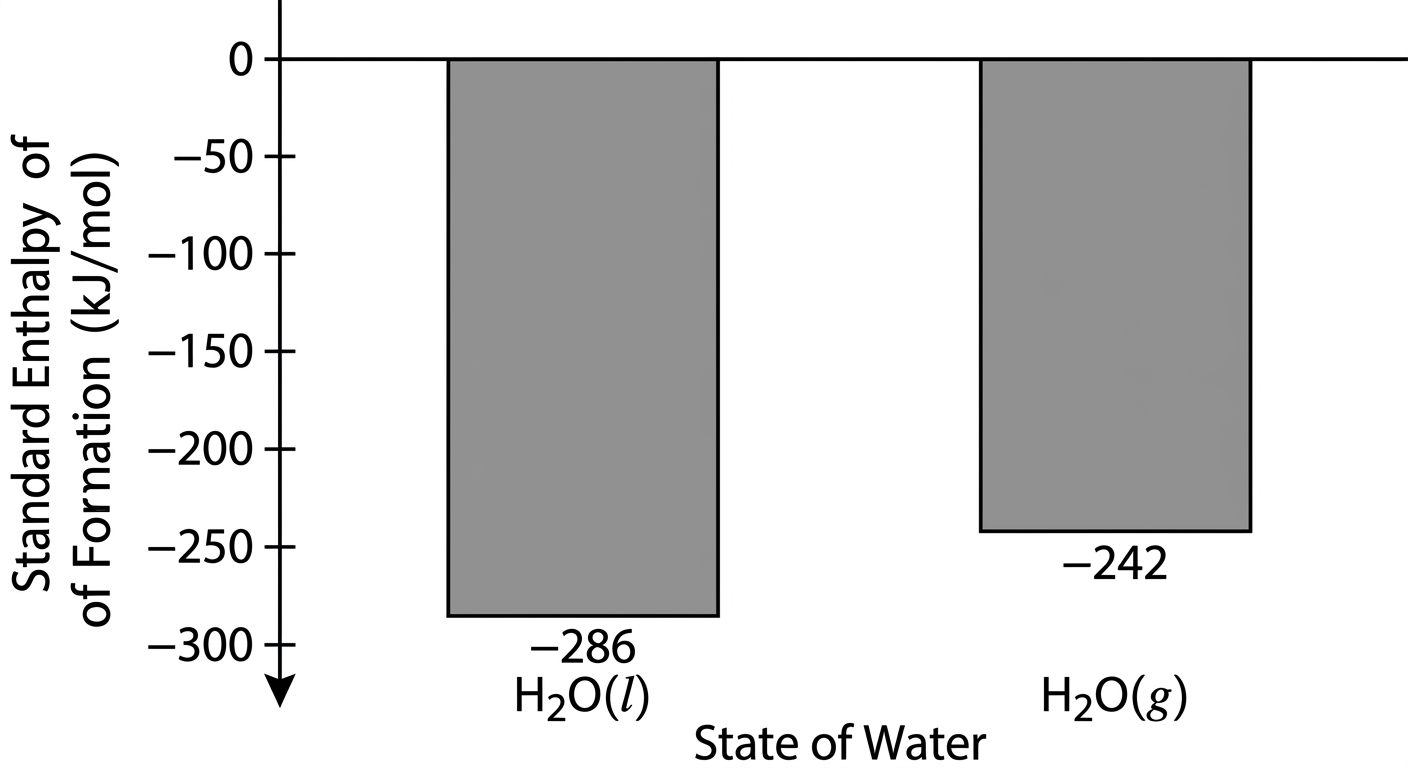

- Phase change diagrams: Melting and vaporization are shown as uphill steps; freezing and condensation are downhill. The magnitude of the step equals the molar enthalpy of the phase change.
Sketch an energy diagram for an endothermic reaction and label reactants, products, transition state, Ea, and ΔH.
| Diagram feature | Exothermic reaction | Endothermic reaction |
|---|
| Product energy vs. reactant energy | Products lower | Products higher |
| ΔH sign | Negative | Positive |
| Energy released or absorbed | Released | Absorbed |
