data collection is a crucial step in crystallography. It involves carefully planning scan types, exposure times, and to capture high-quality diffraction patterns. These strategies maximize and redundancy, ensuring comprehensive structural information.
Data processing transforms raw diffraction images into usable datasets. This includes background subtraction, , and . Advanced techniques like , , and further refine the data for accurate structure determination.
Data Collection Parameters
Types of Scans and Exposure Considerations
Top images from around the web for Types of Scans and Exposure Considerations

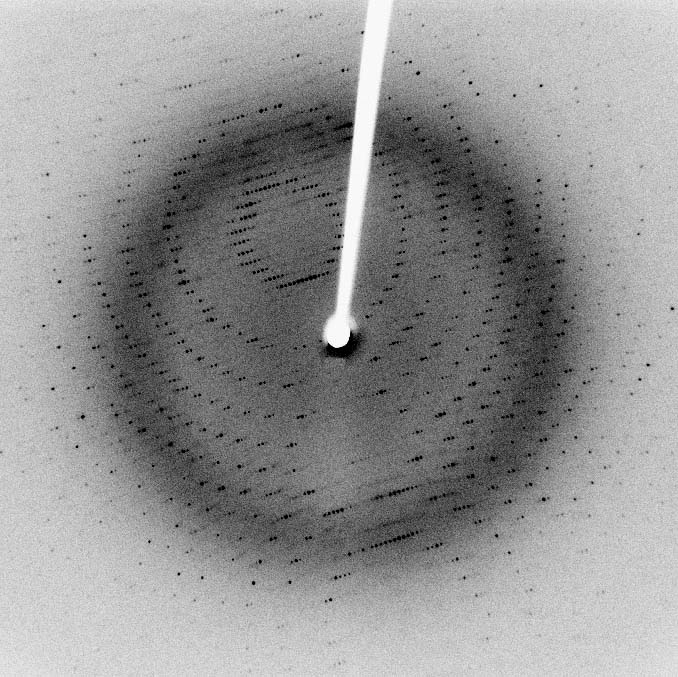

Determining Atomic Structures by X-Ray Crystallography | Introduction to Chemistry View original
Is this image relevant?
Figures and data in Three-dimensional electron crystallography of protein microcrystals | eLife View original
Is this image relevant?
Determining Atomic Structures by X-Ray Crystallography | Introduction to Chemistry View original
Is this image relevant?
Figures and data in Three-dimensional electron crystallography of protein microcrystals | eLife View original
Is this image relevant?
1 of 2
Top images from around the web for Types of Scans and Exposure Considerations
Determining Atomic Structures by X-Ray Crystallography | Introduction to Chemistry View original
Is this image relevant?
Figures and data in Three-dimensional electron crystallography of protein microcrystals | eLife View original
Is this image relevant?
Determining Atomic Structures by X-Ray Crystallography | Introduction to Chemistry View original
Is this image relevant?
Figures and data in Three-dimensional electron crystallography of protein microcrystals | eLife View original
Is this image relevant?
1 of 2
Scan types encompass various methods to collect diffraction data
Omega scans rotate the crystal around a single axis
Phi scans involve rotation around the goniometer axis
Oscillation scans collect data over small angular ranges
Exposure time determines the intensity and quality of diffraction patterns
Longer exposures increase signal-to-noise ratio
Shorter exposures minimize radiation damage to the sample
Resolution refers to the level of detail in the diffraction pattern
Higher resolution provides more accurate atomic positions
Typically measured in Angstroms (Å)
Resolution limits depend on crystal quality and
Optimizing Data Collection Strategies
Data collection strategies aim to maximize completeness and redundancy
Completeness measures the percentage of unique reflections collected
Redundancy involves collecting multiple measurements of each reflection
Crystal-to-detector distance affects resolution and spot separation
Shorter distances increase resolution but may cause spot overlap
Longer distances improve spot separation but reduce resolution
Beam intensity and wavelength influence diffraction quality
Higher intensity beams produce stronger diffraction patterns
Wavelength selection can optimize anomalous scattering for phasing
Data Processing
Initial Data Reduction and Correction
Background subtraction removes noise from diffraction images
Eliminates contributions from air scattering and detector noise
Improves signal-to-noise ratio for accurate intensity measurements
Peak fitting determines precise positions and intensities of reflections
Employs mathematical models (Gaussian, Lorentzian) to fit diffraction spots
Accounts for peak shape and potential overlap
Intensity extraction calculates integrated intensities for each reflection
Considers peak profile and background levels
Assigns error estimates to each intensity measurement
Advanced Processing Techniques
Data reduction combines and scales multiple images into a single dataset
Merges symmetry-equivalent reflections
Applies scaling factors to account for variations in beam intensity and crystal absorption
Space group determination analyzes systematic absences and intensity statistics
Identifies the crystal's symmetry and possible space groups
Guides structure solution and refinement processes
removes problematic reflections
Identifies and excludes reflections with inconsistent intensities
Improves overall data quality and reliability
Corrections and Calculations
Absorption Correction Methods
Absorption correction accounts for X-ray attenuation within the crystal
Empirical methods use redundant data to model absorption effects
Analytical methods calculate absorption based on crystal shape and composition
Absorption correction improves data accuracy, especially for strongly absorbing elements
Reduces systematic errors in intensity measurements
Enhances the quality of subsequent structure refinement
Structure Factor Calculation and Analysis
Structure factor calculation converts corrected intensities to structure factor amplitudes
Applies Lorentz and polarization corrections to account for geometric and beam effects
Normalizes intensities to put all reflections on a common scale
Structure factor analysis provides insights into crystal contents
Wilson plots help estimate overall temperature factors and scale factors
Patterson functions can reveal heavy atom positions or molecular orientations
Phase problem addressed through various methods
Direct methods exploit statistical relationships between structure factors
Molecular replacement uses known structures as phasing models
Absorption correction: Absorption correction is a method used in crystallography to adjust the measured intensities of diffracted X-rays to account for the absorption of X-rays by the crystal itself. This adjustment is critical because different parts of the crystal can absorb X-rays to varying extents, leading to inaccuracies in the collected data. Properly applying absorption correction ensures that the final data accurately reflects the true structure of the crystal, enhancing both data collection strategies and error analysis.
Completeness: Completeness refers to the extent to which a dataset contains all necessary information and reflections of the underlying crystallographic structure, ensuring that all relevant reflections are measured and included in the analysis. Achieving completeness is crucial in data collection strategies as it directly impacts the quality of the resulting crystallographic models, allowing for accurate interpretation and understanding of the crystal's properties.
Crystals: Crystals are solid materials whose atoms are arranged in a highly ordered, repeating pattern extending in all three spatial dimensions. This orderly arrangement gives crystals their unique geometric shapes and distinct physical properties, making them essential in various scientific fields, especially when it comes to data collection and processing methods used in crystallography.
Data reduction: Data reduction is the process of minimizing the amount of data that needs to be processed while retaining the essential information necessary for analysis. This technique helps in streamlining data collection and processing, making it easier to interpret results and draw meaningful conclusions. By efficiently managing data, researchers can improve accuracy and reduce the time and resources required in experiments, particularly in the fields of crystallography and diffraction techniques.
Data redundancy: Data redundancy refers to the unnecessary duplication of data within a database or dataset, leading to inefficient data storage and potential inconsistencies. In the context of data collection strategies and processing, managing redundancy is crucial for maintaining the integrity and accuracy of collected data while optimizing storage and retrieval processes.
Experimental setup: An experimental setup refers to the specific arrangement of equipment, materials, and procedures used to conduct an experiment in a controlled environment. This setup is crucial for obtaining accurate and reliable data, as it minimizes variables that could affect the results and ensures that the experiment can be repeated under the same conditions. The design of an experimental setup also influences the efficiency of data collection strategies and processing methods.
Intensity data: Intensity data refers to the measured values of scattered X-ray intensity from a crystal, which is essential for determining the crystal structure. This data is crucial as it provides information about the arrangement of atoms within the crystal and is influenced by factors like crystal quality, wavelength of X-rays, and the geometry of the scattering experiment.
Intensity extraction: Intensity extraction refers to the process of measuring and obtaining the intensity of diffraction peaks from crystallographic data, which is crucial for determining the structure of a crystal. This technique is essential for converting raw data from X-ray or neutron diffraction into usable information that reveals the arrangement of atoms within a crystal lattice. It plays a vital role in data collection strategies and processing, as it directly influences the accuracy of structural models and the reliability of the results obtained from crystallographic studies.
Mad: In the context of crystallography, 'mad' stands for Multiwavelength Anomalous Dispersion, a technique used to enhance the determination of macromolecular structures by utilizing differences in scattering from multiple wavelengths. This method relies on the use of anomalous scattering from heavy atoms incorporated into a crystal structure, allowing for improved phase information which is crucial for accurate structural analysis. Understanding mad is essential for interpreting the intensity of diffracted beams and optimizing data collection strategies.
Oscillation photography: Oscillation photography is a technique used to capture images of rapidly oscillating objects by utilizing timed exposure with a moving camera or light source. This method allows for the visualization of dynamic processes, revealing patterns and behaviors that occur in short time frames, which is essential for studying crystal structures and their properties during data collection and processing.
Outlier rejection: Outlier rejection is the process of identifying and removing data points that deviate significantly from the rest of the dataset. This is crucial in data collection and processing, as outliers can skew results, leading to inaccurate conclusions and undermining the reliability of the analysis. Effectively rejecting outliers helps ensure that the collected data represents a true reflection of the underlying phenomena being studied.
Peak fitting: Peak fitting is a mathematical process used to analyze and interpret data from experimental techniques, particularly in crystallography, where it helps to identify and quantify peaks in diffraction patterns. This technique is essential for refining the structural parameters of crystals by accurately modeling the shape and position of peaks that represent different reflections in the data. The quality of peak fitting can significantly influence the reliability of the derived crystal structure.
Polarization correction: Polarization correction refers to the adjustments made to account for the effects of the polarization of X-ray beams during data collection in crystallography. This is crucial as polarized X-rays can lead to variations in intensity measurements, affecting the accuracy of structural determinations. Properly applying polarization correction ensures that the data reflects true atomic positions and contributes to more reliable crystallographic models.
Resolution: Resolution refers to the ability to distinguish between two closely spaced points in an image or diffraction pattern, directly impacting the quality of structural information obtained from crystallographic techniques. Higher resolution means more detailed and accurate information about the atomic arrangement within a crystal, which is crucial for determining the structure of materials. The concept of resolution is vital in understanding how different methods of data collection and processing yield varying levels of clarity in structural analysis.
Sad: In the context of data collection strategies and processing, 'sad' refers to a method or approach that emphasizes the significance of sample size, accuracy, and data integrity. This concept underscores the importance of obtaining high-quality data to ensure reliable results, which can significantly impact the outcomes of crystallographic analyses. A well-planned data collection strategy, incorporating the 'sad' principle, helps in minimizing errors and enhancing the reproducibility of results.
SHELX: SHELX is a collection of software programs used for solving and refining crystal structures from X-ray diffraction data. It plays a crucial role in crystallography, particularly in the context of structure determination, model refinement, and data analysis, making it a vital tool for researchers in this field.
Space group determination: Space group determination is the process of identifying the symmetry properties of a crystal structure by analyzing its diffraction patterns. This identification is crucial because it helps to classify the arrangement of atoms in a crystal and defines how those atoms are repeated in three-dimensional space. The accurate determination of space groups is essential for understanding the physical properties and behavior of materials.
X-ray diffraction: X-ray diffraction is a powerful technique used to study the atomic and molecular structure of crystalline materials by analyzing the patterns produced when X-rays are scattered by the crystal lattice. This method provides critical insights into crystal structures, enabling researchers to determine the arrangement of atoms in a material and understand its properties.
