2.1 Water relations and transport

Water's role in plant life

Water is the single most important molecule for plant survival. It acts as a solvent for nutrients, provides the physical force that keeps cells rigid, and serves as a raw material for photosynthesis. Without a continuous supply, plants wilt, stop growing, and eventually die.

Unique properties of water

Water has several physical properties that make it uniquely suited for life in plants:

• High specific heat capacity means water absorbs and releases heat slowly, which helps buffer plants against rapid temperature swings.
• High latent heat of vaporization means evaporating water absorbs a lot of energy. This is why transpiration cools leaf surfaces, much like sweating cools your skin.
• Expansion upon freezing can rupture plant cells when ice crystals form inside them, which is why frost damage is such a concern.
• Cohesion and adhesion allow water molecules to stick to each other (cohesion) and to surfaces like cell walls (adhesion). Together, these properties let water travel through narrow xylem vessels without the water column snapping apart.

Water as a solvent

Because water is a polar molecule, it dissolves a huge range of substances: ions, sugars, amino acids, and more. This makes it the ideal transport medium inside plants. Dissolved nutrients travel from roots to shoots, and sugars move from leaves to growing tissues, all carried in water.

Water also provides the medium for enzyme activity and biochemical reactions throughout the cell. It even helps maintain the 3D shape of proteins and nucleic acids through hydrogen bonding and hydrophobic interactions.

Cohesion and adhesion

These two properties deserve extra attention because they're central to water transport.

• Cohesion is the mutual attraction between water molecules, caused by hydrogen bonds. Water molecules essentially "hold hands" in a continuous chain.
• Adhesion is the attraction between water molecules and other surfaces, like the walls of xylem vessels.

Working together, cohesion and adhesion create surface tension and allow water to travel upward through extremely narrow spaces (capillary action). This is what makes it possible for water to climb from roots to the top of a tall tree against gravity.

Water potential

Water potential ($\Psi$) measures the free energy of water in a system. It tells you which direction water will move: water always flows from higher $\Psi$ to lower $\Psi$. Think of it like water rolling downhill, except the "hill" is a gradient of free energy rather than elevation.

Components of water potential

Water potential is the sum of several components:

• Solute potential ($\Psi_s$): Adding solutes lowers water potential. The more dissolved particles, the more negative $\Psi_s$ becomes. This is also called osmotic potential.
• Pressure potential ($\Psi_p$): Physical pressure raises water potential. In a turgid cell, $\Psi_p$ is positive because the cell wall pushes back against the expanding protoplast. In xylem under tension, $\Psi_p$ is negative.
• Gravitational potential ($\Psi_g$): Gravity pulls water downward, so water potential decreases with height. This matters most in tall trees.
• Matric potential ($\Psi_m$): Capillary and adsorptive forces in soil particles and cell walls lower water potential. This is especially relevant in unsaturated soils.

For most cell-level calculations in an intro course, you'll focus on: $\Psi = \Psi_s + \Psi_p$

Measuring water potential

Several tools exist for measuring water potential in different contexts:

• Pressure chamber (Scholander bomb): A cut leaf or stem is sealed in a chamber, and pressure is applied until xylem sap appears at the cut surface. That pressure equals the xylem tension.
• Psychrometers: Measure the relative humidity of air in equilibrium with a plant tissue sample, then calculate $\Psi$ from that.
• Osmometers: Determine the osmotic potential of extracted plant sap using freezing point depression or vapor pressure methods.
• Tensiometers: Measure soil matric potential by letting a water-filled porous cup equilibrate with the surrounding soil.

Water potential gradients

Water moves along a continuous gradient from soil to atmosphere, called the soil-plant-atmosphere continuum (SPAC). Typical values illustrate this gradient clearly:

• Soil: $\Psi \approx -0.3 \text{ MPa}$
• Root xylem: $\Psi \approx -0.6 \text{ MPa}$
• Leaf xylem: $\Psi \approx -1.5 \text{ MPa}$
• Leaf air spaces: $\Psi \approx -7 \text{ MPa}$
• Atmosphere (50% RH): $\Psi \approx -95 \text{ MPa}$

The steepest drop occurs between the leaf and the atmosphere. This enormous gradient is what makes transpiration such a powerful engine for pulling water through the plant.

Water uptake by roots

Roots are the entry point for nearly all the water a plant uses. The efficiency of water uptake depends on root architecture: how deep roots grow, how densely they branch, and how much surface area they expose to the soil. Root hairs, tiny extensions of epidermal cells, dramatically increase that absorptive surface area.

Root structure and function

Water must cross several tissue layers to reach the xylem:

1. Epidermis — the outermost cell layer, where root hairs project into the soil and absorb water.
2. Cortex — a thick zone of parenchyma cells. Water moves radially inward through this region.
3. Endodermis — a single cell layer with a waxy band called the Casparian strip embedded in its cell walls. This strip blocks unregulated flow through the cell walls, forcing all water and solutes to pass through the living cell membranes. This is the plant's quality-control checkpoint.
4. Stele (vascular cylinder) — contains the xylem and phloem that carry water and nutrients long distances.

Apoplastic vs. symplastic pathways

Water can take two routes through the root cortex:

• Apoplastic pathway: Water moves through cell walls and the spaces between cells, never crossing a membrane. This is the path of least resistance, but it's blocked at the endodermis by the Casparian strip.
• Symplastic pathway: Water moves through the cytoplasm of cells, passing from one cell to the next through plasmodesmata (tiny channels connecting adjacent cells).

Because the Casparian strip blocks the apoplast at the endodermis, all water must enter the symplast before it can reach the xylem. This forces water and dissolved solutes through selective cell membranes, giving the plant control over what enters the vascular system.

Aquaporins and water channels

Aquaporins are protein channels embedded in cell membranes that speed up water movement across those membranes. They're found in both the plasma membrane and the tonoplast (vacuolar membrane) of root cells.

Plants can regulate aquaporin expression and activity in response to conditions like drought, salinity, or hormone signals. By producing more or fewer aquaporins, a plant adjusts how easily water flows into and through its roots. This makes aquaporins an important factor in root hydraulic conductivity.

Transpiration

Transpiration is the evaporation of water from plant surfaces, mostly through open stomata on leaves. It might seem wasteful, but transpiration is unavoidable: stomata must open to let $CO_2$ in for photosynthesis, and water vapor escapes through those same openings. On the positive side, transpiration generates the pulling force that drives water transport through the xylem.

Driving forces of transpiration

The main driver is the water potential difference between the leaf interior and the surrounding air. Several factors widen this gap:

• Temperature: Warmer air holds more water vapor, increasing the vapor pressure deficit (VPD) and pulling more water out of the leaf.
• Humidity: Drier air (low relative humidity) creates a steeper gradient for water vapor to leave the leaf.
• Wind: Moving air strips away the thin layer of humid air (boundary layer) that sits on the leaf surface, exposing the stomata to drier air.
• Solar radiation: Provides the energy that drives evaporation and warms the leaf.

Stomatal regulation

Stomata are pores in the leaf epidermis, each bordered by two guard cells that control the pore's size. When guard cells take up water and swell, the pore opens. When they lose water, it closes.

Guard cells respond to multiple signals:

• Light promotes opening (more photosynthesis possible).
• High $CO_2$ concentration inside the leaf promotes closing (enough $CO_2$ is already available).
• Low humidity can trigger partial closure to conserve water.
• Abscisic acid (ABA) signals from roots under drought stress trigger closing.

The core trade-off: open stomata let $CO_2$ in but let water out. Plants constantly balance carbon gain against water loss.

Environmental factors affecting transpiration

Transpiration vs. photosynthesis

Because both processes depend on stomatal opening, they're tightly linked. Under water-limited conditions, plants face a dilemma: close stomata to save water, or keep them open to fix carbon.

Some plants have evolved strategies to reduce this conflict:

• C4 photosynthesis concentrates $CO_2$ around Rubisco, so stomata don't need to stay open as wide or as long.
• CAM photosynthesis opens stomata only at night (when it's cooler and more humid) and fixes $CO_2$ into organic acids for daytime use.
• Leaf rolling and leaf shedding reduce the surface area exposed to dry air.

Xylem transport

The xylem carries water and dissolved minerals upward from roots to shoots. Its conducting cells are dead at maturity, forming hollow, rigid tubes that can withstand extreme tension without collapsing.

Xylem structure and function

Two main cell types conduct water in the xylem:

• Vessel elements are wide, barrel-shaped cells stacked end-to-end. Their end walls are perforated or completely dissolved, creating long, open tubes (vessels) that allow rapid water flow. Found mainly in angiosperms.
• Tracheids are narrower, elongated cells with tapered, overlapping ends. Water passes between tracheids through pits (thin areas in the cell wall). Found in all vascular plants, and they're the only conducting cells in most gymnosperms.

Both cell types have walls reinforced with lignin, which provides the mechanical strength needed to resist the negative pressures generated during transpiration. Living xylem parenchyma cells also exist alongside the conducting cells, storing nutrients and participating in defense and repair.

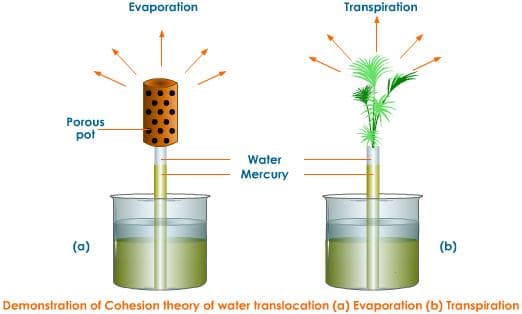

Cohesion-tension theory

This is the leading explanation for how water reaches the top of even the tallest trees. Here's how it works, step by step:

1. Water evaporates from mesophyll cell walls into the leaf air spaces and exits through stomata (transpiration).
2. This evaporation lowers the water potential at the top of the xylem, creating negative pressure (tension).
3. Because water molecules are cohesive (they stick together via hydrogen bonds), the tension pulls on the entire continuous water column in the xylem.
4. Adhesion between water molecules and xylem walls helps prevent the column from pulling away from the vessel walls.
5. The tension is transmitted all the way down to the roots, pulling water in from the soil.

The result is a continuous "pull" from the top of the plant, powered by evaporation, not by the plant actively pumping water.

Xylem sap composition

Xylem sap is mostly water with a dilute mix of dissolved minerals ($K^+$, $NO_3^-$, $Ca^{2+}$, etc.) absorbed from the soil. Compared to phloem sap, it's much less concentrated. The pH is slightly acidic (around 5-6), which helps keep mineral ions in solution. Small amounts of organic compounds, hormones like cytokinins, and signaling molecules can also be present.

Xylem cavitation and embolism

Under extreme tension, the water column can snap, a process called cavitation. When this happens, dissolved gases come out of solution and form a bubble (embolism) that blocks water flow in that vessel or tracheid.

Embolisms reduce the xylem's ability to conduct water and can worsen water stress. Plants have several defenses:

• Pit membranes between tracheids act like check valves, preventing air from spreading to adjacent cells.
• Xylem refilling can occur at night when tension is low, sometimes aided by root pressure.
• Redundant pathways through multiple vessels and tracheids mean one blocked cell doesn't shut down the whole system.
• Smaller vessel diameters in drought-adapted species resist cavitation better (though they conduct water more slowly).

Phloem transport

The phloem transports sugars, amino acids, hormones, and other organic compounds from where they're made or stored (sources) to where they're needed (sinks). Unlike xylem, phloem conducting cells are alive at maturity.

Phloem structure and function

• Sieve elements are the main conducting cells. They're elongated and connected end-to-end through sieve plates, which are perforated to let phloem sap flow through. To maximize flow, mature sieve elements lose most of their organelles, including the nucleus.
• Companion cells sit next to sieve elements and are connected to them by plasmodesmata. They handle the metabolic work that sieve elements can't do on their own, including loading sugars into the phloem.
• Phloem parenchyma and phloem fibers provide storage and structural support.

Source-to-sink transport

Sources are tissues that export sugars, typically mature leaves that produce more sugar through photosynthesis than they use. Sinks are tissues that import sugars: growing shoot tips, roots, developing fruits, and storage organs like tubers.

The direction of flow in the phloem is flexible. Unlike xylem (which only moves water upward), phloem can transport in any direction, always from source to sink. A developing fruit above a leaf is a sink, and so is a root below it. The same leaf can supply both.

Phloem loading and unloading

Phloem loading is how sugars get into the sieve elements at the source:

• Apoplastic loading: Sugars are first exported into the cell wall space, then actively pumped into sieve elements by proton-sucrose symporters. This requires energy (ATP).
• Symplastic loading: Sugars move through plasmodesmata from mesophyll cells into companion cells and sieve elements, driven by concentration gradients. Some species use polymer trapping, where sucrose is converted to larger sugars (raffinose, stachyose) that can't diffuse back out.

Phloem unloading releases sugars at the sink. This can happen symplastically (through plasmodesmata), apoplastically (via membrane transporters), or through enzymatic breakdown of sucrose in the cell wall space.

The pressure flow hypothesis (Münch hypothesis) explains bulk flow in the phloem:

1. Sugar is loaded into sieve elements at the source, lowering $\Psi_s$ and drawing water in from the nearby xylem by osmosis.
2. This water influx raises $\Psi_p$ (turgor pressure) at the source end.
3. At the sink, sugar is unloaded, raising $\Psi_s$ and causing water to leave the sieve elements.
4. The pressure difference between source (high $\Psi_p$) and sink (low $\Psi_p$) drives bulk flow of phloem sap from source to sink.

Phloem sap composition

Phloem sap is highly concentrated. Sucrose is the dominant sugar, making up as much as 30% of the sap by dry weight in some species. Other components include amino acids, small proteins, hormones (auxins, gibberellins, cytokinins), and signaling molecules like RNA. This high solute concentration is what generates the osmotic pressure that drives the pressure flow mechanism.

Plant responses to water stress

Water stress occurs when a plant loses water faster than it can absorb it, or when soil water becomes too scarce. Plants have evolved three broad strategies for dealing with drought, and many species use a combination of them.

Drought tolerance vs. avoidance

• Drought tolerance: The plant endures low internal water potentials while keeping its cells functional. Mechanisms include osmotic adjustment and enhanced antioxidant systems that protect against cellular damage.
• Drought avoidance: The plant maintains high internal water status even when soil is dry, by reducing water loss (closing stomata, rolling leaves) or increasing water uptake (growing deeper roots).
• Drought escape: The plant completes its entire life cycle during the wet season, avoiding drought altogether. Many desert annuals and ephemeral species use this strategy, germinating after rain, growing quickly, setting seed, and dying before the dry season hits.

Osmotic adjustment

When water stress develops gradually, many plants accumulate solutes in their cells to lower $\Psi_s$. This pulls water into the cell and helps maintain turgor pressure even as external water potential drops.

The solutes used for this are called compatible solutes because they don't disrupt enzyme function even at high concentrations. Common examples include:

• Proline (an amino acid)
• Glycine betaine
• Sugar alcohols (like mannitol and sorbitol)

Osmotic adjustment helps keep stomata open and photosynthesis running under mild to moderate drought. The capacity for osmotic adjustment varies widely among species and is an important trait in breeding drought-tolerant crops.

Stomatal closure and ABA signaling

Stomatal closure is one of the fastest responses to water stress. The signaling pathway works like this:

1. Roots in drying soil synthesize abscisic acid (ABA).
2. ABA travels through the xylem to the shoots.
3. ABA binds to receptors on guard cells.
4. This triggers ion efflux (especially $K^+$ and $Cl^-$) from the guard cells.
5. Water follows the ions out by osmosis, guard cells lose turgor, and the stomatal pore closes.

Stomatal sensitivity to ABA varies among species. Plants adapted to dry environments often have guard cells that respond more strongly to ABA, closing stomata earlier and more completely.

Morphological adaptations to drought

Plants in arid environments often show visible structural modifications:

• Smaller leaves reduce the total surface area for water loss.
• Thicker cuticles and waxy coatings slow cuticular transpiration (water loss through the leaf surface itself, not through stomata).
• Leaf hairs (trichomes) reflect light and trap a layer of humid air near the leaf surface.
• Leaf rolling or folding hides stomata inside a sheltered pocket of air, reducing the vapor pressure gradient.
• Deep root systems access water far below the surface. Some desert shrubs send roots down 10+ meters.
• Succulence in stems or leaves (as in cacti and agaves) stores large volumes of water for use during dry periods.
• Drought deciduousness means shedding older leaves to reduce transpirational surface area, conserving water for younger, more productive leaves.

Hydraulic redistribution

Hydraulic redistribution is the passive movement of water through a plant's root system from wetter soil zones to drier ones. It happens whenever different parts of the root system experience different soil moisture levels, creating a water potential gradient that drives flow through the roots.

Hydraulic lift and descent

• Hydraulic lift: At night, when transpiration stops and stomata close, deep roots in moist soil can absorb water that then moves upward through the root system and leaks out into the drier upper soil layers. This "lifts" water from deep to shallow soil.
• Hydraulic descent: The reverse can also occur. After a rain event that wets only the surface, shallow roots absorb water that then flows downward through the root system to drier deep layers.

Both processes are passive, driven entirely by water potential gradients, and they tend to happen at night when the plant isn't actively transpiring. Hydraulic lift can keep shallow roots and nearby soil organisms alive during dry periods, and it can even benefit neighboring shallow-rooted plants.

Ecological significance

Hydraulic redistribution has real consequences for entire plant communities, especially in arid and semi-arid ecosystems:

• Deep-rooted trees and shrubs can act as "hydraulic bridges," moving water from deep reserves to the upper soil where shallow-rooted grasses and herbs can access it.
• The moisture released into upper soil layers promotes soil microbial activity and speeds up nutrient cycling.
• Shared water resources can influence which species coexist in a community and how productive the ecosystem is overall.

Mechanisms and regulation

The flow of water during hydraulic redistribution follows the same physical principles as all water movement in plants: it flows down the water potential gradient. Root xylem provides the low-resistance pathway, and aquaporins in root cell membranes regulate how easily water crosses into and out of the roots. Plants can modulate aquaporin activity to influence the rate of redistribution, though the process itself is fundamentally passive.
