Complex numbers and phasors are essential tools in electrical engineering. They allow us to represent and analyze AC signals and circuits more easily. By combining real and imaginary parts, we can model the behavior of electrical systems in ways that real numbers alone can't capture.

Phasors take this a step further, representing sinusoidal functions as rotating vectors in the complex plane. This notation simplifies calculations and helps us visualize the relationships between voltage, current, and impedance in AC circuits.

Complex Numbers

Understanding Complex Numbers and Their Components

Top images from around the web for Understanding Complex Numbers and Their Components

  • TrigCheatSheet.com: Complex Numbers DeMoivre's Theorem View original

    Is this image relevant?

  • Phasor Diagrams and Phasor Algebra - Electronics-Lab.com View original

    Is this image relevant?

  • TrigCheatSheet.com: Complex Numbers DeMoivre's Theorem View original

    Is this image relevant?

1 of 3

Top images from around the web for Understanding Complex Numbers and Their Components

  • TrigCheatSheet.com: Complex Numbers DeMoivre's Theorem View original

    Is this image relevant?

  • Phasor Diagrams and Phasor Algebra - Electronics-Lab.com View original

    Is this image relevant?

  • TrigCheatSheet.com: Complex Numbers DeMoivre's Theorem View original

    Is this image relevant?

1 of 3

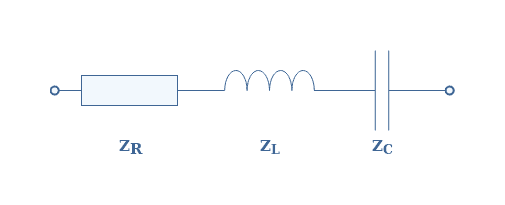

  • Complex numbers combine real and imaginary parts expressed as a+jba + jb
  • Real part represents the number on the real number line
  • Imaginary part multiplies a real number by the imaginary unit j
  • J operator defined as j=−1j = \sqrt{-1} serves as the basis for imaginary numbers
  • Complex plane visualizes complex numbers with real part on x-axis and imaginary part on y-axis
  • Complex numbers enable mathematical operations impossible with real numbers alone (solving equations like x2+1=0x^2 + 1 = 0)

Applications of Complex Numbers in Electrical Engineering

  • Complex numbers model alternating current (AC) circuits and signals
  • Simplify analysis of circuits with both resistive and reactive components
  • Represent magnitude and phase of sinusoidal voltages and currents
  • Facilitate calculations in frequency domain analysis (Fourier transforms)
  • Enable compact representation of impedance in AC circuits

Phasor Notation

Fundamentals of Phasors

  • Phasors represent sinusoidal functions as complex numbers
  • Magnitude corresponds to the amplitude of the sinusoidal wave
  • Phase angle indicates the initial phase of the sinusoidal function
  • Phasors rotate counterclockwise in the complex plane at angular frequency ω
  • Simplify analysis of AC circuits by converting time-domain signals to frequency domain

Phasor Representations

  • Polar form expresses phasors as magnitude and angle: A∠θA∠θ
  • Rectangular form represents phasors as real and imaginary parts: a+jba + jb
  • Conversion between polar and rectangular forms uses trigonometric functions
  • Polar to rectangular: a=Acos⁡θa = A \cos θ, b=Asin⁡θb = A \sin θ
  • Rectangular to polar: A=a2+b2A = \sqrt{a^2 + b^2}, θ=tan⁡−1(b/a)θ = \tan^{-1}(b/a)

Complex Number Operations

Manipulating Complex Numbers

  • Complex conjugate flips the sign of the imaginary part: (a+jb)∗=a−jb(a + jb)^* = a - jb
  • Addition and subtraction performed component-wise
  • Multiplication combines distributive property and j2=−1j^2 = -1
  • Division utilizes complex conjugate to rationalize the denominator
  • Powers of j follow a cyclic pattern: j1=jj^1 = j, j2=−1j^2 = -1, j3=−jj^3 = -j, j4=1j^4 = 1

Euler's Formula and Exponential Form

  • Euler's formula connects complex exponentials to trigonometric functions: ejθ=cos⁡θ+jsin⁡θe^{jθ} = \cos θ + j \sin θ
  • Enables conversion between exponential and trigonometric forms of complex numbers
  • Simplifies multiplication and division of complex numbers in polar form
  • Facilitates analysis of systems with exponential inputs (transient responses)
  • Provides compact representation of rotating phasors: AejωtAe^{jωt} represents a phasor rotating at angular frequency ω

Key Terms to Review (28)

Frequency Response: Frequency response is the measure of an output signal's amplitude and phase change in response to a range of input frequencies, providing insight into how a system behaves when subjected to different signals. It helps analyze systems in terms of their stability, performance, and effectiveness in processing signals, making it crucial for understanding circuit behavior under AC conditions and its filtering characteristics.
Impedance: Impedance is a complex quantity that combines resistance and reactance in an AC circuit, representing the total opposition a circuit offers to the flow of alternating current. It is expressed in ohms and allows for the analysis of circuits with sinusoidal waveforms using phasor notation. Impedance plays a crucial role in determining how voltage and current behave in AC circuits, influencing the design and functionality of various electrical systems.
Steady-state response: The steady-state response refers to the behavior of a system after transients have dissipated and the system has reached a stable output in response to a constant input. This state is crucial for analyzing how circuits respond to sinusoidal inputs, revealing their characteristics over time without the effects of initial conditions.
Frequency domain analysis: Frequency domain analysis is a method used to study and interpret signals and systems in terms of their frequency components rather than their time-dependent behavior. This approach allows engineers to visualize and manipulate signals more easily, especially when dealing with linear systems, as it converts differential equations into algebraic equations using techniques like the Fourier Transform. It reveals important features of the system, such as resonance and bandwidth, which are crucial for understanding complex behavior in circuits and control systems.
Ac circuit analysis: AC circuit analysis involves studying electrical circuits powered by alternating current (AC), where the voltage and current vary sinusoidally with time. This type of analysis is essential for understanding how components like resistors, capacitors, and inductors behave under AC conditions, utilizing concepts such as complex numbers and phasor notation to simplify calculations and represent sinusoidal signals efficiently. AC circuit analysis is foundational for designing and analyzing various electrical systems, from household appliances to industrial machinery.
Euler's Formula: Euler's formula states that for any real number x, $$e^{ix} = ext{cos}(x) + i ext{sin}(x)$$, where e is the base of natural logarithms, i is the imaginary unit, and cos and sin are the cosine and sine functions, respectively. This powerful equation provides a deep connection between complex numbers and trigonometric functions, allowing for easier representation of oscillations and waveforms in electrical engineering and physics.
Exponential Form: Exponential form is a way of expressing complex numbers and phasors using the base of Euler's number $e$ raised to an imaginary exponent. This representation connects the complex numbers to trigonometric functions through Euler's formula, which states that $e^{j heta} = ext{cos}( heta) + j ext{sin}( heta)$. This form is particularly useful for simplifying multiplication and division of complex numbers, making it easier to work with in circuits and systems.
Division of Complex Numbers: The division of complex numbers is the process of finding the quotient when one complex number is divided by another. This operation involves multiplying the numerator and denominator by the conjugate of the denominator to eliminate the imaginary part from the denominator, transforming the expression into a form that can be expressed as a real part and an imaginary part. This is essential for working with complex numbers in various applications, particularly in engineering and physics, where phasor notation is commonly used.
Powers of j: The powers of j refer to the mathematical representation of complex numbers using the imaginary unit 'j', where $$j = \sqrt{-1}$$. This notation is essential in electrical engineering and signal processing, particularly when working with phasors, as it simplifies calculations involving sinusoidal waveforms by converting them into exponential form. Understanding how the powers of j behave, especially their cyclical nature, is crucial for manipulating complex numbers in both time and frequency domains.
Subtraction of complex numbers: Subtraction of complex numbers involves taking one complex number and deducting another from it, which is performed by subtracting their corresponding real and imaginary parts separately. This process highlights how complex numbers can be manipulated algebraically, making it easier to understand their geometric interpretations, such as when using phasor notation. Recognizing how to subtract complex numbers is crucial for analyzing circuits, as it allows for the comparison and combination of voltage and current phasors.
Multiplication of complex numbers: Multiplication of complex numbers involves combining two complex numbers to produce another complex number. This process uses the distributive property, along with the fact that the imaginary unit $$i$$ satisfies the equation $$i^2 = -1$$. By expressing complex numbers in the form $$a + bi$$, where $$a$$ is the real part and $$b$$ is the imaginary part, the multiplication can be visualized geometrically using polar coordinates or phasor notation, linking it to various applications in electrical engineering.
Trigonometric functions: Trigonometric functions are mathematical functions that relate the angles of a triangle to the lengths of its sides. These functions, which include sine, cosine, and tangent, are fundamental in understanding oscillatory behavior and periodic phenomena, particularly in the context of electrical circuits and systems where sinusoidal waveforms are prevalent. By converting sinusoidal signals into their corresponding phasor representations, trigonometric functions become essential tools for analyzing alternating current (AC) circuits.
Addition of complex numbers: The addition of complex numbers involves combining two or more complex numbers to produce a single complex number. This process is straightforward and follows the rule of adding the real parts together and the imaginary parts together, resulting in a new complex number expressed in the form a + bi, where a is the sum of the real parts and b is the sum of the imaginary parts. This operation is essential in various applications, particularly in fields like electrical engineering, where complex numbers are used to represent phasors.
Conversion between forms: Conversion between forms refers to the process of translating mathematical expressions from one representation to another, particularly in the context of complex numbers and phasor notation. This includes changing complex numbers from rectangular form (a + bi) to polar form (r∠θ) and vice versa, enabling easier manipulation in circuit analysis and signal processing. Understanding these conversions is crucial for working with alternating current (AC) circuits, as they facilitate the analysis of voltage and current as phasors.
Complex Conjugate: A complex conjugate is a mathematical concept defined as the pair of a complex number that has the same real part but an opposite imaginary part. This relationship is essential in simplifying calculations involving complex numbers, particularly when dealing with phasor notation and impedance in circuits. It plays a critical role in computations such as division of complex numbers and determining the magnitude of complex quantities, which are fundamental in the analysis of electrical circuits.
Polar Form: Polar form is a way to express complex numbers using a magnitude and an angle, making it particularly useful in analyzing circuits and systems. In this representation, a complex number is described in terms of its distance from the origin (magnitude) and its angle relative to the positive real axis (phase angle). This form simplifies calculations involving multiplication, division, and the addition of complex numbers, especially when dealing with alternating current (AC) analysis and phasors.
Phase Angle: Phase angle is the measure of the phase difference between two sinusoidal waveforms, typically expressed in degrees or radians. It indicates how far one waveform is shifted in time compared to another, providing insights into their relative timing and relationships. Understanding phase angles is essential when dealing with complex numbers, phasor representations, and analyzing AC circuits, particularly in determining power factors and relationships within three-phase systems.
Rectangular form: Rectangular form refers to a way of expressing complex numbers using a combination of a real part and an imaginary part, typically written as $$a + bi$$, where $$a$$ represents the real component and $$bi$$ represents the imaginary component. This format is essential for understanding complex numbers and phasors, as it allows for straightforward addition and subtraction of these numbers, facilitating calculations in electrical engineering contexts like circuit analysis.
Angular Frequency: Angular frequency is a measure of rotation and oscillation that describes how quickly an object rotates or oscillates in radians per unit of time, typically expressed in radians per second. This concept is crucial for understanding sinusoidal waveforms and their properties, as it relates directly to the rate of oscillation in harmonic motion. It also plays a significant role in circuit analysis, where it helps relate the sinusoidal inputs to their response in steady-state AC circuits.
Phasor Representation: Phasor representation is a technique used in electrical engineering to simplify the analysis of sinusoidal signals by converting them into complex numbers. This method allows engineers to represent sinusoidal voltages and currents as rotating vectors in a complex plane, making it easier to manipulate and analyze them, especially when considering their magnitudes and phase angles. By employing phasor notation, calculations involving sinusoidal signals become more straightforward and can efficiently incorporate concepts like impedance and power in the complex domain.
Magnitude: Magnitude refers to the size or length of a complex number or phasor, representing its absolute value in the complex plane. It is an essential aspect of understanding the strength or intensity of sinusoidal signals, as it indicates how much power or amplitude is present in these signals. This concept connects deeply with the representation of complex numbers and helps visualize sinusoidal functions in electrical circuits.
Real part: The real part of a complex number is the component that does not involve the imaginary unit, represented as 'a' in the standard form of a complex number 'a + bi', where 'a' is the real part and 'b' is the imaginary part. This concept is crucial in understanding complex numbers and phasor notation, as it allows us to separate the actual value from the phase-related components, facilitating calculations in electrical engineering and signal processing.
Imaginary unit: The imaginary unit is a mathematical concept denoted by the symbol $$i$$, which is defined as the square root of -1. This unit is crucial in forming complex numbers, which consist of a real part and an imaginary part. Understanding the imaginary unit enables the representation of oscillating signals and other phenomena in electrical engineering using phasor notation, bridging the gap between real numbers and their complex counterparts.
Complex Plane: The complex plane is a two-dimensional plane used to represent complex numbers, where the horizontal axis represents the real part and the vertical axis represents the imaginary part. This graphical representation allows for easier visualization of complex numbers, operations, and relationships between them, which is particularly useful in analyzing electrical circuits and phasors.
Phasors: Phasors are a way to represent sinusoidal functions, particularly in the context of electrical engineering. They convert time-dependent sinusoidal waveforms into complex numbers, allowing for simpler analysis of AC circuits by utilizing the properties of complex arithmetic. Phasors make it easier to perform operations like addition and multiplication on these waveforms, facilitating the understanding of relationships between voltage and current in AC systems.
Imaginary part: The imaginary part of a complex number is the component that is multiplied by the imaginary unit, denoted as 'i', which is defined as the square root of -1. This part is essential in complex number representation, enabling the expression of quantities that cannot be captured by real numbers alone. The imaginary part works in conjunction with the real part to create a full picture of a complex number, which is often used in various applications including electrical engineering and signal processing.
J operator: The j operator is an imaginary unit used in electrical engineering to represent the square root of -1, denoted as $$j = \sqrt{-1}$$. This operator is crucial for expressing complex numbers in the form of a + jb, where 'a' is the real part and 'b' is the imaginary part. The j operator simplifies the analysis of alternating current (AC) circuits, enabling engineers to utilize phasor notation for representing voltages and currents in sinusoidal waveforms.
Complex numbers: Complex numbers are numbers that consist of a real part and an imaginary part, expressed in the form $$a + bi$$, where $$a$$ is the real component, $$b$$ is the imaginary component, and $$i$$ represents the square root of -1. They extend the concept of one-dimensional real numbers to a two-dimensional plane, enabling more sophisticated mathematical operations and analyses, particularly in electrical engineering and signal processing.
