Structure solution strategies are crucial for unraveling crystal structures from diffraction data. These methods tackle the phase problem, using statistical relationships, heavy atoms, or known structures to determine atomic positions.
Advanced techniques like charge flipping and experimental phasing expand our toolkit. By interpreting electron density maps, we can visualize atomic arrangements and refine our structural models, bridging raw data and final crystal structures.
Structure Solution Methods
Direct Methods and Patterson Techniques
Top images from around the web for Direct Methods and Patterson Techniques
On verdigris, part I: synthesis, crystal structure solution and characterisation of the 1–2–0 ... View original
Is this image relevant?
Determining Atomic Structures by X-Ray Crystallography | Introduction to Chemistry View original
Is this image relevant?

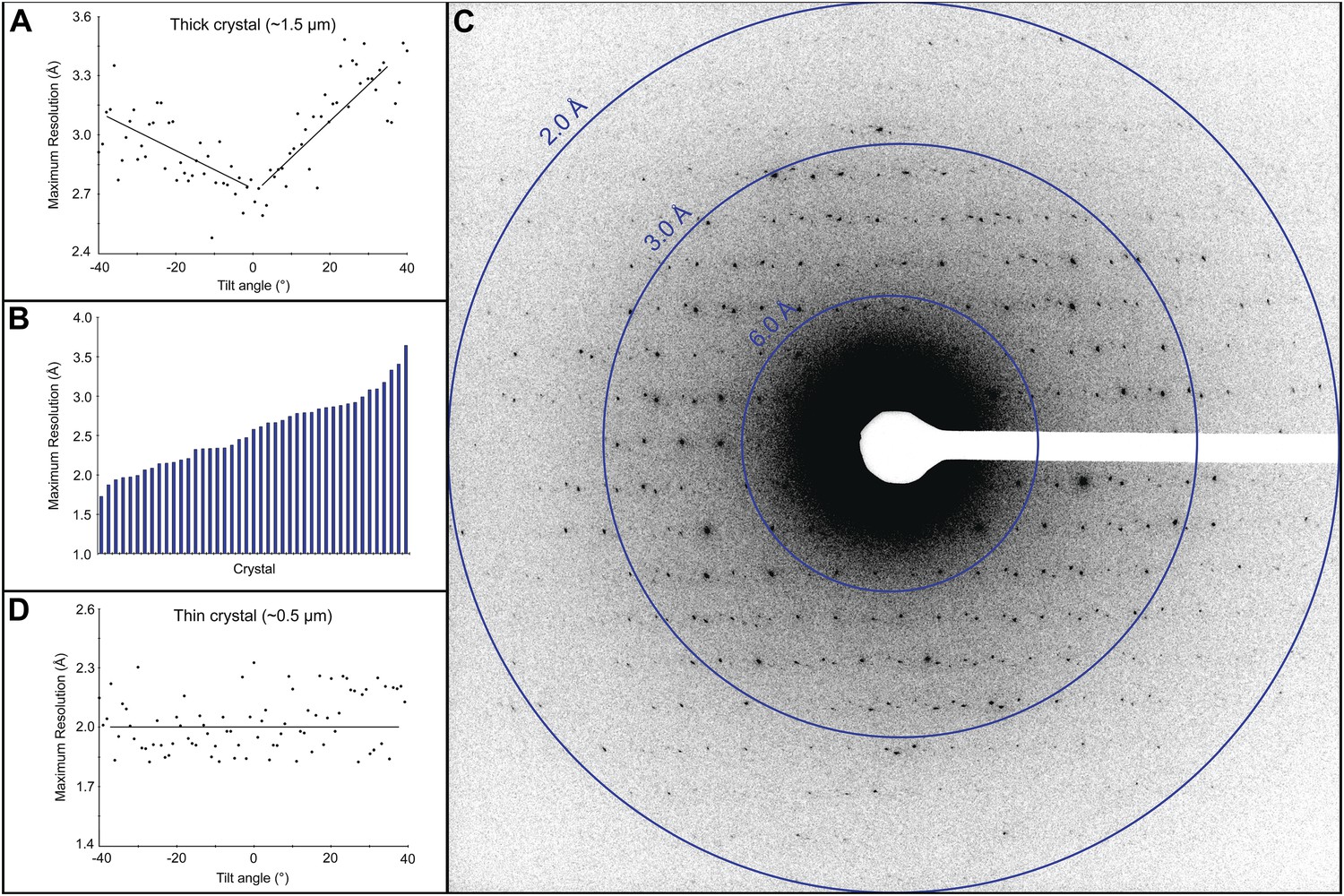

Figures and data in Three-dimensional electron crystallography of protein microcrystals | eLife View original
Is this image relevant?
On verdigris, part I: synthesis, crystal structure solution and characterisation of the 1–2–0 ... View original
Is this image relevant?
Determining Atomic Structures by X-Ray Crystallography | Introduction to Chemistry View original
Is this image relevant?
1 of 3
Top images from around the web for Direct Methods and Patterson Techniques
On verdigris, part I: synthesis, crystal structure solution and characterisation of the 1–2–0 ... View original
Is this image relevant?
Determining Atomic Structures by X-Ray Crystallography | Introduction to Chemistry View original
Is this image relevant?
Figures and data in Three-dimensional electron crystallography of protein microcrystals | eLife View original
Is this image relevant?
On verdigris, part I: synthesis, crystal structure solution and characterisation of the 1–2–0 ... View original
Is this image relevant?
Determining Atomic Structures by X-Ray Crystallography | Introduction to Chemistry View original
Is this image relevant?
1 of 3
utilize statistical relationships between structure factors to determine phases
Relies on atomicity principle and positivity of electron density
Works well for small molecules with up to ~200 atoms
Involves generating probable phase sets and evaluating their likelihood
Uses normalized structure factors to enhance atomic
Patterson methods analyze the Patterson function to locate heavy atoms or molecular fragments
Patterson map represents vector distances between atoms in the structure
Peaks in Patterson map correspond to interatomic vectors
Particularly useful for structures with a few heavy atoms (uranium)
Can determine heavy atom positions without phase information
Advanced Structure Solution Approaches
Charge flipping algorithm iteratively modifies electron density to solve structures
Alternates between real and calculations
Flips the sign of weak electron density regions in each cycle
Does not require prior knowledge of chemical composition
Effective for solving structures of complex materials (quasicrystals)
Molecular replacement utilizes known structures to solve new, related structures
Requires a homologous model structure as a starting point
Involves rotation and translation searches to position the model in the
Particularly useful for protein crystallography where similar structures often exist
Can significantly speed up structure solution process for macromolecules
Experimental Phasing Techniques
Isomorphous Replacement Methods
Isomorphous replacement introduces heavy atoms to the crystal without changing its structure
Compares diffraction patterns of native and heavy atom-containing crystals
Single isomorphous replacement (SIR) uses one heavy atom derivative
Multiple isomorphous replacement (MIR) uses multiple heavy atom derivatives for improved accuracy
Calculates phase information from intensity differences between native and derivative crystals
Heavy atom method exploits the strong scattering of heavy atoms to determine phases
Locates heavy atom positions using Patterson or direct methods
Uses heavy atom positions to estimate initial phases for the entire structure
Particularly effective for large biological molecules (proteins)
Anomalous Dispersion Techniques
Anomalous dispersion arises from absorption of X-rays by certain atoms
Causes breakdown of Friedel's law, where ∣F(hkl)∣=∣F(−h−k−l)∣
Single-wavelength anomalous dispersion (SAD) uses data collected at one wavelength
Multi-wavelength anomalous dispersion (MAD) uses data from multiple wavelengths
Often employs selenium atoms incorporated into proteins for phasing
Combines aspects of isomorphous replacement and anomalous scattering
Single isomorphous replacement with anomalous scattering (SIRAS)
Multiple isomorphous replacement with anomalous scattering (MIRAS)
Enhances phase determination accuracy by utilizing both methods
Interpreting Results
Phase Problem and Its Solutions
Phase problem arises from the inability to directly measure phases in diffraction experiments
Diffraction data only provides amplitudes of structure factors
Phases are crucial for reconstructing the electron density map
Various methods (direct, Patterson, experimental phasing) address this issue
Phase refinement and improvement techniques enhance initial phase estimates
Density modification methods (solvent flattening, histogram matching)
Iterative phase improvement cycles combined with model building
Maximum likelihood methods for phase probability estimation
Electron Density Map Analysis
Electron density map represents the distribution of electrons in the crystal structure
Calculated using structure factor amplitudes and estimated phases
ρ(x,y,z)=V1∑h,k,l∣F(hkl)∣e−2πi(hx+ky+lz−φ(hkl))
Different map types (Fo-Fc, 2Fo-Fc) highlight various structural features
Interpretation of electron density maps requires expertise and often iterative refinement
Identifies atomic positions, bond lengths, and molecular geometry
Automated model-building software assists in initial structure interpretation
Manual inspection and refinement crucial for accurate final structures
Resolution of the map affects the level of detail that can be interpreted
Key Terms to Review (18)
Ab initio modeling: Ab initio modeling refers to computational methods that predict the structure of a molecule or crystal based purely on fundamental principles of physics and chemistry, without relying on experimental data or empirical parameters. This approach utilizes quantum mechanical calculations to derive electronic structure and properties, making it a powerful tool in crystallography for determining structures from first principles.
Absorption effects: Absorption effects refer to the phenomena that occur when X-rays or other types of radiation interact with matter, leading to the loss of intensity as the radiation passes through a sample. This loss of intensity can complicate quantitative analysis and structure determination, as it may skew the measurements and results if not properly accounted for. Understanding absorption effects is crucial for accurately interpreting data, especially in phase analysis and when devising effective strategies for structure solution.
Direct methods: Direct methods are statistical techniques used in crystallography to determine the phases of diffracted waves, which are essential for solving crystal structures. They rely on the relationships between the amplitudes of the observed reflections and the phases, leveraging mathematical algorithms to generate initial phase estimates. These methods are particularly effective for small to medium-sized crystals and play a critical role in modern structure solution strategies.
Extinction: In crystallography, extinction refers to the phenomenon where certain reflections in a diffraction pattern become absent or significantly weakened due to specific factors related to the crystal structure. This can occur as a result of systematic absences linked to the symmetry of the crystal, and understanding extinction is crucial for accurately interpreting diffraction data and solving crystal structures.
Fourier Transform: The Fourier Transform is a mathematical operation that transforms a function of time or space into a function of frequency. This concept is essential in crystallography, as it helps relate real-space structures of crystals to their reciprocal-space representations, connecting various aspects of diffraction and scattering phenomena.
Homology Modeling: Homology modeling is a computational technique used to predict the three-dimensional structure of a protein based on its sequence similarity to one or more known structures of related proteins. This method relies on the principle that proteins with similar sequences often fold into similar shapes, enabling researchers to create models of proteins for which no experimental structures are available, facilitating various applications in drug design and structural biology.
Mirror Symmetry: Mirror symmetry refers to a type of symmetry where one half of an object or structure is a mirror image of the other half. This concept plays a crucial role in crystallography, as it helps classify crystals based on their geometric properties and can influence the arrangement of atoms in a lattice, guiding how structures are solved in crystal analysis.
Neutron diffraction: Neutron diffraction is a technique used to study the atomic structure of materials by directing neutrons at a sample and analyzing the resulting patterns created by their scattering. This method is particularly effective in revealing details about light atoms, such as hydrogen, and offers insights into magnetic properties, making it a valuable tool in materials science and crystallography.
Olex2: olex2 is a software package designed for the visualization and analysis of crystal structures, particularly in the field of crystallography. It provides a user-friendly interface that allows researchers to easily manipulate, display, and interpret three-dimensional structures derived from X-ray diffraction data. By integrating structure solution strategies and crystallographic databases, olex2 facilitates effective analysis and communication of crystallographic information.
R-factor: The r-factor is a crucial statistical measure used in crystallography to assess the quality of a crystal structure solution by comparing observed diffraction data to the data calculated from the proposed model. A lower r-factor indicates a better fit between the observed and calculated data, reflecting the accuracy of the determined atomic positions and overall structure.
Reciprocal space: Reciprocal space is a conceptual framework in crystallography that represents the periodic arrangement of atoms in a crystal lattice, allowing for the analysis of diffraction patterns and the study of crystal structures. This space transforms real-space lattice parameters into vectors that correspond to the directions and magnitudes of scattered waves, linking it to important concepts like the Ewald sphere and the structure factor.
Refinement methods: Refinement methods are computational techniques used to improve the accuracy of a model in crystallography by adjusting parameters to best fit the observed data. These methods play a critical role in structure determination, as they help to refine initial models based on experimental results, enhancing the quality and reliability of the derived structures.
Resolution: Resolution refers to the ability to distinguish between two closely spaced points in an image or diffraction pattern, directly impacting the quality of structural information obtained from crystallographic techniques. Higher resolution means more detailed and accurate information about the atomic arrangement within a crystal, which is crucial for determining the structure of materials. The concept of resolution is vital in understanding how different methods of data collection and processing yield varying levels of clarity in structural analysis.
Rotational Symmetry: Rotational symmetry refers to a property of a shape or object where it looks the same after being rotated around a central point by a certain angle. This concept is crucial in understanding how crystals are structured, as it helps to define their geometrical properties and influences how they interact with light and other materials.
SHELX: SHELX is a collection of software programs used for solving and refining crystal structures from X-ray diffraction data. It plays a crucial role in crystallography, particularly in the context of structure determination, model refinement, and data analysis, making it a vital tool for researchers in this field.
Space Group: A space group is a mathematical classification that describes the symmetry of a crystal structure, incorporating both translational and point symmetry operations. It combines the various symmetry elements such as rotations, reflections, and translations that define how a crystal's lattice points are arranged in three-dimensional space. Understanding space groups is essential for analyzing the geometric and physical properties of crystalline materials.
Unit Cell: A unit cell is the smallest repeating unit in a crystal lattice that defines the entire structure of the crystal. It serves as a building block, illustrating how atoms are arranged in three-dimensional space and how these arrangements lead to various crystal structures and properties.
X-ray diffraction: X-ray diffraction is a powerful technique used to study the atomic and molecular structure of crystalline materials by analyzing the patterns produced when X-rays are scattered by the crystal lattice. This method provides critical insights into crystal structures, enabling researchers to determine the arrangement of atoms in a material and understand its properties.
