9.2 Ligand Field Theory

Crystal Field Theory and Ligand Field Splitting

Understanding Crystal Field Theory

Crystal Field Theory (CFT) models the bonding in transition metal complexes as purely electrostatic. Ligands are treated as point charges (for anions) or point dipoles (for neutral molecules) that interact with the d-orbitals of the central metal ion. This is obviously a simplification, but it's surprisingly powerful for predicting properties like color, magnetism, and reactivity.

The key idea: in a free metal ion, all five d-orbitals have the same energy (they're degenerate). Once ligands approach, that degeneracy breaks. The pattern of splitting depends on the geometry of the complex.

Ligand Field Splitting and d-Orbital Energy Levels

When ligands approach a metal ion, the d-orbitals that point directly at the ligands experience greater electrostatic repulsion and rise in energy, while those pointing between the ligands are relatively stabilized. This separation into higher- and lower-energy sets is ligand field splitting.

The energy gap between the two sets is the crystal field splitting parameter, $\Delta$. Three factors control its size:

• The metal ion itself. Heavier metals (especially 4d and 5d series) produce larger $\Delta$ than 3d metals in the same oxidation state. This is due to greater spatial extent of the 4d/5d orbitals, which increases overlap with ligand orbitals.
• Oxidation state. Higher oxidation states mean a more compact, more highly charged ion, which draws ligands closer and increases $\Delta$.
• The ligand. Different ligands push the d-orbitals apart by different amounts, ranked by the spectrochemical series (see below).

A larger $\Delta$ generally means a stronger metal-ligand interaction and a more thermodynamically stable complex.

Geometry-Dependent d-Orbital Splitting

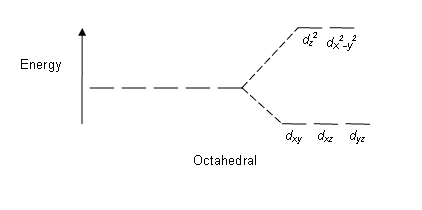

Octahedral complexes (six ligands along the $x$, $y$, and $z$ axes):

• The $d_{x^2-y^2}$ and $d_{z^2}$ orbitals point directly at the ligands, so they rise in energy. These form the higher-energy $e_g$ set.
• The $d_{xy}$, $d_{xz}$, and $d_{yz}$ orbitals point between the ligands and are stabilized. These form the lower-energy $t_{2g}$ set.
• The splitting is labeled $\Delta_o$ (subscript "o" for octahedral).
• The barycenter (weighted average energy) is preserved: the $t_{2g}$ set drops by $0.4\Delta_o$ and the $e_g$ set rises by $0.6\Delta_o$ relative to the unsplit level.

Tetrahedral complexes (four ligands oriented between the axes):

• The splitting pattern inverts. Now $d_{xy}$, $d_{xz}$, and $d_{yz}$ point closer to the ligands, forming the higher-energy $t_2$ set.
• $d_{x^2-y^2}$ and $d_{z^2}$ form the lower-energy $e$ set.
• The tetrahedral splitting $\Delta_t$ is roughly $\frac{4}{9}\Delta_o$ for the same metal and ligands. This smaller value arises because there are fewer ligands (4 vs. 6) and none point directly at the d-orbitals. Because $\Delta_t$ is inherently small, tetrahedral complexes are almost always high-spin.

Square planar complexes (four ligands in the $xy$-plane):

• The d-orbitals split into four distinct energy levels rather than just two sets.
• $d_{x^2-y^2}$ is highest in energy (it points directly at all four ligands).
• Below that, in descending energy: $d_{xy}$, then $d_{z^2}$, then $d_{xz}$ and $d_{yz}$ (these last two remain degenerate).
• You can think of square planar splitting as the extreme of tetragonal elongation in an octahedral complex: stretch the axial ligands out to infinity, and the $d_{z^2}$ orbital drops significantly while $d_{x^2-y^2}$ rises.
• Square planar geometry is especially common for $d^8$ metal ions with strong-field ligands (e.g., $\text{Pt}^{2+}$, $\text{Pd}^{2+}$, $\text{Ni}^{2+}$ with $\text{CN}^-$), because the large gap below $d_{x^2-y^2}$ allows all eight electrons to occupy lower-energy orbitals.

Spin States and LFSE

High-Spin and Low-Spin Complexes

Whether electrons pair up in the lower set of d-orbitals or spread out across all five comes down to a competition between two energies:

• $\Delta$ (the splitting energy): favors putting electrons in the lower set, since that's energetically cheaper.
• $P$ (the pairing energy): the energy cost of forcing two electrons into the same orbital (Coulombic repulsion plus loss of exchange energy).

If $\Delta > P$: electrons pair in the lower orbitals before occupying the upper set. This gives a low-spin complex with the minimum number of unpaired electrons.

If $\Delta < P$: electrons fill all five d-orbitals singly (following Hund's rule) before any pairing occurs. This gives a high-spin complex with the maximum number of unpaired electrons.

This distinction matters most for $d^4$ through $d^7$ octahedral complexes, where both configurations are possible. For $d^1$–$d^3$ and $d^8$–$d^{10}$, there's only one possible arrangement regardless of $\Delta$.

The spin state directly determines magnetic behavior. You can measure this experimentally: high-spin complexes are more strongly paramagnetic (more unpaired electrons), while low-spin complexes may be diamagnetic or weakly paramagnetic. The number of unpaired electrons $n$ relates to the measured magnetic moment by $\mu = \sqrt{n(n+2)} \; \mu_B$ (the spin-only formula), which provides a quick experimental check of spin state.

Ligand Field Stabilization Energy (LFSE)

LFSE quantifies the energy stabilization a complex gains from the unequal occupation of split d-orbitals, compared to a hypothetical situation where all five d-orbitals remain at the average energy (the barycenter).

To calculate LFSE for an octahedral complex:

1. Determine the d-electron count and the spin state (high-spin or low-spin).
2. Fill the $t_{2g}$ and $e_g$ orbitals accordingly.
3. Each electron in $t_{2g}$ contributes $-0.4\Delta_o$ of stabilization.
4. Each electron in $e_g$ contributes $+0.6\Delta_o$ of destabilization.
5. Sum all contributions. If any electrons are forced to pair (beyond what would occur in the free ion), add the pairing energy $P$ for each additional pair.

$\text{LFSE} = (-0.4\Delta_o)(n_{t_{2g}}) + (+0.6\Delta_o)(n_{e_g}) + (\text{pairing corrections})$

For example, a $d^6$ low-spin octahedral complex (like $[\text{Co(NH}_3)_6]^{3+}$) has all six electrons in $t_{2g}$:

$\text{LFSE} = 6(-0.4\Delta_o) = -2.4\Delta_o + 3P$

The three extra paired electrons (compared to the free ion's configuration) each cost $P$, so the net stabilization depends on how $2.4\Delta_o$ compares to $3P$.

A more negative LFSE means greater stabilization. LFSE helps explain the characteristic "double-humped" trend in hydration enthalpies and lattice energies across the first-row transition metals, and why certain oxidation states or geometries are preferred. For instance, $d^3$ and low-spin $d^6$ configurations have particularly large LFSE values, which contributes to the kinetic inertness of $\text{Cr}^{3+}$ and $\text{Co}^{3+}$ octahedral complexes.

Spectrochemical Series and Ligand Strength

The spectrochemical series is an experimentally determined ranking of ligands by the size of $\Delta$ they produce. The approximate order (weak to strong field):

$\text{I}^- < \text{Br}^- < \text{Cl}^- < \text{F}^- < \text{OH}^- < \text{H}_2\text{O} < \text{NH}_3 < \text{en} < \text{NO}_2^- < \text{CN}^- \approx \text{CO}$

The underlying trend connects to how ligands interact with metal d-orbitals:

• $\pi$-donor ligands (halides, $\text{OH}^-$): have filled p-orbitals (or lone pairs) that donate electron density into the metal's $t_{2g}$ orbitals, which raises their energy and decreases $\Delta$. These are weak-field.
• $\sigma$-only ligands ($\text{H}_2\text{O}$, $\text{NH}_3$): interact only through $\sigma$-bonding and have no significant $\pi$-interaction. Moderate $\Delta$.
• $\pi$-acceptor ligands ($\text{CN}^-$, $\text{CO}$): accept electron density from the metal's filled $t_{2g}$ orbitals into their empty $\pi^*$ orbitals, which lowers the $t_{2g}$ energy and increases $\Delta$. These are strong-field.

This is where Ligand Field Theory goes beyond pure CFT: the $\pi$-bonding explanation for the spectrochemical series requires considering orbital overlap, not just electrostatics. CFT alone cannot explain why $\text{CO}$ (a neutral molecule) produces a larger $\Delta$ than $\text{F}^-$ (a charged anion with stronger electrostatic interaction).

Advanced Concepts

Jahn-Teller Distortion and its Effects

The Jahn-Teller theorem states that any non-linear molecule with an orbitally degenerate electronic ground state will distort to remove that degeneracy and lower its total energy. In coordination chemistry, this matters most for octahedral complexes with unequal occupation of the $e_g$ orbitals.

The classic cases of strong Jahn-Teller distortion:

• $d^9$ (e.g., $\text{Cu}^{2+}$): The $e_g$ set has three electrons (one orbital doubly occupied, one singly). This produces a strong, easily observable distortion.
• High-spin $d^4$ (e.g., $\text{Cr}^{2+}$, $\text{Mn}^{3+}$): One electron in $e_g$, unevenly distributed. Also a strong distortion.
• Low-spin $d^7$: One electron in $e_g$, same situation.

The most common distortion is tetragonal elongation: the two axial ligands move farther from the metal while the four equatorial ligands move slightly closer. This splits the $e_g$ set ($d_{z^2}$ drops in energy, $d_{x^2-y^2}$ rises) and also splits the $t_{2g}$ set slightly. Tetragonal compression (axial bonds shorten, equatorial bonds lengthen) is also possible but less commonly observed.

Unequal occupation of $t_{2g}$ orbitals can also cause Jahn-Teller effects, but these are much weaker because $t_{2g}$ orbitals don't point directly at the ligands and the resulting vibronic coupling is smaller.

You can spot Jahn-Teller distortion experimentally through broadened or split absorption bands in UV-Vis spectra and through crystallographic bond-length differences. For example, $\text{Cu}^{2+}$ complexes typically show two distinct Cu-ligand bond lengths in their crystal structures.

Molecular Orbital Theory in Coordination Complexes

While CFT treats metal-ligand bonding as purely electrostatic, Molecular Orbital (MO) Theory builds a fuller picture by constructing molecular orbitals from linear combinations of metal and ligand atomic orbitals. This accounts for the covalent character in the bonding that CFT ignores.

For an octahedral complex with only $\sigma$-bonding, the MO approach works like this:

1. Identify the symmetry-adapted linear combinations (SALCs) of the six ligand $\sigma$-donor orbitals. These transform as $a_{1g}$, $t_{1u}$, and $e_g$ representations in $O_h$ symmetry.
2. Match these SALCs with metal orbitals of the same symmetry: the metal's $s$ ($a_{1g}$), $p$ ($t_{1u}$), and $d_{x^2-y^2}$/$d_{z^2}$ ($e_g$) orbitals form $\sigma$-bonding and $\sigma^*$-antibonding MOs with the ligand SALCs.
3. The metal's $t_{2g}$ orbitals ($d_{xy}$, $d_{xz}$, $d_{yz}$) are nonbonding in a $\sigma$-only picture, since no ligand $\sigma$-SALCs have $t_{2g}$ symmetry.
4. The energy gap between the $t_{2g}$ (nonbonding) and $e_g^*$ ($\sigma$-antibonding) levels corresponds to $\Delta_o$.

When $\pi$-bonding is included, the $t_{2g}$ orbitals are no longer nonbonding:

• $\pi$-donor ligands have filled orbitals of $t_{2g}$ symmetry that overlap with the metal $t_{2g}$ set. This interaction creates bonding and antibonding combinations, and since the ligand $\pi$ orbitals are filled, the metal-centered $t_{2g}$ MOs are pushed up in energy. This shrinks $\Delta_o$.
• $\pi$-acceptor ligands have empty $\pi^*$ orbitals of $t_{2g}$ symmetry that overlap with the filled metal $t_{2g}$ set. Electron density flows from metal to ligand ($\pi$-backbonding), stabilizing the $t_{2g}$ MOs and increasing $\Delta_o$.

This MO framework explains why $\text{CO}$ and $\text{CN}^-$ are such strong-field ligands: their low-lying $\pi^*$ orbitals are excellent acceptors of metal $t_{2g}$ electron density. It also provides the basis for understanding electronic absorption spectra (d-d transitions occur between the $t_{2g}$ and $e_g^*$ levels, while charge-transfer bands involve transitions between predominantly ligand and predominantly metal MOs) and for rationalizing reactivity and catalytic behavior in coordination compounds.
