8.2 First-order and second-order passive filters

3 min read•august 9, 2024

Passive filters are essential circuit elements that shape signal frequencies. RC, RL, LC, and RLC configurations offer various filtering options, from simple low-pass and high-pass to more complex band-pass and band-stop designs.

Filter characteristics like order, , and determine performance. Understanding these parameters helps engineers create filters that effectively separate desired signals from noise, crucial in many electronic applications.

Passive Filter Types

RC and RL Filters

Top images from around the web for RC and RL Filters

  • File:RC Parallel Filter (with I Labels).svg - Wikipedia View original

    Is this image relevant?

  • File:RC Parallel Filter (with I Labels).svg - Wikipedia View original

    Is this image relevant?

1 of 2

Top images from around the web for RC and RL Filters

  • File:RC Parallel Filter (with I Labels).svg - Wikipedia View original

    Is this image relevant?

  • File:RC Parallel Filter (with I Labels).svg - Wikipedia View original

    Is this image relevant?

1 of 2

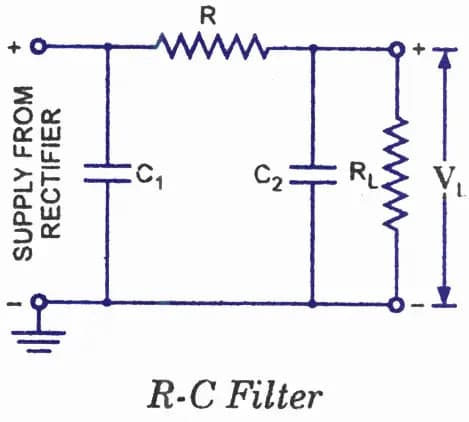

  • combines and to create low-pass or high-pass configurations
  • RC attenuates high-frequency signals while allowing low-frequency signals to pass through
  • RC blocks low-frequency signals and permits high-frequency signals to pass
  • utilizes resistor and to achieve filtering effects
  • RL low-pass filter allows low-frequency signals to pass while attenuating high-frequency signals
  • RL high-pass filter blocks low-frequency signals and allows high-frequency signals to pass

LC and RLC Filters

  • consists of inductor and capacitor, creating resonant circuits
  • LC filters can form band-pass or band-stop configurations
  • LC allows a specific range of frequencies to pass while attenuating others
  • LC blocks a specific range of frequencies while allowing others to pass
  • combines resistor, inductor, and capacitor for more complex filtering characteristics
  • RLC filters can achieve sharper cutoff slopes and better frequency selectivity compared to simpler filter types

Filter Characteristics

Filter Order and Roll-off Rate

  • determines the number of reactive components (capacitors or inductors) in the filter circuit
  • Higher-order filters provide steeper roll-off slopes and improved frequency selectivity
  • First-order filters have one reactive component and a roll-off rate of -20 dB/decade
  • Second-order filters contain two reactive components and achieve a roll-off rate of -40 dB/decade
  • Roll-off rate measures how quickly the filter attenuates signals outside the passband
  • Steeper roll-off rates result in more effective separation of desired and undesired frequency components

Q Factor and Bandwidth

  • Q factor () quantifies the sharpness of the filter's
  • Higher Q factors indicate narrower bandwidths and more selective filtering
  • Q factor calculated as the ratio of center frequency to for bandpass filters
  • Low Q factors result in broader passbands and gentler transitions between pass and stop bands
  • Bandwidth defines the range of frequencies that a filter allows to pass with minimal attenuation
  • Narrower bandwidths provide more selective filtering but may reduce the overall signal strength

RLC Filter Parameters

Damping Ratio and System Response

  • measures how quickly oscillations in a system decay over time
  • Underdamped systems (ζ<1\zeta < 1) exhibit oscillatory behavior with decreasing amplitude
  • Critically damped systems (ζ=1\zeta = 1) return to equilibrium without oscillation in the shortest time
  • Overdamped systems (ζ>1\zeta > 1) approach equilibrium slowly without oscillation
  • Damping ratio affects the transient response and settling time of RLC filters
  • Lower damping ratios result in more pronounced peaks in the frequency response

Natural Frequency and Resonance

  • represents the frequency at which a system naturally oscillates without external forces
  • In RLC circuits, natural frequency calculated as ωn=1LC\omega_n = \frac{1}{\sqrt{LC}}
  • Resonance occurs when the driving frequency matches the natural frequency of the system
  • At resonance, RLC circuits exhibit maximum energy transfer between the inductor and capacitor
  • Natural frequency determines the center frequency of bandpass and bandstop RLC filters
  • Adjusting the natural frequency allows tuning of the filter's frequency response to desired specifications
